fuse box Citroen DS4 RHD 2013.5 1.G Owner's Manual

15Familiarisation
Instruments and controls




1.
Steering wheel adjustment control.

2.
Steering mounted control paddles for the
electronic gearbox.

3.
Lighting and direction indicator control
stalk.

4.
Speaker (tweeter).

5.
Windscreen demisting vent.

6.
Sunshine sensor.

7.
Passenger's airbag.

8.
Glove box / Audio/video sockets /
Passenger's airbag deactivation switch /
Fusebox.

9.
Bonnet release.

10.
Heated seat control.

11.
Lumbar massage control.

12 .
Electric parking brake.

13.
Gear lever for a manual gearbox or
selector lever for an electronic or automatic
gearbox.

14 .
Large multifunctional storage unit.

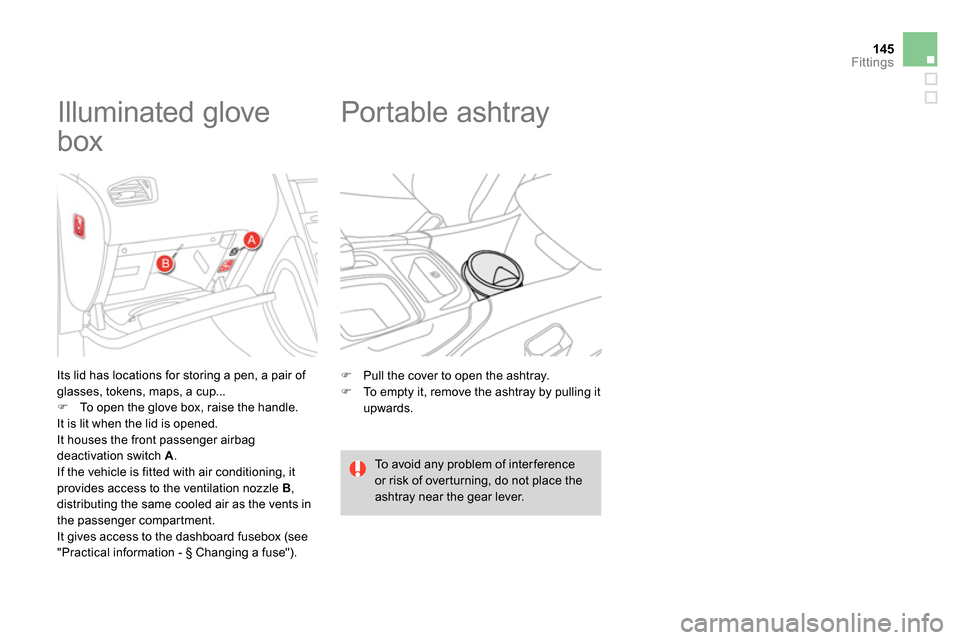

145Fittings











Illuminated glove
box

Its lid has locations for storing a pen, a pair of
glasses, tokens, maps, a cup...



To open the glove box, raise the handle.
It is lit when the lid is opened.
It houses the front passenger airbag
deactivation switch A
.
If the vehicle is fitted with air conditioning, it
provides access to the ventilation nozzle B
,
distributing the same cooled air as the vents in
the passenger compartment.
It gives access to the dashboard fusebox (see
"Practical information - § Changing a fuse").






Portable ashtray





Pull the cover to open the ashtray.


To empty it, remove the ashtray by pulling it
upwards.
To avoid any problem of inter ference
or risk of overturning, do not place the
ashtray near the gear lever.

237Checks














Petrol engines

The various caps and covers allow access for
checking the levels of the various fluids and for
replacing certain components.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash reser voir.

3.
Coolant reservoir.

4.
Brake fluid reser voir.

5.
Battery/Fuses.

6.
Fusebox.

7.
Air filter.

8.
Engine oil dipstick.

9.
Engine oil filler cap.

Diesel engines

The various caps and covers allow access for
checking the levels of the various fluids, for
replacing certain components and for priming
the fuel system.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash reser voir.

3.
Coolant reservoir.

4.
Brake fluid reser voir.

5.
Battery/Fuses.

6.
Fusebox.

7.
Air filter.

8.
Engine oil dipstick.

9.
Engine oil filler cap.

10.
Priming pump * .

11.
Bleed screw * .

*
According to engine.

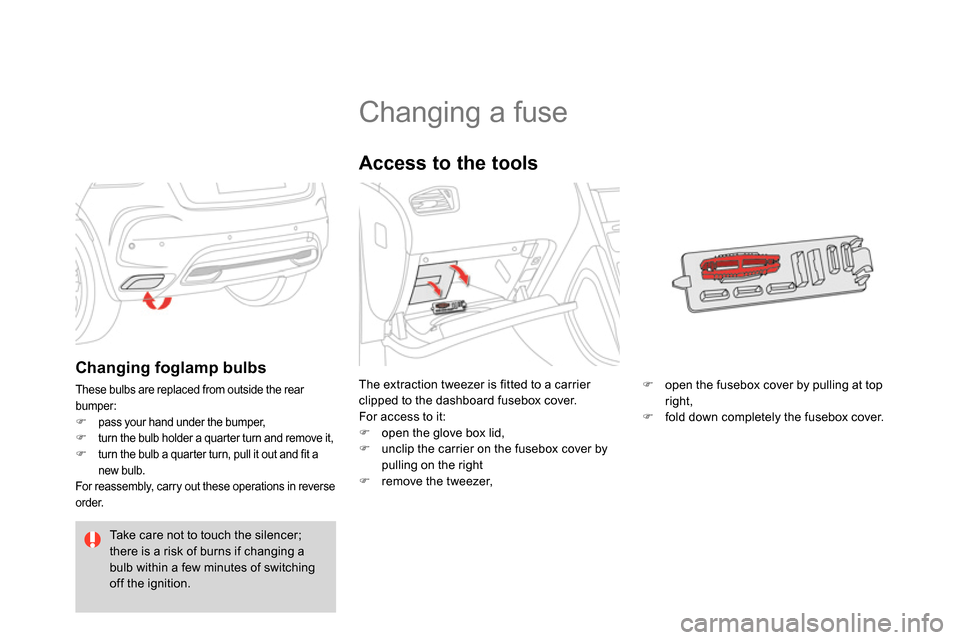

Changing a fuse

The extraction tweezer is fitted to a carrier
clipped to the dashboard fusebox cover.
For access to it:



open the glove box lid,


unclip the carrier on the fusebox cover by
pulling on the right


remove the tweezer,


Access to the tools



open the fusebox cover by pulling at top
right,


fold down completely the fusebox cover.








Changing foglamp bulbs
These bulbs are replaced from outside the rear
bumper:



pass your hand under the bumper,

turn the bulb holder a quarter turn and remove it,

turn the bulb a quarter turn, pull it out and fit a
new bulb.
For reassembly, carry out these operations in reverse
order.
Take care not to touch the silencer;
there is a risk of burns if changing a
bulb within a few minutes of switching
off the ignition.

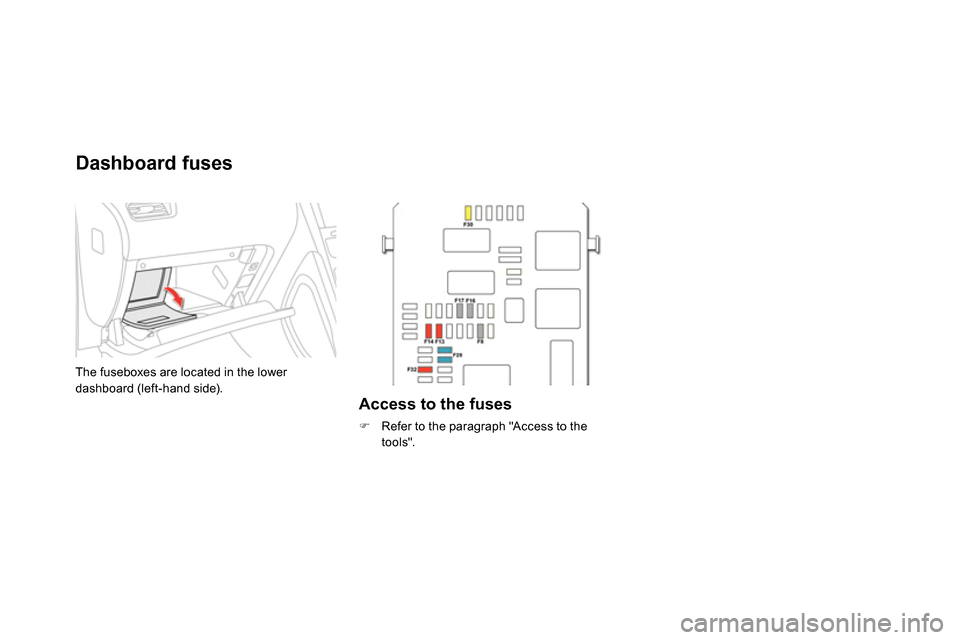

Dashboard fuses

The fuseboxes are located in the lower
dashboard (left-hand side).

Access to the fuses




Refer to the paragraph "Access to the
tools".

271Practical information

Fusebox 1



Fuse N°



Rating


Functions



F8



3 A

Alarm siren, alarm ECU.


F13



10 A

Cigarette lighter.


F14



10 A

12 V socket in boot.


F16



3 A

Lighting for the large multifunctional storage unit, rear map
reading lamps, glove box illumination.


F17



3 A

Sun visor illumination, front map reading lamps.


F28



15 A

Audio system, radio (after-market).


F30



20 A

Rear wiper.


F32



10 A

Hi-Fi amplifier.

Fusebox 2



Fuse N°



Rating


Functions



F36



15 A

Rear 12 V socket.


F37



-

Not used.


F38



-

Not used.


F39



-

Not used.


F40



-

Not used.

Fuse tables

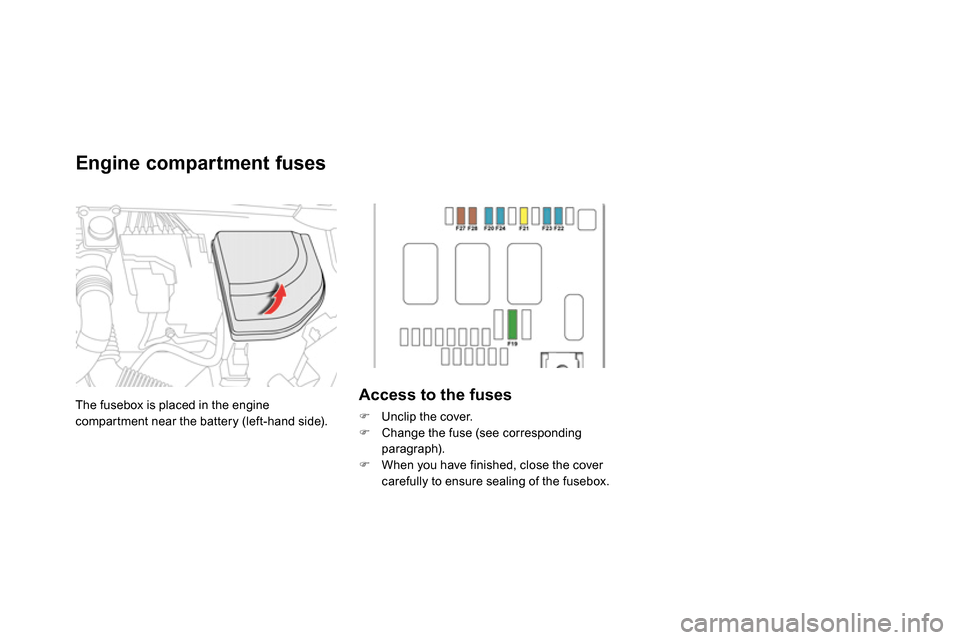

The fusebox is placed in the engine
compartment near the battery (left-hand side).
Access to the fuses




Unclip the cover.


Change the fuse (see corresponding
paragraph).


When you have finished, close the cover
carefully to ensure sealing of the fusebox.



Engine compartment fuses

Instruments and controls

Instrument panels 38- 42
Warning lamps 43 -53
Indicators 54-56
Manual test 57
Setting buttons 58 - 61


- trip distance recorder

- lighting dimmer / black panel

- customisation of dials and screens


Stop & Start 216 -218
W iper c ontrols 13 3 -137
Trip computer 70 -74

Door mirrors 94-95
Electric windows 116 -117

Hazard warning lamps 176 -177
Central locking 108-109
Black panel 60
Adjusting the steering wheel 93
Horn 177
Multifunction screens 64- 69
Seat belt and front passenger airbag
warning display screen 182-183

Manual gearbox 203
Electronic gearbox 204-207
Automatic gearbox 208 -211
Gear efficiency indicator 213
Parking brake 194-201, 202
Interior mood lighting 139

Rear view mirror 96
Emergency or assistance call 177, 299
Courtesy lamps 138

Ventilation 78-79
Manual air conditioning 80 - 81, 86
Digital air conditioning 82- 86
Demisting / Defrosting
the rear screen 87
Audio system 355 -385
Setting the date / time 67, 69

eMyWay satellite navigation system 301-354
Setting the date / time 67, 69
Lighting c ontrols 124 -128
Adjusting headlamps 130

Dashboard fuses 268 -271
Memorising speeds 222
Speed limiter 223-224
Cruise control 225 -226

Opening the bonnet 235

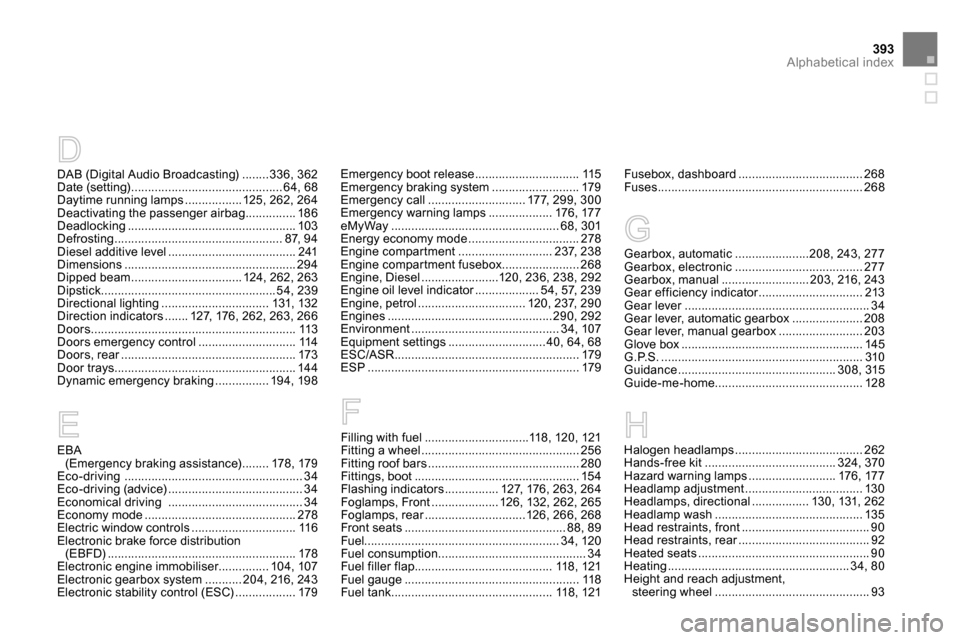

393Alphabetical index
DAB (Digital Audio Broadcasting) ........336, 362
Date (setting) ............................................. 64, 68
Daytime running lamps ................. 125, 262, 264
Deactivating the passenger airbag ............... 186
Deadlocking .................................................. 103
Defrosting .................................................. 87, 94
Diesel additive level ...................................... 241
Dimensions ................................................... 294
Dipped beam ................................. 124, 262, 263
Dipstick .................................................... 54, 239
Directional lighting ................................ 131, 132
Direction indicators ....... 127, 176, 262, 263, 266
Doors ............................................................. 113
Doors emergency control ............................. 114
Doors, rear .................................................... 173
Door trays ...................................................... 144
Dynamic emergency braking ................ 194, 198
Filling with fuel ...............................118, 120, 121
Fitting a wheel ............................................... 256
Fitting roof bars ............................................. 280
Fittings, boot ................................................. 154
Flashing indicators ................ 127, 176, 263, 264
Foglamps, Front .................... 126, 132, 262, 265
Foglamps, rear ..............................126, 266, 268
Front seats ................................................ 88, 89
Fuel.......................................................... 34, 120
Fuel consumption ............................................ 34
Fuel filler flap ......................................... 118, 121
Fuel gauge .................................................... 118
Fuel tank................................................ 118, 121 EBA
(Emergency braking assistance) ........ 178, 179
Eco-driving ..................................................... 34
Eco-driving (advice) ........................................ 34
Economical driving ........................................ 34
Economy mode ............................................. 278
Electric window controls ............................... 116
Electronic brake force distribution
(EBFD) ........................................................ 178
Electronic engine immobiliser............... 104, 107
Electronic gearbox system ........... 204, 216, 243
Electronic stability control (ESC) .................. 179
D
F
EG
H
Gearbox, automatic ......................208, 243, 277
Gearbox, electronic ...................................... 277
Gearbox, manual .......................... 203, 216, 243
Gear efficiency indicator ............................... 213
Gear lever ....................................................... 34
Gear lever, automatic gearbox ..................... 208
Gear lever, manual gearbox ......................... 203
Glove box ...................................................... 145
G.P.S. ............................................................ 310
Guidance ............................................... 308, 315
Guide-me-home ............................................ 128
Halogen headlamps ...................................... 262
Hands-free kit ....................................... 324, 370
Hazard warning lamps .......................... 176, 177
Headlamp adjustment ................................... 130
Headlamps, directional ................. 130, 131, 262
Headlamp wash ............................................ 135
Head restraints, front ...................................... 90
Head restraints, rear ....................................... 92
Heated seats ................................................... 90
Heating ...................................................... 34, 80
Height and reach adjustment,
steering wheel .............................................. 93 Emergency boot release ............................... 115
Emergency braking system .......................... 179
Emergency call ............................. 177, 299, 300
Emergency warning lamps ................... 176, 177
eMyWay .................................................. 68, 301
Energy economy mode ................................. 278
Engine compartment ............................ 237, 238
Engine compartment fusebox ....................... 268
Engine, Diesel .......................120, 236, 238, 292
Engine oil level indicator ................... 54, 57, 239
Engine, petrol ................................ 120, 237, 290
Engines .................................................290, 292
Environment ............................................ 34, 107
Equipment settings .............................40, 64, 68
ESC/ASR ....................................................... 179
ESP ............................................................... 179Fusebox, dashboard ..................................... 268
Fuses ............................................................. 268
