oil capacities Citroen DS4 RHD 2013.5 1.G Owner's Manual

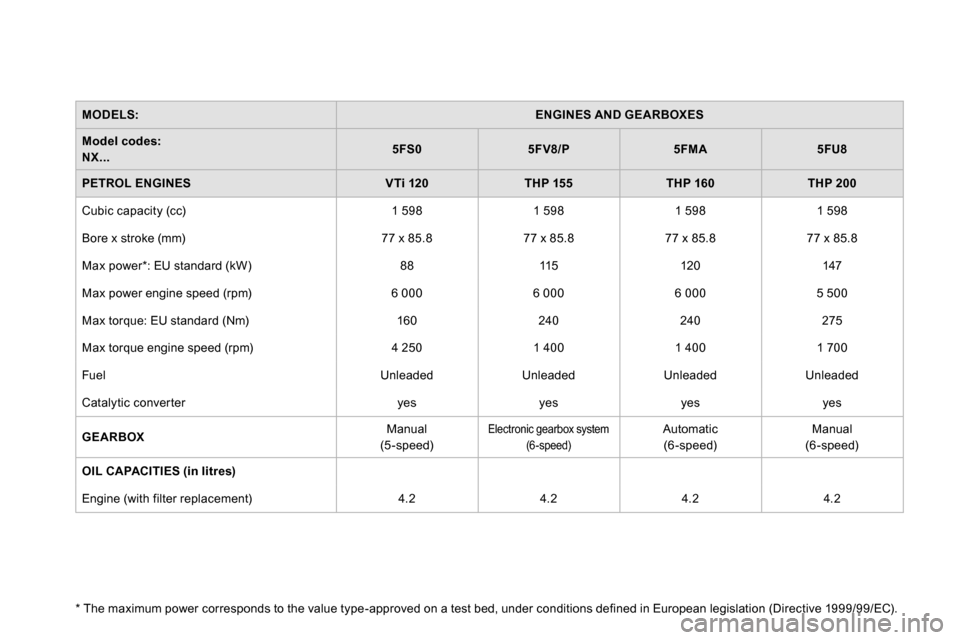

MODELS:



ENGINES AND GEARBOXES



Model codes:


NX...


5FS0



5FV8/P



5FMA



5FU8



PETROL ENGINES


VTi 120



THP 155



THP 160



THP 200


Cubic capacity (cc)
1 598
1 598
1 598
1 598
Bore x stroke (mm)
77 x 85.8
77 x 85.8
77 x 85.8
77 x 85.8
Max power * : EU standard (kW)
88
115
120
147
Max power engine speed (rpm)
6 000
6 000
6 000
5 500
Max torque: EU standard (Nm)
160
240
240
275
Max torque engine speed (rpm)
4 250
1 400
1 400
1 700
Fuel
Unleaded
Unleaded
Unleaded

Unleaded
Catalytic conver ter
yes
yes
yes
yes

GEARBOX

Manual
(5-speed)


Electronic gearbox system
(6-speed)

Automatic
(6-speed)
Manual
(6-speed)

OIL CAPACITIES (in litres)




Engine (with filter replacement)
4.2
4.2
4.2
4.2

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

MODELS:



ENGINES AND GEARBOXES



Model codes:
NX...


9HP0



9HR8

9HR8/S



9HR8/PS



RHH8



RHHA



DIESEL ENGINES


HDi 90 PEF



HDi 110 PEF



HDi 160 PEF


Cubic capacity (cc)
1 560
1 560
1 997
Bore x stroke (mm)
75 x 88.3
75 x 88.3
85 x 88
Max power * : EU standard (kW)
68
82
120
Max power engine speed (rpm)
4 000
3 600
4 000
Max torque: EU standard (Nm)
230
270
340
Max torque engine speed (rpm)
1 750
1 750
2 000
Fuel
Diesel
Diesel
Diesel
Catalytic conver ter
yes
yes
Ye s
Particle emissions filter (PEF)
yes
yes
Ye s

GEARBOX

Manual
(5-speed)
Manual
(6-speed)
Electronic
(6-speed)
Manual
(6-speed)
Automatic
(6-speed)

OIL CAPACITIES (in litres)




Engine (with filter replacement)
3.75
3.75
3.75
-

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

.../S:
e-HDi model fitted with Stop & Start.
