key Citroen DS4 RHD 2014.5 1.G Owner's Guide

109
Mirrors
Each fitted with an adjustable mirror glass
permitting the lateral rearward vision necessary
for overtaking or parking. They can also be
folded for parking in confined spaces.
Demisting - DefrostingAdjustment
F Move control A to the right or to the left to
select the corresponding mirror.
F

M
ove control B in all four directions to
adjust.
F

R
eturn control A to the central position.
Door mirrors
As a safety measure, the mirrors
should be adjusted to reduce the blind
spots.
Folding
F From outside: lock the vehicle using the remote control or the key.
F

F
rom inside: with the ignition on, pull the
control A in the central position rear wards.
If the mirrors are folded using control

A,
t

hey will not unfold when the vehicle is
unlocked. Pull again on control A .
If your vehicle is fitted with heated
mirrors, the demisting-defrosting
operates by switching on the heated
rear screen.
Refer to the "Rear screen demist-defrost"
section.
The rear screen demist - defrost can only
operate when the engine is running. The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.
Comfort

Unfolding
F From outside: unlock the vehicle using the remote control or the key.
F

F
rom inside: with the ignition on, pull the
control A in the central position rear wards.
The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.
If necessary the mirrors can be folded
manually.
Automatic tilting in reverse gear
System which provides a view of the ground
during parking manoeuvres in reverse gear.
Programming
F With the engine running, engage reverse g e a r.
F

S
elect and adjust the left-hand and right-
hand mirrors in succession.
The adjustment is stored immediately.
Switching on
F With the engine running, engage reverse g e a r.
F

M
ove control A to the right or to the left to
select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its
programming.
Switching off
F Exit reverse gear and wait ten seconds.
or
F

R
eturn control A to the central position.
The mirror glass returns to its initial position.
The mirror glass also returns to its initial
position:
-

i
f the speed exceeds 6 mph (10 km/h),
-

i
f the engine is switched off.

11 9

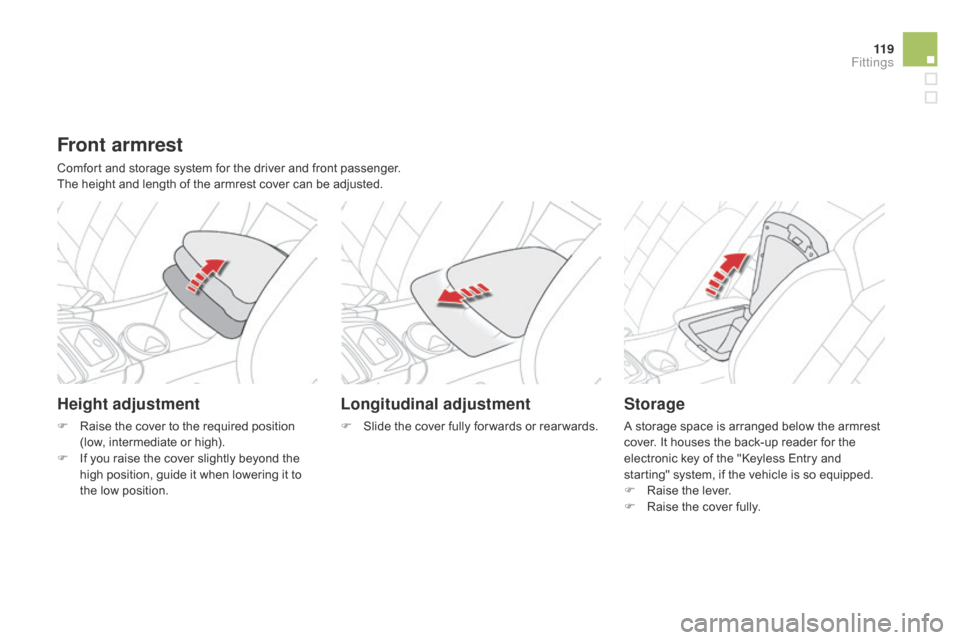

Front armrest
Comfort and storage system for the driver and front passenger.
The height and length of the armrest cover can be adjusted.
Height adjustment
F Raise the cover to the required position (low, intermediate or high).
F

I
f you raise the cover slightly beyond the
high position, guide it when lowering it to
the low position.
Longitudinal adjustment
F Slide the cover fully for wards or rear wards.
Storage
A storage space is arranged below the armrest
cover. It houses the back-up reader for the
electronic key of the "Keyless Entry and
starting" system, if the vehicle is so equipped.
F

Ra
ise the lever.
F

R
aise the cover fully.
Fittings

Front armrest
Comfort and storage device for the driver and front passenger.
The length of the armrest cover can be adjusted.
Storage
There is a storage space below the cover of
the armrest. Depending on equipment, this can
contain the back-up reader for the electronic
key of the Keyless Entry and Starting system.
F
R
aise the cover fully.
Longitudinal adjustment
F To move for wards, raise the lever. The armrest slides for wards to its stop.
F

T
o stow it, slide it fully back and press
down to lock it.

127

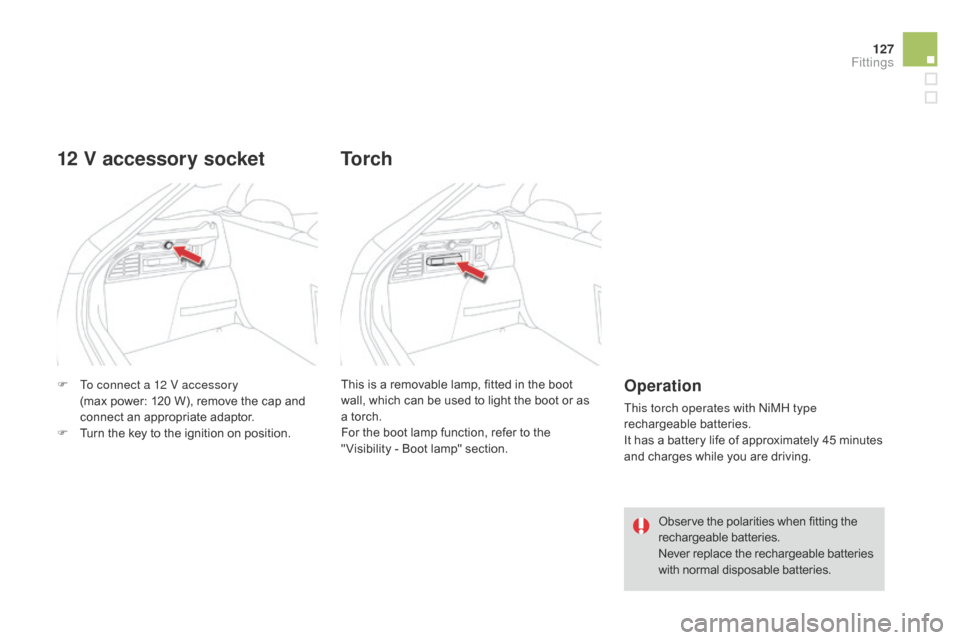

F To connect a 12 V accessory (max power: 120 W), remove the cap and
connect an appropriate adaptor.
F

T
urn the key to the ignition on position.
12 V accessory socket
This is a removable lamp, fitted in the boot
wall, which can be used to light the boot or as
a torch.
For the boot lamp function, refer to the
" Visibility - Boot lamp" section.
To r c h
Operation
This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately 45 minutes
and charges while you are driving.
Observe the polarities when fitting the
rechargeable batteries.
Never replace the rechargeable batteries
with normal disposable batteries.
Fittings

137
Welcome lighting
The remote switching on of the lighting makes your access to the vehicle easier in poor light. It is
activated depending on the ambient light level detected by the sunshine sensor.
Switching onSwitching off
F Press the open padlock on the
remote control or one of the front
door handles with the "Keyless
Entry and Starting" system.
The sidelamps and dipped beam headlamps,
as well as the side spotlamps, located under
the door mirrors, come on; your vehicle is also
unlocked. Activation or deactivation, as well as
the duration of the lighting duration
for the welcome lighting can be set
via the vehicle configuration menu.
Programming
The welcome lighting switches off automatically
after a programmed time, when the ignition is
switched on or on locking the vehicle.
Visibility

1. Front courtesy lamp
2. Front map reading lamps
3.
R

ear courtesy lamp
4.
R

ear map reading lamps
Courtesy lamps
In this position, the courtesy
lamp comes on gradually:
Front and rear courtesy lamps
- when the vehicle is unlocked,
- w hen the key is removed from the ignition,
-

o
n opening a door,
-

w
hen the remote control locking button is
used to locate your vehicle.
It switches off gradually:
-

w
hen the vehicle is locked,
-

w
hen the ignition is switched on,
-

3
0 seconds after the last door is closed.Permanently off.
Permanent lighting. In permanent lighting mode, the
lighting time varies according to the
circumstances:
-
w ith the ignition off, approximately
ten minutes,
-

i
n energy economy mode,
approximately thirty seconds,
-

w
ith the engine running, unlimited.
When the courtesy lamp is in the
"permanent lighting" position, the rear
courtesy lamp also comes on, except if
it is in the "permanently off " position.
To switch off the rear courtesy lamp,
put it in the the "permanently off "
position.
Front and rear map reading
lamps
F With the ignition on, press the corresponding switch.
Take care not to put anything in contact
with the courtesy lamps.

165
Advice on child seats
The incorrect installation of a child seat in a
vehicle compromises the child's protection
in the event of an accident.
Ensure that there is no seat belt or seat belt
buckle under the child seat, as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for short journeys.
When installing a child seat using the seat
belt, ensure that the seat belt is tightened
correctly on the child seat and that it
secures the child seat firmly on the seat
of your vehicle. If your passenger seat is
adjustable, move it for wards if necessary.For optimum installation of the for ward
facing child seat, ensure that the back of
the child seat is as close as possible to the
backrest of the vehicle's seat, in contact if
possible.
You mst remove the head restraint before
installing a child seat with backrest to a
passenger seat.
Ensure that the head restraint is stored or
attached securely to prevent it from being
thrown around the vehicle in the event of
sharp braking. Refit the head restraint when
the child seat is removed.Installing a booster
seat
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a
booster seat which has a back, fitted with a
seat belt guide at shoulder level.
As a safety precaution, do not leave:
-

a c
hild or children alone and
unsupervised in a vehicle,
-

a c
hild or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
-

t
he keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors
and rear windows, use the child lock.
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
At rear seating positions, always leave
sufficient space between the front seat and:
-

a r

ear ward facing child seat,
-

t

he child's feet for a child seat fitted
forward facing.
To do this, move the front seat for wards
and, if necessary, move its backrest into the
upright position.
Children at the front
The legislation on carrying children on the
front passenger seat is specific to each
country. Refer to the legislation in force in
your country.
Deactivate the passenger airbag when a
rear ward facing child seat is installed on
the front seat.
Other wise, the child would risk being
seriously injured or killed if the airbag were
to inflate.
Child safety

Electric child lockRemote control system to prevent opening of the rear doors using their interior controls and use of
the rear electric windows.
The control is located on the dashboard, driver's side.
Switching on
F Press this button.
The indicator lamp in the button comes on,
accompanied by a message in the screen.
This indicator lamp remains on until the child
lock is switched off.
Switching off
F Press this button again.
The indicator lamp on button A goes off,
accompanied by a message in the screen.
This indicator lamp remains on while child lock
is switched on.
Any other status of the indicator lamp indicates
a fault with the electric child lock. Have it
checked by a CITROËN dealer or a qualified
workshop.This system is independent and in no
circumstances does it take the place of
the central locking control.
Check the status of the child lock each
time you switch on the ignition.
Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
In the event of a serious impact, the
electric child lock is switched off
automatically to permit the exit of the
rear passengers.

181

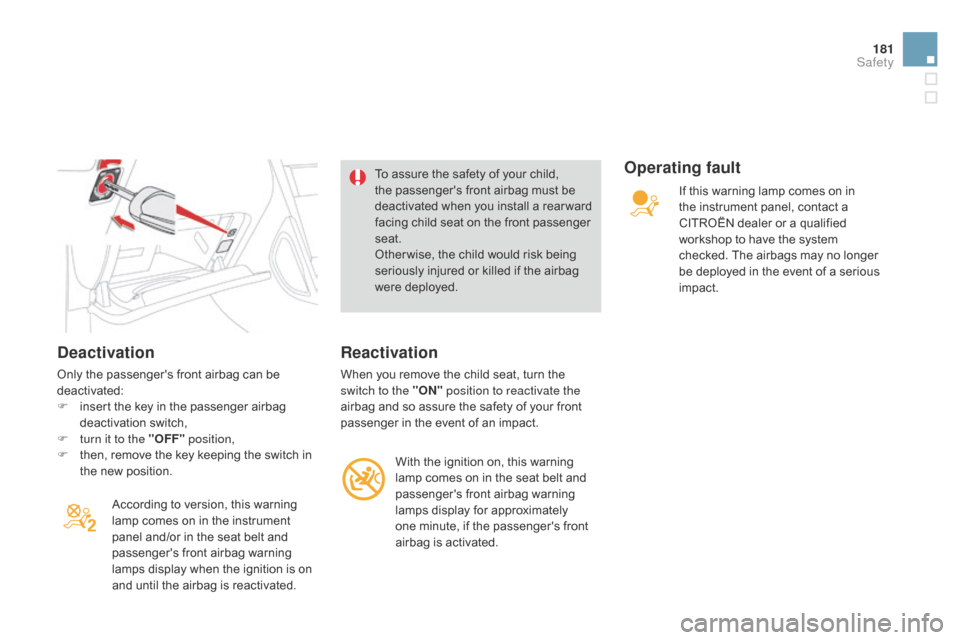

Deactivation
Only the passenger's front airbag can be
deactivated:
F
i
nsert the key in the passenger airbag
deactivation switch,
F

t
urn it to the "OFF" position,
F

t
hen, remove the key keeping the switch in
the new position.
According to version, this warning
lamp comes on in the instrument
panel and/or in the seat belt and
passenger's front airbag warning
lamps display when the ignition is on
and until the airbag is reactivated. To assure the safety of your child,
the passenger's front airbag must be
deactivated when you install a rear ward
facing child seat on the front passenger
seat.
Other wise, the child would risk being
seriously injured or killed if the airbag
were deployed.
Reactivation
When you remove the child seat, turn the
switch to the "ON"
position to reactivate the
airbag and so assure the safety of your front
passenger in the event of an impact.
W

ith the ignition on, this warning
lamp comes on in the seat belt and
passenger's front airbag warning
lamps display for approximately
one minute, if the passenger's front
airbag is activated.
Operating fault
If this warning lamp comes on in
the instrument panel, contact a
CITROËN dealer or a qualified
workshop to have the system
checked. The airbags may no longer
be deployed in the event of a serious
impact.
Safety
