key Citroen DS4 RHD 2014.5 1.G Owner's Guide

75
Remote control problem /
reinitialisation
If the problem persists, contact a CITROËN dealer
or a qualified workshop as soon as possible.
Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate
your

vehicle.
F

P

lace the back-up key (integral with the
remote control) in the lock to unlock your
vehicle. F
O
pen the front armrest.
●
R
aise the mat by its tongue and remove it.
●
P
lace the electronic key on the back-up
reader.
F
S
witch on the ignition by pressing
the "
START/STOP " button.
The electronic key is fully operational again.
Remember to refit the mat below the armrest
after removing the reinitialised electronic key.
Access

Do not throw the remote control batteries away, they contain metals which are harmful to the environment.
Take them to an approved collection point.
Lost keys, remote control, electronic key
Visit a CITROËN dealer with the vehicle's V5 registration document and your personal identification documents.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a replacement.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock
the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition or take the electronic key when you leave the vehicle, even
for a short time.
Electrical interference
The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong
magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure that the keys in your possession are the only ones which can start
the vehicle.

77
Locking
F Press this button to lock the vehicle.
The red indicator lamp in the button comes on.

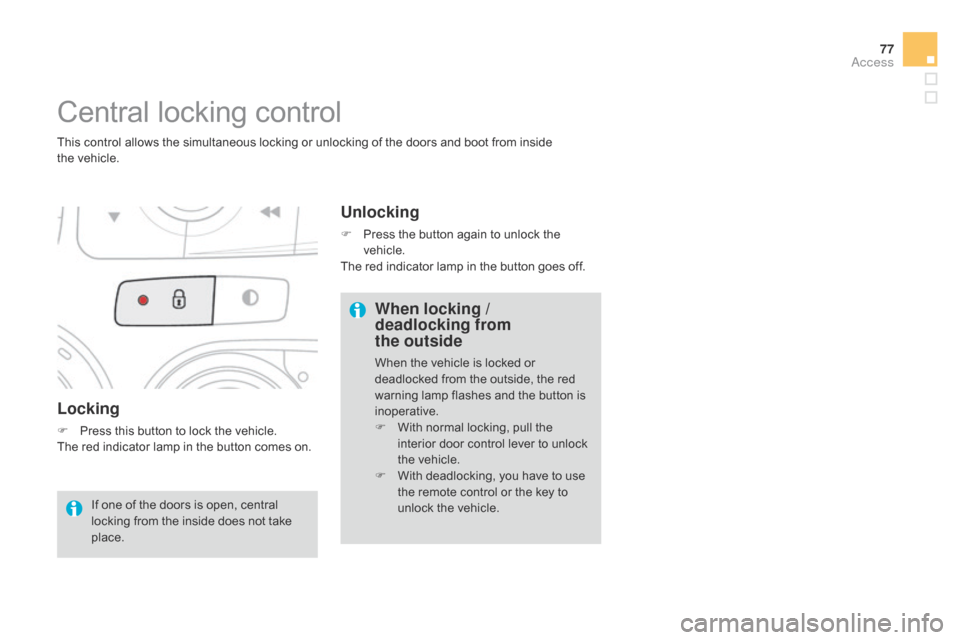

Central locking control
This control allows the simultaneous locking or unlocking of the doors and boot from inside
the vehicle.
If one of the doors is open, central
locking from the inside does not take
place.
Unlocking
F Press the button again to unlock the vehicle.
The red indicator lamp in the button goes off.
When locking /
deadlocking from
the outside
When the vehicle is locked or
deadlocked from the outside, the red
warning lamp flashes and the button is
inoperative.
F

W
ith normal locking, pull the
interior door control lever to unlock
the vehicle.
F

W
ith deadlocking, you have to use
the remote control or the key to
unlock the vehicle.
Access

Locking the vehicle with full
alarm system
Activation
F Switch off the ignition and get out of the vehicle.
F

L
ock the vehicle with the remote control.
or
F

L
ock the vehicle with the "Keyless Entry
and Starting" system. The monitoring system is active: the indicator
lamp in the button flashes once per second
and the direction indicators come on for
about
2 seconds.
Following an instruction to lock the vehicle,
the exterior perimeter monitoring is activated
after a delay of 5 seconds and the interior
volumetric and anti-tilt monitoring after a delay
of 45 seconds.
Deactivation
F Press the unlocking button on the remote
control.
or
F

U
nlock the vehicle with the "Keyless Entry
and Starting" system.
The monitoring system is deactivated: the
indicator lamp in the button goes off and the
direction indicators flash for about 2 seconds.
When the vehicle automatically locks
itself again (as happens if a door or
boot is not opened within 30 seconds of
unlocking), the monitoring system is not
reactivated automatically. To reactivate
the system, it is necessary to unlock
the vehicle and then lock it again using
the remote control or the "Keyless
Entry and Starting" system.
If an opening (door, boot...) is not closed
fully, the vehicle is not locked but the exterior
perimeter monitoring will be activated after a
delay of 45 seconds at the same time as the
interior volumetric and anti-tilt monitoring.

81
Deactivate the interior volumetric and anti-tilt
monitoring to avoid unwanted triggering of the
alarm in certain cases such as:
-
l
eaving a pet in the vehicle,
-

l
eaving a window partially open,
-

w
ashing your vehicle,
-

c
hanging a wheel,
-

h
aving your vehicle towed,
-

t
ransport by sea.
Locking the vehicle
with exterior perimeter
monitoring only
Deactivation of the interior
volumetric and anti-tilt monitoring
F Switch off the ignition and within ten seconds, press the button until the
indicator lamp is on continuously.
F

G
et out of the vehicle.
F

I
mmediately lock the vehicle using the
remote control or the Keyless Entry and
Starting system.
The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second. To be effective, this deactivation must
be carried out each time the ignition is
switched off.
Reactivation of the interior
volumetric and anti-tilt
monitoring
F Deactivate the perimeter monitoring by
unlocking the vehicle with the remote
control or the Keyless Entry and Starting
system.
T

he indicator lamp in the button goes off.
F

R
eactivate all monitoring by locking the
vehicle with the remote control or the
Keyless Entry and Starting system.
T

he indicator lamp in the button flashes
once per second again.
Access

Triggering of the alarm
This is indicated by sounding of the siren
and flashing of the direction indicators for
thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
When the vehicle is unlocked using the remote
control or the Keyless Entry and Starting
system, rapid flashing of the indicator lamp
in the button informs you that the alarm was
triggered during your absence. When the
ignition is switched on, this flashing stops
immediately.
Failure of the remote control
To deactivate the monitoring functions:
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key (integral to the remote control) in the
driver's door lock.
F

u
nlock the vehicle using the key (integral to
the remote control) in the driver's door lock,
F
o
pen the door; the alarm is triggered,
F
s
witch on the ignition; the alarm stops; the
indicator lamp in the button goes off.
Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault with the system.
Have it checked by a CITROËN dealer or a
qualified workshop.

83

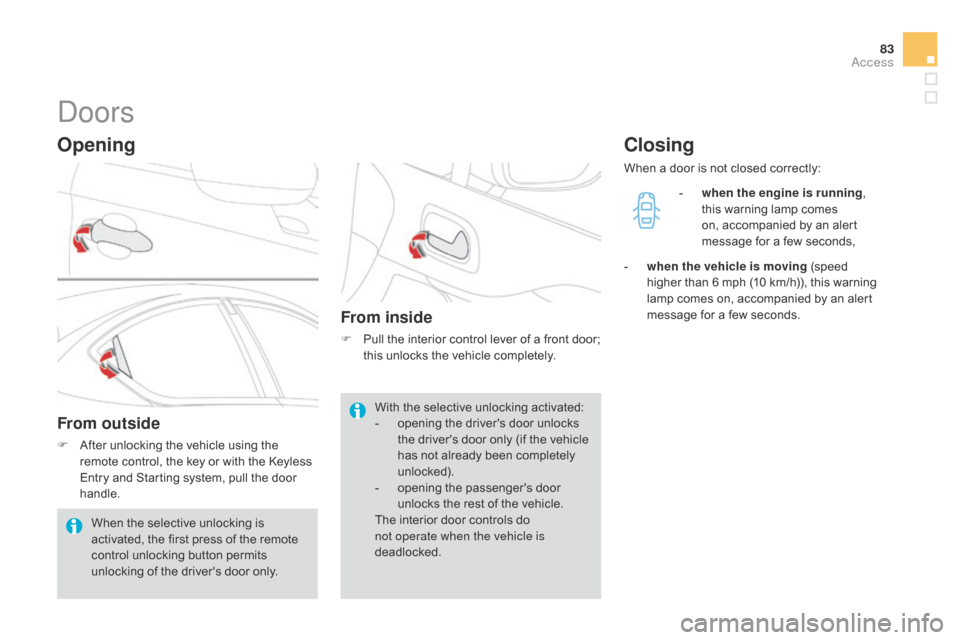

Doors
Opening
From outside
F After unlocking the vehicle using the remote control, the key or with the Keyless
Entry and Starting system, pull the door
handle.
From inside
F Pull the interior control lever of a front door; this unlocks the vehicle completely.
Closing
When a door is not closed correctly:
-
w
hen the engine is running ,
this warning lamp comes
on, accompanied by an alert
message for a few seconds,
-

w
hen the vehicle is moving (speed
higher than 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an alert
message for a few seconds.
When the selective unlocking is
activated, the first press of the remote
control unlocking button permits
unlocking of the driver's door only. With the selective unlocking activated:
-

o

pening the driver's door unlocks
the driver's door only (if the vehicle
has not already been completely
unlocked).
-

o

pening the passenger's door
unlocks the rest of the vehicle.
The interior door controls do
not operate when the vehicle is
deadlocked.
Access

Boot
F After unlocking the boot or the vehicle using the remote control or the key, press
the opening control, then raise the tailgate.
Opening using the remote
control Closing
F Lower the tailgate using the interior grab
handle.
F

I
f necessary, press down on the tailgate to
fully close it.
-

w
hen the engine is running ,
this warning lamp comes on,
accompanied by the display of an
alert message for a few seconds,
-

w
hen the vehicle is moving (speed above
6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal
and the display of an alert message for a
few
seconds.
If the tailgate is not closed correctly:

85

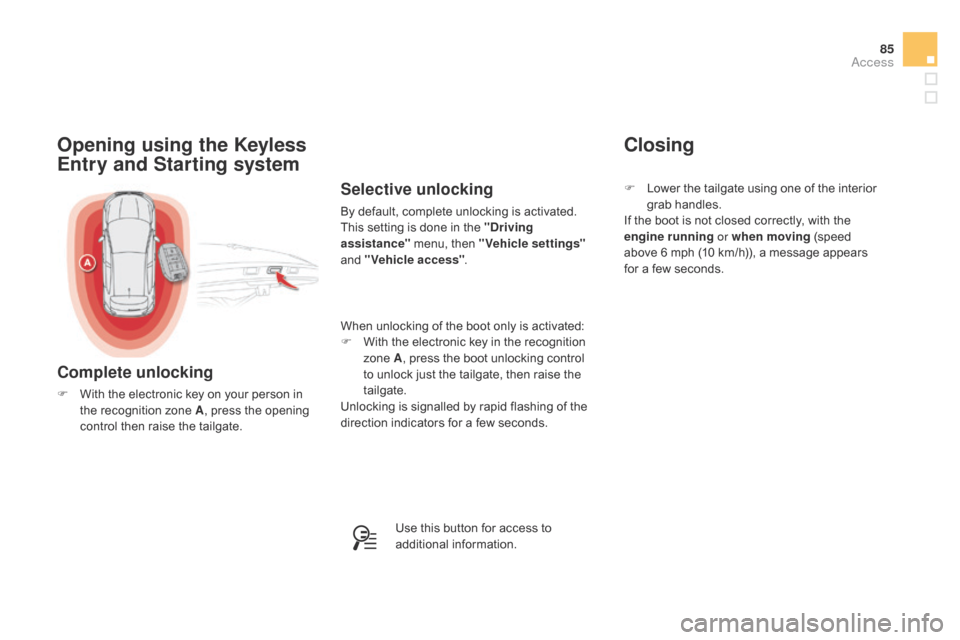

Opening using the Keyless
Entry and Starting system
Complete unlocking
F With the electronic key on your person in the recognition zone A , press the opening
control then raise the tailgate.
Selective unlocking
By default, complete unlocking is activated.
This setting is done in the "Driving
assistance" menu, then "Vehicle settings"
and "Vehicle access" .
When unlocking of the boot only is activated:
F

W
ith the electronic key in the recognition
zone A , press the boot unlocking control
to unlock just the tailgate, then raise the
tailgate.
Unlocking is signalled by rapid flashing of the
direction indicators for a few seconds.
Use this button for access to
additional information. F

L
ower the tailgate using one of the interior
grab handles.
If the boot is not closed correctly, with the
engine running or when moving (speed
above 6 mph (10 km/h)), a message appears
for a few seconds.
Closing
Access

Safety anti-pinch
When the window rises and meets an obstacle,
it stops and partially lowers again.
Reinitialisation
If a window does not rise automatically, its
operation must be reinitialised:
F
p
ull the control until the window stops,
F

r
elease the control and pull it again until
the window closes fully,
F

c
ontinue to hold the control for
approximately one second after the window
has closed,
F

p
ress the control to lower the window
automatically to the low position,
F

w
hen the window has reached the low
position, press the control again for
approximately one second.
The safety anti-pinch function is not
operational during these operations.
If the window cannot be closed (for
example, in the presence of ice), once
the window has lowered:
F

p

ress and hold the control until the
window opens fully,
F

t

hen pull the control immediately
and hold it until the window closes,
F

c

ontinue to hold the control for
approximately one second after the
window has closed.
The safety anti-pinch function is not
operational during these operations. If an obstacle is encountered during
operation of the electric windows, you
must reverse the movement of the
window. To do this, press the control
concerned.
When the driver operates the
passenger's electric window control,
they must ensure that nothing is
preventing the windows closing
c o r r e c t l y.
The driver must ensure that the
passengers use the electric windows
c o r r e c t l y.
Be particularly aware of children when
operating the windows.
Be aware of passengers and/or other
persons present when closing the
windows with the key or the "Key-
less Entry and Starting" system.
Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
