Petrol-Diesel instrument panel
1.
Rev counter (x 1 000 rpm or tr/min),graduation according to engine (petrol or
Diesel).2.
Fuel gauge.3.Engine coolant temperature gauge. 4.
Speedometer (mph or km/h).5.
Cruise control or speed limiter settings.A
.Main lighting and controls dimmer.
B.- Successive shor t presses: under-inflation
detection, recall servicin
g information, alert log.
- Long press: set the function selected to
zero (service indicator or trip recorder). 6
. Gear shift indicator for a manual gearboxor gear lever position and gear for an
electronic gearbox system or automaticgearbox.
7.Instrument panel screen: trip recorder,
aler t messages or state of functions (e.g.: oil pressure, battery, door open, ...),
trip computer, media, satellite navigation.8. Digital speedometer (mph or km/h).

Dials and screens
Control buttons

Lost electronic key
Visit a CITROËN dealer with the vehicle's registration document and your personal identification documents.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a replacement.
Electronic key
The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without
you being aware of it.Do not repeatedly press the buttons of your electronic key out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised.The electronic key cannot operate as a remote control when it is in the reader or even when the ignition is switched on.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by the emergency ser vices more difficult in an emergency.
As a safety precaution (with children on board), take the Keyless Entry and Starting electronic key when you leave the vehicle, even for a shorttime.
Electrical interference
The Keyless Entry and Star ting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strongmagnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions. Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure that the keys in your possession are the only ones which can star t the vehicle.

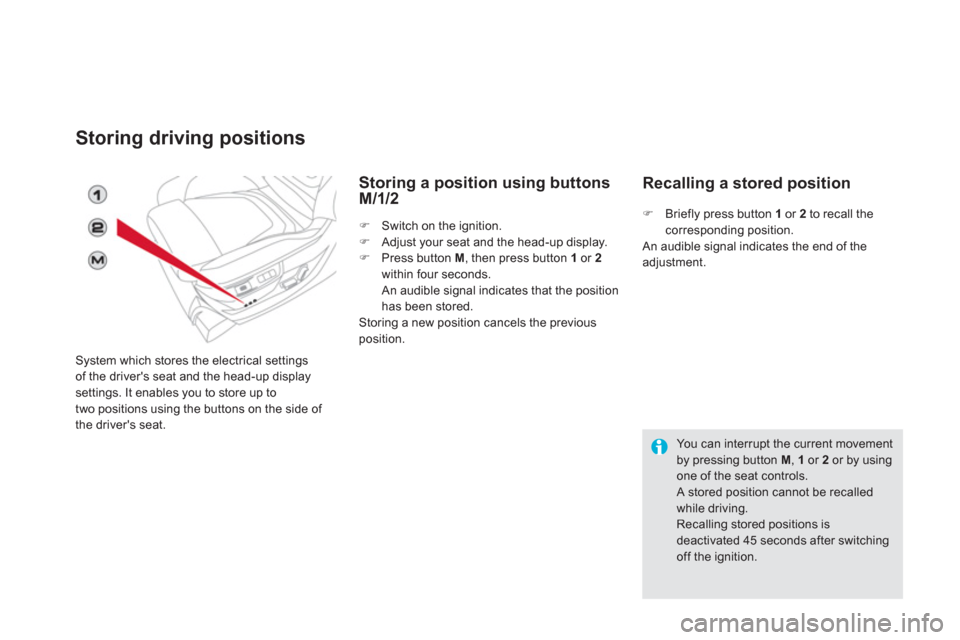

Storing driving positions
System which stores the electrical settings
of the driver's seat and the head-up display settings. It enables you to store up to
two positions using the buttons on the side of
the driver's seat.

Storing a position using buttons
M/1/2
) Switch on the ignition. )
Adjust your seat and the head-up display.)
Press button M
, then press button 1or 2within four seconds.
An audible signal indicates that the positionhas been stored.
Storing a new position cancels the previous
position.

Recalling a stored position
)Briefly press button 1
or 2to recall the corresponding position.
An audible signal indicates the end of the
adjustment.
You can interrupt the current movementby pressing button M, 1
or 2
or by using one of the seat controls. A stored position cannot be recalled while driving. Recalling stored positions is deactivated 45 seconds after switching off the ignition.

Heating and Ventilation

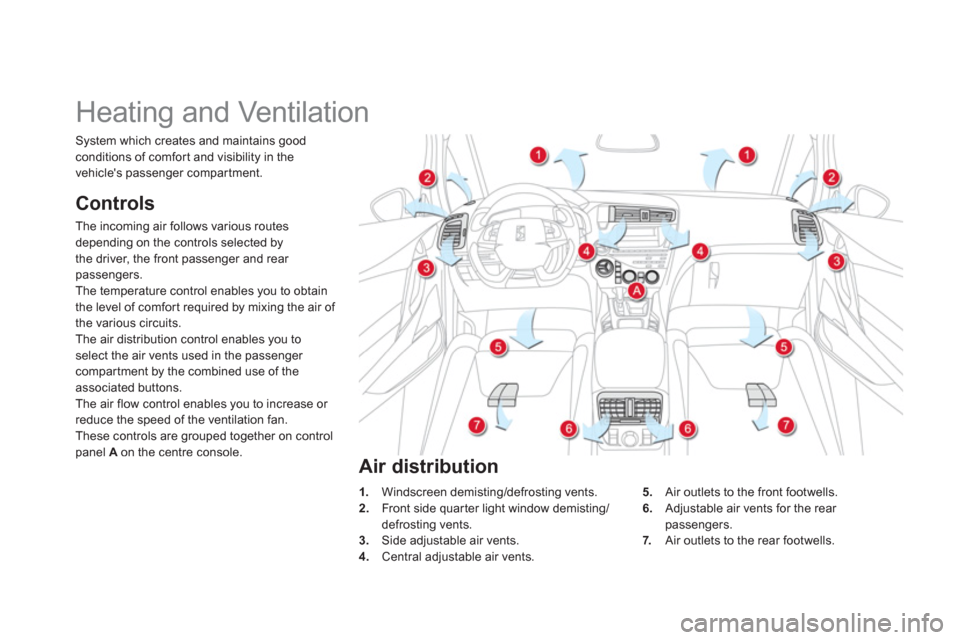

Controls
The incoming air follows various routesdepending on the controls selected by
the driver, the front passenger and rear passengers.
The temperature control enables you to obtain
the level of comfor t required by mixing the air of
the various circuits.
The air distribution control enables you toselect the air vents used in the passenger compartment by the combined use of theassociated buttons.
The air flow control enables you to increase or reduce the speed of the ventilation fan.
These controls are
grouped together on controlpanel Aon the centre console.
1.Windscreen demisting/defrosting vents.
2. Front side quar ter light window demisting/defrosting vents.3.
Side adjustable air vents. 4.Central adjustable air vents. S
ystem which creates and maintains goodconditions of comfor t and visibility in the
ve
hicle's passenger compartment.
5
. Air outlets to the front footwells.
6.Adjustable air vents for the rear passengers.
7. Air outlets to the rear footwells.



Air distribution

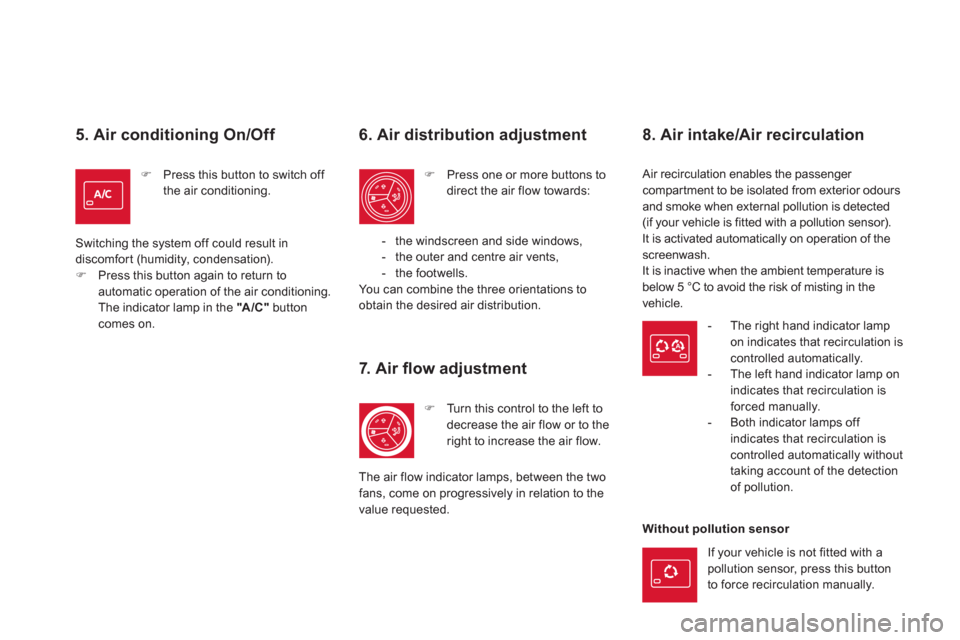

5. Air conditioning On/Off
)Press this button to switch off
the air conditioning.
Switchin
g the system off could result in
discomfort (humidity, condensation).)Press this button again to return to automatic operation of the air conditioning.The indicator lamp in the "A/C"
button comes on.


6. Air distribution adjustment
)Press one or more buttons todirect the air flow towards:


- t
he windscreen and side windows,

- the outer and centre air vents,

- th
e footwells.

You can combine the three orientations to obtain the desired air distribution.


7. Air fl ow adjustment
)Turn this control to the left todecrease the air flow or to theright to increase the air flow.
The air flow indicator lamps, between the two
fans, come on pro
gressively in relation to the
value requested.


8. Air intake/Air recirculation
Air recirculation enables the passenger compartment to be isolated from exterior odours
and smoke when external pollution is detected(if your vehicle is fitted with a pollution sensor).
It is activated automatically on operation of the screenwash.
It is inactive when the ambient temperature is
below 5 °C to avoid the risk of mistin
g in the
vehicle.


- The ri
ght hand indicator lamp on indicates that recirculation is controlled automatically.

- The left hand indicator lamp onindicates that recirculation is forced manually.

- Both indicator lamps off
indicates that recirculation is controlled automatically without
taking account of the detection
of pollution.

Without pollution sensor
If
your vehicle is not fitted with a
pollution sensor, press this button
to force recirculation manuall
y.

121Driving
)With the engine running, press button 1.The activated/deactivated status when theengine was switched off is retained when
the engine is switched on again.
The strip retracts automatically 3 seconds after switching off the engine except in STOP mode
of Stop & Start.

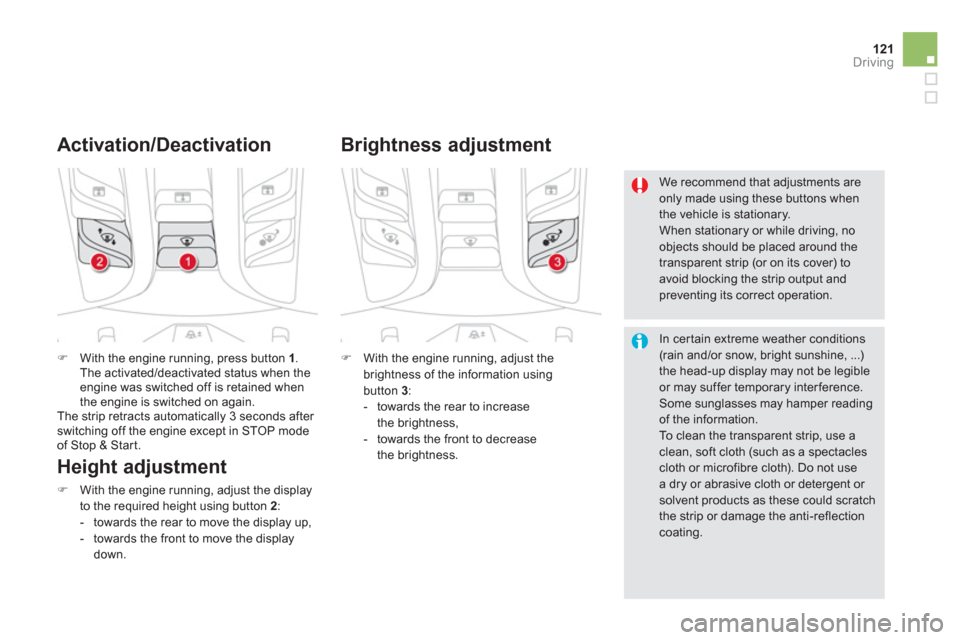

Activation/Deactivation
)
With the engine running, adjust the brightness of the information usingbutton 3:


- towards the rear to increase
the brightness,

- towards the front to decreasethe brightness.



Brightness adjustment

We recommend that adjustments areonly made using these buttons whenthe vehicle is stationary.
When stationary or while driving, no objects should be placed around thetransparent strip (or on its cover) toavoid blocking the strip output and preventing its correct operation.


In certain extreme weather conditions (rain and/or snow, bright sunshine, ...)the head-up display may not be legibleor may suffer temporary inter ference.
Some sunglasses may hamper readingof the information. To clean the transparent strip, use aclean, soft cloth (such as a spectacles cloth or microfibre cloth). Do not usea dry or abrasive cloth or detergent or solvent products as these could scratch the strip or damage the anti-reflection coating.



Height adjustment
)With the engine running, adjust the display
to the required height using button 2:
- towards the rear to move the display up,
- towards the front to move the display down.

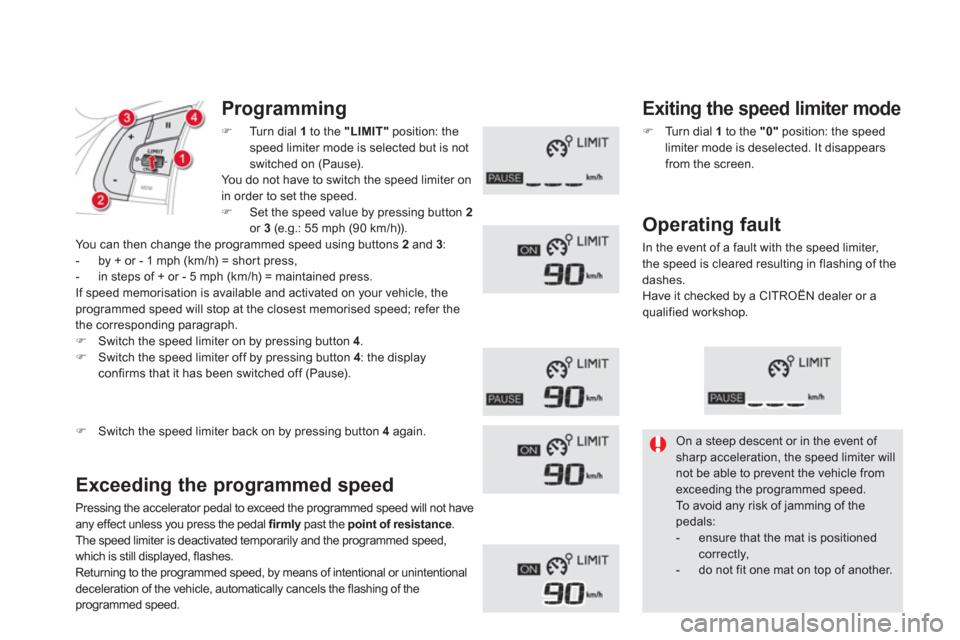

Programming
) Turn dial 1to the "LIMIT"
position: the speed limiter mode is selected but is not
switched on (Pause).You do not have to switch the speed limiter onin order to set the speed. ) Set the speed value by pressing button 2or 3
(e.g.: 55 mph (90 km/h)).
You can then change the programmed speed using buttons 2 and 3
:
- by + or - 1 mph (km/h) = shor t press,
- in steps of + or - 5 mph (km/h) = maintained press.
If speed memorisation is available and activated on your vehicle, theprogrammed speed will stop at the closest memorised speed; refer the
the corresponding paragraph.)Switch the speed limiter on by pressing button 4.)Switch the speed limiter off by pressing button 4: the display confirms that it has been switched off (Pause).
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not have any effect unless you press the pedal firmlypast the ypoint of resistance .
The speed limiter is deactivated temporarily and the programmed speed,
which is still displayed, flashes.
Returning to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the programmed speed.

Exiting the speed limiter mode
)Turn dial 1to the "0"
position: the speed
limiter mode is deselected. It disappears
from the screen.



Operating fault

In the event of a fault with the speed limiter,
the speed is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a qualified workshop.
On a steep descent or in the event of sharp acceleration, the speed limiter willnot be able to prevent the vehicle from exceeding the programmed speed.
To avoid any risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- do not fit one mat on top of another.

)Switch the speed limiter back on by pressing button 4
again.

When the cruise control is switched on, be careful if you maintain the pressure on one of the programmed speed changing buttons: this may result in a very rapid change in the speed of your vehicle. Do not use the cruise control on slipperyroads or in heavy traffic.
On a steep descent, the cruise control will not be able to prevent the vehiclefrom exceeding the programmed speed. On steep climbs or when towing, the programmed speed may not be reached or maintained.
To a v o i d a ny risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- never fit one mat on top of another.

Programming
)
Turn dial 1
to the "CRUISE"
position: the cruise control mode is selected but is not
switched on (Pause).) Set the programmed speed by acceleratingto the required speed, then press button 2or 3(e.g.: 70 mph (11 0 k m/h)); the cruise control system is activated (ON).
You can then change the programmed speed using buttons 2 and 3
:
- by + or - 1 mph (km/h) = shor t press,
- in steps of + or - 5 mph (km/h) = maintained press.
If storing speeds is available and activated on your vehicle, theprogrammed speed will stop at the closest stored speed; refer to thecorresponding section.)Stop the cruise control system by pressing button 4: this is confirmed in the screen (Pause).
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed speed results in flashing of this speed in the screen.
Return to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the speed.
Exiting cruise control mode
)Turn dial 1 to the "0"
position: the cruise control mode is deselected.
It disappears
from the screen.

)Switch on the cruise control again with another press on button 4
.


Operating fault

In the event of a cruise control malfunction,
the speed is cleared resulting in flashing of the
dashes.
Have it checked by a CITROËN dealer or a qualified workshop.

08
1a
1b
1c
1
2
279
RADIO
By alphabetical list
Pr
ess RADIOor LIST , select the station
of your choice and confi rm.
B
y automatic frequency search
Press or for the automatic searchfor a lower or higher radio frequency.
Or turn the thumb wheel at the steeringmounted controls.
B
y manual frequency search
Pr
ess or to adjust the radiofrequency step by step.
Pr
ess the button on the numerical keypad to recall a preset station.

Or press then turn the thumb wheel at
the steering mounted controls.

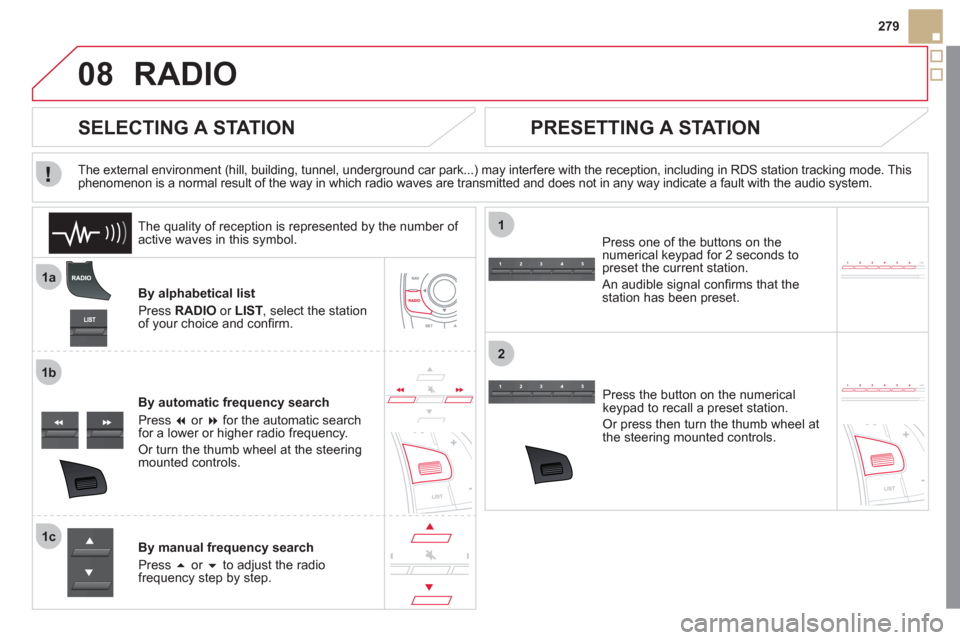

SELECTING A STATION


The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS station tracking mode. Thisphenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a fault with the audio system.


PRESETTING A STATION


Press one of the buttons on thenumerical keypad for 2 seconds to preset the current station.
An audible si
gnal confi rms that thestation has been preset. The qualit
y of reception is represented by the number of active waves in this symbol.
