CITROËN has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.
Your vehicle is fitted with only some of
the equipment described in this document,
dependin
g on the trim level, version and thespecifications for the country in which it is sold.
The
fitting of electrical equipment or accessories which are not recommended
by CITROËN may result in a failure of your
vehicle's electronic s
ystem. Please note thisspecific warning and contact a CITROËNdealer to be shown the recommendedequipment and accessories.

At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.


Happy motoring!

We draw your attention to the following...

Contents

Contents
6 FA M I L I A R I SAT I O N
33
6 ALPHABETICAL
INDEX
34
1 VISUAL SEARCH
Key
sa
fety warning
additional information
contributes to the protection of the environment
pro
gramming a function with the configuration menu
re
fer to the page indicated

001001002002003003004004 COMFORT ACCESS MONITORINGDRIVING
Instrument panel
31 Indicator and warning lamps
40Gauges and indicators
44Adjustment buttons
46 Setting the date and time
46 Clock
48 Tr i p c o m p u ter
52 Electronic key - remote control
61 Boot
62 Alarm
64 Electric windows
66 Cockpit glass roof
68Fuel tank
69 Misfuel prevention (Diesel)
74 Front seats
79Rear seats
82Mirrors
83Steering wheel adjustment
84Interior fi ttings
88Boot fi ttings
89 Tr i a ngle (stowing)
90 Heating and Ventilation
92 Dual-zone digital air conditioning
96 Rear screen demist - defrost
100 Starting-switching off theengine103 Electric parking brake111Hill start assist112 Manual gearbox113Gear shiftindicator114 Automatic gearbox1186-speed electronic gearboxsystem122Stop & Start125 Lane departure warning system126 Head-up display129Speed limiter131 Cruise control133 Parking sensors135 Reversing camera

Illumination of the warning lamp indicates the state of the corresponding function.
Switch panels
Opening the fuel filler flap.

Opening the boot. 6
8
63 D
eactivation of the alarm.
6
1
Electric parking brake activated.
103


Push button star ting/stopping.
100

Deactivation o
f Stop & Start.
123


Deactivation of parking sensors.
134


Electric child lock.
167
Deactivation of the DSC s
ystem.
175

Activation of Automatic headlamp
dippin
g.
143
125
Activation of lane depar ture warning.
59
Lockin
g/unlocking the passenger compartment.

14 . Controls for electric windows / electric child lock / central locking.
15. eMyWay controls.
16.Gear lever.
17. Heating / air conditioning controls.
18
. Audio system.
19.Hazard warning lamps.
20.Multifunction screen.21. Central adjustable air vents. 22.Clock.
23.Star ting with the STA R T/STOP button.
24.Electronic key reader.
25. Wiper / screenwash / trip computer stalk.
26. Audio equipment steering wheel controls.

Instruments and controls
1.
Bonnet release lever.2.
Headlamp height adjustment. 3.
Side adjustable air vents.4.
Front door window demisting/defrosting
vents.
5. Quarter light demisting windows.
6.Head-up display.7. Windscreen demisting/defrosting vent.8.Passenger's airbag. 9.
Glove box / Passenger's airbag deactivation inside. 10.12 V accessory socket. 11.
Rear electric window controls.12.Central armrest with storage.
USB por t / auxiliary socket. 13.Electric parking brake.
27. Driver's airbag.
Horn. 28. Cruise control / speed limiter controls.29.
Switch panel (see previous page).30.
Door mirror adjustment.
31.Lighting and direction indicator stalk .32.
Instrument panel. 33.
Seat belt and airbag warning lamps. 34.Courtesy lamp. 35.Head-up display controls. 36.Controls for glass roof panel blind.37.CITROËNLocalised Emergency Call -
CITROËNLocalised Assistance Call(depending on country of sale).

19Familiarisation

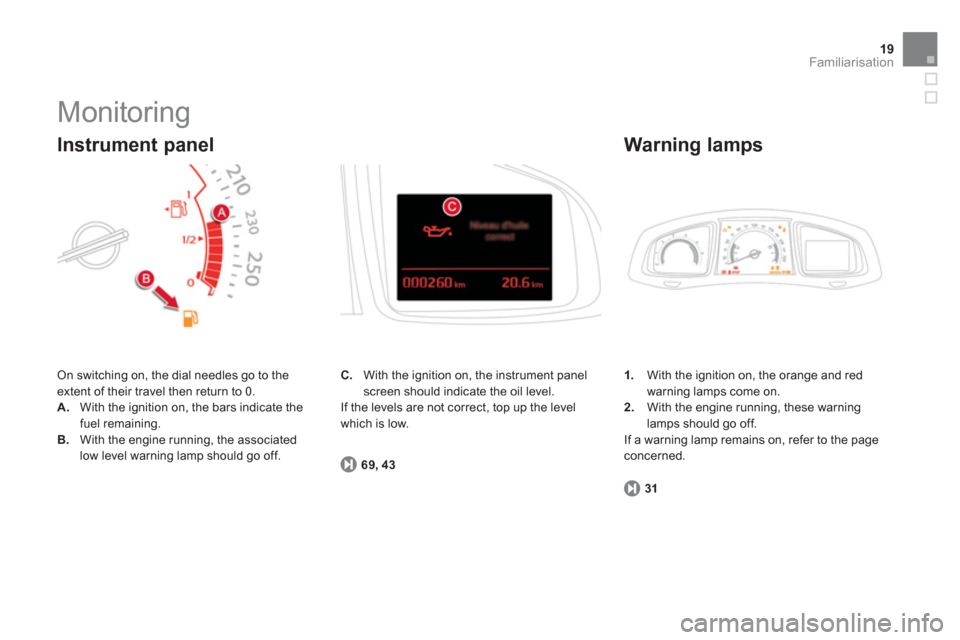

Monitoring
On switching on, the dial needles go to the extent of their travel then return to 0.
A.With the ignition on, the bars indicate the
fuel remaining.
B.With the engine running, the associated
low level warning lamp should go off.

Instrument panel
1.
With the ignition on, the orange and redwarning lamps come on. 2.With the engine running, these warninglamps should go off.
If a warning lamp remains on, refer to the page concerned.


Warning lamps
31
C.
With the ignition on, the instrument panelscreen should indicate the oil level.
If the levels are not correct, top up the level which is low.
69, 4
3

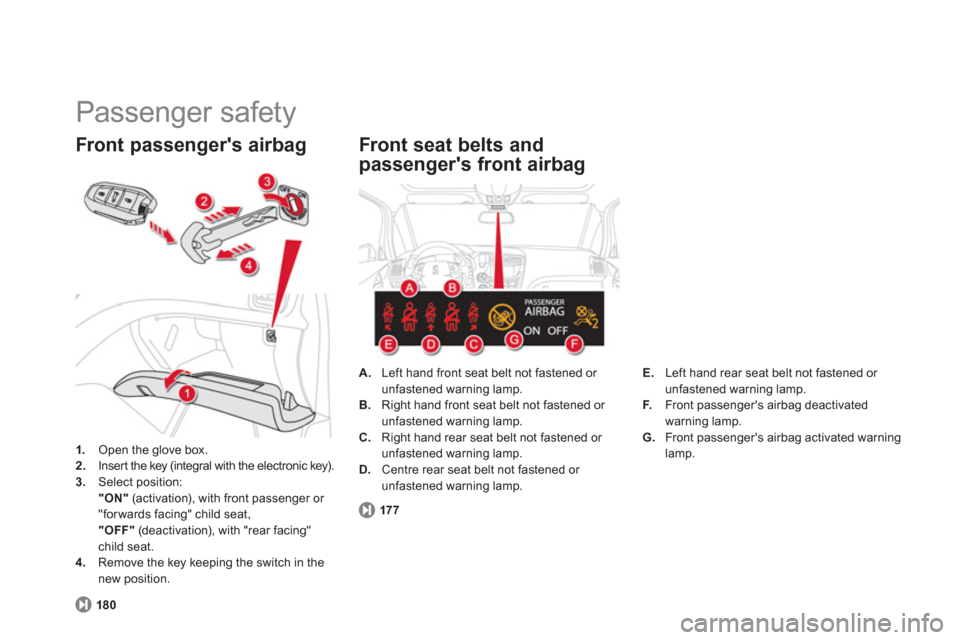

Passenger safety
1.
Open the glove box.2.
Inser t the key (integral with the electronic key).3.Select position:
"ON"
(activation), with front passenger or "forwards facing" child seat,
"OFF"
(deactivation), with "rear facing" child seat.4.
Remove the key keeping the switch in the new position.
Front passenger's airbag
180


Front seat belts and
passenger's front airbag
A.
Left hand front seat belt not fastened or unfastened warning lamp.B.
Right hand front seat belt not fastened or unfastened warning lamp.C.
Right hand rear seat belt not fastened or unfastened warning lamp.D.Centre rear seat belt not fastened or unfastened warning lamp.
17 7
E.
Left hand rear seat belt not fastened or
unfastened warning lamp. F.Front passenger's airbag deactivatedwarning lamp.G. Front passenger's airbag activated warninglamp.

21Familiarisation

If this warning lamp comes on in
the instrument panel, automatic application / release is
deactivated. The parking brake must
be applied and released manually.

y
Before leaving the vehicle, check
that the the brake warning lamp and
the P warning lamp in the controllever A
are on fixed (not flashing).
103


If towing a trailer or caravan or if theslope might vary (transpor t by boat or lorry, recovery of the vehicle...) make a maximum application of the parking brake - by making a long pull on thecontrol lever A
- to immobilise thevehicle.
*
Dependin
g on country of sale.

Driving safely

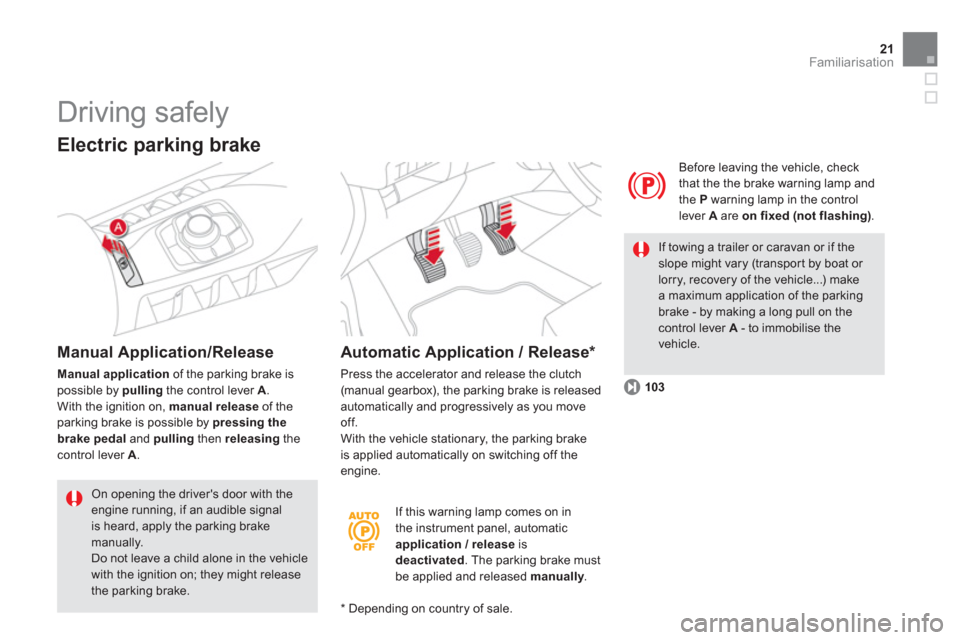

Electric parking brake


Manual Application/Release
Manual application
of the parking brake is possible by pulling
the control lever A. With the ignition on, manual releaseof theparking brake is possible by pressing the brake pedal
and pulling
then releasing
the control lever A
.

On opening the driver's door with theengine running, if an audible signalis heard, apply the parking brake
manually. Do not leave a child alone in the vehicle with the ignition on; they might release the parking brake.
Automatic Application / Release *

Press the accelerator and release the clutch(manual gearbox), the parking brake is releasedautomatically and progressively as you moveoff. With the vehicle stationary, the parking brakeis applied automatically on switching off the
engine.

Starting at temperatures above
zero


- Press the brake pedal.

- Make one shor t press (about one second) on the START/STOP
button.


Starting at temperatures below
zero
You must initiate preheating of the Diesel engine: -Without
placing your foot on the brake pedal, make a first shor t press on the STA R T/STOP button.

- Wait until the preheater warning lamp goesoff.
-
With
your foot on the brake pedal, make asecond short press on the START/STOP button.

Driving safely

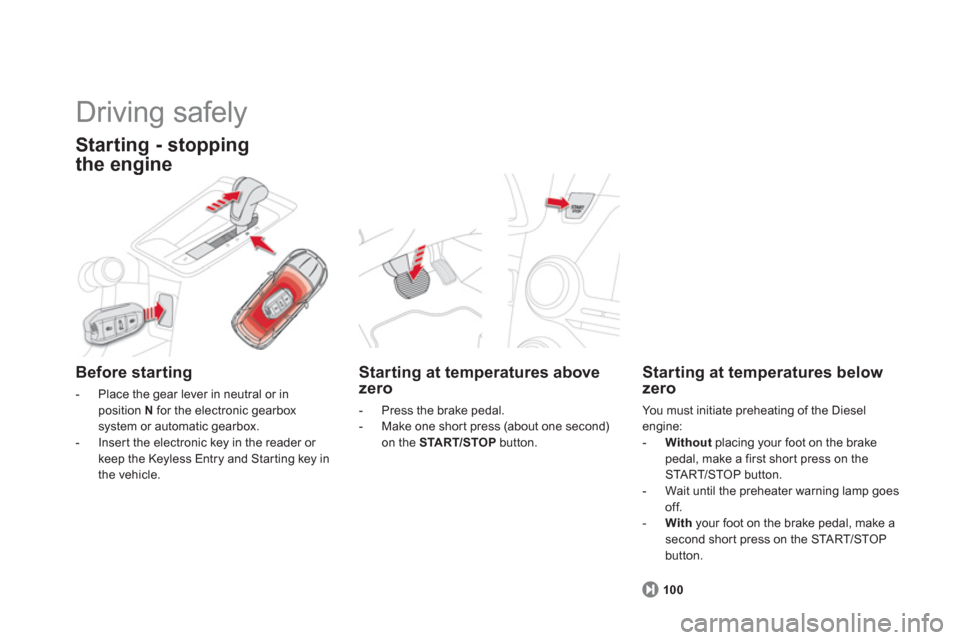

Starting - stopping
the en
gine
Before starting
- Place the gear lever in neutral or inposition N
for the electronic gearbox
system or automatic gearbox.
- Inser t the electronic key in the reader or keep the Keyless Entry and Starting key in
the vehicle.

10
0

Driving safely

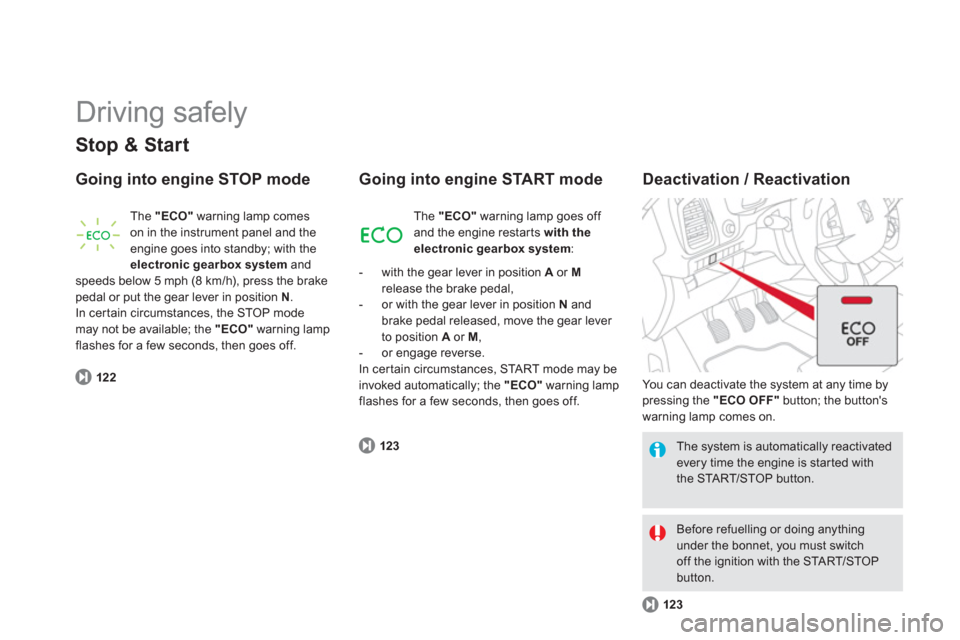

Stop & Start
Going into engine STOP mode
122

The "ECO"warning lamp comes
on in the instrument panel and the
engine goes into standby; with the electronic gearboxsystem andspeeds below 5 mph (8 km/h), press the brakepedal or put the gear lever in position N.In cer tain circumstances, the STOP modemay not be available; the "ECO"
warning lamp flashes for a few seconds, then goes off.


Going into engine START mode
Deactivation / Reactivation
123
123

The system is automatically reactivated every time the engine is star ted withthe STA R T/STOP button.

Before refuelling or doing anything under the bonnet, you must switch off the ignition with the START/STOP button. Th
e "ECO"
warning lamp goes off
and the engine restar ts with theelectronic gearbox system:


- with the
gear lever in position A
or Mrelease the brake pedal,

- or with the gear lever in position N
andbrake pedal released, move the gear lever
to position Aor M ,

- or engage reverse.
In certain circumstances, STA R T m o d e m ay be
invoked automatically; the "ECO"warning lampflashes for a few seconds, then goes off. You can deactivate the s
ystem at any time bypressing the "ECO OFF"
button; the button's
warning lamp comes on.
