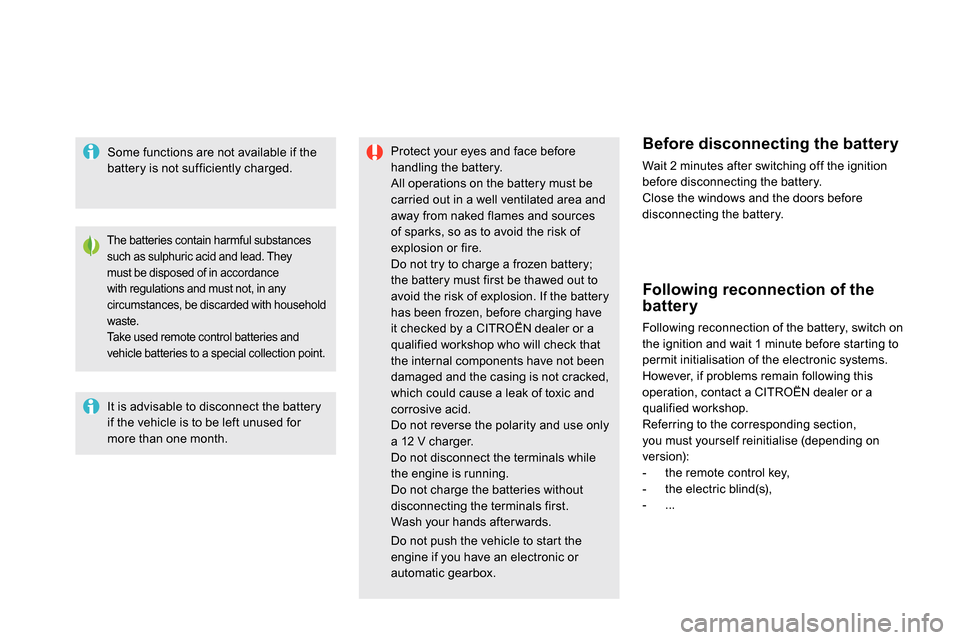

The batteries contain harmful substances
such as sulphuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in any
circumstances, be discarded with household
waste.
Take used remote control batteries and
vehicle batteries to a special collection point.


It is advisable to disconnect the battery
if the vehicle is to be left unused for
more than one month.









Do not push the vehicle to start the
engine if you have an electronic or
automatic gearbox.
Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Do not try to charge a frozen battery;
the battery must first be thawed out to
avoid the risk of explosion. If the battery
has been frozen, before charging have
it checked by a CITROËN dealer or a
qualified workshop who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.
Do not reverse the polarity and use only
a 12 V charger.
Do not disconnect the terminals while
the engine is running.
Do not charge the batteries without
disconnecting the terminals first.
Wash your hands after wards.








Before disconnecting the battery

Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.


Following reconnection of the
battery
Following reconnection of the battery, switch on
the ignition and wait 1 minute before starting to
permit initialisation of the electronic systems.
However, if problems remain following this
operation, contact a CITROËN dealer or a
qualified workshop.
Referring to the corresponding section,
you must yourself reinitialise (depending on
version):


- the remote control key,

- the electric blind(s),

- ...


Some functions are not available if the
battery is not sufficiently charged.

229Practical information

Driving advice


Distribution of loads




Distribute the load in the trailer so that the
heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
exceeding it.
Air density decreases with altitude, thus
reducing engine per formance. Above
1 000 metres, the maximum towed load must
be reduced by 10 % for every 1 000 metres of
altitude.


Side wind




Take into account the increased sensitivity
to side wind.



Cooling

Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.



To lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.



If the warning lamp and the
STOP
warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.



Braking

Towing a trailer increases the braking distance.
To avoid overheating of the brakes on a long
mountain type of descent, the use of engine
braking is recommended.


Ty r e s




Check the tyre pressures of the towing
vehicle and of the trailer, obser ving the
recommended pressures.



Lighting




Check the electrical lighting and signalling
on the trailer.


The rear parking sensors will be
deactivated automatically if a genuine
CITROËN towbar is used.

Refer to the "Technical data" section for details
of the weights and towed loads which apply to
your vehicle.

The various caps and covers allow access for
checking the levels of the various fluids and for
replacing certain components.














Petrol engines



1.
Power steering reservoir.

2.
Screenwash and headlamp wash reser voir.

3.
Coolant reservoir.

4.
Brake fluid reser voir.

5.
Battery / Fuses.

6.
Fusebox.

7.
Air filter.

8.
Engine oil dipstick.

9.
Engine oil filler cap.

THP 155 6- SPEED AUTO


THP 200 6- SPEED MANUAL

239Checks
The various caps and covers allow access for
checking the levels of the various fluids, for
replacing certain components and for priming
the fuel system.

*
According to engine.















Diesel engines



1.
Power steering reservoir.

2.
Screenwash and headlamp wash reser voir.

3.
Coolant reservoir.

4.
Brake fluid reser voir.

5.
Battery / Fuses.

6.
Fusebox.

7.
Air filter.

8.
Engine oil dipstick.

9.
Engine oil filler cap.

10.
Priming pump * .

11.
Bleed screw * .

e- HDi 115 6- SPEED ELECTRONIC


HDi 160 PEF 6- SPEED MANUAL / HDi 160 PEF 6- SPEED AUTO

241Checks






Checking levels


Take care when working under the bonnet, as certain areas of the engine may be extremely hot (risk of burns) and the cooling fan could start at
any time (even with the ignition off).




















Engine oil level


The check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel for vehicles with and electric oil
level gauge, or using the dipstick.

It is normal to top up the oil level between
two ser vices (or oil changes). CITROËN
recommends that you check the level, and top
up if necessary, every 3 000 miles (5 000 kms).
To ensure that the reading is correct,
your vehicle must be on level ground
and the engine has been off for more
than 30 minutes.
Check all of these levels regularly, in line with the maintenance and warranty guide. Top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.

Checking using the dipstick

Refer to the "Petrol engine" or "Diesel engine"
section for the location of the dipstick in the
engine compartment of your vehicle.


- Take the dipstick by its coloured grip and
remove it completely.

- Wipe the end of the dipstick using a clean
non-fluffy cloth.

- Refit the dipstick and push fully down, then
pull it out again to make the visual check:
the correct level is between the marks A

and B
.


A
= MA X


B
= MIN

If you find that the level is above the A
mark or
below the B
mark, do not star t the engine
.


- If the level is above the MAX
mark (risk
of damage to the engine), contact a
CITROËN dealer or a qualified workshop.

- If the level is below the MIN
mark, you
must top up the engine oil.

Power steering fluid level

The power steering fluid level should
be close to the "MA X" mark. With
the engine cold, unscrew the cap to
check the level. The brake fluid level should be close
to the "MA X" mark. If it is not, check
the brake pad wear.










Brake fluid level


Changing the fl uid

Refer to the maintenance and warranty guide
for details of the inter val for this operation.


Fluid specifi cation

The brake fluid must conform to the
manufacturer's recommendations.



Topping up the engine oil level



Oil grade

The oil must be the correct grade for your
engine and conform to the manufacturer's
recommendations.

Refer to the "Petrol engine" or "Diesel engine"
section for the location of the oil filler cap in the
engine compartment of your vehicle.


- Unscrew the oil filler cap to reveal the filler
aperture.

- Add oil in small quantities, avoiding any
spills on engine components (risk of fire).

- Wait a few minutes before checking the
level again using the dipstick.

- Add more oil if necessary.

- After checking the level, carefully refit the
oil filler cap and the dipstick in its tube.


After topping up the oil, the check when
switching on the ignition with the oil level
indicator in the instrument panel is not valid
during the 30 minutes after topping up.


Engine oil change

Refer to the maintenance and warranty guide
for details of the inter val for this operation.
In order to maintain the reliability of the engine
and emission control system, the use of
additives in the engine oil is prohibited.

243Checks










Coolant level


The coolant level should be close
to the "MA X" mark but should never
exceed it.

Fluid specifi cation

The coolant must conform to the
manufacturer's recommendations.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the
pressure to drop. When the pressure
has dropped, remove the cap and top
up the level. When the engine is warm, the temperature of
the coolant is regulated by the fan.







The cooling fan may star t after switching
off the engine: take care with ar ticles and
clothing that might become caught by the
fan blades.




Specifi cation of the fl uid

To ensure optimum cleaning and to avoid
freezing, the fluid should never be topped up or
replaced by plain water.
In wintry conditions, the use of an ethyl alcohol
or methanol base fluid is recommended.

















Screenwash / headlamp
wash level
To check the level or top up the fluid on vehicle
fitted with headlamp washers, immobilise the
vehicle and switch of the engine.



Before opening the bonnet, ensure that the
engine has completely stopped.


Open the screenwash reser voir filler cap.


Take and pinch the level gauge to block its
breather.

 Remove the gauge completely from the reservoir
to read the level in the transparent section.


Top up if necessary.

Refit the filler cap to the reser voir and close the
bonnet.

245Checks






Checks













12 V battery


The battery does not require any
maintenance.
However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.






The presence of this label, in particular with
the Stop & Start system, indicates the use of
a specific 12 V lead-acid battery with special
technology and specification. The involvement
of a CITROËN dealer or a qualified workshop
is essential when replacing or disconnecting
the battery.
Unless other wise indicated, check these
components in accordance with the
maintenance and warranty guide and according
to your engine.
Other wise, have them checked by a CITROËN
dealer or a qualified workshop.

When carrying out work on the battery, refer
to the "12 V battery" section for details of the
precautions to be taken before disconnecting
the battery and following its reconnection.

Particle emission filter (Diesel)

The start of saturation of the
par ticle filter is indicated by
the temporary illumination of
this warning lamp accompanied by a message
in the multi-function screen.
As soon as the traffic conditions permit,
regenerate the filter by driving at a
speed of at least 40 mph (60 km/h) until
the warning lamp goes off.
If the warning lamp stays on, this
indicates a low additive level.

On a new vehicle, the first particle
filter regeneration operations may be
accompanied by a "burning" smell,
which is per fectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.

Refer to the maintenance and
warranty guide for details of the
replacement inter vals for these
components.



















Air filter and passenger compartment filter

Replace the oil filter each time the
engine oil is changed.
Refer to the maintenance and
warranty guide for details of the
replacement inter val for this
component.














Oil filter

Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle
(e.g. city driving), replace them twice as often
if necessary
.
A clogged passenger compartment filter may
have an adverse effect on the per formance
of the air conditioning system and generate
undesirable odours.








Manual gearbox

The gearbox does not require any
maintenance (no oil change).
Refer to the maintenance and
warranty guide for the details of
the level checking inter val for this
component.







Electronic gearbox

The gearbox does not require any
maintenance (no oil change).
Refer to the maintenance and
warranty guide for details of the
checking inter val for this component.







Automatic gearbox

The gearbox does not require any
maintenance (no oil change).
Refer to the maintenance and
warranty guide for details of the level
checking inter val for this component.

A
ABS ............................................................. 182
Accessories ........................................ 105, 231
Accessory position ..................................... 105
Accessory socket, 12V ...........................88, 89
Adjusting headlamps .................................. 152
Adjusting head restraints ........................ 78, 81
Adjusting seat belt height ........................... 187
Adjusting the steering wheel ........................ 87
Airbags .................................................. 41, 189
Airbags, curtain ................................... 191, 192
Airbags, front....................................... 189, 192
Airbags, lateral .................................... 191, 192
Air conditioning ............................................. 25
Air conditioning, automatic .....................95, 96
Air filter ........................................................ 246
Air flow .......................................................... 94
Air vents ........................................................ 94
Alarm ............................................................. 65
Anti-lock braking system
(ABS) ........................................................ 182
Anti-pinch ................................................ 69, 71
Anti-theft ..................................................... 105
Armrest .......................................................... 88
Armrest, front ................................................ 90
Armrest, rear ................................................. 91
Ashtray, removable ....................................... 88
ASR ............................................................. 182
Assistance call ............................ 181, 264, 265
Assistance, emergency braking ................. 182
Audible warning .......................................... 181
Audio streaming
(Bluetooth) ............................... 308, 336, 338
Audio system ............................................... 323
Automatic headlamp dipping ................ 32, 149Automatic illumination of headlamps ... 145, 148
Automatic operation
of hazard warning lamps .......................... 180
Automatic rain sensitive windscreen
wipers ............................................... 155, 157
Auxiliary socket ............................ 90, 305, 335
Battery ......................................... 222-224, 245
Battery, charging .................................223, 224
Battery, remote control ........................... 60, 61
Black panel.................................................... 47
Bluetooth (hands-free) ........................290, 337
Bluetooth (telephone) ..........................290, 337
Boot ............................................................... 64
Boot (opening) ............................................... 55
Brake discs .................................................. 247
Brake lamps ................................................ 216
Brake pads .................................................. 247
Brakes ......................................................... 247
Capacity, fuel tank ........................................ 72
CD ...................................................... 305, 330
CD MP3 .......................................305, 331, 332
B
C
Central locking .............................................. 55
Changing a bulb ................................... 211-218
Changing a fuse ...................................219 -221
Changing a wheel ............................... 202-209
Changing a wiper blade ......................158, 226
Changing the date ................... 48, 49, 315, 347
Changing the remote
control battery............................................. 60
Changing the time ................... 48, 49, 315, 347
Checking levels .................................... 241-244
Checking the engine
oil level ................................................ 45, 241
Checking tyre pressures
(using the kit) ............................................ 201
Checks ................................................ 238 -247
Children ................................ 162-177, 188, 190
Child lock ..................................................... 177
Child seats .......................................... 164-176
Child seats, conventional .................... 170, 171
Cigarette lighter............................................. 89
CITROËN Localised Assistance
Call ............................................................ 265
CITROËN Localised Emergency
Call ............................................................ 265
Clock ....................................... 48, 49, 315, 347
Closing the boot ............................................ 64
Closing the doors ....................................55, 57
Connectors, audio ................ 90, 305, 333, 335
Coolant level ......................................... 42, 243
Coolant temperature
indicator ...................................................... 42
Courtesy lamps ........................................... 159
Cruise control ...................................... 133, 136
Cup holder ..................................................... 88
