62 Illumination of the warning lamp indicates the state of the corresponding function.


Switch panels


Opening the fuel filler flap.

Opening the boot.
Deactivation of the alarm.

Electric parking brake activated.
Push button starting/stopping.

Deactivation of Stop & Start.
Deactivation of parking sensors.

Electric child lock.

Deactivation of the DSC/ASR
systems.

Activation of Automatic headlamp
dipping.
Activation of lane departure warning.

Locking/unlocking the passenger
compartment.

Warning / indicator lamp



State



Cause



Action / Observations









Left-hand
direction indicato

r


flashing with buzzer. The lighting stalk is pushed down.








Right-hand
direction indicator


flashing with buzzer. The lighting stalk is pushed up.








Sidelamps


fixed. The lighting stalk is in the
"Sidelamps" position.







Dipped beam
headlamps


fixed. The lighting stalk is in the "Dipped
beam headlamps" position.







Main beam
headlamps


fixed. The lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.







Front foglamps


fixed. The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off
the front foglamps.

For more information on the lighting controls, refer to the corresponding section.






Automatic
headlamp
dipping
fixed. The lighting stalk has been pulled
towards you and the button (located
to the left of the steering wheel) has
been pressed.
Its indicator lamp is on. The camera, located in the interior rear view mirror,
authorises or not switching between main and dipped
beam, depending on the ambient light level and the
driving conditions.
Pulling the lighting stalk to return to dipped beam.








Operation indicator lamps

If one of the following indicator lamps comes on in the instrument panel and/or instrument panel screen, this confirms that the corresponding system has come into operation.

33Monitoring






Rear foglamps


fixed. The rear foglamps are switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamps.

Warning / indicator lamp



State



Cause



Action / Observations






Diesel engine
pre-heating


fixed. The START/STOP
switch has been
pressed (ignition on). Wait until the warning lamp goes off before starting.
Once it goes off, starting is immediate, on condition
that the brake pedal remains pressed with an
automatic or electronic gearbox, or the clutch pedal is
pressed fully down with a manual gearbox.
The period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in severe winter conditions).
If the engine does not start, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.




Electric parking
brake


fixed. The electric parking brake is applied. Release the electric parking brake to switch off the
warning lamp: with your foot on the brake pedal, pull
the electric parking brake control lever.
Obser ve the safety recommendations.
For more information on the electric parking brake,
refer to the corresponding section.




Deactivation of
the automatic
functions of the
electric parking
brake


fixed. The "automatic application"
(on switching off the engine) and
"automatic release" functions are
deactivated or faulty. Activate the function (according to country) via the
vehicle configuration menu or contact a CITROËN
dealer or a qualified workshop if automatic
application / release is not possible.
For more information on the electric parking brake,
refer to the corresponding section.

35Monitoring










Deactivation indicator lamps

If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message in the instrument panel screen.



Warning / indicator lamp



State



Cause



Action / Observations









Passenger's
airbag system


fixed in the instrument
panel and/or seat belt
and front passenger's
airbag warning lamps
display. The control switch, located in the
glove box, is set to the OFF
position.
The passenger's front airbag is
deactivated. Set the control to the "ON"
position to activate the
passenger's front airbag.
In this case, do not fit a child seat in the rear-facing
position.

Warning / indicator lamp



State



Cause



Action / Observations





Electric parking
brake
flashing. The electric parking brake is not
applied automatically.
The application/release is faulty. You must stop as soon as it is safe to do so.
Park on flat level ground, engage a gear (or place the
lever in position P
for an automatic gearbox), switch
off the ignition and contact a CITROËN dealer or a
qualified workshop.



Electric parking
brake fault
fixed. The electric parking brake has a fault. Contact a CITROËN dealer or a qualified workshop
without delay.
For more information on the electric parking brake,
refer to the corresponding section.




Deactivation of
the automatic
functions of the
electric parking
brake


fixed. The "automatic application"
(on switching off the engine) and
"automatic release" functions are
deactivated or faulty. Activate the function (according to country) via the
vehicle configuration menu or contact a CITROËN
dealer or a qualified workshop if automatic
application / release is not possible.
For more information on the electric parking brake,
refer to the corresponding section.

63Access

Locking the front and rear
passenger doors



Open the doors.


On the rear doors, check that the child lock
is not on (see the corresponding section).


Remove the black cap, located on the edge
of the door, using the key.


Insert the key in the socket without forcing
it, then without turning it, move the latch
sideways towards the inside of the door.


Remove the key and refit the cap.


Close the doors and check that the vehicle
has locked correctly from the outside.



Unlocking the front and rear
passenger doors



Pull the interior door opening control.

69Access

Safety anti-pinch

When the window rises and meets an obstacle,
it stops and immediately partially lowers again.
In the event of unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediately until the window closes. Continue
to hold the switch for approximately one second
after the window has closed.
The safety anti-pinch function is not active
during this operation.


Deactivating the rear window
controls

Reinitialisation of the
electric windows

In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this,
press the switch concerned.
When operating the passenger electric
window switches, the driver must
ensure that no one is preventing correct
closing of the windows.
The driver must ensure that the
passengers use the electric windows
correctly.
Be aware of children when operating
the windows.
Be aware of passengers or other
persons present when closing the
windows using the the electronic key
or the "Keyless Entry and Starting"
system.
Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations:


- lower the window completely, then raise
it, it will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,

- continue to press the switch for at least
one second after reaching this position,
window closed.
For the safety of your children, press
switch 5
to prevent operation of the
rear windows irrespective of their
position.
The warning lamp in the button comes on,
accompanied by a message confirming
activation. It remains on, as long as the child
lock is activated.
The interior controls for the rear doors are also
deactivated.
Opening the doors from the outside and
operation of the rear electric windows from the
driver's controls remain possible.

Storing driving positions

System which stores the electrical settings
of the driver's seat and the head-up display
settings. It enables you to store up to
two positions using the buttons on the side
of the driver's seat.

Storing a position using
buttons M / 1 / 2




Switch on the ignition.


Adjust your seat and the head-up display.


Press button M
, then press button 1
or 2

within four seconds.
An audible signal indicates that the position
has been stored.
Storing a new position cancels the previous
position.


Recalling a stored position




Briefly press button 1
or 2
to recall the
corresponding position.
An audible signal indicates the end of the
adjustment.
You can interrupt the current movement
by pressing button M
, 1
or 2
or by using
one of the seat controls.
A stored position cannot be recalled
while driving.
Recalling stored positions is
deactivated 45 seconds after switching
off the ignition.

83Comfort








Rear seats

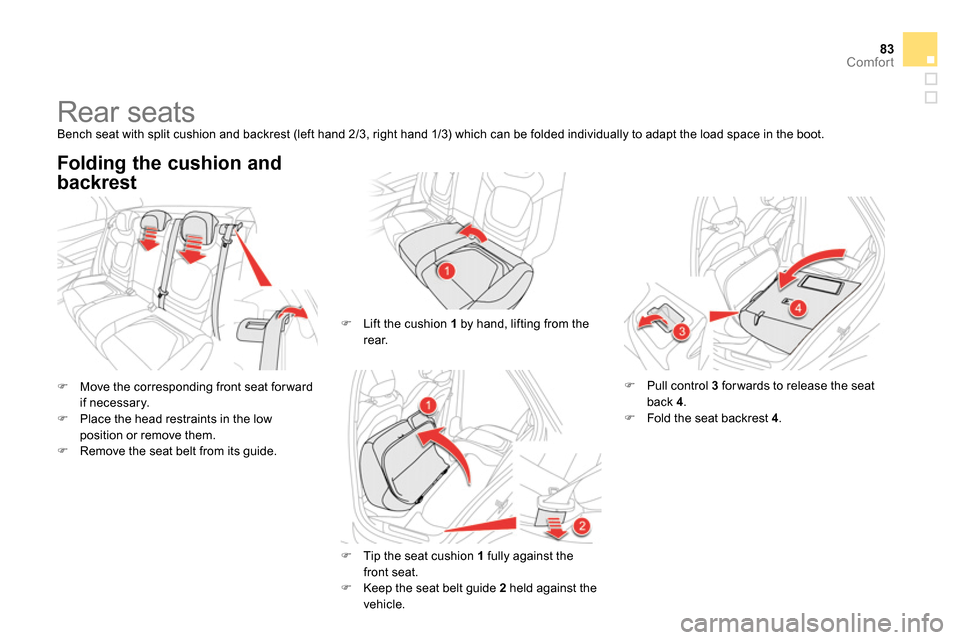

Bench seat with split cushion and backrest (left hand 2/3, right hand 1/3) which can be folded individually to adapt the load space in the boot.




Move the corresponding front seat for ward
if necessary.


Place the head restraints in the low
position or remove them.


Remove the seat belt from its guide.



Folding the cushion and
backrest




Lift the cushion 1
by hand, lifting from the
rear.





Tip the seat cushion 1
fully against the
front seat.


Keep the seat belt guide 2
held against the
vehicle.




Pull control 3
for wards to release the seat
back 4.


Fold the seat backrest 4
.

Mirrors


Each fitted with an adjustable mirror glass
providing the lateral rear ward vision necessary
for overtaking or parking. They can also be
folded for parking in confined spaces.


Door mirrors


If the mirrors are folded using control A
,
they will not unfold when the vehicle is
unlocked.

The folding and unfolding of the door
mirrors using the electronic key can be
deactivated by a CITROËN dealer or a
qualified workshop.
Fold the mirrors when putting your
vehicle through an automatic car wash.
The objects obser ved are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.



Demisting - Defrosting
Adjustment




Turn control A
to the right or to the left to
select the corresponding mirror.


Move control A
in all four directions to
adjust.


Return control A
to the central position.








Folding

Automatic: lock the vehicle using the
electronic key.

Unfolding

Automatic: unlock the vehicle using the
electronic key. Manual: with the ignition on, move
control A
downwards.
Manual: with the ignition on, move
control A
upwards.
Demisting-defrosting of the door
mirrors operates by switching on
the heated rear screen.
For more information, refer to
the "Rear screen demist-defrost" section.









The rear screen demist - defrost
can only operate when the engine is
running.
The mirrors can be folded manually if
necessary.
