11Familiarisation
Interior


Head-up display

This system projects speed and cruise control/
speed limiter information onto a smoked strip
in the driver's field of vision, so that they do not
need to take their eyes off the road.


Central storage containing
various systems
It is illuminated, cooled and provides storage
and locations for systems and loose items
(USB Player, location for 0.5 litre bottle, ...).



Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible audio systems,
USB player, Bluetooth hands-free system,
satellite navigation system with colour screen,
auxiliary inputs, Hi-Fi audio system, ...

eMyWay


Audio
-
Bluetooth
®
system




Massage function

This system provides a lumbar massage for a
period of about 60 minutes. The massage is
done in 6 cycles of 10 minutes.


Electric parking brake

It combines the functions of automatic
application on switching off the engine and
automatic release when moving off. Manual
application and release remains possible.
You can adjust the settings for some
vehicle systems in the configuration
menu.
With eMyWay

With the Audio - Bluetooth
®
system

14 .
Controls for electric windows / electric child
lock / central locking.

15.
eMyWay controls.

16.
Gear lever.

17.
Heating / air conditioning controls.

18.
Audio system.

19.
Hazard warning lamps.

20.
Multifunction screen.

21.
Central adjustable air vents.

22.
Clock.

23.
Starting with the START/STOP button.

24.
Electronic key reader.

25.
Wiper / screenwash / trip computer stalk.

26.
Audio equipment steering wheel controls.

Instruments and controls



1.
Bonnet release lever.

2.
Headlamp height adjustment.

3.
Side adjustable air vents.

4.
Front door window demisting/defrosting
vents.

5.
Quarter light demisting windows.

6.
Head-up display.

7.
Windscreen demisting/defrosting vent.

8.
Passenger's airbag.

9.
Glove box / Passenger's airbag
deactivation inside.

10.
12 V accessory socket.

11.
Rear electric window controls.

12 .
Central armrest with storage.
USB port / auxiliary socket.

13.
Electric parking brake.
27.
Driver's airbag.
Horn.

28.
Cruise control / speed limiter controls.

29.
Switch panel (see previous page).

30.
Door mirror adjustment.

31.
Lighting and direction indicator stalk .

32.
Instrument panel.

33.
Seat belt and airbag warning lamps.

34.
Courtesy lamp.

35.
Head-up display controls.

36.
Controls for glass roof panel blind.

37.
CITROËN Localised Emergency Call -
CITROËN Localised Assistance Call
(depending on country of sale).

13 4
136124
23Familiarisation
Driving safely


Speed limiter "LIMIT"



1.
Selecting speed limiter mode.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Pause/resume speed limiter.

5.
Display of the memorised speeds (by the
audio system memory).
These values must be set with the engine running.


Cruise control "CRUISE"



1.
Selecting cruise control mode.

2.
Programming a speed / Decrease the
programmed value.

3.
Programming a speed / Increase the
programmed value.

4.
Pause/resume cruise control.

5.
Display of the memorised speeds (by the
audio system memory).
In order to be programmed or activated, the
vehicle speed must be higher than 25 mph
(40 km/h), with at least 4th gear engaged on a
manual gearbox (2nd gear on an electronic or
automatic gearbox).

Display in the instrument panel

The cruise control or speed limiter mode
appears in the instrument panel when it is
selected.



Gear shift indicator

The system may suggest the most suitable
gear to select.

25Familiarisation


















































Eco-driving

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your gearbox


With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.

With an automatic or electronic gearbox, give preference to automatic
mode and avoid pressing the accelerator pedal heavily or suddenly.

The gear shift indicator invites you engage the most suitable gear: as
soon as the indication is displayed in the instrument panel, follow it
straight away.
With an electronic or automatic gearbox, this indicator appears only in
manual mode.



Drive smoothly


Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and CO
2
emissions and also helps reduce the background traffic noise.

If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.



Control the use of your electrical
equipment

Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps when the level of light
does not require their use.

Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.

As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.

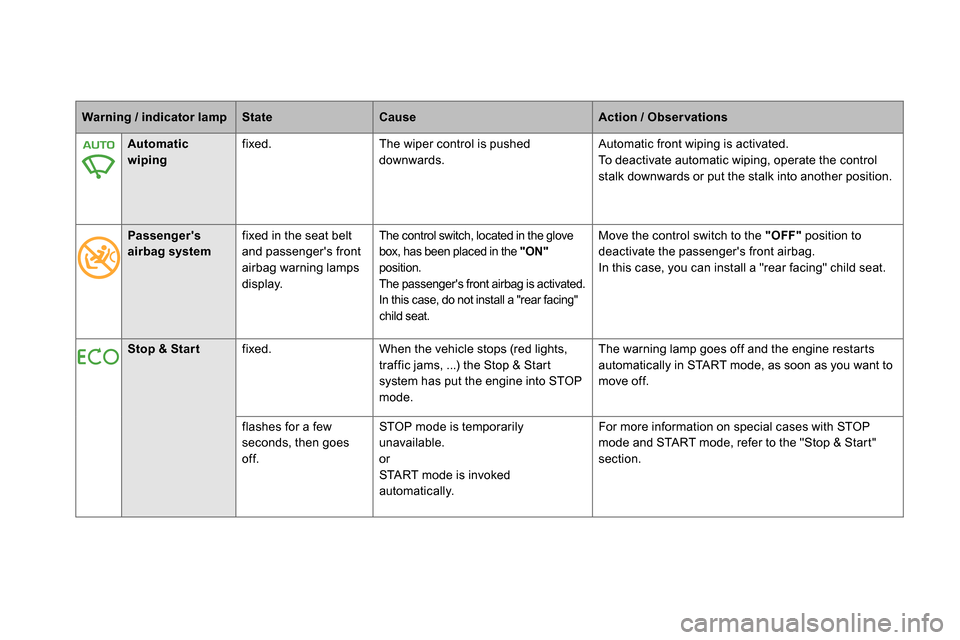

Warning / indicator lamp



State



Cause



Action / Observations









Automatic
wiping


fixed. The wiper control is pushed
downwards. Automatic front wiping is activated.
To deactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.





Passenger's
airbag system
fixed in the seat belt
and passenger's front
airbag warning lamps
display. The control switch, located in the glove
box, has been placed in the "ON"
position.
The passenger's front airbag is activated.
In this case, do not install a "rear facing"
child seat. Move the control switch to the "OFF"
position to
deactivate the passenger's front airbag.
In this case, you can install a "rear facing" child seat.




Stop & Start


fixed. When the vehicle stops (red lights,
traffic jams, ...) the Stop & Start
system has put the engine into STOP
mode. The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.

flashes for a few
seconds, then goes
off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. For more information on special cases with STOP
mode and START mode, refer to the "Stop & Start"
section.

35Monitoring

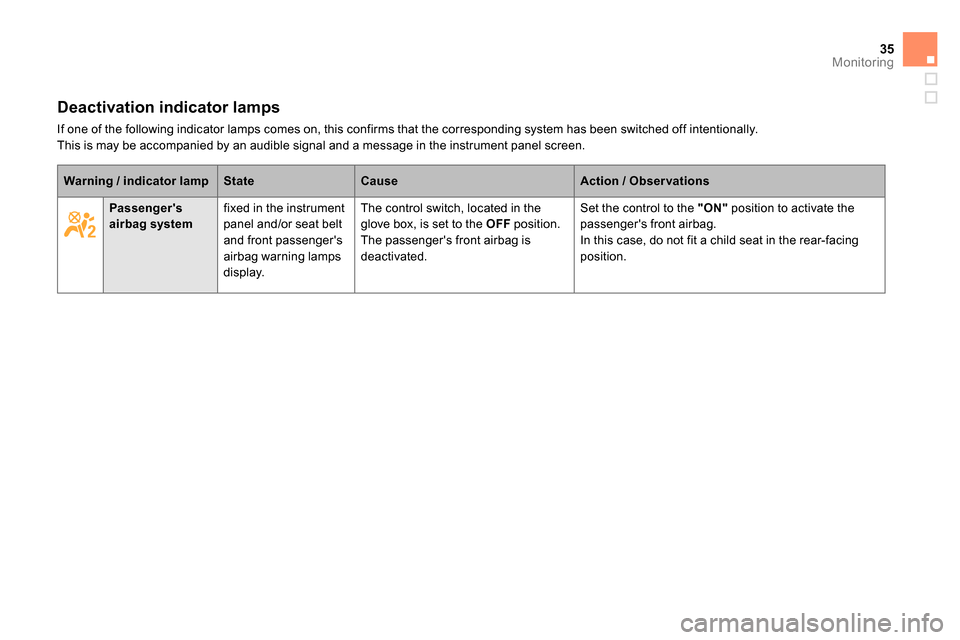

Deactivation indicator lamps

If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message in the instrument panel screen.



Warning / indicator lamp



State



Cause



Action / Observations









Passenger's
airbag system


fixed in the instrument
panel and/or seat belt
and front passenger's
airbag warning lamps
display. The control switch, located in the
glove box, is set to the OFF
position.
The passenger's front airbag is
deactivated. Set the control to the "ON"
position to activate the
passenger's front airbag.
In this case, do not fit a child seat in the rear-facing
position.

37Monitoring




Service


on temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown in the
screen, such as, for example:


- opening of the doors, boot or bonnet,

- engine oil low level,

- screenwash low level,

- flat remote control battery,

- saturation of the particle emission filter (Diesel)
As soon as the traffic conditions permit,
regenerate the filter by driving at a speed of at
least 40 mph (60 km/h) until the ser vice warning
lamp goes off.

- a fault with the tyre under-inflation detection
system,

- ...
For any other faults, contact a CITROËN dealer or a
qualified workshop.

fixed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown
on the screen and contact a CITROËN dealer or a
qualified workshop.

fixed, associated with the
flashing and then fixed
display of the ser vice
indicator spanner.
The ser vicing inter val has been
exceeded. Only on Blue HDi Diesel versions.
Your vehicle must be ser viced as soon as possible.

Warning / indicator lamp



State



Cause



Action / Observations

43Monitoring






Service indicator


More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no ser vice
information appears in the screen. System which informs the driver when the
next ser vice is due, in accordance with the
manufacturer's ser vicing schedule.
The point at which the ser vice is due is
calculated from the last indicator zero reset. It
is determined by two parameters:


- the distance travelled,

- the time elapsed since the last ser vice.


Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For 5 seconds after the ignition is switched on, the
spanner symbolising the ser vice operations comes
on. The distance recorder display line indicates the
distance remaining before the next ser vice is due.

Example:
1 700 miles (2 800 km) remain
before the next ser vice is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the spanner goes off
; the distance recorder
resumes its normal operation. The screen then
indicates the total and trip distances.


Less than 600 miles (1 000 km)
remain before the next service is due

Example:
560 miles (900 km) remain before
the next ser vice is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on
to
indicate that a ser vice must be carried out
soon.

Illumination of the key is accompanied
by a message in the instrument panel
screen.

Service overdue

For 5 seconds after the ignition is switched on,
the spanner flashes
to indicate that the ser vice
must be carried out as soon as possible.

Example:
the ser vice is overdue by 186 miles
(300 km).
For 5 seconds after the ignition is switched on,
the screen indicates:
With Blue HDi Diesel versions, the
Service
warning lamp also comes on
when the ignition is switched on.
The distance remaining may be
weighted by the time factor, depending
on the driving conditions.
Therefore, the spanner may also come
on if you have exceeded the period
since the last ser vice, indicated in the
maintenance and warranty guide.
Following this operation, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the
zero reset to be taken into account. 5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on
.








Service indicator zero reset

After each ser vice, the ser vice indicator must
be reset to zero.
The procedure for resetting to zero is as
follows:



switch off the ignition,


press and hold the trip distance recorder
zero reset button,


switch on the ignition; the distance recorder
display begins a countdown,


when the display indicates "=0"
, release
the button; the spanner disappears.


Retrieving the service
information
You can access the ser vice information at any
time.



Press the trip distance recorder zero reset
button.
The ser vice information is displayed for a few
seconds, then disappears.
