Citroen DS5 2016 1.G Workshop Manual

49
Monitoring

DS5_en_Chap02_ouvertures_ed02-2015
Access
002

DS5_en_Chap02_ouvertures_ed02-2015

DS5_en_Chap02_ouvertures_ed02-2015
Electronic key
remote control
Unlocking the vehicle
complete unlockingS elective unlocking
System which permits central unlocking or
locking of the vehicle using the lock or from a
distance. It is also used to locate and start the
vehicle, as well as providing protection against
theft. F
To u

nlock only the driver's door,
press the open padlock once.
Unlocking is confirmed by rapid flashing
of the direction indicators for around
two seconds.
At the same time, depending on
version, the door mirrors unfold. F
To u

nlock the other doors and
the boot, press the open padlock
again.
F
Pr
ess the open padlock to
completely unlock the vehicle.
This setting is done in the vehicle
configuration menu.
Complete unlocking is activated by
default.

53
DS5_en_Chap02_ouvertures_ed02-2015
Selective boot unlocking Locking the vehicle
Locking is confirmed by fixed
illumination of the direction indicators
for approximately two seconds.
Depending on version, the door mirrors
fold at the same time.F
Pr

ess the closed padlock to fully
lock the vehicle.
F
Ho
ld the button down until the
windows close completely.
F
Pr

ess this button until you hear
the boot unlock. The doors
remain locked.
Be particularly aware of children when
operating the windows. If one of the doors or the boot is not fully
closed, locking does not take place.
When the vehicle is locked, if it
is unlocked inadvertently, it will
automatically lock itself again after
about thirty seconds unless a door is
opened.
If the alarm was previously activated, it
will not be reactivated automatically.
If selective boot unlocking is
deactivated, pressing this button
unlocks the whole vehicle.
The selective boot unlocking function
is set in the vehicle configuration
menu.
By default, selective boot unlocking
is on.
Access

DS5_en_Chap02_ouvertures_ed02-2015
Unlocking the vehicle
Keyless Entry and Starting
System that allows the unlocking, locking
and starting of the vehicle while keeping the
electronic key on your person.
complete unlocking
F With the electronic key on your person and
in the recognition zone A , pass your hand
behind one of the door handles to unlock
the vehicle.
Your passengers can also open their doors, as
soon as the electronic key is in the recognition
zone.
Selective unlocking
F To unlock only the drivers door, with the
e lectronic key on your person, pass your
hand behind the driver's door handle.
This setting is done via the vehicle
configuration menu.
By default, complete unlocking is
activated.
Unlocking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
The door mirrors unfold at the same
time.
If the alarm is on, the audible warning
triggered when opening a door with the
key (integral with the remote control), will
stop when the ignition is switched
o

n.
It can also be used as a remote control.
For more information, refer to the
"Electronic key / remote control" section.
For reasons of safety and theft protection,
do not leave your electronic key in the
vehicle, even when you are close to it.
It is recommended that you keep it on
your person. F
To u

nlock the complete vehicle, pass your
hand behind one of the passenger door
handles on the same side of the vehicle as
the electronic key is located.

55
DS5_en_Chap02_ouvertures_ed02-2015
Locking the vehicle
F With the electronic key on your person in
the recognition zone A , press with a finger
or thumb on one of the door handles (at the
markings) to lock the vehicle.
F
Ma

intain pressure with your finger or thumb
until the windows close completely.
Locking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
The door mirrors fold at the same time. If one of the doors or the boot is still
open or if the key for Keyless Entry and
Starting system has been left inside
the vehicle or if the ignition is on, the
central locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock itself
again automatically after about thirty
seconds unless a door is opened.
If the alarm was previously activated, it
will not be reactivated automatically.
The folding and unfolding of the door
mirrors by the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.
As a safety measure (children on
board), never leave the vehicle without
taking the key for the Keyless Entry and
Starting system, even for a short period.
Guard against theft when the key for the
Keyless Entry and Starting system is
in the recognition zone with the vehicle
unlocked.
In order to preserve the charge of the
cell battery in the remote control, the
"hands-free" functions go into extended
stand-by after 21 days of non-use. To
restore these functions, press one of
the remote control buttons or start the
engine with the electronic key in the
reader.
Ensure that nothing and no person
prevents the correct operation of the
windows.
Be particularly aware of children when
operating the windows.
This function allows you to identify
your vehicle from a distance,
particularly in poor light. Your vehicle
must be locked.
Locating your vehicle
F Press the closed padlock on the remote
c
ontrol.
This will switch on the courtesy lamps and
the direction indicators will flash for around
ten
sec

onds.
Access

DS5_en_Chap02_ouvertures_ed02-2015
deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
locking button.
You must therefore never leave
anyone inside the vehicle when it is
deadlocked.Using the remote control
F Press the closed padlock to lock
the vehicle completely.
Maintain pressure with your finger to
close the windows.
With Keyless Entry and
Starting
By the doors:
F Wi th the electronic key on your person
in the recognition zone A , press with a
finger or thumb on the door handle (at the
markings) to lock the vehicle.
F
Wi

thin five seconds, press the door handle
again to deadlock the vehicle.
Ensure that nothing or any person
prevents the correct closing of the
windows.
Be particularly aware of children when
operating the windows.
F
Pr

ess the closed padlock again within
five
s

econds to deadlock the vehicle.

57
DS5_en_Chap02_ouvertures_ed02-2015
Back-up key
Unlocking / Locking using the integral key with Keyless
Entry and Starting
The integral key is used to lock and unlock the
vehicle when the electronic key cannot operate:
-
ce
ll battery flat, vehicle battery discharged
or disconnected, ...
-
ve

hicle located in an area with strong
electromagnetic signals.
F
Ma

intain a pull on button 1 , to extract the
integral key 2 .
If the alarm is activated, the audible
signal triggered on opening a door
with the key (integral with the remote
control) will stop when the ignition is
switched on.Locking the driver's
door
F Insert the integral key in the door lock, then
t urn it to the rear.
Unlocking the driver's
door
F Insert the integral key in the door lock, then
turn it to the front.
Access

DS5_en_Chap02_ouvertures_ed02-2015
Unlocking the passenger doors
F Pull the interior door opening control.

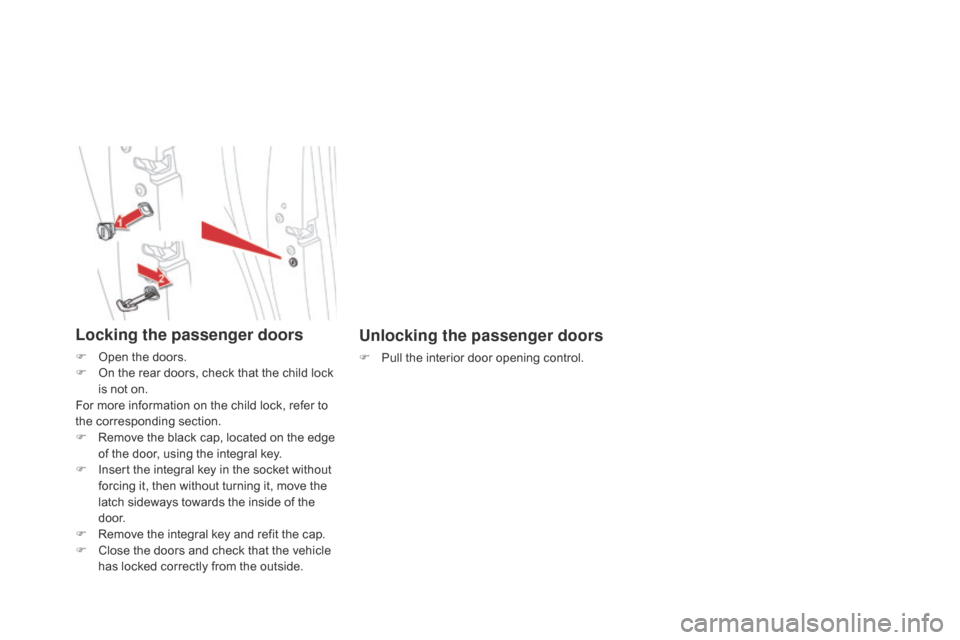

Locking the passenger doors
F Open the doors.
F On t he rear doors, check that the child lock
is not on.
For more information on the child lock, refer to
the corresponding section.
F
Re

move the black cap, located on the edge
of the door, using the integral key.
F
In

sert the integral key in the socket without
forcing it, then without turning it, move the
latch sideways towards the inside of the
d o o r.
F
Re

move the integral key and refit the cap.
F
Cl

ose the doors and check that the vehicle
has locked correctly from the outside.
