45 Audio and Telematics


Level 1
Level 2
Comments

Connected services



Secondary page



Bluetooth
Connection

Search
Start the search for a device to connect.

Connect

/Disconnect
Start or end the Bluetooth connection to the
selected device.

Update
Import contacts from the selected telephone to
save them in the audio system.

Delete
Deletethe selected telephone.

Confirm
Save the settings.

Connected services



Secondary page



Tr a n s f e r r a t e

Reset

Reset the usage monitor, them confirm.

Confirm


Connected services



Secondary page



Wi-Fi connection

All
Display all Wi-Fi networks.

Secure
Display secure Wi-Fi networks.

Stored
Memorise the selected Wi-Fi network(s).

Add
Add a new Wi-Finetwork.

Off

/On


Activate or deactivate a Wi-Fi network.

Connect
Select a Wi-Fi network found by the system and
connect to it.

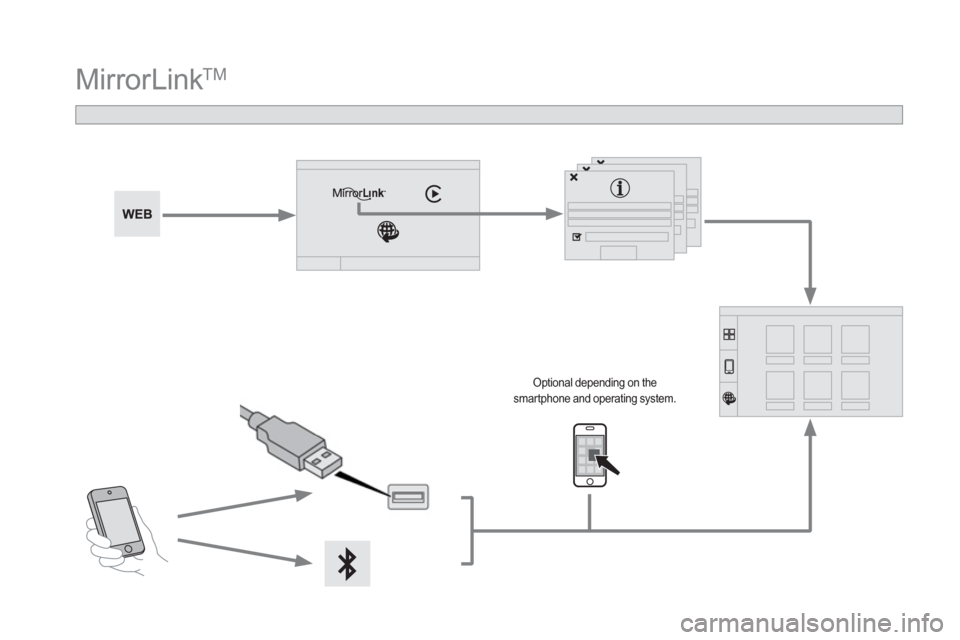

MirrorLink TM









Optional depending on the
smartphone and operating system.

47 Audio and Telematics


As a safety measure and because it
requires sustained attention by the
driver, using a smartphone when
driving is prohibited.
All operations must be done with the
vehicle stationary
.

The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
MirrorLink
TM technology to be displayed
in the vehicle's screen.
The principles and standards
are constantly evolving. For the
communication process between the
smartphone and the system to work
correctly, the smartphone must be
unlocked; update the operating system
of your smartphone as well as the date
and time in the smartphone and the
system.
For the list of eligible smar tphones,
connect to the brand's internet website
in your country.
Please note:


- if your smartphone is supported, to
make it "MirrorLink
TM " compatible,
some phone manufacturers
nevertheless invite you to first
download a dedicated application.



When connecting a smartphone to
the system, it is recommended that
Bluetooth
® be started on the smartphone
.


Start the application on the
smartphone (optional, depending
on the smartphone and operating
system).

During the procedure, several screen
pages relating to certain functions
are displayed.
Accept to start and end the
connection.

Connect a USB cable. The
smartphone charges when
connected by a USB cable.

Press " MirrorLink

TM
" to start
the application in the system.
Once connection is established, an page
is displayed with the applications already
downloaded to your smartphone and adapted
to MirrorLink
TM technology.
If only one application has been downloaded to
the smartphone, it starts automatically.



MirrorLink TM
smartphone
connection

Access to the different audio sources remains
accessible in the margin of the MirrorLink TM
display, using touch buttons in the upper bar.
Access to the menus for the system is possible
at any time using the dedicated buttons


From the system, press " Connected
services
" to display the primary
page.
As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.








Voice recognition


Press the end of the lighting control stalk to
start voice recognition of your smartphone via
the system.
Voice recognition requires a compatible
smartphone connected to the vehicle by
Bluetooth.

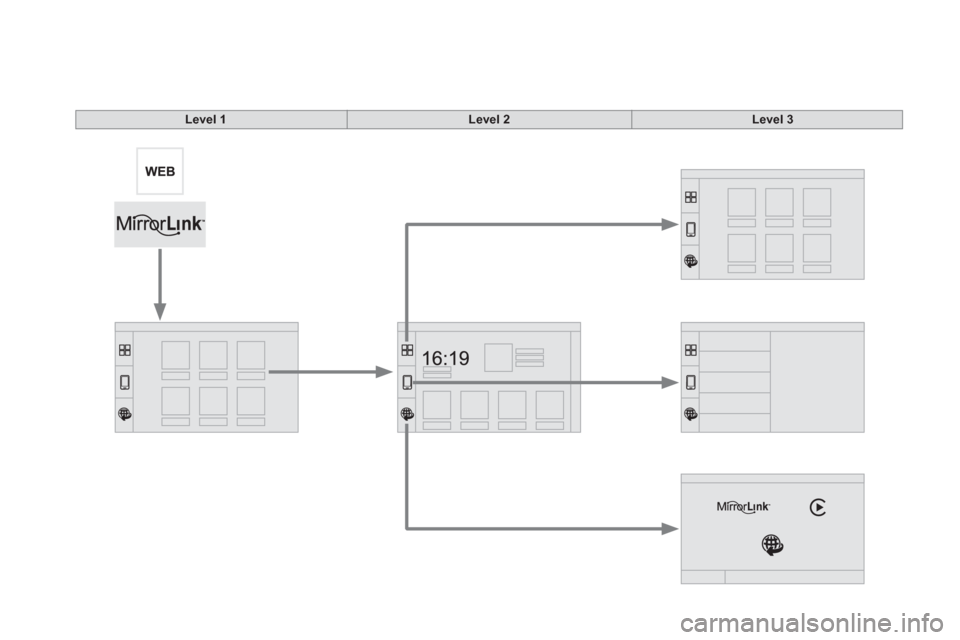

Level 1


Level 2


Level 3

49 Audio and Telematics


Level 1
Level 2
Level 3
Comments

Connected
services



MirrorLink
TM

Access or return to the applications already
downloaded to your smartphone and adapted to
MirrorLink
TM technology.
Access to a menu list depending on the
application chosen.
"Back": abandon the current operation, go up
one level.
"Home": access or return to the "Car mode"
page.
Access to the "Connected ser vices" primary
page.

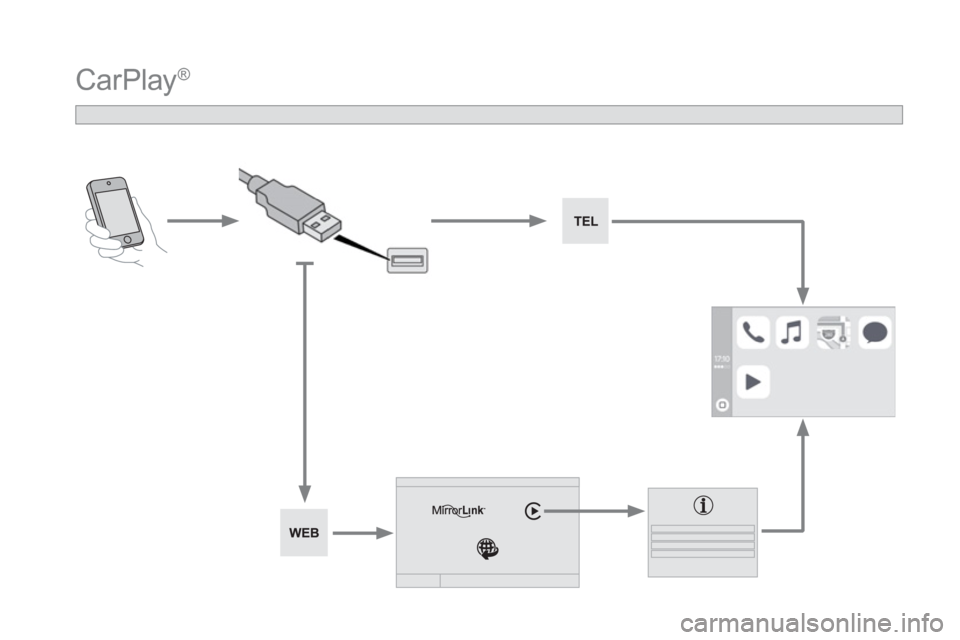

CarPlay ®

51 Audio and Telematics


Press on " CarPlay
" to display the
CarPlay ® interface.
Connect a USB cable. The
smartphone charges when
connected by a USB cable.

Press the end of the lighting control stalk to
start voice recognition of your smartphone via
the system.









CarPlay ®
smartphone
connection

From the system, press " Connected
services
" to display the primary
page.
Connect the USB cable. The
smartphone is charged while
connected by the USB cable.
Or








Voice recognition


As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.
The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
CarPlay
® technology to be displayed in
the vehicle's screen.
As the principles and standards are
constantly evolving, it is recommended
that you update the operating system of
your smartphone.
For the list of eligible smar tphones,
connect to the brand's internet website
in your country.
As a safety measure and because it
requires sustained attention by the
driver, using a smartphone when
driving is prohibited.
All operations must be done with the
vehicle stationary
.

During the procedure, one or more
screen pages relating to certain
functions are displayed on connection.

Press " Te l e p h o n e
" to display the
CarPlay
® interface.

Level 1


Level 2


Level 3

53 Audio and Telematics

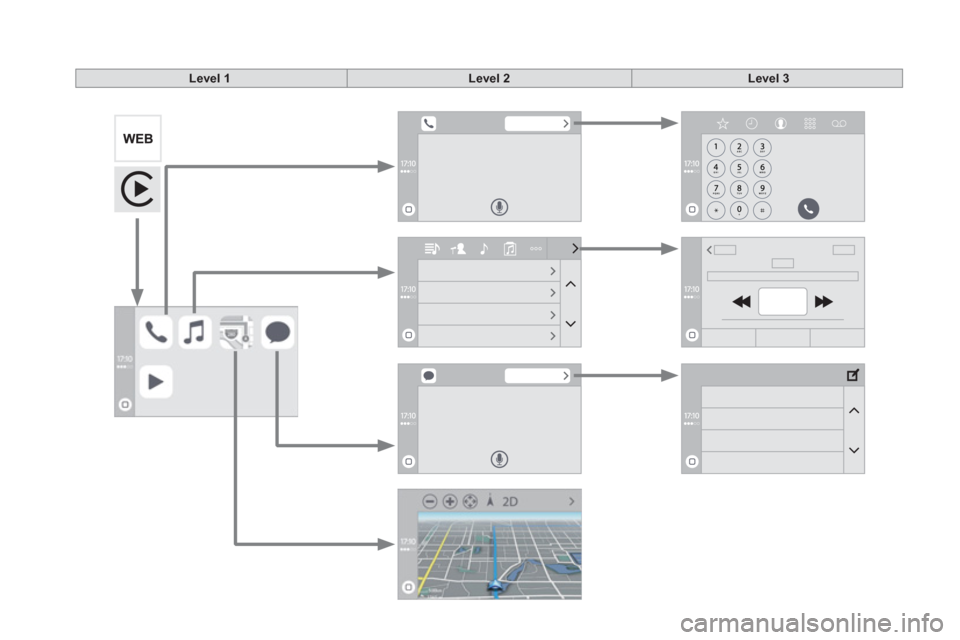

Level 1
Level 2
Level 3
Comments

Connected
services



Apple


®
CarPlay

®


Te l e p h o n e

Favourites

The "Telephone" function is placed automatically
in "Siri" voice mode.
Press on "Display contacts" for access to the
telephone menus.
Calls


Contacts


Keypad


Messages


Music

Lists

Press on "Music" to browse and select the tracks
on your smartphone.
Press on "Playing" for access to the track
currently playing.
Artists


Tr a c k s


Albums


Other...


Plan

Destinations
Press on "Destinations" to search for an address
by "Siri" voice command or by using the keypad.
The GPS function is through the telephone's 3G,
4G or Wi-Fi internet connection.

Messages

Display messages
The "Messages" function is place automatically
in "Siri" voice mode to speak the message and
the addressee.
Press on "Display messages" for access to the
messages.

Playing
Access to the track currently playing.

4
1
8
14
5
3
9
12
15
6
2
10
16
7
11
13
1718

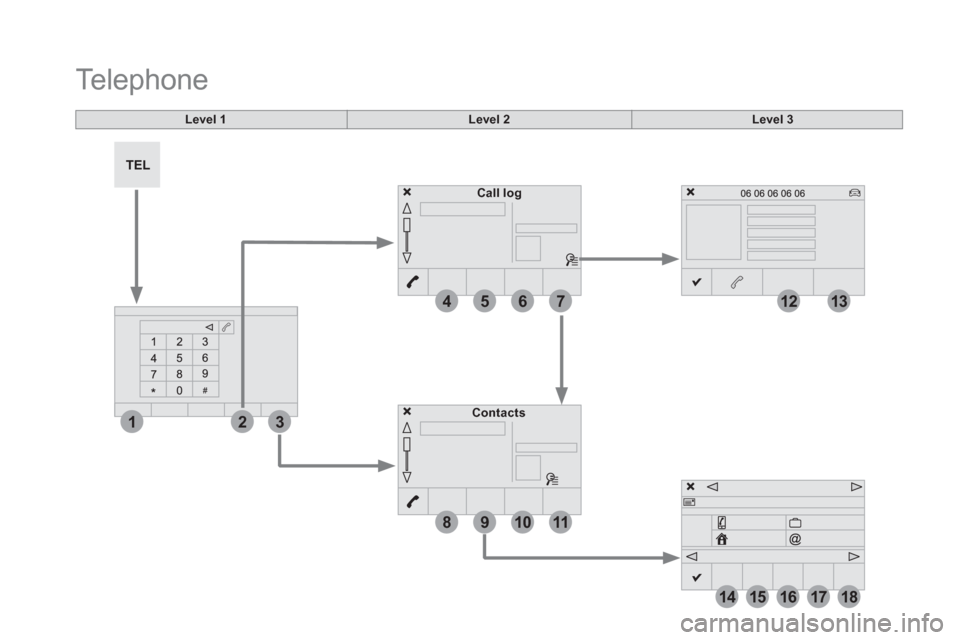

Level 1


Te l e p h o n e



Level 2


Level 3



Contacts


Call log
