05USING THE TELEPHONE
To display the "TELEPHONE
" menu:
- Make alon
g press on SOURCEor
SRC.
- Or, press OK
to display thecontextual menu. Select " Call" and confi rm.
-
Or, press MENU
, select
" Telephone" and confi rm. Select
" Call
" and confi rm.


Select "Dial " to enter a number andconfi rm.
Repeat the previous step 1
to displaythe "TELEPHONE" menu.

Select OKand confi rm to start the call.

Select "Calls list
" and confi rm.

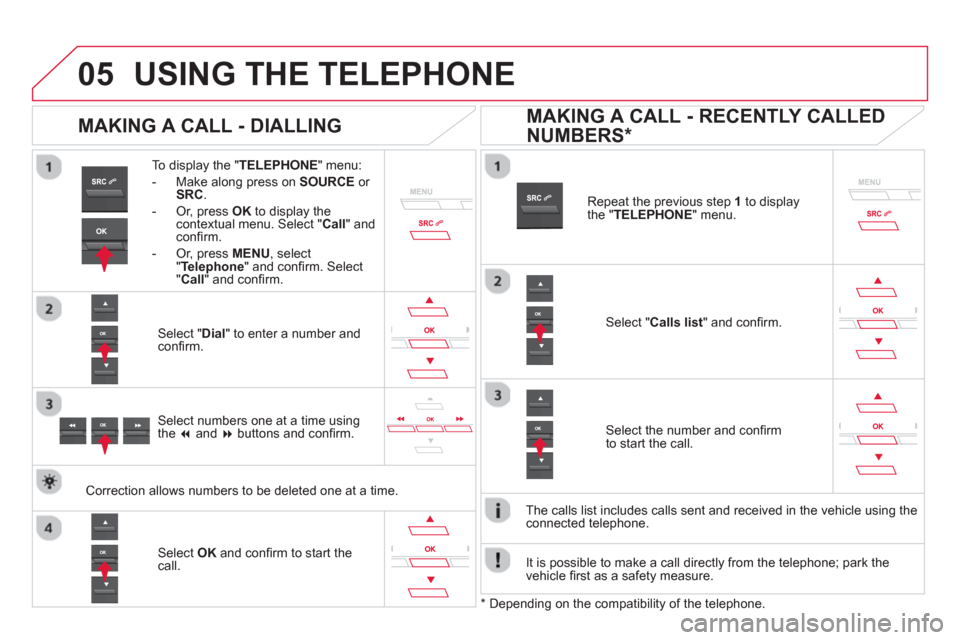

MAKING A CALL - DIALLING

Select numbers one at a time using
the and buttons and confi rm.

MAKING A CALL - RECENTLY CALLED
NUMBERS *

Select the number and confi rm
to start the call.

The calls list includes calls sent and received in the vehicle usin
g the connected telephone.

*

Depending on the compatibility of the telephone.
Correction allows numbers to be deleted one at a time.

It is possible to make a call directl
y from the telephone; park the
vehicle fi rst as a safety measure.

05
SRC
329
USING THE TELEPHONE
Repeat the previous step 1to display
the " TELEPHONE" menu.

Select "Directory
" and confi rm.
An incoming call is announced by a ring and a superimposed displayin the multifunction screen.
M
obile
(depending on the informationavailable in the contact records of
the telephone connected).
"
YES
" to accept the call is selected by default.

Press OK
to accept the call.

Select " NO
" and confi rm to reject thecall.

or
Press one o
f these buttons to accept
the call.

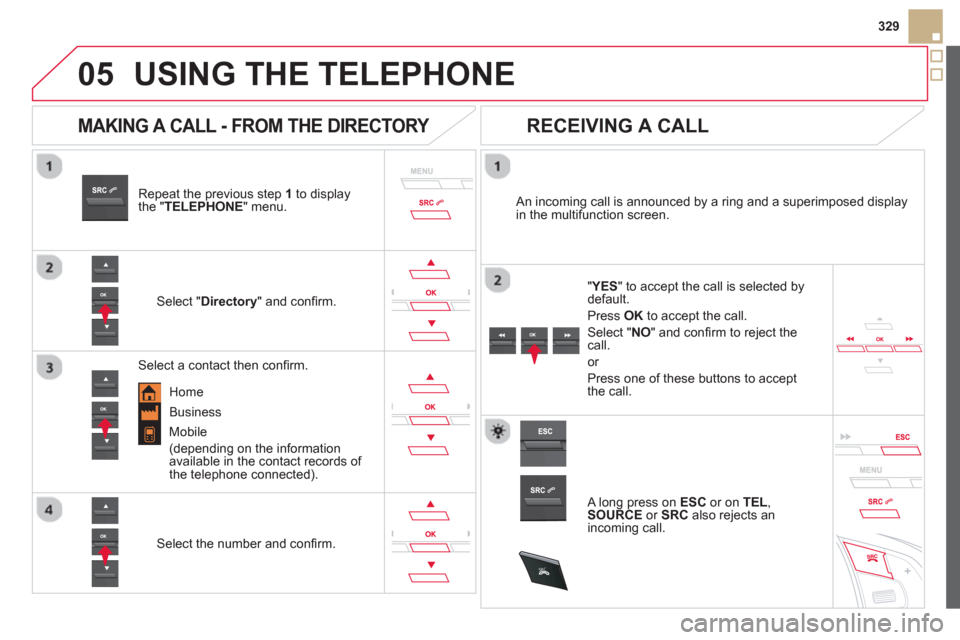

MAKING A CALL - FROM THE DIRECTORY
Select a contact then confi rm.


RECEIVING A CALL

Select the number and confi rm.
A long press on ESC
or on TEL ,
SOURCEor SRCalso rejects anincoming call.

Business
Home

05
SRC
USING THE TELEPHONE
During a call, press OK
to display the contextual menu.

Han
g up

In the contextual menu:

-
select "Telephone mode"
to transfer the call to the telephone.

-
deselect " Telephone mode
"
to transfer the call to the vehicle. In th
e contextual menu:
-
select " Micro OFF
" to switch off themicrophone.
-
deselect " Micro OFF" to switch the
microphone on.

In certain cases, the combined mode has to activated
from the
telephone.
If the contact has been cut off, when
you reconnect on returning to
the vehicle, the Bluetooth connection will be restored automatically (depending on the compatibility of the telephone).


MANAGING CALLS


A long press on one of these buttons also ends the call.
In the contextual menu, select " Hang up" to end the call.
Secret - Mute

(so that the caller cannot hear)

Combined mode

(to leave the vehicle without ending the call)

06
333

Press ‘
to display the audio settingsmenu.

The settin
gs available are:


-
Ambience,


- Bass,

-
Treble,

- Loudness,

- Distribution: Personalised or Driver,

- Left / ri
ght balance,

- Fader
(front / rear balance),

-
Auto. volume.



SCREEN C


The distribution (or spatialisation using the Arkamys© system), is©
an audio process which allows the sound quality to be improved
according to the setting chosen, corresponding to the position of the
listeners in the vehicle.

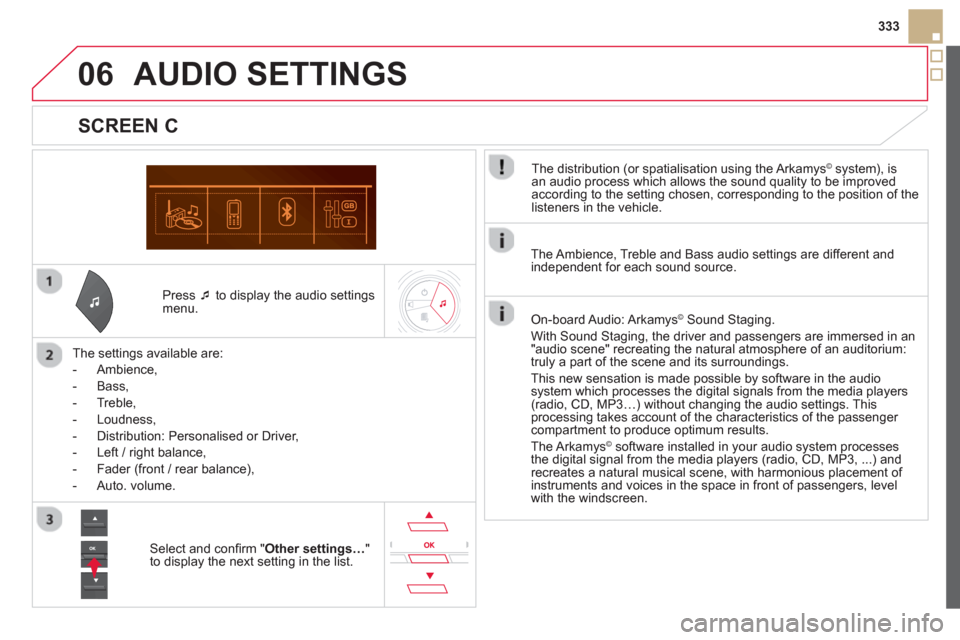

AUDIO SETTINGS
Select and confi rm " Other settings…"
to display the next setting in the list. The Ambience, Treble and Bass audio settin
gs are different andindependent for each sound source.
On-board Audio: Arkamys© Sound Staging.©
With Sound Staging, the driver and passengers are immersed in an"audio scene" recreating the natural atmosphere of an auditorium:
truly a part of the scene and its surroundings.
This new sensation is made possible b
y software in the audio
system which processes the digital signals from the media players(radio, CD, MP3…) without changing the audio settings. Thisprocessing takes account of the characteristics of the passenger compartment to produce optimum results.
The Arkam
ys© software installed in your audio system processes©
the digital signal from the media players (radio, CD, MP3, ...) and recreates a natural musical scene, with harmonious placement of instruments and voices in the space in front of passengers, level
with the windscreen.

07
335






Personalisation -
configuration
Defi ne the vehicle parameters
Access to the vehicle

Plip action
Drivin
g position setting

Unlocking boot only
Driving assistance
Rear wipe in reverse gear
Parkin
g brake automatic

Speeds memorised
Vehicle lighting
Daytime lights
Directional headlampsInterior li
ghting
Welcome lighting
Follow-me-home headlamps

Choice of language
Displa
y confi guration
Choice of unit
s
Date and time adjustment
Display parameters
Brightness

Choice of sounds
1
2
3
3
3
2
3
3
3
2
3
3
2
3
3
1
1
2
2
2
2
1

337

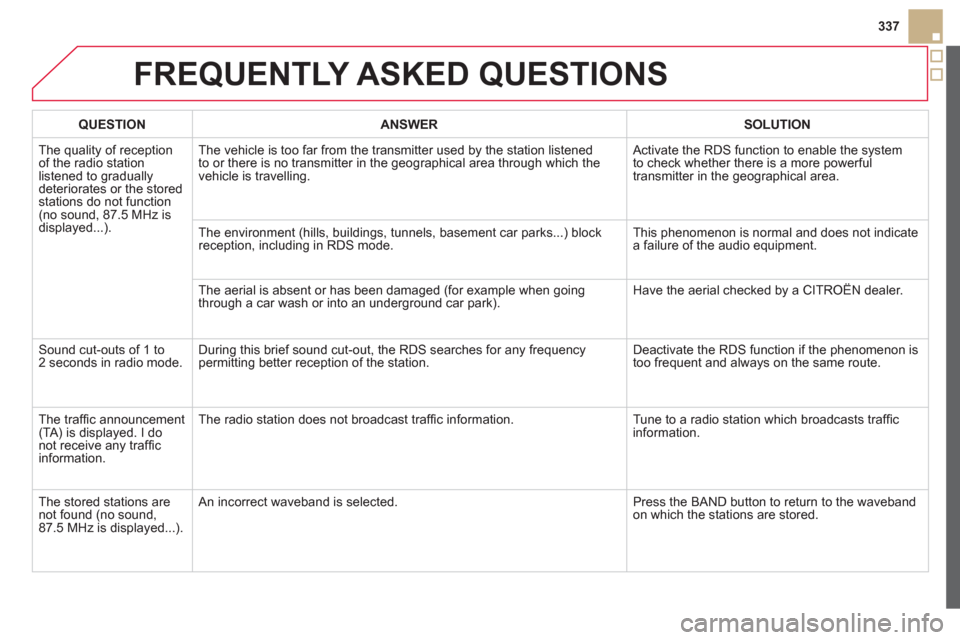

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWER SOLUTION
The quality of receptionof the radio station
listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 MHz is
displayed...). The vehicle is too
far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling.
Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment
(hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been dama
ged (for example when goingthrough a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.

Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
Th
e traffi c announcement(TA) is displayed. I donot receive any traffi c
information.Th
e radio station does not broadcast traffi c information. Tune to a radio station which broadcasts traffi c
information.
Th
e stored stations arenot found (no sound, 87.5 MHz is displayed...). An in
correct waveband is selected. Press the BAND button to return to the wavebandon which the stations are stored.

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWER SOLUTION
The CD is ejected
automatically or is not
played by the player. The
CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The
CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
-
Check that the CD is inserted in the player the
right way up.

-
Check the condition of the CD: the CD cannot
be played if it is too damaged.

-
Check the content in the case of a recordedCD: consult the advice in the "Audio" section.

- The audio equipment's CD pla
yer does not
play DVDs.

-
Due to their quality level, certain writeableCDs will not be played by the audio system.
The CD pla
yer sound ispoor.The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio settin
gs (bass, treble, ambience) are unsuitable. Set the treble or bass level to 0, without selectingan ambience.
Th
e Bluetooth connection
is cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The messa
ge "USB device error" is displayedon the screen.The U
SB memory stick is not recognised.
The memory stick may be corrupt. Re
format the memory stick (FAT 3 2).

339
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWER SOLUTION
A telephone connects
automatically,
disconnectin
g another
telephone.
Automatic connection overrides manual connection. Modify the telephone settings to remove automatic connection.

The Apple® player is ®
not recognised whenconnecting to the USB port.
The Apple ®player is of a generation that is not compatible with the USB. Connect the Apple ®player to the AUX Jack socket using a suitable cable (not supplied).
Th
e hard disk or deviceis not recognised whenconnecting to the USBport.
Some hard disks and devices need a power supply greater than is
provided by the audio system. Connect the device to the 230 V socket, the 12 V socket or an external power supply.
Caution
:
ensure that the device does not transmit
a voltage greater than 5 V (risk of destruction of
the system).

When streaming, the sound cuts momentarily. Some telephones prioritise connection of the "hands-free" profi le. Delete the "hands-free" connection profi le toimprove streaming.

In "Random all" play,not all of the tracks areplayed.
In "Random all" play, the system can only take into account up to 999 tracks.
With the en
gine off, the
audio system switches off after a few minutes of use. When the en
gine is switched off, the audio system operating time
depends on the battery charge.
The switch-off is normal: the audio s
ystem switches to economy mode and switches off to prevent discharging the vehicle's battery. Start the vehicle's en
gine to increase the batterycharge.

The message "the audio system is overheated"
appears on the display. In order to protect the installation i
f the surrounding temperature is too
high, the audio system switches to an automatic thermal protection mode
leading to a reduction of the volume or stopping of the playing of the CD.
Switch the audio system off for a few minutes to
allow the system to cool.
