139Driving
The programmed information is grouped
together in the instrument panel screen.
6. Speed limiter on / off indication. 7.Speed limiter mode selection indication. 8.
Programmed speed value.9.Selection of a memorised speed.
(see "Memorising speeds")


Displays in the instrument panel





Speed limiter System which prevents the vehicle fromexceeding the speed programmed by the driver.
When the programmed speed limit is reached, pressing the accelerator pedal no longer has
any effect.
The speed limiter cannot, in any
circumstances, replace the need to respect speed limits, nor can it replace the need for vigilance and responsibilityon the par t of the driver.The functions of this s
ystem are grouped
together on the steering mounted controls. 1.Speed limiter mode selection wheel. 2. Programmed value decrease button. 3.
Programmed value increase button.
4. Speed limiter on / off button.
5. List of memorised speeds display button. (see "Memorising speeds")
Steering mounted controls

O
peration

The speed limiter is switched onmanually:
it requires a programmed speed of at least
20 mph (30 km/h).
The speed limiter is switched offby manual foperation of the control.
The programmed speed can be exceeded
temporaril
y by pressing the accelerator firmlybeyond the point of resistance.
To return to the programmed speed, simply
release the accelerator pedal.
The pro
grammed speed remains in the memory
when the i
gnition is switched off.
This information also appears in thehead-up display.
For more information, refer to the "Head-up display" section.

Programming
)Turn dial 1 to the "LIMIT"
position: the
speed limiter mode is selected but is not
switched on
(Pause). You do not have to switch the speed limiter onin order to set the speed.)Set the speed value by pressing button 2or 3(e.g.: 55 mph (90 km/h)).
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not have any effect unless you press the pedal firmlypast the ypoint of resistance
.
The speed limiter is deactivated temporarily and the programmed speed,
which is still displayed, flashes.
Returning to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the programmed speed.

Exiting the speed limiter
mode
)Turn dial 1to the "0"
position: the speed
limiter mode is deselected. It disappears from the screen.



Operating fault

In the event of a fault with the speed limiter,
the speed is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a qualified workshop.
On a steep descent or in the event of sharp acceleration, the speed limiter willnot be able to prevent the vehicle from exceeding the programmed speed.
To avoid any risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- do not fit one mat on top of another.

)Switch the speed limiter back on by pressing button 4
again.

You can then change the programmed speed using buttons 2
and 3:- by + or - 1 mph (km/h) = shor t press,
- in steps of + or - 5 mph (km/h) = maintained press.
If speed memorisation is available and activated on your vehicle, theprogrammed speed will stop at the closest memorised speed; refer to thecorresponding paragraph. )Switch the speed limiter on by pressing button 4 . )Switch the speed limiter off by pressing button 4: the display confirms that it has been switched off (Pause).

141Driving
The cruise control system cannot, in any circumstances, replace the need to respect speed limits, nor can it replacethe need for vigilance and responsibility on the par t of the driver.
You are advised to keep your feet near the pedals at all times.






Cruise control System which automatically maintains thespeed of the vehicle at the value programmed
by the driver, without any action on the
accelerator
pedal.
The functions of this s
ystem are grouped
together on the steering mounted controls. 1.Cruise control mode selection dial.2. Speed programming / value decreasebutton.3.
Speed programming / value increasebutton.4.
Cruise control off / resume button.
5. Stored speeds display button.(see "Storing speeds")

Steering mounted controls

The programmed information is grouped
together in the instrument panel screen.
6. Cruise control off / resume indication. 7.Cruise control mode selection indication. 8.
Programmed speed value.9.Selecting a stored speed.
(see "Storing speeds")

Displays in the instrument panel


Operation
The cruise control is switched on
manually: it
requires a minimum vehicle speed of 25 mph (40 km/h) and the engagement of second gear
with sequential gear changing (position M ).
The cruise control is switched off
manually or fby pressing the brake pedal or on triggering of
the "electronic stability programme" system for safety reasons.
It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal.
To return to the programmed speed, simply
release the accelerator pedal.
Switching off the ignition cancels any programmed speed value.
This information also appears in thehead-up display.
For more information, refer to the "Head-up display" section.

When the cruise control is switched on, be careful if you maintain the pressure on one of the programmed speed changing buttons: this may result in a very rapid change in the speed of your vehicle. Do not use the cruise control on slipperyroads or in heavy traffic. On a steep descent, the cruise control will not be able to prevent the vehiclefrom exceeding the programmed speed. On steep climbs or when towing, the programmed speed may not be reached or maintained.
To a v o i d a ny risk of jamming of the
pedals:


- ensure that the mat is positioned correctly,

- never fit one mat on top of another.



Programming
)
Turn dial 1to the "CRUISE"
position: thecruise control mode is selected but is not
switched on (Pause).)
Set the programmed speed by acceleratingto the required speed, then press button 2or 3
(e.g.: 70 mph (11 0 k m/h)); the cruisecontrol system is activated (ON).
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed speed results
in flashing of this speed in the screen.
Return to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the speed.
Exiting cruise control mode
)Turn dial 1
to the "0"
position: the cruise control mode is deselected.
It disappears
from the screen.

)Switch on the cruise control again with another press on button 4
.


Operating fault

In the event of a cruise control malfunction,
the speed is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a qualified workshop.

You can then change the programmed speed using buttons 2and 3:

- by + or - 1 mph (km/h) = shor t press,

- in steps of + or - 5 mph (km/h) = maintained press.
If storing speeds is available and activated on your vehicle, the
programmed speed will stop at the closest stored speed; refer to the corresponding section. ) Stop the cruise control system by pressing button 4
: this is confirmedin the screen (Pause).

143Driving
This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.) which comes within the field of detection of sensorslocated in the bumper.
Certain types of obstacle (stake, roadworkscone, etc.) detected initially will no longer bedetected at the end of the manoeuvre due to
the presence of blind spots.






Parking sensors


This function cannot, in any circumstances, take the place of the vigilance and responsibility of the driver.
Rear parking sensors
The system is switched on by engaging reversegear. This is accompanied by an audible signal.
The system is switched off when you exit reverse gear.
Audible assistance
The proximity information is given by anintermittent audible signal, the frequency of whichincreases as the vehicle approaches the obstacle.
The sound emitted by the speaker (right or left) indicates the side on which the obstacle islocated.
When the distance between the vehicle andthe obstacle becomes less than approximately
t
hirty centimetres, the audible signal becomescontinuous.



Visual assistance

This supplements the audible signal bydisplaying bars in the multifunction screen
w
hich move progressively nearer to the vehicle.When the obstacle is near, the "Danger" symbol is also displayed in the screen.

In bad weather or in winter, ensure that the sensors are not covered with mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)indicates that the sensors may be dirty.
When the vehicle is moving at a speed below 6 mph (10 km/h), cer tain sound sources (motorcycle, lorry, pneumatic drill, etc.) may trigger the audiblesignals of the parking sensor system.
In th
e event of a malfunctionof the system, when reverse gear is engaged this warning
lamp is displayed in the instrument paneland/or a message appears in the screen,
accompanied by an audible signal (short beep).
Contact a CITROËN dealer or a qualified
workshop.

Operating fault
In addition to the rear parking sensors, the front parking sensors are triggered when an obstacle
is detected in front and the speed of the vehicle
is still below 6 mph (10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than three seconds
in for ward
gear, if no fur ther obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h).
Front par king sensors
The function will be deactivated automatically if a trailer is being towed or a bicycle carrier is fitted (vehicle fitted with a towbar or bicycle carrier recommended by CITROËN).



Deactivation / Activation of thefront and rear parking sensors

The function is deactivated by pressing thisbutton. The indicator lamp in the button comes on.
Pressing this button again reactivates the
function. The indicator lamp in the button
goes off.



The sound emitted by the speaker (front
or rear) indicates whether the obstacle is in front or behind.

145
Driving





Reversing camera

A reversing camera is activated automatically
when reverse gear is engaged.
The colour image is provided in the navigationscreen. The
green lines represent the general direction of the vehicle.
The red lines represent around 30 cm beyond the
limit of your vehicle's rear bumper. The audible signal becomes continuous from this limit.
The blue lines represent the maximum turningcircle.

Clean the reversing camera regularly using a sponge and a soft cloth.

005

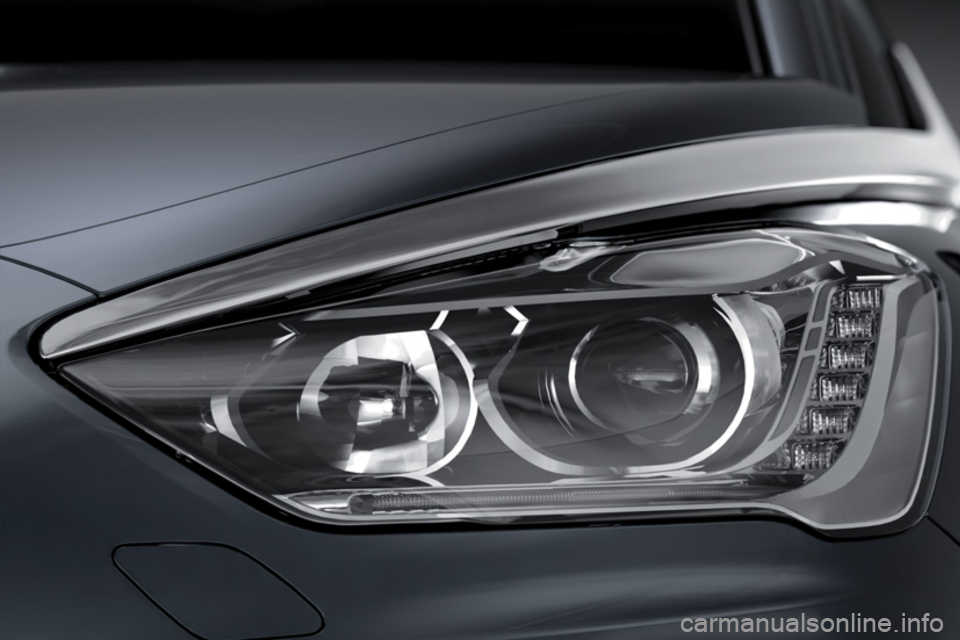

Visibility

Lighting controls System for selection and control of the various front and rear lamps providing the vehicle's lighting and signalling.
Main lighting
There are various lamps on the vehicle:
- sidelamps, to be seen,
- dipped beam headlamps to see without
dazzling other drivers,
- main beam headlamps to see clearly when
the road is clear,
- directional headlamps for improved
v
isibility when cornering.


Additional lighting
Other lamps are installed to fulfil the requirements of par ticular driving conditions:


- rear foglamps to better signal the presence of the vehicle in foggy conditions,

- front foglamps for better visibility in foggyconditions and to improve lighting at
intersections and when parking,

- daytime running lamps to be seen duringthe day.


Automatic lighting
functions

Various automatic lighting functions are also
available depending on options:


- guide-me-home lighting,

- directional headlamps,

- we
lcome lighting,

- daytime running lamps,

- automatic illumination of headlamps,

- automatic headlamp dipping.
