Page 11 of 358
9Familiarisation
For economical driving, caring for the environment
The fuel consumptionof a vehicle varies greatly:
- according to the driver's style of driving
(moderate, aggressive, fast, ...),
- according to the type of journeys
made (urban, main road, motor way, flowing, heavy traffic, …) and the speed.
Main recommendations for driving economically
Hybrid mode selector
To optimise fuel consumption, use the Automodeof the selector whenever possible (the mode is activated
automatically when starting) including for urban journeys.
This mode optimises the use of the energy sources (internal combustion engine and/or electric) contrary to other modes, which are for use in par ticular cases.
Gear lever
Use the automatic
mode A
as much as possible as this optimises gear changes to suit the requirements.
Causes of high consumption and checks
As with any vehicle, limit overloading, wind resistance (windows open above 30 mph (50 km/h), roof rack, loaded or not, …), the use of power consumers (air conditioning, heated seats, heated rear screen, …).
Obser ve the recommendations on checks (regular check of tyre pressures, correct tyre pressures, …) and routine servicing.
Drive smoothly
Stay in the "eco" zone
displayed in the energy consumption / generation indicator: accelerate gently, drive at steadyspeeds using the speed limiter or cruise control as soon as possible.Use the "charge" zone: anticipate the need to slow down by taking your foot off the accelerator rather than braking.
The movement of the energy consumption / generation indicator needle (into the "charge" zone), shows the level of energy recovery.
Consumption history
See the impact of your style of driving and the type of journey by reviewing the history of your energy consumption.Refer to the "Multifunction screens" section.
Page 12 of 358
Electronic key: Keyless Entryand Starting
This system allows you to unlock, lock and star t your vehicle while keeping the key on your person and in the defined zone around the vehicle.
77
Exterior
Directional lighting
This lighting automatically provides additional forward visibility when cornering.
157
Daytime running lamps
This lighting, switched on automatically when
starting the engine, makes your vehicle more
vi
sible to other road users.
151
Page 13 of 358
Familiarisation
Automatic headlamp dipping
This system automatically changes between
dipped and main beam, depending on the
driving conditions, using a camera located in
the interior rear view mirror.
15 3
Front and rear parking sensors
This systems warns you of the presence of obstacles located in front of or behind thevehicle during parking manoeuvres.
14 3
Temporary puncture repair kit
This kit is a complete system consisting of a compressor and a sealant car tridge, to allow
the temporary repair of a tyre.
19
6
Exterior
Reversing camera
This system, available only with satellite
navigation, is activated automatically onengaging reverse gear and provides an imagein the colour screen.
14
5
Page 14 of 358
Access
1.
Opening the fuel filler flap.
Ta n k c a p a c i ty: approximately 60 litres.
Fuel t ank
91
Unlocking
With the electronic key on your person and in
the defined zone A around the vehicle, passAyour hand behind the door handle to unlock the
vehicle, then pull on the handle to open the door.
Locking
With the electronic key in the defined zone Aaround the vehicle, press with a finger on
the door handle (at the markings) to lock the
v
ehicle.
Electronic key
76
A.
Unlocking the vehicle.B.Normal locking of the vehicle C.Unlocking the boot and complete unlocking of the vehicle.
Keyless Entry and Starting
77
Boot
1.
Unlocking the boot from inside: maintain pressure until the boot is heard to unlock.
84
Page 15 of 358
13Familiarisation
Interior
Head-up display
This system projects speed and cruise control/speed limiter information onto a smoked strip
in the driver's field of vision, so that they do not
need to take their eyes off the road.
Central storage containingvarious systems
It is illuminated, cooled and provides storageand locations for systems and loose items(USB Player, location for a bottle, ...).
Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible audio systems,
USB player, Bluetooth hands-free system,
satellite navigation system with colour screen, auxiliary inputs, Hi-Fi audio system, ...
eMyWay
136
108
311
257
Audio system
Massage function
This system provides a lumbar massage for a
period of about 60 minutes. The massage is
done in 6 cycles of 10 minutes.
10
0
Electric parkingbrake
It combines the functions of automatic application on switching off the engine and automatic release when moving off. Manual application and release remains possible.
122
Page 16 of 358
Illumination of the indicator lamp indicates the state of the corresponding function.
Switch panels
Opening the fuel filler flap.
Opening the boot.
91
85 D
eactivation of the alarm.
84
Electric parking brakeactivated.
122
Push button star tin
g/stopping.
31, 3
5
Forced operation of the Diesel engine.
43
Deactivation of parkingsensors.
144
Electric child lock.
17 7
Deactivation of the DSC/ASR system.
185
Activation for Automatic headlampdipping.
151
135
Activation of lane depar ture warningsystem.
83
Locking/unlocking the passenger compartment.
Page 17 of 358
15
Familiarisation
Sitting comfortably
Front seats
96
Manual
1.
Head restraint height and angleadjustment. 2.Backrest angle adjustment.3.Seat cushion height adjustment. 4.
Seat forwards-backwards adjustment.
5.Driver'slumbar suppor t adjustment.
Electric
1.
Angle, seat height and seat for wards-
backwards adjustment. 2.Backrest angle adjustment.3.Driver'slumbar suppor t adjustment.4.
Manual cushion adjustment.
97
Page 18 of 358
14 . Controls for electric windows / electric child lock / central locking.
15. eMyWay controls.
16.Gear selector.
17. Hybrid4 mode selector.
18
. Heating / air conditioningcontrols.
19.Audio system.
20.Hazard warning lamps. 21. Multifunction screen.
22.Central adjustable air vents.
23.Clock.
24.Starting with the START/STOP button.
25. Electronic key reader.
26. Wiper / screenwash / trip computerstalk.

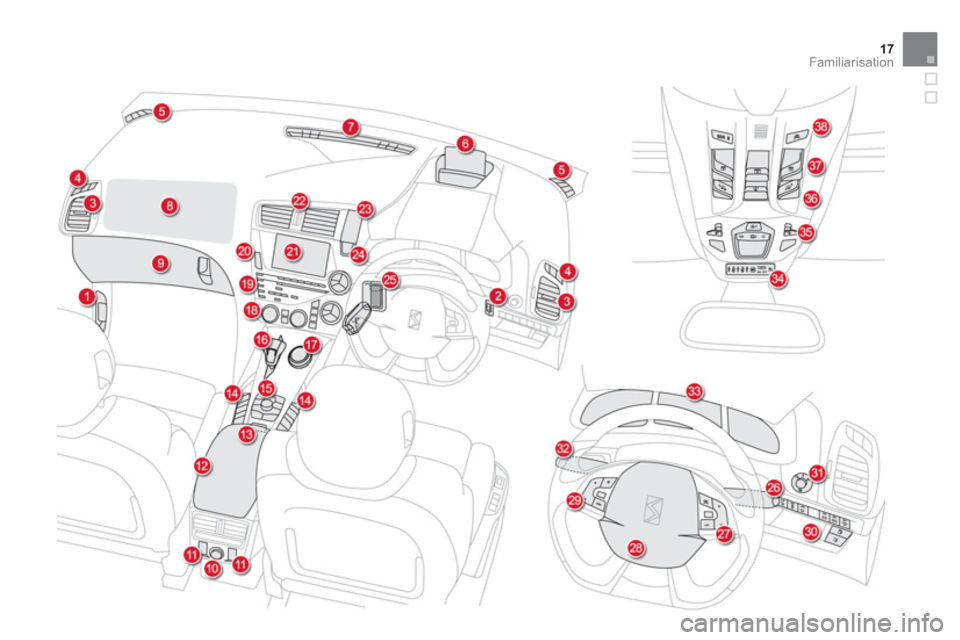

Instruments and controls
1.
Bonnet release lever.2.
Headlamp height adjustment. 3.
Side adjustable air vents.4.
Front door window demisting/defrosting
vents.
5. Quarter light demisting windows.
6.Head-up display.7. Windscreen demisting/defrosting vent.8.Passenger's airbag. 9.
Glove box / Passenger's airbag deactivation inside. 10.12 V accessory socket. 11.
Rear electric window controls.12.Central armrest with storage.
USB por t / auxiliary socket. 13.Electric parking brake.
27. Audio equipment steering mountedcontrols. 28.
Driver's airbag.
Horn. 29. Cruise control / speed limiter controls.
30.
Switch panel (see previous page).31.Door mirror adjustment.32.
Lighting and direction indicator stalk33.
Instrument panel. 34.Seat belt and airbag warning lamps. 35.Cour tesy lamp. 36.Head-up display controls. 37.
Controls for cockpit glass roof blind. 38.CITROËN Localised Emergency Call - CITROËN Localised Assistance Call.
Page 19 of 358
17Familiarisation
Page 20 of 358
Sitting comfortably
Head restraint adjustment
99
1.Release the adjustment mechanism.
2. Adjust for height and reach. 3.
Lock the adjustment mechanism.
Steering wheel adjustment
105
For reasons of safety, these operationsmust only be carried out with the vehicle stationary. To lower it, simultaneousl
y press button A andpush down on the head restraint.
To raise it, guide the head restraint upwards to
the desired position. To incline it, swivel the lower part backwards or forwards.
