headlamp Citroen DS5 HYBRID4 RHD 2011.5 1.G User Guide

Visibility

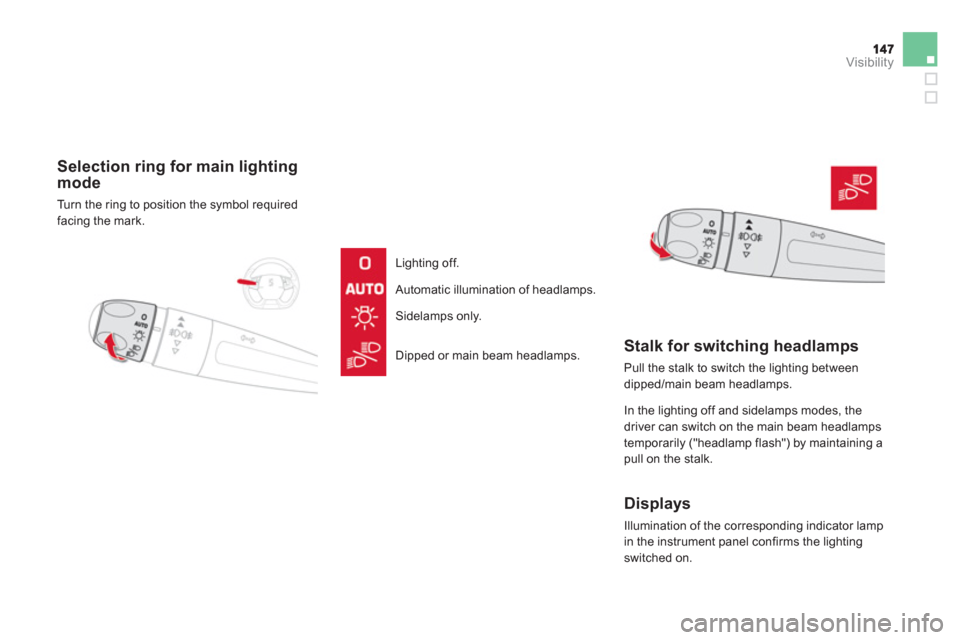

Selection ring for main lighting mode

Turn the ring to position the symbol required
facing the mark.

Lighting o
ff.
Automatic illumination of headlamps.


Sidelamps only.

Dipped or main beam headlamps.

Stalk for switching headlamps

Pull the stalk to switch the lighting between
dipped/main beam headlamps.

In the li
ghting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.


Displays

Illumination of the corresponding indicator lamp
in the instrument panel confirms the lighting switched on.

The foglamps operate with dipped and main beam headlamps.

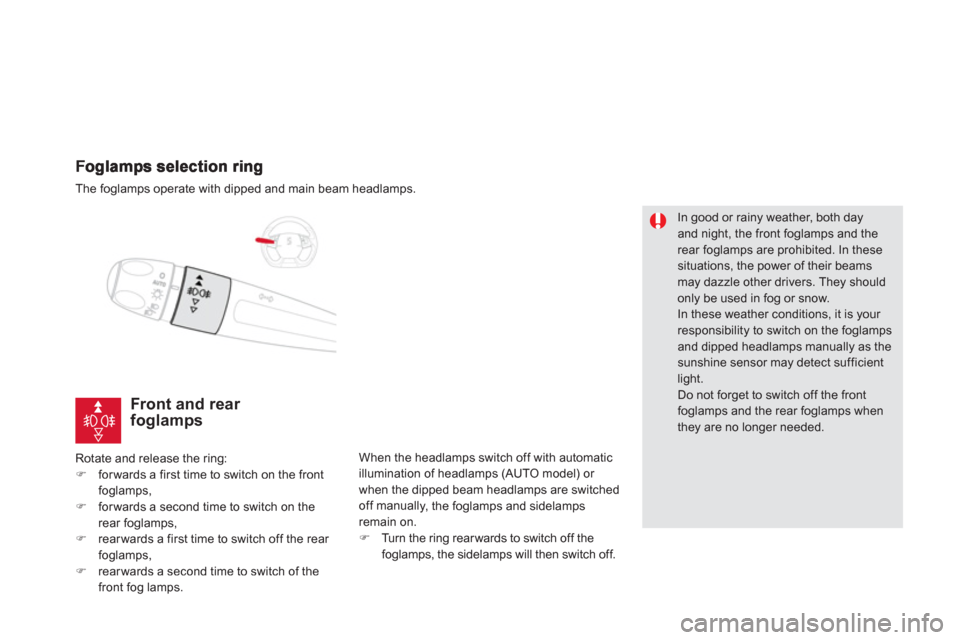

Front and rearfoglamps
Rotate and release the ring: )forwards a first time to switch on the frontfoglamps, )forwards a second time to switch on therear foglamps, )rearwards a first time to switch off the rear foglamps, )rearwards a second time to switch of the
front fo
g lamps. When the headlamps switch off with automatic
illumination of headlamps
(AUTO model) or
when the dipped beam headlamps are switched
off manuall
y, the foglamps and sidelampsremain on.
) Turn the ring rear wards to switch off thefoglamps, the sidelamps will then switch off.

In good or rainy weather, both day and night, the front foglamps and the rear foglamps are prohibited. In these situations, the power of their beams may dazzle other drivers. They shouldonly be used in fog or snow.
In these weather conditions, it is your responsibility to switch on the foglamps and dipped headlamps manually as the sunshine sensor may detect sufficientlight.
Do not forget to switch off the front foglamps and the rear foglamps when they are no longer needed.

149Visibility

Lighting left on audible signal
An audible signal when a front door
is opened warns the driver that the vehicle's exterior lighting is on, with theignition off and in manual lighting mode.
In this case, switching off the lighting stops the audible signal.
With the ignition off, if the dipped headlamps remain on, the vehicle goes into "ECO" mode to avoid discharging the battery.

In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal sur face of theglass of the headlamps and rear lampsis normal; it disappears after the lamps have been on for a few minutes.

The daytime runninglamps can be activated and deactivated via the configuration menu.



The lighting goes off when you switchoff the ignition, but you can always switch it on again using the lighting control stalk.

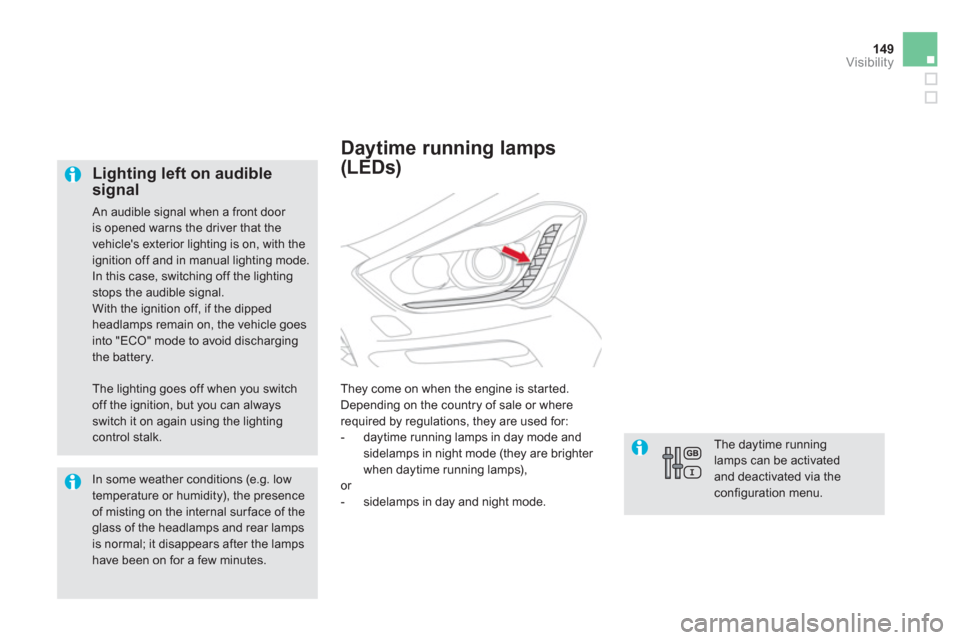

Daytime running lamps
(LEDs)
They come on when the engine is star ted.
Depending on the country of sale or whererequired by regulations, they are used for:
- daytime running lamps in day mode andsidelamps in night mode (they are brighter
when daytime running lamps), or
- sidelamps in day and night mode.

switched on automatically, without any action
on the par t of the driver, when a low level of
external light is detected or in certain cases of activation of the windscreen wipers.
As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
off, the lamps are switched off automaticall
y.
Automatic illumination of headlamps
Activation
)Turn the ring to the "AU TO "position,automatic illumination of headlamps is activated and a message is displayed in the screen.
Deactivation
)Turn the ring to another position. Deactivation is accompanied by a message in the screen.


Association with the automatic "Guide-me-home" lighting

Association with the automatic lighting provides
the "guide-me-home" lighting with the following
additional options after the ignition isswitched off:


- selection of the lighting duration of 15, 30or 60 seconds in the vehicle parameters in
the vehicle configuration menu,

- automatic activation of "guide-me-home"lighting when automatic illumination of
headlamps is in operation.



Operating fault

In the event of a malfunctionof the sunshine sensor,
the lighting comes on, this
warning lamp is displayed in the instrumentpanel and/or a message appears in the screen,
accompanied by an audible signal.
Contact a CITROËN dealer or a qualified
wor
kshop.
In fog or snow, the sunshine sensor may detect sufficient light. In this case, thelighting will not come on automatically. Do not cover the sunshine sensor,coupled with the rain sensor andlocated in the centre of the windscreen behind the rear view mirror; theassociated functions would no longer be controlled.

151Visibility
Automatic headlamp dipping
Switching on
System which automatically changes between
dipped and main beam according to the driving conditions, using a camera in the rear viewmirror.
) put the lighting control stalk ring
in the "AUTO" position,
Activation
This automatic headlamp dippingsystem is a driving aid. The driver
remains responsible for the vehicle's lighting, its correct use for the prevailingconditions of light, visibility and trafficand obser vation of driving and vehicle regulations.
)Flash the headlamps(pull the stalk beyond thestiff point), which causes a change betweendipped and main beam,
the warning lamp in the
instrument panel comes on to confirm activation.

)
press the button, its warninglamp comes on.


Switching off
)
press the button, the warninglamp goes off, the headlamps
remain in their current position


Pause

If the situation requires a change of headlamp beam, driver can take over at any time:
)Flash the headlamps
(pull the stalk beyond the
stiff point) to temporarily deactivate the system(pause), this changes the headlamps to dipped beam.
)Flash the headlamps
to reactivate the system.

The system will be operational as soon as you have exceeded 15 mph(25 km/h).If the speed drops below 9 mph (15 km/h),the system changes to dipped beam.

Parking lamps
Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.)Within one minute of switching off the
ignition, operate the lighting control stalk
up or down depending on the traffic side(for example: when parking on the left; lighting control stalk upwards; the righthand sidelamps are on).
This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the middle position or switch on the ignition. Temporarily keeping the dipped beam
headlamps on a
fter the vehicle's ignition has been switched off makes the exit of the vehicle's
occupants easier when the light is poor.
Manual guide-me-home
li
ghting

Switching on
)
Within one minute after switching of the
ignition, "flash" the headlamps using the lighting stalk.) A further "headlamp flash" switches thefunction off.


Switching off

The manual guide-me-home lighting switches
off automatically after a set time (this time is
pro
grammable in the configuration menu).



The system may suffer interference or not work correctly:


- under conditions of poor visibility(for example, snowfall, heavy rain or thick fog, ...),

- if the windscreen is dir ty, misted or obscured (by a sticker, ...) in front of the camera,

- if the vehicle is facing highly reflective signs.

The system is not able to detect:


- road users that do not have their own lighting, such as pedestrians,

- road users whose lighting isobscured, such as vehicles running behind a safety barrier (on a motor way, for example),

- road users at the top or bottomof a steep slope, on twisty roads, on crossroads.

Visibility

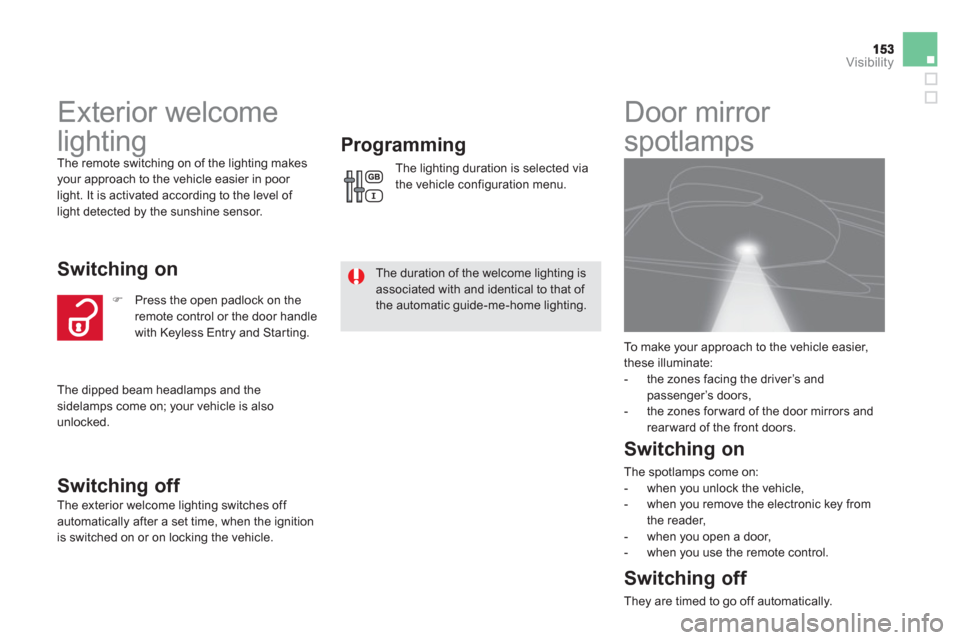

Exterior welcome
lighting
The remote switching on of the lighting makesyour approach to the vehicle easier in poor
light. It is activated according to the level of
light detected by the sunshine sensor.

Switching on

Switchin
g off


The exterior welcome lighting switches off
automatically after a set time, when the ignitionis switched on or on locking the vehicle.
Programming

The lighting duration is selected via
the vehicle configuration menu.
The duration of the welcome lighting isassociated with and identical to that of the automatic guide-me-home lighting.) Press the open padlock on the
remote control or the door handlewith Keyless Entry and Starting.







Door mirror
spotlamps

Switching on
The spotlamps come on:


- when you unlock the vehicle,

- when
you remove the electronic key from
the reader,

- when
you open a door,

- when you use the remote control.



Switching off

They are timed to go off automatically. To m a k e
your approach to the vehicle easier,
these illuminate:


- the zones facing the driver’s andpassenger’s doors,

- the zones forward of the door mirrors and
rearward of the front doors.
The dipped beam headlamps and the sidelamps come on; your vehicle is also unlocked.

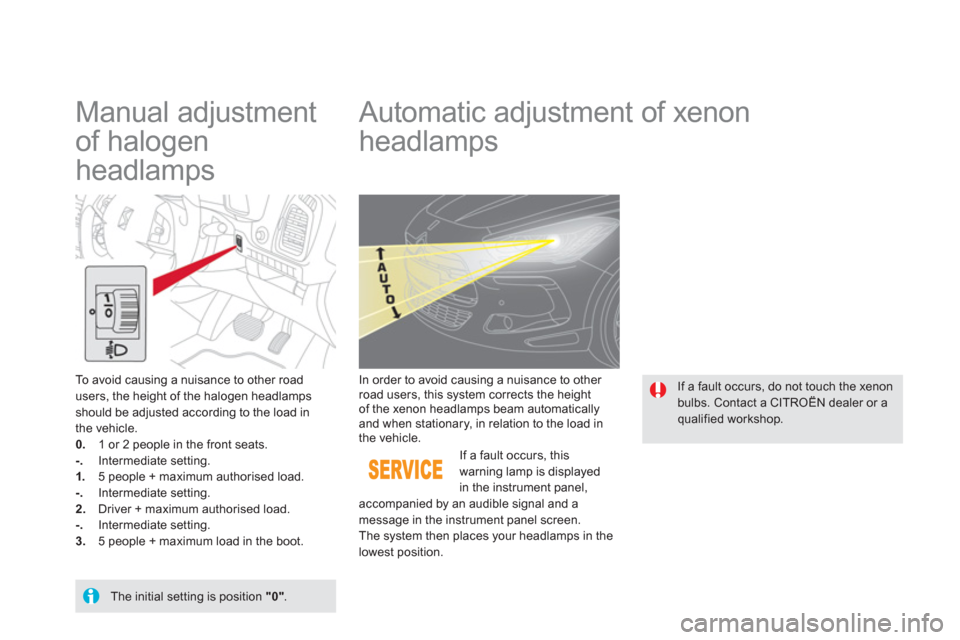

Manual adjustment
of halogen
headlamps







Automatic adjustment of xenon
headlamps
To avoid causing a nuisance to other road
users, the height of the halogen headlampsshould be adjusted according to the load in
the vehicle.0.1 or 2 people in the front seats. -.Intermediate setting. 1. 5 people + maximum authorised load. -.Intermediate setting. 2.
Driver + maximum authorised load. -.Intermediate setting. 3.
5 people + maximum load in the boot.

The initial setting is position "0".
If a fault occurs, this warning lamp is displayedin the instrument panel,
accompanied by an audible signal and a
message in the instrument panel screen.
The s
ystem then places your headlamps in the lowest position.
In order to avoid causing a nuisance to other road users, this system corrects the height
of the xenon headlamps beam automaticallyand when stationary, in relation to the load in
the vehicle.


If a fault occurs, do not touch the xenonbulbs. Contact a CITROËN dealer or aqualified workshop.

155
Visibility
When the dipped or main beam headlamps
are on, this
function, allows the light beams to better follow the road.
The use of this function, coupled with the
xenon headlamps and the cornerin
g lighting,considerably improves the quality of your
lighting round bends.

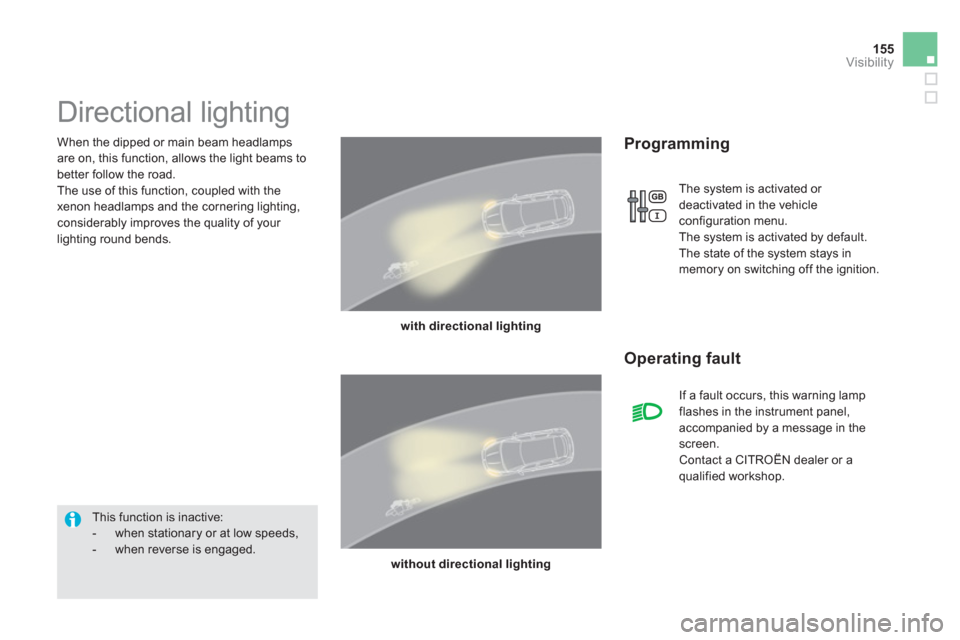

Directional lighting
with directional lighting
without directional lighting


Programming


Operating fault
The system is activated or deactivated in the vehicle configuration menu.
The system is activated by default.
The state of the system stays inmemory on switching off the ignition.


This function is inactive:


- when stationary or at low speeds,

- when reverse is engaged.
If a fault occurs, this warnin
g lamp
flashes in the instrument panel,
accompanied by a message in the screen.Contact a CITROËN dealer or aqualified workshop.

If a significant accumulation of snowor ice is present, or when using a bicycle carrier on the boot, deactivatethe automatic rear wiper via theconfiguration menu.
park,
intermittent wipe,
wash-wipe
(set duration).

Reverse gear

When reverse gear is engaged, the rear wiper
will come into operation if the windscreen
wipers are operating.
Th
e function is activated or
deactivated via the configuration menu.
This function is activated by default.
Programming
)Pull the windscreen wiper stalk towards you. The windscreen wash then the
windscreen wipers operate for a fixed
period.

The headlamp washers only operate when
the dipped beam headlamps are on.
Windscreen and headlamp
wash

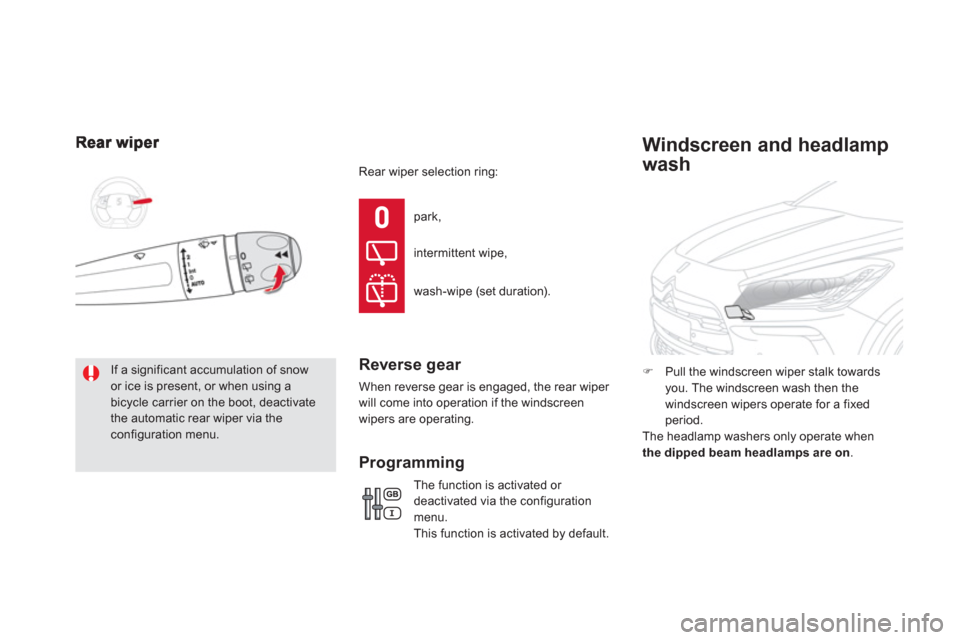

Rear wiper selection ring:
