headlamp Citroen DS5 HYBRID4 RHD 2011.5 1.G Owner's Guide

207
Practical information

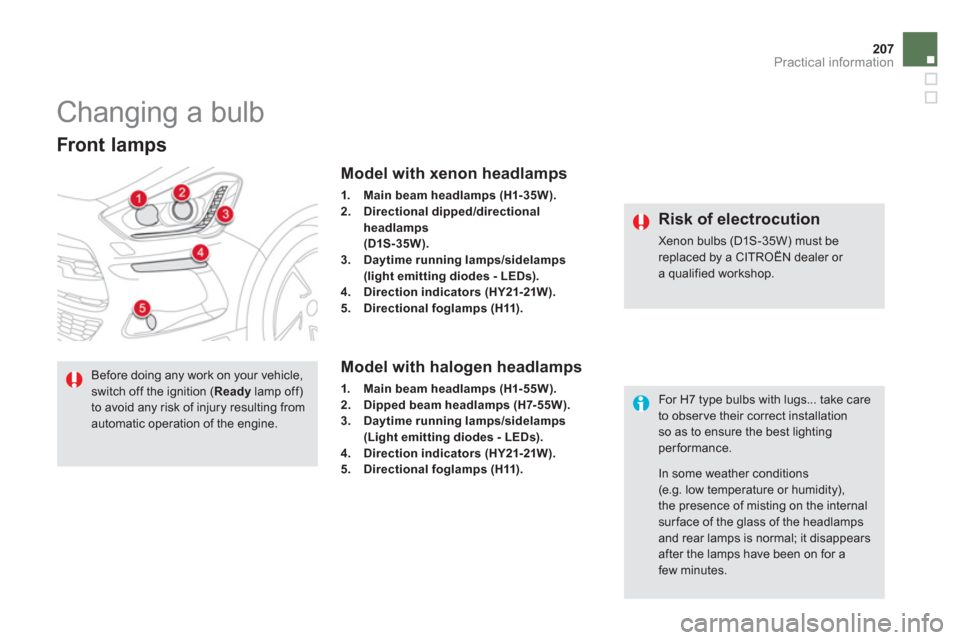

Changing a bulb
Front lamps
Model with xenon headlamps
1.Main beam headlamps (H1- 35W).2.Directional dipped/directional
headlamps(D1S-35W).3.Daytime running lamps/sidelamps(light emitting diodes - LEDs).4.Direction indicators (HY21-21W).5.Directional foglamps(H11).
Model with halogen headlamps
1.Main beam headlamps (H1- 55W).2.
Dipped beam headlamps (H7-55W).3.Daytime running lamps/sidelamps
(Light emitting diodes - LEDs).4.Direction indicators (HY21-21W).5.Directional foglamps(H11).
For H7 type bulbs with lugs... take care to observe their correct installationso as to ensure the best lighting performance.

In some weather conditions (e.g. low temperature or humidity),the presence of misting on the internal surface of the glass of the headlampsand rear lamps is normal; it disappearsafter the lamps have been on for afew minutes.


Risk of electrocution

Xenon bulbs (D1S-35W) must bereplaced by a CITROËN dealer or a qualified workshop.



Before doing any work on your vehicle, switch off the ignition (Ready
lamp off) to avoid any risk of injury resulting fromautomatic operation of the engine.

(xenon model)
) Remove the protective plastic cover by
pulling on the tab.) Remove the connector with the bulb bypressing on the lug at the bottom. )
Remove the bulb and change it.
For reassembly, carry out these operations in reverse order.
The headlamps are fitted withpolycarbonate glass with a protectivecoating:)do not clean them using a dryor abrasive cloth, nor with adetergent or solvent product,)use a sponge and soapy water, )when using a high pressure washer on persistent marks, do not keepthe lance directed towards thelamps or their edges for too long,so as not to damage their protectivecoating and seals.
)Do not touch the bulb directly withyour fingers, use lint-free cloths. Changing a bulb should only be doneafter the headlamp has been switched off for a few minutes (risk of serious burns).
It is imperative to use only anti-ultraviolet (UV) type bulbs in order not
to damage the headlamp. Always replace a failed bulb with a new bulb with the same type andspecification.
Dipped beam headlamps(xenon model)

D1S xenon bulbs must be changedby a CITROËN dealer or a qualifiedworkshop, as there is a risk of electrocution.
It is recommended that the D1S bulbsare changed at the same time when one of them fails.

Practical information
Dipped beam headlamps
(halogen model)
)
Remove the protective plastic cover by
pulling on the tab.

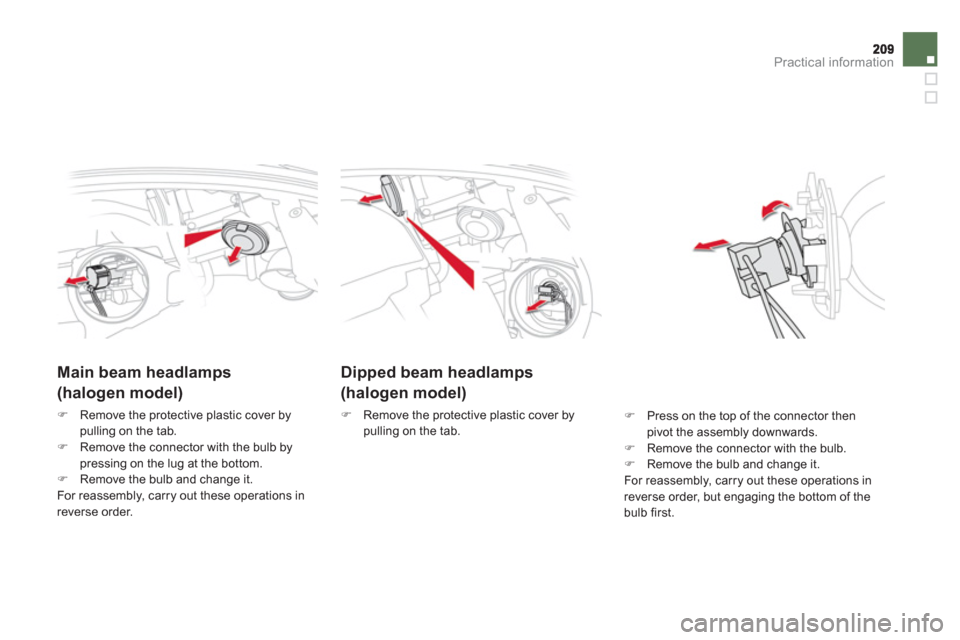

Main beam headlamps
(halogen model)
)Remove the protective plastic cover bypulling on the tab.)Remove the connector with the bulb by pressing on the lug at the bottom. )Remove the bulb and change it.
For reassembly, carry out these operations in
reverse order.

)
Press on the top of the connector thenpivot the assembly downwards. )
Remove the connector with the bulb.)
Remove the bulb and change it.
For reassembly, carry out these operations in
reverse order, but engaging the bottom of thebulb first.

217Practical information

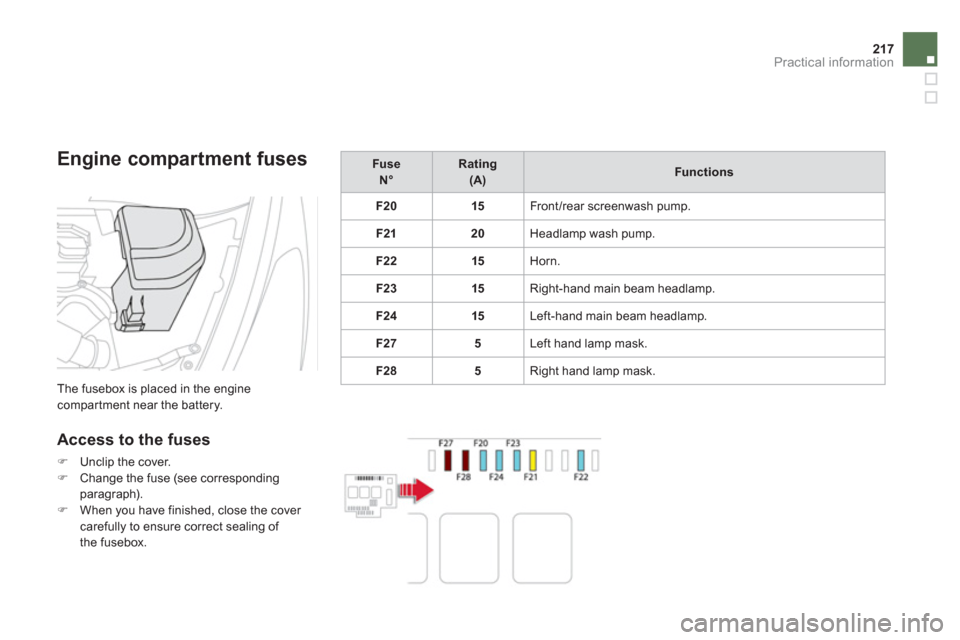

Engine compartment fuses

The fusebox is placed in the engine compartment near the battery.


Access to the fuses
)Unclip the cover. )Change the fuse (see corresponding paragraph).)When you have finished, close the cover carefully to ensure correct sealing of
th
e fusebox.
Fuse N°
Rating(A)Functions
F20 15
Front
/rear screenwash pump.
F2120 Headlamp wash pump.
F2215
Horn.
F2
315 Right-hand main beam headlamp.
F2
415 Left-hand main beam headlamp.
F275
Left hand lamp mask.
F2
85 Right hand lamp mask.

221Practical information
System which manages the duration of use of
certain functions to conserve a sufficient level
of charge in the battery.
After the engine has stopped, you can still use
functions such as the audio and telematics system, windscreen wipers, dipped beam
headlamps, cour tesy lamps, etc. for amaximum combined duration of thirty minutes.

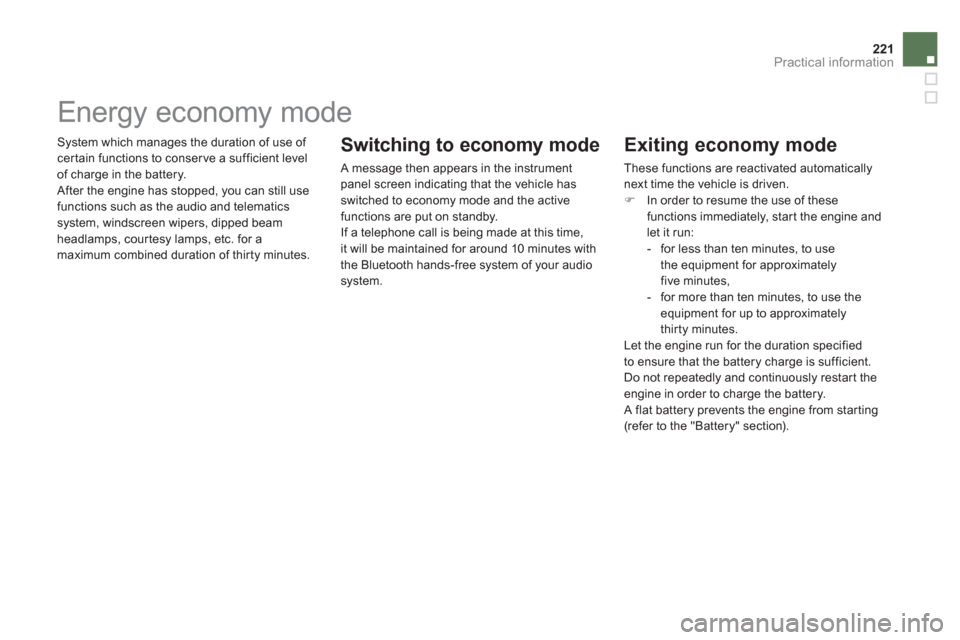

Energy economy mode
Switching to economy mode

A message then appears in the instrument panel screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.
If a telephone call is being made at this time,it will be maintained for around 10 minutes with
the Bluetooth hands-free system of your audio
system.


Exiting economy mode

These functions are reactivated automatically
next time the vehicle is driven.) In order to resume the use of thesefunctions immediately, star t the engine and
let it run:
- for less than ten minutes, to use
the equipment for approximatelyfive minutes,
- for more than ten minutes, to use theequipment for up to approximately
thirty minutes.

Let the engine run for the duration specified
to ensure that the battery charge is sufficient.
Do not repeatedly and continuously restar t theengine in order to charge the battery.
A flat battery prevents the engine from star ting (refer to the "Battery" section).

The various caps and covers allow access for
checking the levels of the various fluids, for replacing cer tain components and for primingthe fuel system.














Diesel engine
1.
Power steering reservoir.2.
Screenwash and headlamp wash reser voir.3.
Coolant reservoir. 4.
Brake fluid reservoir.5.
Battery/Fuses.
6.Fusebox.
7. Air filter.8.Engine oil dipstick. 9.
Engine oil filler cap.10.Priming pump. 11.
Bleed screw. HDi 160 PEF 6- SPEED ELECTRONIC GEARBOX

Screenwash / headlamp
wash fluid level
To check the level or top up the fluid on vehicle
fitted with headlamp washers, immobilise the
vehicle and switch of the en
gine. )Open the bonnet and secure it with
the stay. )Open the screenwash reser voir filler cap.

To p p i ng up

This additive must be topped up by a CITROËN
dealer or a qualified workshop without delay.

Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is
indicated by illumination of
the ser vice warning lamp,
accompanied by an audible
warning and a message in the instrument panelscreen.

Specifi cation of the fl uid
To ensure optimum cleaning and to avoid freezing, the fluid should never be topped up or
replaced by plain water.

)
Take and pinch the level gauge to block itsbreather.)
Remove the gauge completely from
the reservoir to read the level in thetransparent section.) To p u p i f n e c e s s a ry. )
Refit the filler cap to the reser voir and close the bonnet.

11
1
2
3a
3b
1
2
3
4
Press SETUP
to display the"Confi guration " menu.
Select " Adjust luminosity" and confi rm
to adjust the screen brightness.
Pr
ess "OK" to save the changes.
The settin
gs for day and night areindependent.
Select " Choose colour" and confi rm torselect the screen colour harmony and
the map presentation mode:
-
day mode,
- n
ight mode,
- automatic day
/night mode,
according to whether the headlamps are on.














SETTING THE DATE AND TIME

Select "Set date and time " and confi rm.

Select the setting to adjust.

Confi rm by pressing OK
, then adjust the setting and confi rm again to save themodifi cation.
Select " Display confi guration" andconfi rm.
Pr
ess SETUPto display the
"Confi guration" menu.

Select "Display confi guration " andconfi rm.

Adjust the settings one by one.
Then select "OK" on the screen and confi rm
to save the settings.



DISPLAY CONFIGURATION
Select " Synchronize the minutes with GPS" so that setting theminutes is done automatically by satellite reception.
The clock, located in the dashboard, is synchronised withthe time in the screen. It is set once the time is adjusted using the "SETUP" menu and every time the ignition isswitched on.

1
2
2a
11
299
Pr
ess SETUP
to display the"Confi guration " menu.

Adjust the settings one by one.
Th
en select "OK" on the screen and confi rm to save the settings.

Select " Vehicle parameters
" and confi rm.

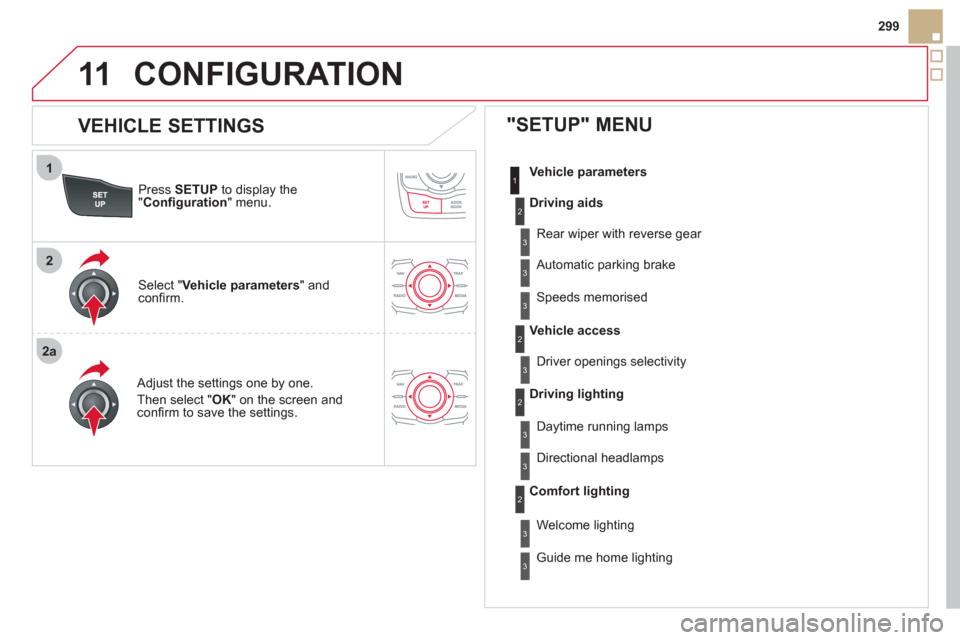

VEHICLE SETTINGS
CONFIGURATION


"SETUP" MENU

Vehicle parameters
Driving aids
Rear wiper with reverse
gear
Automatic parkin
g brake
1
2
Speeds memorised
3
3
3
Vehicle access2
Driver openings selectivity3
Driving lighting2
Daytime running lamps 3

Directional headlamps3
Comfort lighting2
Welcome lighting 3
Guide me home lighting3

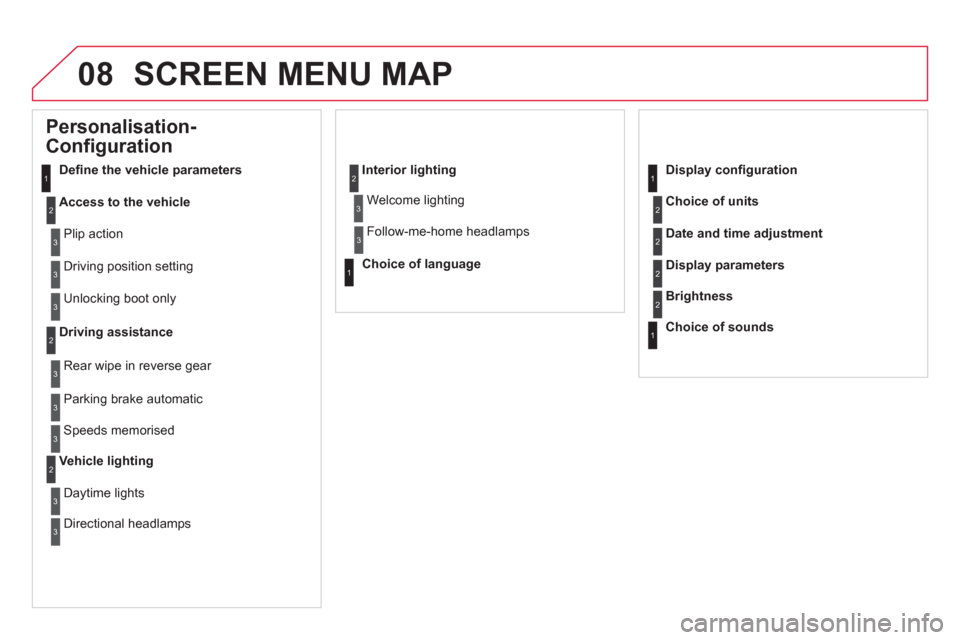

08 SCREEN MENU MAP






Personalisation-
Configuration
Defi ne the vehicle parameters
Access to the vehicle

Plip action
Drivin
g position setting

Unlocking boot only
Driving assistance
Rear wipe in reverse gear
Parkin
g brake automatic

Speeds memorised
Vehicle lighting
Daytime lights
Directional headlampsInterior li
ghting
Welcome lighting
Follow-me-home headlamps

Choice of language
Displa
y confi guration
Choice of unit
s
Date and time adjustment
Display parameters
Brightness

Choice of sounds
1
2
3
3
3
2
3
3
3
2
3
3
2
3
3
1
1
2
2
2
2
1
