Page 4 of 358

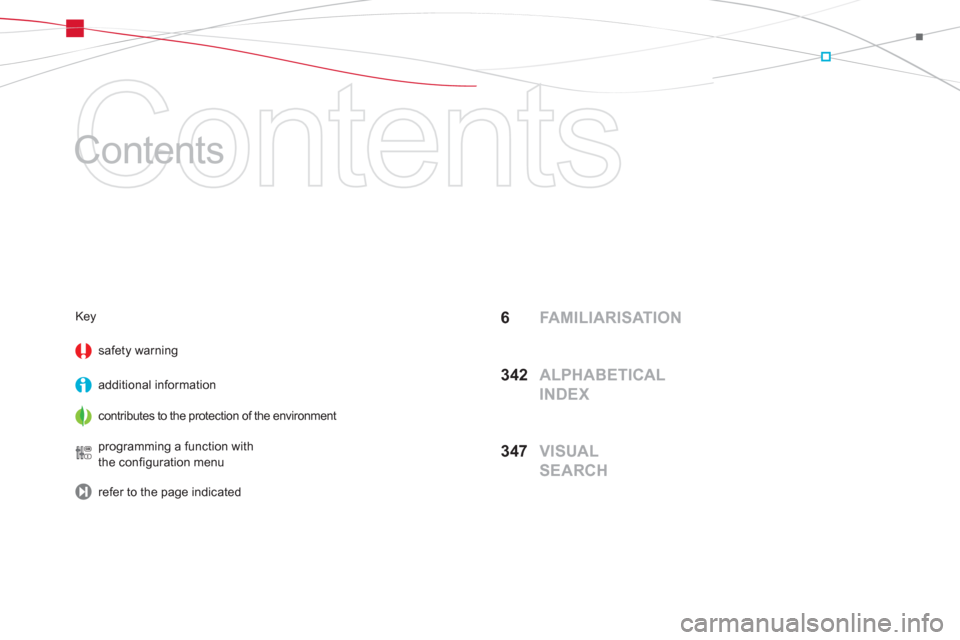

Contents
Contents
6 FA M I L I A R I SAT I O N
34
2 ALPHABETICAL
INDEX
347 VISUAL
SEARCH
Key
sa
fety warning
additional information
contributes to the protection of the environment
pro
gramming a function with
the configuration menu
re
fer to the page indicated

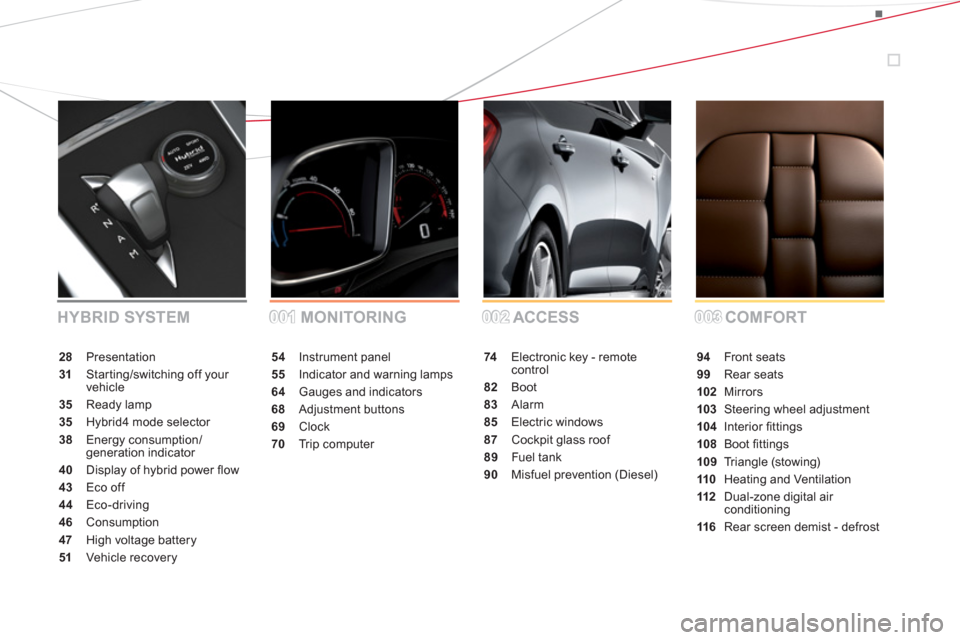

Page 5 of 358
54Instrument panel
55Indicator and warning lamps
64 Gauges and indicators
68Adjustment buttons
69 Clock
70 Tr i p c o m p u ter
74 Electronic key - remote control
82Boot
83Alarm
85Electric windows
87Cockpit glass roof
89 Fuel tank
90 Misfuel prevention (Diesel)
94 Front seats
99Rear seats
102Mirrors
103 Steering wheel adjustment
104Interior fi ttings
108Boot fi ttings
109Tr i a ngle (stowing)
110Heating and Ventilation
112 Dual-zone digital air conditioning
116 Rear screen demist - defrost
28 Presentation
31 Starting/switching off your
vehicle
35 Ready lamp
35 Hybrid4 mode selector
38 Energy consumption/generation indicator
40Display of hybrid power fl ow
43 Eco off
44Eco-driving
46 Consumption
47High voltage battery
51 Vehicle recovery
001001002002003003COMFORT ACCESS MONITORING HYBRID SYSTEM
Page 12 of 358
Electronic key: Keyless Entryand Starting
This system allows you to unlock, lock and star tyour vehicle while keeping the key on your person and in the defined zone around the vehicle.
7
4
Exterior
Directional lighting
This lighting automatically provides additional forward visibility when cornering.
155
Daytime running lamps
This lighting, switched on automatically when
starting the engine, makes your vehicle more
vi
sible to other road users.
149
Page 14 of 358
Access
1.
Opening the fuel filler flap.
Ta n k c a p a c i ty: approximately 60 litres.
Fuel t ank
89
Unlocking
With the electronic key on your person and in
the defined zone A around the vehicle, passAyour hand behind the door handle to unlock the
vehicle, then pull on the handle to open the door.
Locking
With the electronic key in the defined zone Aaround the vehicle, press with a finger on
the door handle (at the markings) to lock
th
e vehicle.
Electronic key
74
A.Unlocking the vehicle.B. Normal locking of the vehicle C.Unlocking the boot.
Keyless Entry and Starting
75
Boot
1.
Unlocking the boot (maintain pressure until
the boot is heard to unlock).
8
2
Page 18 of 358
14 . Controls for electric windows/electric child lock/central locking.
15. eMyWay controls.
16.Gear lever.
17. Hybrid4 mode selector.
18
. Heating/air conditioning controls.
19.Audio system.
20.Hazard warning lamps. 21. Multifunction screen.22.Central adjustable air vents.
23.Clock.
24.Starting with the STA R T/STOP button.
25. Electronic key reader.
26. Wiper/screenwash/trip computer stalk.
Instruments and controls
1.
Bonnet release lever.2.
Headlamp height adjustment. 3.
Side adjustable air vents.4.
Front door window demisting/defrosting
vents.
5. Quarter light demisting windows.
6.Head-up display.7. Windscreen demisting/defrosting vent.8.Passenger's airbag. 9.
Glove box/Passenger's airbag deactivationinside.10.12 V accessory socket. 11.
Rear electric window controls.12.Central armrest with storage.
USB por t /auxiliary socket.13.Electric parking brake.
27. Audio equipment steering mountedcontrols. 28.
Driver's airbag.
Horn. 29. Cruise control/speed limiter controls.
30.
Switch panel (see previous page).31.Door mirror adjustment.32.
Lighting and direction indicator stalk33.
Instrument panel. 34.Seat belt and airbag warning lamps. 35.Cour tesy lamp. 36.Head-up display controls. 37.
Controls for cockpit glass roof blind. 38.CITROËN Localised Emergency Call -CITROËN Localised Assistance Call.
Page 24 of 358

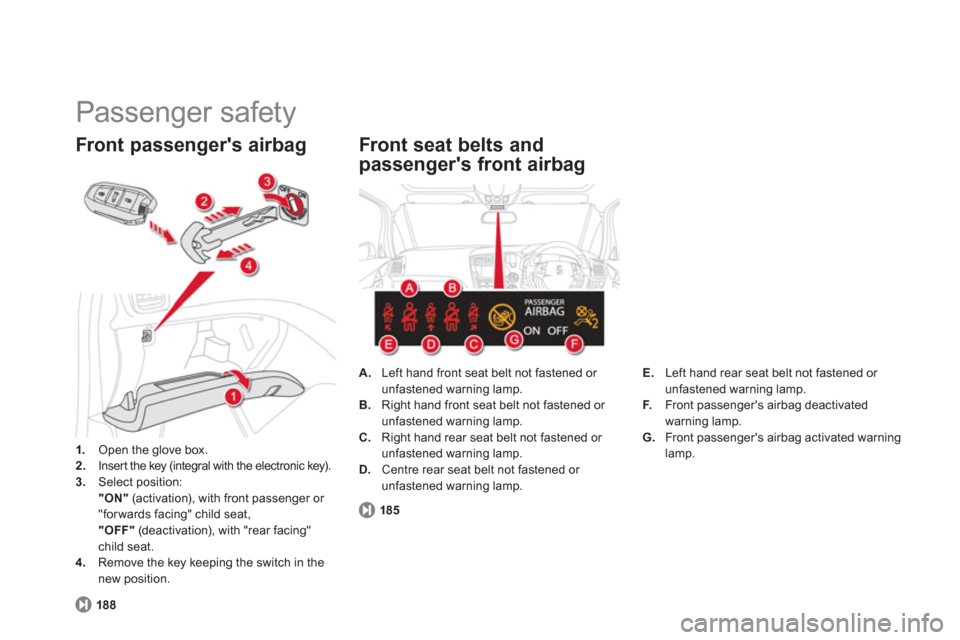

Passenger safety
1.
Open the glove box.2.
Inser t the key (integral with the electronic key).3.Select position:
"ON"
(activation), with front passenger or "forwards facing" child seat,
"OFF"
(deactivation), with "rear facing" child seat.4.
Remove the key keeping the switch in the new position.
Front passenger's airbag
188
Front seat belts and
passenger's front airbag
A.
Left hand front seat belt not fastened or unfastened warning lamp.B.
Right hand front seat belt not fastened or unfastened warning lamp.C.
Right hand rear seat belt not fastened or unfastened warning lamp.D.Centre rear seat belt not fastened or unfastened warning lamp.
185
E.
Left hand rear seat belt not fastened or
unfastened warning lamp. F.Front passenger's airbag deactivatedwarning lamp.G. Front passenger's airbag activated warninglamp.
Page 26 of 358
Starting the Hybrid4 system
Driving safely
- Place the gear lever in position N .
- Inser t the electronic key in the reader or keep the electronic key inside the vehicle.
- Press the brake pedal firmly.
- Press the STA R T/STOPbutton.
31
- The instrument panel and the Ready
lamplight up.
- The dial in the centre console is in AUTO
mode.
Move off
- While maintaining pressure on the brake pedal, move the gear lever to position A
to go forwards or Rfor reverse.
- Ta k e your foot off the brake pedal, you canmove off.
Page 33 of 358
Hybrid system
Starting your vehicle
- Ensure that the gear lever is in position N.
- Inser t the electronic key in the reader or, if fitted with Keyless Entry and Star ting, keep the electronic key in the vehicle.
- Press firmly on the brake pedal, then press the START/STOP switch to star t up the hybrid system.
-
The instrument panel and the Readylamp light up. The power graduation is displayedprogressively, indicating that the hybrid system is active, confirmed by a message "hybrid
system active"
; the dial in the centre console is in AUTOmode (default mode for starting).
- The hybrid system determines whether it is necessary to star t the Diesel engine.
- With the brake still applied, move the
gear lever to position Ato go for wards or R
(by lifting the
lever slightly) for reverse.
- Lift your foot off the brake pedal, you can move off.
- The parking brake is released automatically as you move off, if configured to do so (otherwise, release the parking brake manually).
Page 34 of 358

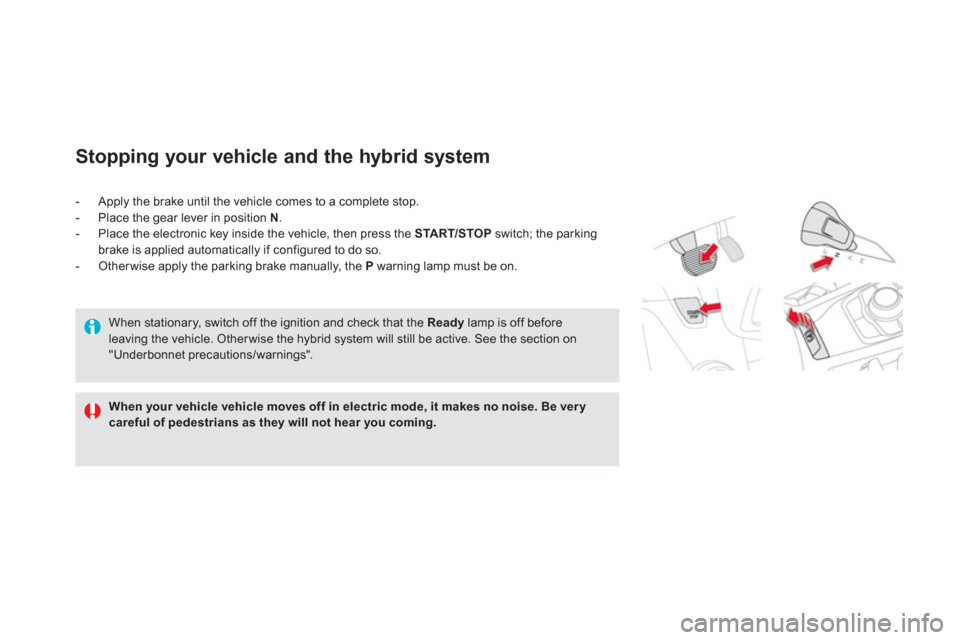

Stopping your vehicle and the hybrid system
When your vehicle vehicle moves off in electric mode,it makes no noise. Be verycareful of pedestrians as they will not hear you coming.
- Apply the brake until the vehicle comes to a complete stop.
- Place the gear lever in position N.- Place the electronic key inside the vehicle, then press the START/STOPswitch; the parking
brake is applied automatically if configured to do so.
- Otherwise apply the parking brake manually, the P
warning lamp must be on.
When stationary, switch off the ignition and check that the Readylamp is off beforeleaving the vehicle. Otherwise the hybrid system will still be active. See the section on"Underbonnet precautions/warnings".
Page 35 of 358
33Hybrid system
Anti-theft protection
Electronic engine immobiliser
The keys contain an electronic chip which hasa secret code. When the ignition is switchedon, this code must be recognised in order for
star ting to be possible.
This electronic en
gine immobiliser locks the
engine management system a few minutes after the ignition is switched off and prevents
starting of the engine by anyone who does not have the key.
In the event of a malfunction, you are informed by a message in the instrument panel screen.In this case, your vehicle does not start; contacta CITROËN dealer as soon as possible.
Ignition on without starting
the engine
(accessory position)
With the electronic key in the reader or the
Keyless Entry and Star ting key inside the
vehicle, pressing the "START/STOP" button,
with no action on the pedals, allows the ignition
to be switched on and so activate the ancillary equipment.
)
Press the "START/STOP" button,
the instrument panel comes on but the engine does not star t. ) Press the button again to switch
off the ignition and so allow the
vehicle to be locked.
Using the ancillaries for a long period introduces the risk of a flat battery.
