Back-up starting with the Keyless Entry and Starting
system
When the electronic key is in the defined zone and your vehicle does not star t after pressingthe "STA R T/STOP" button: )Inser t the electronic key in the reader. )Press the brake pedal. )Press the "STA R T/STOP" button.
The hybrid system is active.



Back-up switch- off

In the event of an emergency only, the enginecan be switched of without any conditions. To do this, press and hold the "STA R T/STOP"button for about 3 seconds.
In this case the steering column locks as soon
as the vehicle stops.

Electronic key not recognised bythe "Keyless Entry and Starting"
system
If the electronic key is no longer in the defined
zone when driving or when you (later) try
to switch off the hybrid system, a message
appears in the instrument panel.
)Press and hold the "STA R T/STOP" button for about 3 seconds if you want to force
the hybrid system to switch off (note that restar ting will not be possible without theelectronic key in the defined zone).

Monitoring
Service indicator
More than 1 800 miles (3 000 km)remain before the next service is due
When the ignition is switched on, no ser vice information appears in the screen. S
ystem which informs the driver when the next ser vice is due, in accordance with themanufacturer's servicing schedule.
The point at which the ser vice is due is calculated from the last indicator zero reset. Itis determined by two parameters:


- the distance travelled,

- the time elapsed since the last ser vice. Between 600 miles (1 000 km)and 1 800 miles (3 000 km) remainbefore the next service is due
For 5 seconds after the ignition is switched on, the
spanner symbolising the ser vice operations comes
on. The distance recorder display line indicates the
distance remaining before the next ser vice is due.
Example:
1 700 miles (2 800 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on, thescreen indicates:
5 seconds a
fter the ignition is switched on,the spanner goes off; the distance recorder f
resumes its normal operation. The screen thenindicates the total and trip distances.
Less than 600 miles (1 000 km) remain before the next service is due
Example:
500 miles (900 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the i
gnition is switched on,
the distance recorder resumes its normal
operation. The spanner remains onto indicate
that a service must be carried out soon.


Illumination of the key is accompaniedby a message in the instrument panel screen.

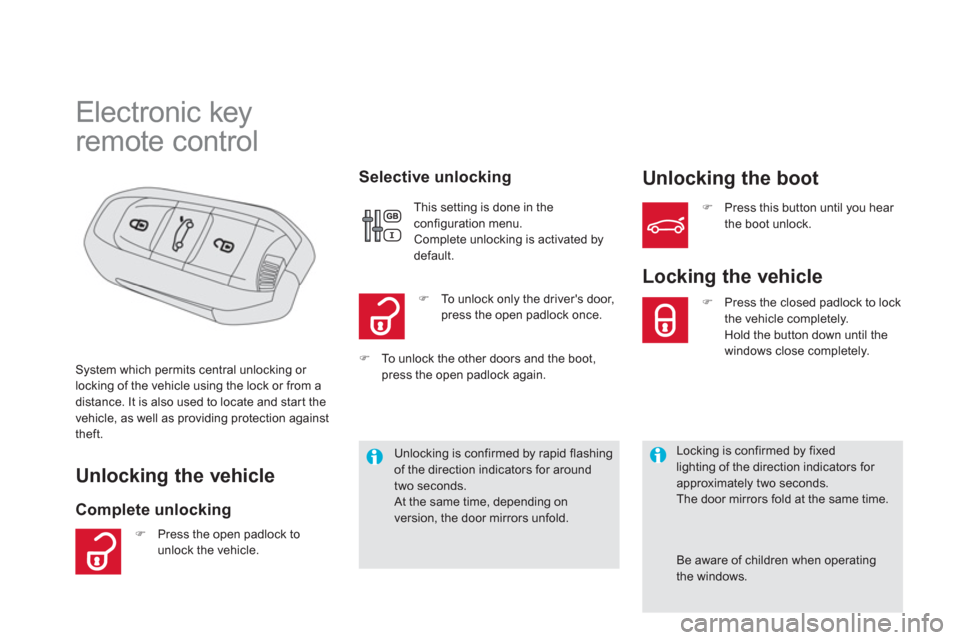

Electronic key
remote control
Unlocking the vehicle
Complete unlocking
Selective unlockin
g Unlocking the boot
System which permits central unlocking or
locking of the vehicle using the lock or from adistance. It is also used to locate and start thevehicle, as well as providing protection against
theft.
This settin
g is done in the configuration menu.
Complete unlocking is activated bydefault.


Unlocking is confirmed by rapid flashing of the direction indicators for around two seconds.
At the same time, depending onversion, the door mirrors unfold.

Locking the vehicle


Locking is confirmed by fixed lighting of the direction indicators for approximately two seconds.
The door mirrors fold at the same time.
)To unlock only the driver's door,press the open padlock once.
)
To unlock the other doors and the boot,
press the open padlock again.
) Press the closed padlock to lock
the vehicle completely.
Hold the button down until the
windows close completely.

)
Press this button until you hear
th
e boot unlock.

Be aware of children when operatingthe windows.
)
Press the open padlock tounlock the vehicle.

Access
Unlocking the vehicle

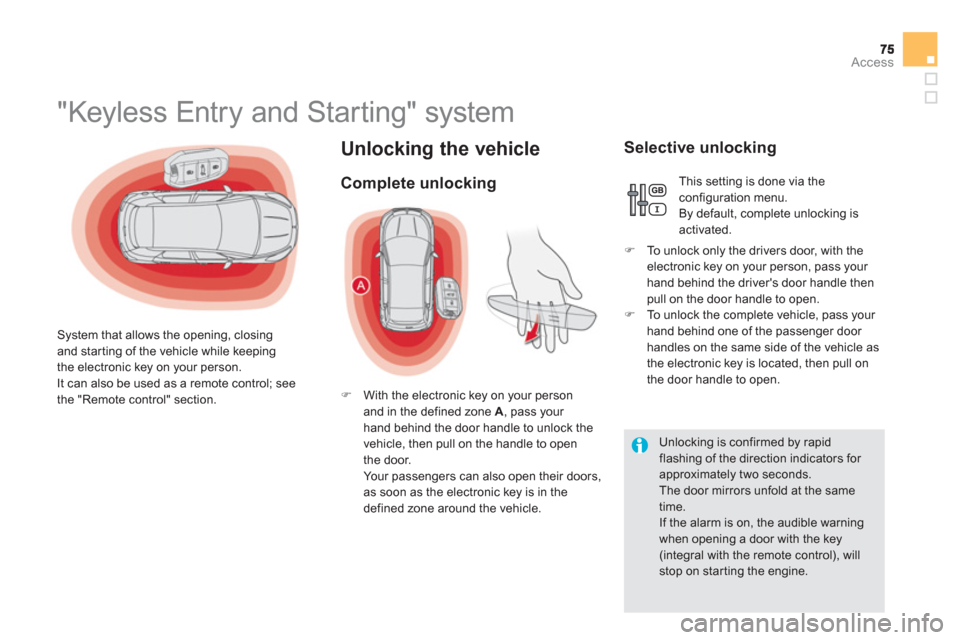

"Keyless Entry and Starting" system


System that allows the opening, closingand star ting of the vehicle while keeping
the electronic key on your person.
It can also be used as a remote control; see
the "Remote control" section.
Complete unlocking
)
With the electronic key on your personand in the defined zone A
, pass your hand behind the door handle to unlock thevehicle, then pull on the handle to open
the door.
Yo u r p a s s e ngers can also open their doors,
as soon as the electronic key is in the defined zone around the vehicle.



Selective unlocking
This setting is done via the configuration menu.
By default, complete unlocking is activated.
)
To unlock only the drivers door, with the electronic key on your person, pass your hand behind the driver's door handle thenpull on the door handle to open.)
To unlock the complete vehicle, pass your hand behind one of the passenger door handles on the same side of the vehicle asthe electronic key is located, then pull on
the door handle to open.



Unlocking is confirmed by rapidflashing of the direction indicators for approximately two seconds.
The door mirrors unfold at the sametime.
If the alarm is on, the audible warningwhen opening a door with the key(integral with the remote control), willstop on star ting the engine.

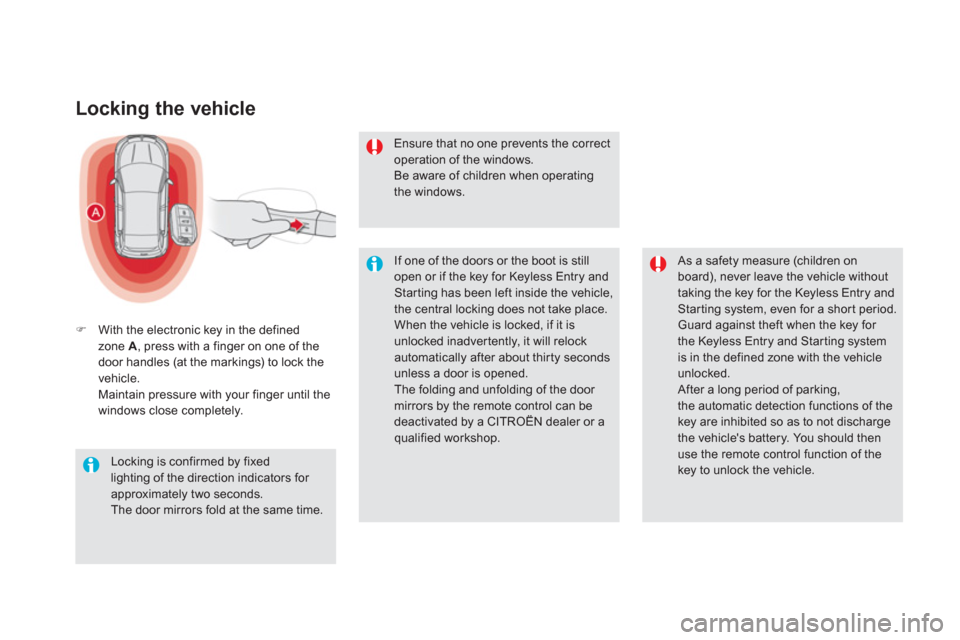

Locking the vehicle
)With the electronic key in the definedzone A , press with a finger on one of the
door handles (at the markings) to lock the
vehicle.
Maintain pressure with your finger until the
windows close completely.
Locking is confirmed by fixed lighting of the direction indicators for approximately two seconds.The door mirrors fold at the same time.
If one of the doors or the boot is still open or if the key for Keyless Entry and Starting has been left inside the vehicle,the central locking does not take place. When the vehicle is locked, if it isunlocked inadver tently, it will relockautomatically after about thir ty secondsunless a door is opened.
The folding and unfolding of the door mirrors by the remote control can bedeactivated by a CITROËN dealer or a qualified workshop.

As a safety measure (children onboard), never leave the vehicle without taking the key for the Keyless Entry andStarting system, even for a shor t period.Guard against theft when the key for the Keyless Entry and Starting systemis in the defined zone with the vehicle unlocked. After a long period of parking,the automatic detection functions of the key are inhibited so as to not dischargethe vehicle's battery. You should thenuse the remote control function of thekey to unlock the vehicle.
Ensure that no one prevents the correct operation of the windows.Be aware of children when operatingthe windows.

77Access
Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative. It also deactivates the manual centralcontrol button. Therefore, never leave anyone inside the vehicle when it is deadlocked.
Using the remote control
) Press the closed padlock to lock
the vehicle completely.
Maintain
pressure withyour finger for more
than two seconds to close
the windows. ) Press the closed padlock again withinfive seconds to deadlock the vehicle.

With the electronic ke
y in the reader or the
Keyless Entry and Starting key inside the
vehicle, pressin
g the "STA R T/STOP" button,
with no action on the pedals, allows the ignition
to be switched on and so activate the ancillary
equipment.
Ignition on without starting
the engine (accessory
position)
)
Press the "STA R T/STOP" button,
the instrument panel comes on
but the engine does not star t.) Press the button again to switch off the ignition and so allow the
vehicle to be locked.

Using the ancillaries for a long periodintroduces the risk of a flat battery.


With the Keyless Entry and
startin
g system
By the doors: )
With the electronic key in the defined
zone A , press a finger on the door handle (at the markings) to lock the vehicle.
)
Within five seconds, press the door handle
again to deadlock the vehicle.
Ensure that no one is preventing the correct closing of the windows. Be aware of children when operating
the windows.

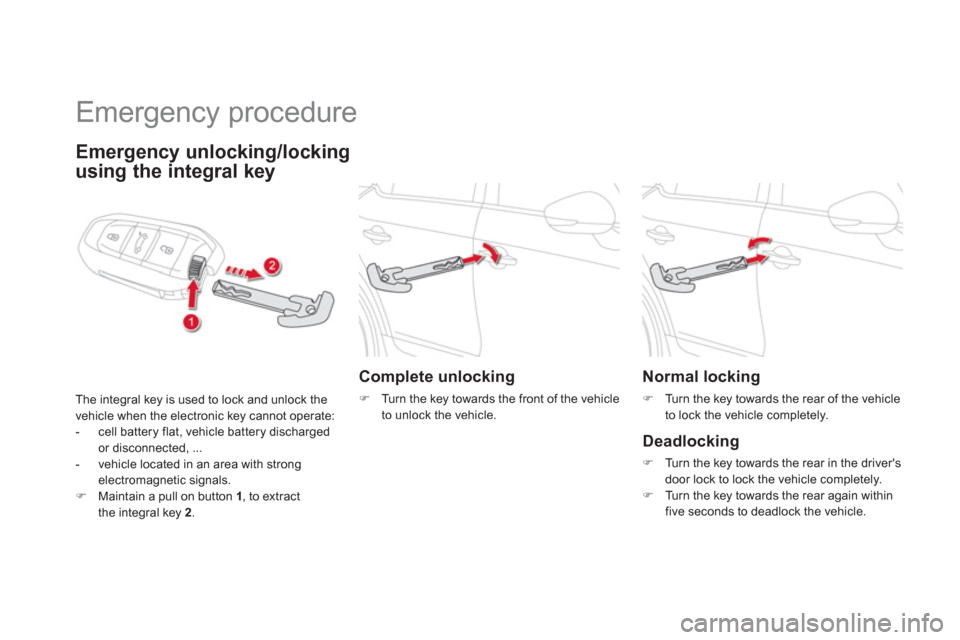

Emergency procedure
Emergency unlocking/locking

using the integral key
The integral key is used to lock and unlock the
vehicle when the electronic key cannot operate:
- cell battery flat, vehicle battery discharged
or disconnected, ...
- vehicle located in an area with stron
gelectromagnetic signals.)Maintain a pull on button 1
, to extractthe integral key 2.
Complete unlocking
)
Tu r n t h e k ey towards the front of the vehicle
to unlock the vehicle.



Normal locking
)Turn the key towards the rear of the vehicle
to lock the vehicle completely.

Deadlocking
)Turn the key towards the rear in the driver's door lock to lock the vehicle completely.)Turn the key towards the rear again withinfive seconds to deadlock the vehicle.

79Access
Do not throw the remote control batteries away, they contain metalswhich are harmful to the environment. Take them to an approved collectionpoint.

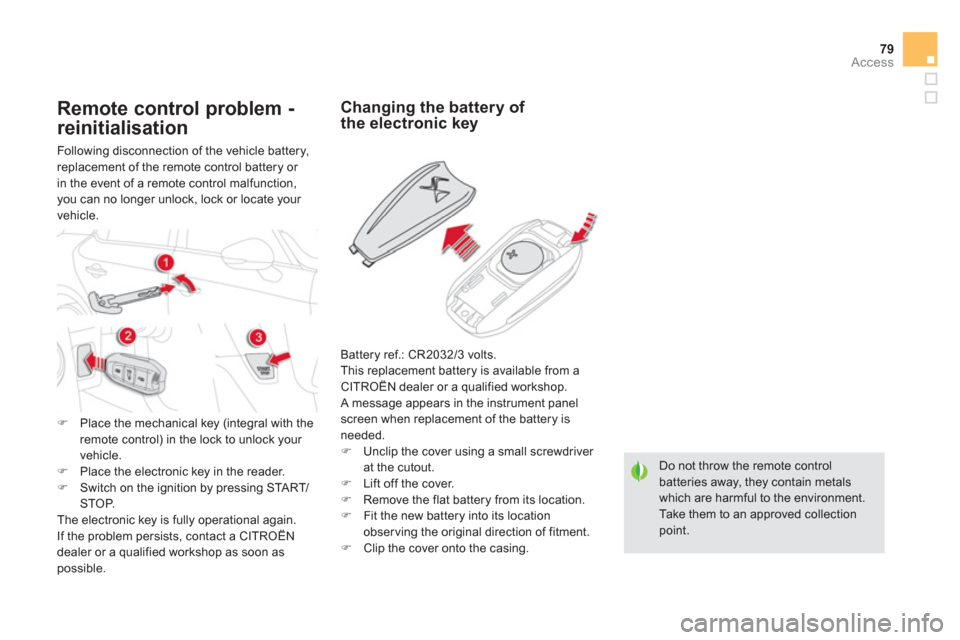

Changing the battery of
the electronic key
Battery ref.: CR2032/3 volts.
This replacement battery is available from a
CITROËN dealer or a qualified workshop.
A message appears in the instrument panel
screen when replacement o
f the battery is needed. ) Unclip the cover using a small screwdriver at the cutout. )
Lift off the cover. )
Remove the flat battery from its location.)
Fit the new battery into its location
observing the original direction of fitment.) Clip the cover onto the casing.
Remote control problem -
reinitialisation

Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
v
ehicle.
)Place the mechanical key (integral with theremote control) in the lock to unlock your
vehicle.)Place the electronic key in the reader.)Switch on the ignition by pressing STA R T/STOP.
The electronic key is fully operational again.
If the problem persists, contact a CITROËN
dealer or a qualified workshop as soon as
possible.

Lost electronic key
Visit a CITROËN dealer with the vehicle's registration document and your personal identification documents.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a replacement.
Electronic key
The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without
you being aware of it.Do not repeatedly press the buttons of your electronic key out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised.The electronic key cannot operate as a remote control when it is in the reader or even when the ignition is switched on.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by the emergency ser vices more difficult in an emergency.
As a safety precaution (with children on board), take the Keyless Entry and Starting electronic key when you leave the vehicle, even for a short time.
Electrical interference
The Keyless Entry and Star ting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strongmagnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions. Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure that the keys in your possession are the only ones which can star t the vehicle.

OFF
83Access

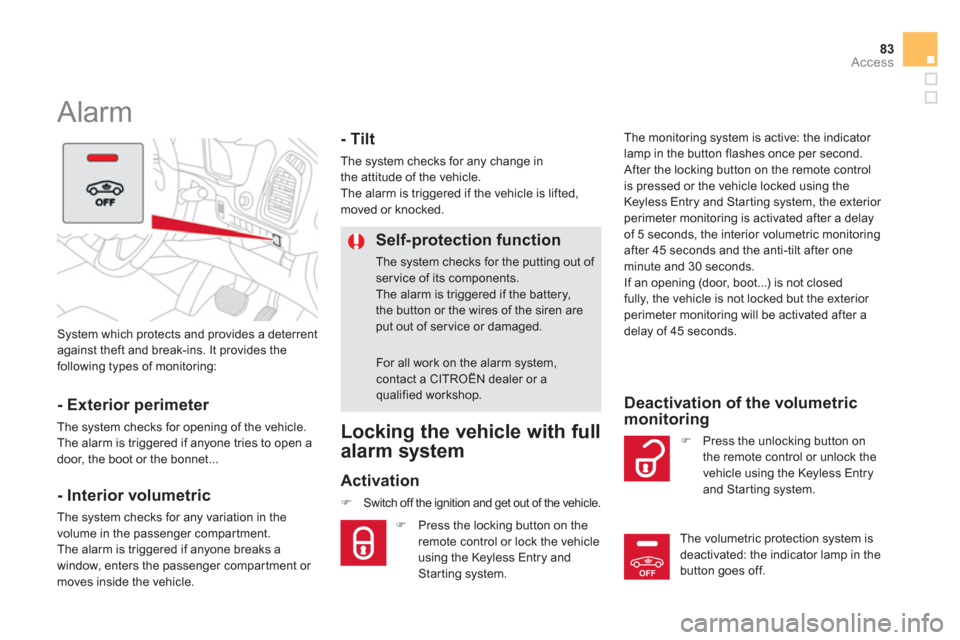

System which protects and provides a deterrent
against theft and break-ins. It provides the
following types of monitoring:





Alarm


- Exterior perimeter

The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open adoor, the boot or the bonnet...




- Interior volumetric

The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compar tment or moves inside the vehicle.
- Tilt
The system checks for any change in
the attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.


Self-protection function
The system checks for the putting out of ser vice of its components. The alarm is triggered if the battery,the button or the wires of the siren areput out of ser vice or damaged.
For all work on the alarm system, contact a CITROËN dealer or aqualified workshop.
Locking the vehicle with full
alarm system
Activation
)Switch off the ignition and get out of the vehicle.
)
Press the locking button on the
r
emote control or lock the vehicleusing the Keyless Entry and Starting system. The monitoring system is active: the indicator
lam
p in the button flashes once per second.
After the locking button on the remote control
is pressed or the vehicle locked using the
Keyless Entry and Star ting system, the exterior
perimeter monitoring is activated after a delay of 5 seconds, the interior volumetric monitoring after 45 seconds and the anti-tilt after one
minute and 30 seconds.
If an opening (door, boot...) is not closed fully, the vehicle is not locked but the exterior
perimeter monitoring will be activated after a
delay of 45 seconds.
) Press the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entryand Star ting system.

Deactivation of the volumetric monitoring
The volumetric protection system is deactivated: the indicator lamp in the button goes off.
