Citroen DS5 HYBRID4 RHD 2013.5 1.G User Guide

9Familiarisation

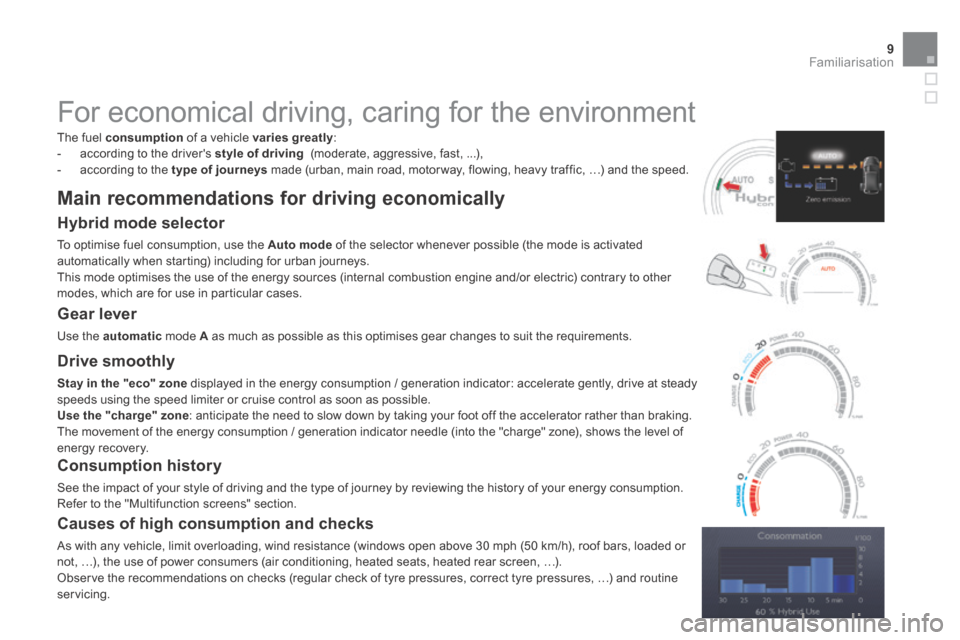

For economical driving, caring for the environment
The fuel consumption of a vehicle varies greatly : - according to the driver's style of driving (moderate, aggressive, fast, ...), - according to the type of journeys made (urban, main road, motor way, flowing, heavy traffic, …) and the speed.
Main recommendations for driving economically
Hybrid mode selector
To optimise fuel consumption, use the Auto mode of the selector whenever possible (the mode is activated automatically when starting) including for urban journeys. This mode optimises the use of the energy sources (internal combustion engine and/or electric) contrary to other modes, which are for use in particular cases.
Gear lever
Use the automatic mode A as much as possible as this optimises gear changes to suit the requirements.
Causes of high consumption and checks
As with any vehicle, limit overloading, wind resistance (windows open above 30 mph (50 km/h), roof bars, loaded or not, …), the use of power consumers (air conditioning, heated seats, heated rear screen, …). Observe the recommendations on checks (regular check of tyre pressures, correct tyre pressures, …) and routine servicing.
Drive smoothly
Stay in the "eco" zone displayed in the energy consumption / generation indicator: accelerate gently, drive at steady speeds using the speed limiter or cruise control as soon as possible. Use the "charge"zone: anticipate the need to slow down by taking your foot off the accelerator rather than braking. The movement of the energy consumption / generation indicator needle (into the "charge" zone), shows the level of energy recovery.
Consumption history
See the impact of your style of driving and the type of journey by reviewing the history of your energy consumption. Refer to the "Multifunction screens" section.

Electronic key: Keyless Entry and Starting
This system allows you to unlock, lock and start your vehicle while keeping the key on your person and in the recognition zone around the vehicle.
82

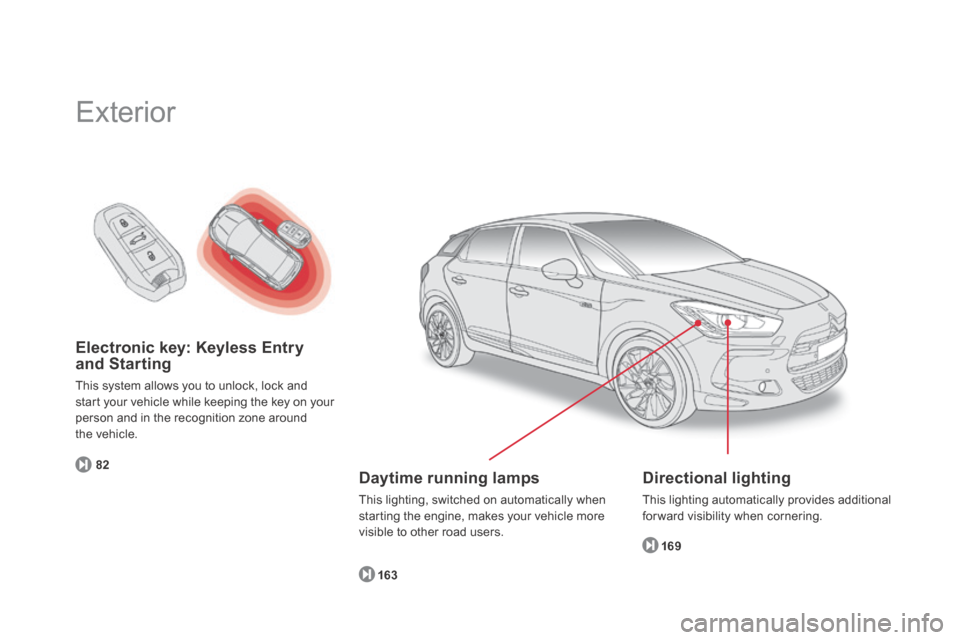

Exterior
Directional lighting
This lighting automatically provides additional forward visibility when cornering.
169
Daytime running lamps
This lighting, switched on automatically when starting the engine, makes your vehicle more visible to other road users.
163

11Familiarisation
Automatic headlamp dipping
This system automatically switches between dipped and main beam, depending on the lighting and driving conditions, using a camera placed in the interior rear view mirror. placed in the interior rear view mirror.
165
Front and rear parking sensors Front and rear parking sensors
This systems warns you of the presence of obstacles located in front of or behind the vehicle during parking manoeuvres.
15 4
Temporary puncture repair kit
This kit is a complete system consisting of a compressor and a sealant cartridge, to allow
the temporary repair of a tyre.
Exterior expressive stickers
Do not have your vehicle washed in a high pressure car wash.
212
Exterior Reversing camera
This system, available only with satellite navigation, is activated automatically on engaging reverse gear and provides an image in the colour screen.
15 6

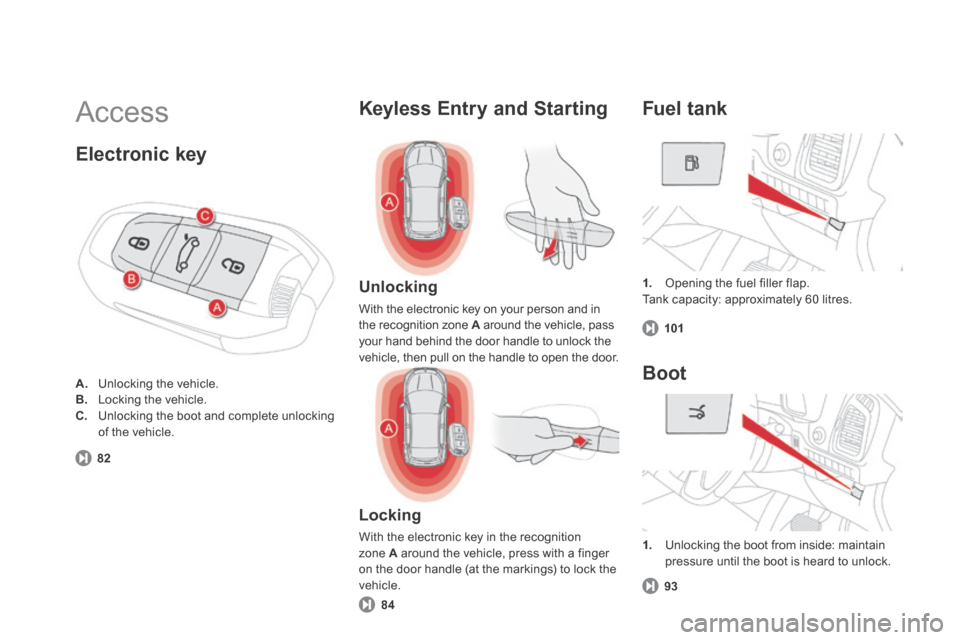

Access
1. Opening the fuel filler flap. Tank capacity: approximately 60 litres.
Fuel tank
101
Unlocking
With the electronic key on your person and in the recognition zone A around the vehicle, pass A around the vehicle, pass Ayour hand behind the door handle to unlock the vehicle, then pull on the handle to open the door.
Locking
With the electronic key in the recognition zone A around the vehicle, press with a finger on the door handle (at the markings) to lock the vehicle.
Electronic key
82
A. Unlocking the vehicle. B. Locking the vehicle. C. Unlocking the boot and complete unlocking of the vehicle.
Keyless Entry and Starting
84
Boot
1. Unlocking the boot from inside: maintain pressure until the boot is heard to unlock.
93

13Familiarisation

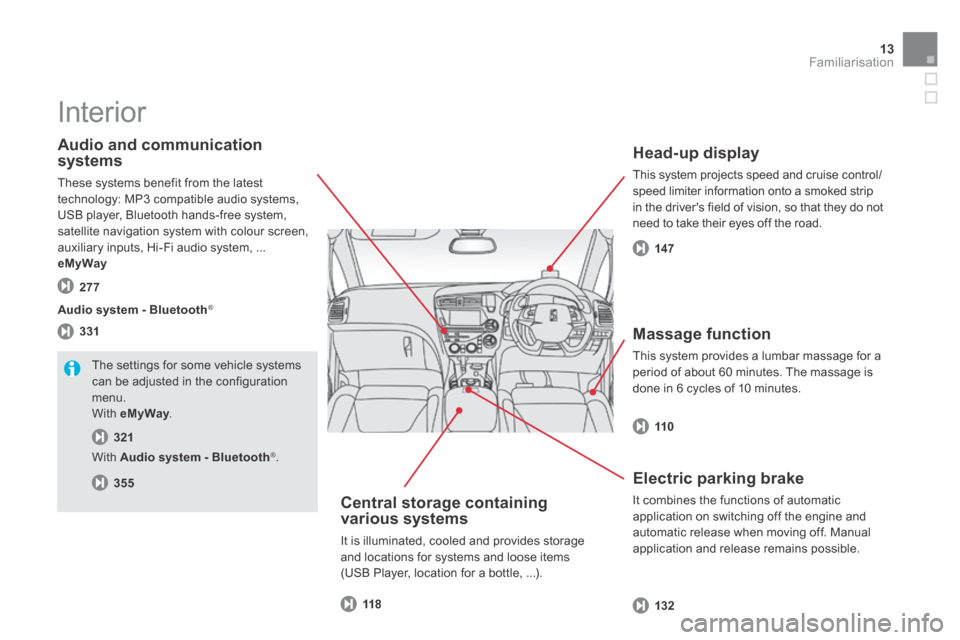

Interior
Head-up display
This system projects speed and cruise control/speed limiter information onto a smoked strip in the driver's field of vision, so that they do not need to take their eyes off the road.
Central storage containing various systems
It is illuminated, cooled and provides storage and locations for systems and loose items (USB Player, location for a bottle, ...).
Audio and communication systems
These systems benefit from the latest technology: MP3 compatible audio systems, USB player, Bluetooth hands-free system, satellite navigation system with colour screen, auxiliary inputs, Hi-Fi audio system, ... eMyWay
The settings for some vehicle systems can be adjusted in the configuration menu. With eMyWay . eMyWay . eMyWay
147
118
331
277
Audio system - Bluetooth ®
Massage function
This system provides a lumbar massage for a period of about 60 minutes. The massage is done in 6 cycles of 10 minutes.
110
Electric parking brake
It combines the functions of automatic application on switching off the engine and automatic release when moving off. Manual application and release remains possible.
132
With Audio system - Bluetooth ® .
355
321

Illumination of the indicator lamp indicates the state of the corresponding function.

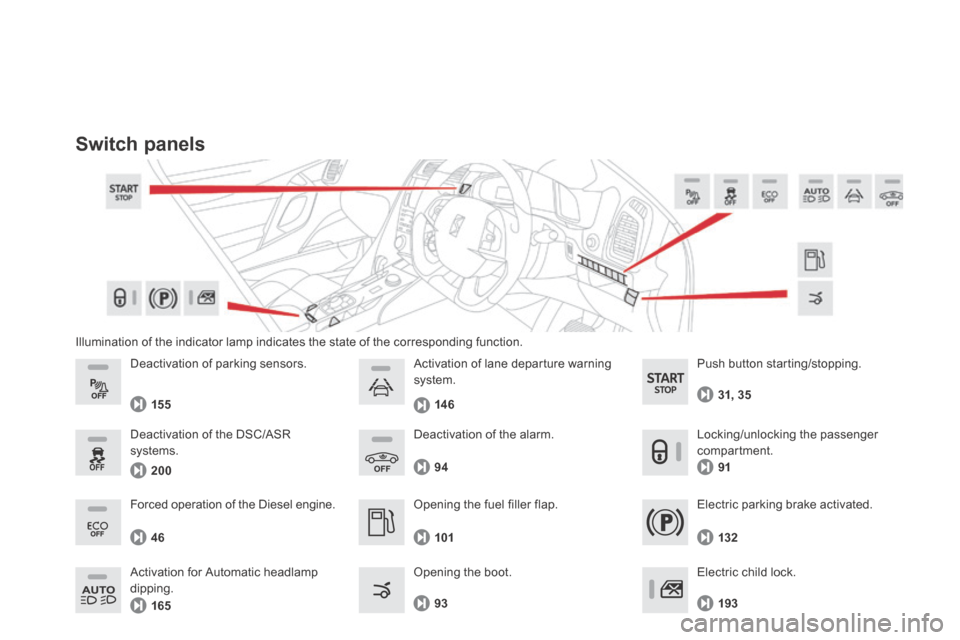

Switch panels
Opening the fuel filler flap.
Opening the boot.
Deactivation of the alarm.
Electric parking brake activated.
Push button starting/stopping.
Forced operation of the Diesel engine.
Deactivation of parking sensors.
Electric child lock.
Deactivation of the DSC/ASR systems.
Activation for Automatic headlamp
dipping.
Activation of lane departure warning system.
Locking/unlocking the passenger compartment.
101
94
93
132
31, 35
46
155
193
200
165
14 6
91

15Familiarisation

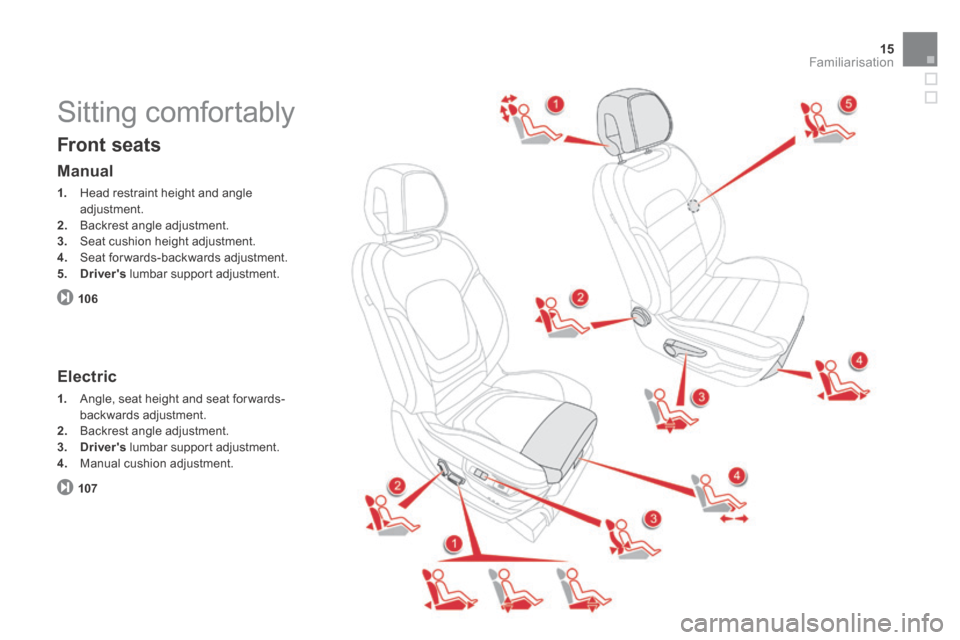

Sitting comfortably
Front seats
Manual
1. Head restraint height and angle adjustment.
2. Backrest angle adjustment.
3. Seat cushion height adjustment. 4. Seat forwards-backwards adjustment. 5. Driver's lumbar support adjustment.
Electric
1. Angle, seat height and seat forwards-backwards adjustment. 2. Backrest angle adjustment. 3. Driver's lumbar support adjustment. 4. Manual cushion adjustment.
106
107

14 . Controls for electric windows / electric child lock / central locking. 15. eMyWay controls. 16. Gear selector. 17. Hybrid4 mode selector.
18. Heating / air conditioning controls. 19. Audio system. 20. Hazard warning lamps. 21. Multifunction screen. 22. Central adjustable air vents. 23. Clock. 24. Starting with the START/STOP button. 25. Electronic key reader. 26. Wiper / screenwash / trip computer stalk.

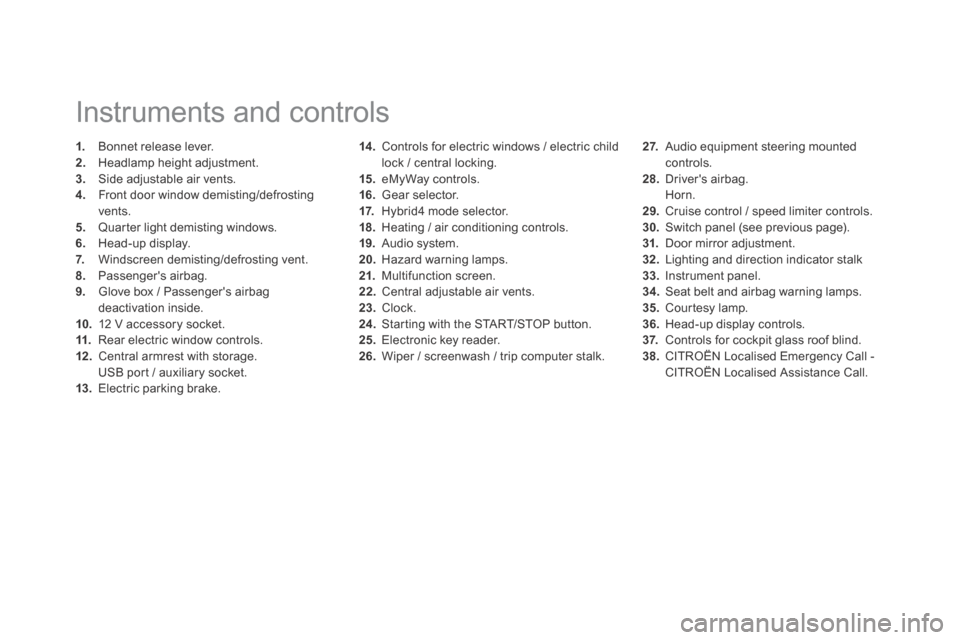

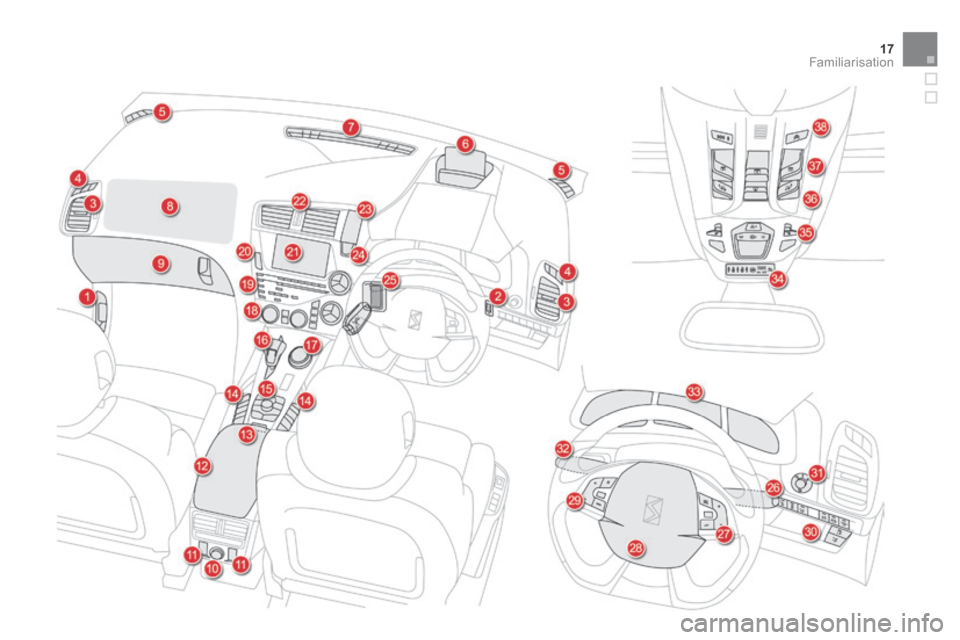

Instruments and controls
1. Bonnet release lever. 2. Headlamp height adjustment. 3. Side adjustable air vents. 4. Front door window demisting/defrosting vents.
5. Quarter light demisting windows. 6. Head-up display. 7. Windscreen demisting/defrosting vent. 8. Passenger's airbag. 9. Glove box / Passenger's airbag deactivation inside. 10. 12 V accessory socket. 11. Rear electric window controls. 12 . Central armrest with storage. USB port / auxiliary socket. 13. Electric parking brake.
2 7. Audio equipment steering mounted controls. 28. Driver's airbag. Horn. 29. Cruise control / speed limiter controls.
30. Switch panel (see previous page). 31. Door mirror adjustment. 32. Lighting and direction indicator stalk 33. Instrument panel. 34. Seat belt and airbag warning lamps. 35. Courtesy lamp. 36. Head-up display controls. 3 7. Controls for cockpit glass roof blind. 38. CITROËN Localised Emergency Call - CITROËN Localised Assistance Call.

17Familiarisation

Sitting comfortably
Head restraint adjustment
1. Release the adjustment mechanism. 2. Adjust for height and reach. 3. Lock the adjustment mechanism.
Steering wheel adjustment
For reasons of safety, these operations must only be carried out with the vehicle stationary.
To lower it, simultaneously press button A and push down on the head restraint. To raise it, guide the head restraint upwards to the desired position. To incline it, swivel the lower part backwards or forwards.
109
115
