Sitting comfortably
Door mirrors
Adjustment
1. Selection of the left or right mirror. 2. Adjusting the position of the mirror glass. 3. Deselection of the mirror. 4. Folding the mirror.
Rear view mirror
1. Automatic detection of day/night mode. 2. Rear view mirror adjustment.
Front seat belts
1. Fastening. 2. Adjusting for height.
114
115
202

Seeing clearly
Lighting
Ring A
Ring B
Wipers
Control stalk A: windscreen wipers
2. Fast wipe. 1. Normal wipe. Int. Intermittent wipe.
0. Park. AUTO Automatic wiping.
 Single wipe: Brief pull on the stalk towards. Screenwash: Long pull on stalk towards you.
Switching on "AUTO" mode
 Briefly push the stalk downwards.
Switching off "AUTO" mode
 Briefly push the stalk downwards or place the stalk in another position: Int, 1 or 2.
Ring B: rear wiper
Lighting off.
Automatic illumination of headlamps.
Sidelamps.
Dipped / main beam headlamps.
Front and rear foglamps. Park. Intermittent wipe. Screenwash.
160
171
173
172

21Familiarisation
Monitoring
On switching on, the dial needles go to the extent of their travel then return to 0. A. With the ignition on, the bars indicate the fuel remaining.
Instrument panel
1. With the ignition on, the orange and red warning lamps come on. 2. With the hybrid system active, these warning lamps should go off. If a warning lamp remains on, refer to the corresponding section.
Warning lamps
B. With the ignition on, the instrument panel screen should indicate the oil level. If the levels are not correct, top up the level which is low.
59
58

Passenger safety
1. Open the glove box. 2. Insert the key (integral with the electronic key). 3. Select position: "ON" (activation), with front passenger or "for wards facing" child seat, "OFF" (deactivation), with "rear facing" child seat. 4. Remove the key keeping the switch in the new position.
Front passenger's airbag Front seat belts and
passenger's front airbag
A. Left hand front seat belt not fastened or unfastened warning lamp. B. Right hand front seat belt not fastened or unfastened warning lamp. C. Right hand rear seat belt not fastened or unfastened warning lamp. D. Centre rear seat belt not fastened or unfastened warning lamp.
E. Left hand rear seat belt not fastened or unfastened warning lamp. F. Front passenger's airbag deactivated warning lamp. G. Front passenger's airbag activated warning lamp.
206
203

23Familiarisation
Starting - stopping the engine
Driving safely
Before starting Starting
- The instrument panel and the Ready lamp come on, confirmed by an audible signal. - The dial in the centre console is in AUTO mode.
- Place the gear selector in position N . - Insert the electronic key in the reader or keep the electronic key inside the vehicle.
- Press the brake pedal. - Make single short press (about 1 second) on the START/STOP button.
Moving off
- While maintaining pressure on the brake pedal, move the gear selector to position Ato go for wards or R for reverse. - Take your foot off the brake pedal, you can then move off.
31

If this warning lamp comes on in the instrument panel, automatic application / release is deactivated . The parking brake must be applied and released manually . manually . manually
Before leaving the vehicle, check that the the brake warning lamp and the P warning lamp in the control lever Aare on fixed (not flashing) .
If towing a trailer or caravan or if the slope might vary (transport by boat or lorry, recovery of the vehicle...) make a maximum application of the parking brake - by making a long pull on the control lever A - to immobilise the vehicle.
Driving safely
Electric parking brake
Manual Application/Release
Manual application of the parking brake is possible by pulling the control lever A . With the ignition on, manual release of the parking brake is possible by pressing the brake pedal and pulling then releasing the control lever A .
If an audible signal is heard on opening the driver's door with the hybrid system active, apply the parking brake manually. Do not leave a child alone in the vehicle with the ignition on; they might release the parking brake.
Automatic Application / Release
Press the accelerator pedal, the parking brake is released automatically and progressively as you move off. With the vehicle stationary, the parking brake is applied automatically on switching off the ignition ( Ready lamp off).
132

25Familiarisation
Driving safely
Speed limiter "LIMIT"
1. Selecting speed limiter mode. 2. Decrease the programmed value. 3. Increase the programmed value. 4. Pause/resume speed limiter.
5. Display of the memorised speeds (by the audio system memory). These values must be set with the hybrid system active.
Cruise control "CRUISE"
1. Selecting cruise control mode. 2. Programming a speed / Decrease the programmed value. 3. Programming a speed / Increase the
programmed value. 4. Pause/resume cruise control. 5. Display of the memorised speeds (by the audio system memory). In order to be programmed or activated, the vehicle speed must be higher than 25 mph (40 km/h), with at least 2 nd gear engaged.
Display in the instrument panel
Cruise control
Speed limiter
The cruise control or speed limiter mode appears in the instrument panel when selected.
15 0
152

Hybrid system

Presentation
The Hybrid4 technology allows two sources of energy to be associated in an effective manner: the Diesel HDi engine, which drives the front wheels and the electric motor, which drives the rear wheels. These two motors can operate alternately or simultaneously, according to the hybrid mode selected and the driving conditions. The electric motor alone provides power for the vehicle in "ZEV " (Zero Emissions Vehicle) mode, and in "Auto" mode for running at slow speed and low load. It also assists the Diesel engine when moving off, accelerating and changing gear. The battery that powers the electric motor is recharged during phases of deceleration and stores the energy for subsequent use.

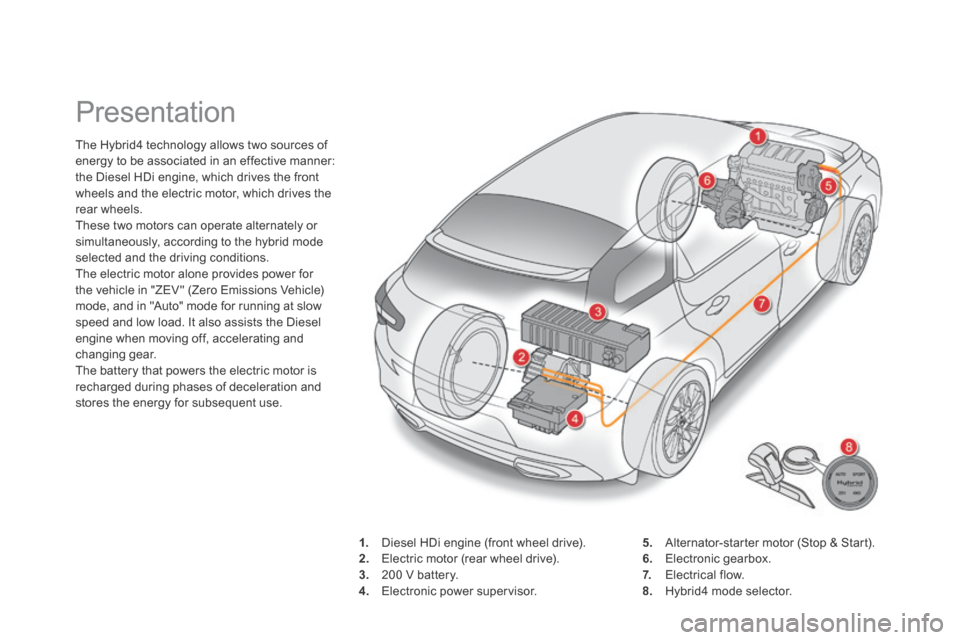

1. Diesel HDi engine (front wheel drive). 2. Electric motor (rear wheel drive). 3. 200 V battery. 4. Electronic power supervisor.
5. Alternator-starter motor (Stop & Start). 6. Electronic gearbox. 7. Electrical flow. 8. Hybrid4 mode selector.
