259Checks

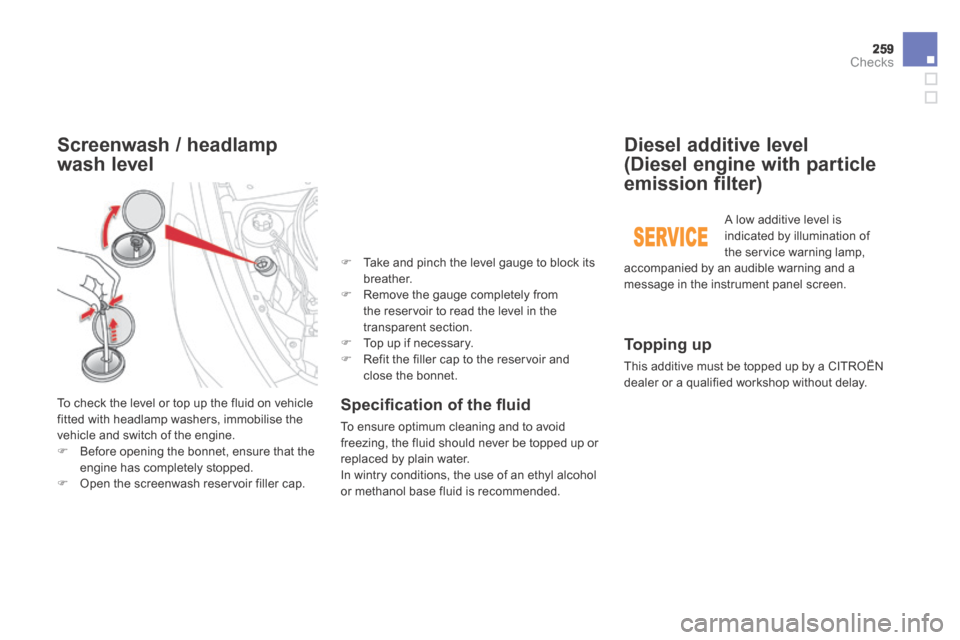

Screenwash / headlamp
wash level
To check the level or top up the fluid on vehicle fitted with headlamp washers, immobilise the
vehicle and switch of the engine.  Before opening the bonnet, ensure that the engine has completely stopped.  Open the screenwash reservoir filler cap.
Topping up
This additive must be topped up by a CITROËN dealer or a qualified workshop without delay.
Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by illumination of the service warning lamp, accompanied by an audible warning and a message in the instrument panel screen.
Specifi cation of the fl uid
To ensure optimum cleaning and to avoid freezing, the fluid should never be topped up or replaced by plain water. In wintry conditions, the use of an ethyl alcohol or methanol base fluid is recommended.
 Take and pinch the level gauge to block its breather.  Remove the gauge completely from the reservoir to read the level in the transparent section.  Top up if necessary.  Refit the filler cap to the reservoir and close the bonnet.

Avoid prolonged contact of used oil or fluids with the skin. Most of these fluids are harmful to health or indeed very corrosive.
Do not discard used oil or fluids into sewers or onto the ground. Take used oil to a CITROËN dealer or a qualified workshop (France) or to an authorised waste disposal site.
Used products
Checks
Unless otherwise indicated, check these components in accordance with the maintenance and warranty guide and according to your engine. Other wise, have them checked by a CITROËN dealer or a qualified workshop.
Before doing anything under the bonnet, switch off the ignition ( Readylamp off) to avoid any risk of injury resulting from automatic operation of the engine.
The presence of this label, in particular with the Stop & Start system, indicates the use of a specific 12 V lead-acid battery with special technology and specification. The involvement of a CITROËN dealer or a qualified workshop is essential when replacing or disconnecting the battery.
12 V battery
The battery does not require any maintenance. However, check that the terminals are clean and correctly tightened, particularly in summer and winter.
When carrying out work on the battery, refer to the "12 V battery" section for details of the precautions to be taken before disconnecting the battery and following its reconnection.

261Checks
Particle emission filter (Diesel)
The start of saturation of the particle filter is indicated by the temporary illumination of this warning lamp accompanied by a message in the multi-function screen. As soon as the traffic conditions permit, regenerate the filter by driving at a speed of at least 40 mph (60 km/h) until the warning lamp goes off. If the warning lamp stays on, this indicates a low additive level.
On a new vehicle, the first particle filter regeneration operations may be accompanied by a "burning" smell, which is per fectly normal. Following prolonged operation of the
vehicle at very low speed or at idle, you may, in exceptional circumstances, notice the emission of water vapour at the exhaust on acceleration. This does not affect the behaviour of the vehicle or the environment.
The 100% electric mode is not available during regeneration of the particle emissions filter.
Air filter and passenger compartment filter
Oil filter
Replace the oil filter each time the
engine oil is changed. Refer to the maintenance and warranty guide for details of the replacement interval for this component.
Refer to the maintenance and warranty guide for details of the replacement intervals for these components.
Depending on the environment (e.g. dusty atmosphere) and the use of the vehicle (e.g. city driving), replace them twice as often if necessary . necessary . necessary A clogged passenger compartment filter may have an adverse effect on the per formance of the air conditioning system and generate undesirable odours.

Electronic gearbox
The gearbox does not require any maintenance (no oil change). Refer to the maintenance and warranty guide for details of the checking interval for this component.
Brake wear depends on the style of driving, particularly in the case of vehicles used in town, over short distances. It may be necessary to have the condition of the brakes checked, even between vehicle services. Unless there is a leak in the circuit, a drop in the brake fluid level indicates that the brake pads are worn.
Brake pads
For information on checking brake disc wear, contact a CITROËN dealer or a qualified workshop.
Brake disc wear
Electric parking brake
This system does not require any routine servicing. However, in the
event of a problem, have the system checked by a CITROËN dealer or a qualified workshop.
Only use products recommended by CITROËN or products of equivalent quality and specification. In order to optimise the operation of units as important as those in the braking system, CITROËN selects and offers very specific products. After washing the vehicle, dampness, or in wintry conditions, ice can form on the brake discs and pads: braking efficiency may be reduced. Make light brake applications to dry and defrost the brakes.
For more information, refer to the "Electric parking brake - Operating faults" section.

263Checks

Technical data

Range varies according to the ambient climatic conditions, the driving style and conditions, the use of vehicle systems and ageing of the battery.
Electric motor and battery
Electric motor-
Technology Synchronous with permanent magnets.
Max. power: EU standard (kW) * 27
Max. power speed (rpm) 2 500
Max. torque: EU standard (Nm) 200
Max. torque speed (rpm) 1 250
Efficiency (%) 80 to 90
High voltage batteryNi-MH (Nickel Metal Hydride)
Voltage (V~) 200
Energy capacity (kWh / Ah) 1.1 / 5.5
Range (miles (km)) 1.2 (2) (approximately)
* The maximum power corresponds to the value type approved on an engine test bed, under conditions defined by European legislation (directive 1999/99/EC).

267Technical data
Engine and gearbox
Diesel engineHDi 160 PEF
Gearbox Electronic (6-speed)
Model code RHC
Cubic capacity (cc) 1 997
Bore x stroke (mm) 85 x 88
Max power: EU standard (kW) * 120
Max power engine speed (rpm) 3 850
Max torque: EU standard (Nm) 300
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter yes
Particle emission filter yes
Engine oil capacity with filter replacement (in litres) -
* The maximum power corresponds to the type approved value on a test bed, under conditions defined by European legislation (directive 1999/99/EC).

Diesel engineHDi 160 PEF
Gearbox Electronic (6-speed)
Model code RHC
- Unladen weight -
- Kerb weight * 1 735
- Gross vehicle weight (GV W) 2 265
- Gross train weight (GTW) on a 12% gradient 2 765
- Braked trailer (within GTW limit) on a 10% or 12% gradient 500
- Braked trailer ** (with load transfer with the GTW limit) 800
- Unbraked trailer 500
- Recommended nose weight 75
Weights and towed loads (in kg)
* The kerb weight is equal to the unladen weight + driver (75 kg). ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding. To make use of the 300 kg load transfer, the driver must be alone in the vehicle with no luggage in the vehicle.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.
