child restraint Citroen DS5 HYBRID4 RHD 2014 1.G Owner's Manual

Passenger airbag OFF
For information on deactivating the passenger's front airbag, refer to the "Airbags" section.
The warning label present on both sides of the passenger's sun visor repeats this advice. In line with current legislation, the following tables contain this warning in all of the languages required.
Never install a rear ward facing child restraint system on a seat protected by an active front airbag. This could cause the death of the child or serious injury.

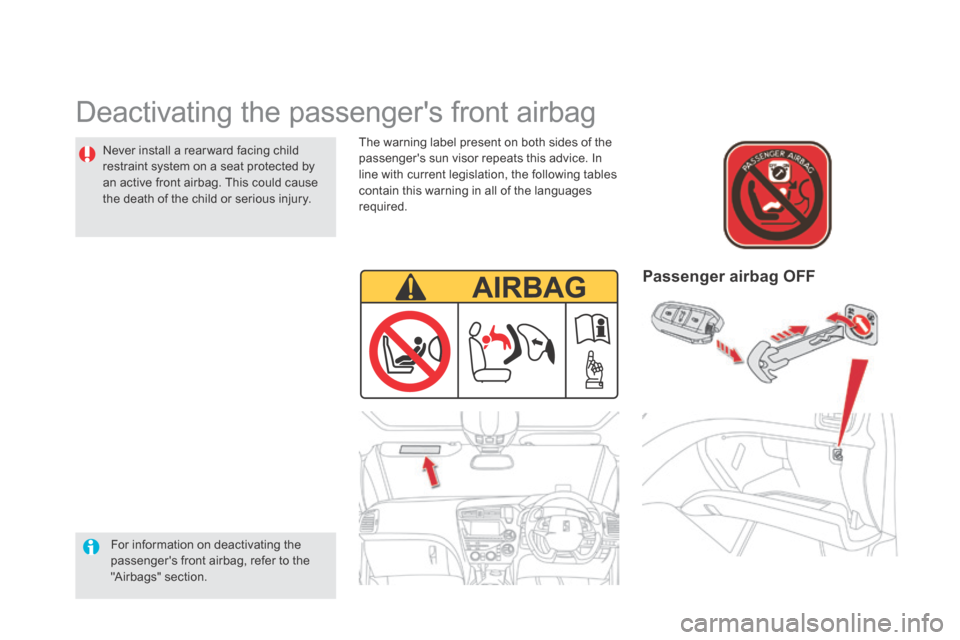

Deactivating the passenger's front airbag

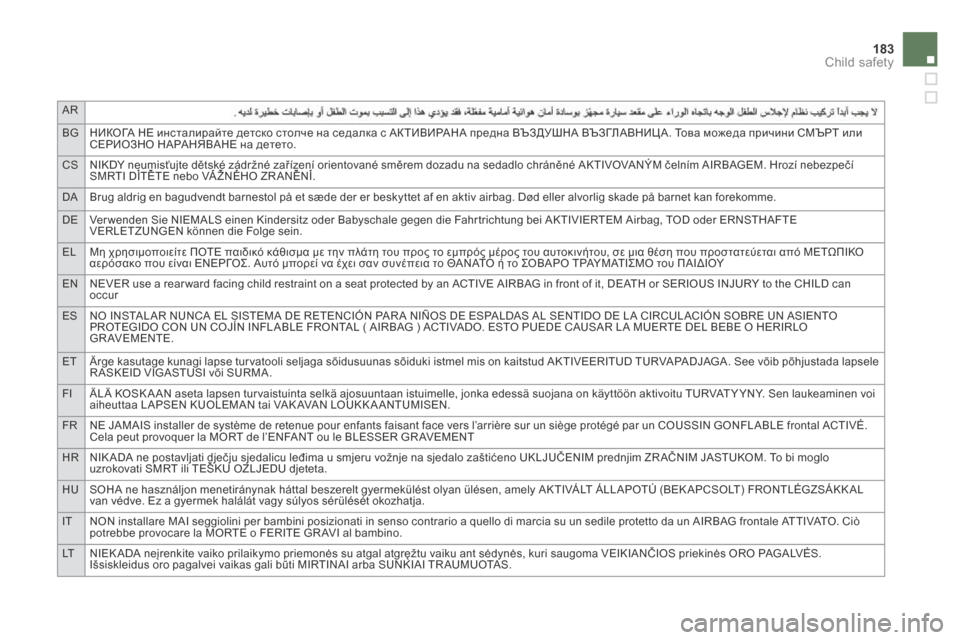

AR
BGНИКОГА НЕ инсталирайте детско столче на седалка с АКТИВИРАНА предна ВЪЗДУШНА ВЪЗГЛАВНИЦ А. Това можеда причини СМЪРТ или СЕРИОЗНО НАРАНЯВАНЕ на детето.
CSNIKDY neumisťujte dětské zádržné zařízení orientované směrem dozadu na sedadlo chráněné AKTIVOVANÝM čelním AIRBAGEM. Hrozí nebezpečí SMRTI DÍTĚTE nebo VÁ ŽNÉHO ZR ANĚNÍ.NIKDY neumisťujte dětské zádržné zařízení orientované směrem dozadu na sedadlo chráněné AKTIVOVANÝM čelním AIRBAGEM. Hrozí nebezpečí SMRTI DÍTĚTE nebo VÁ ŽNÉHO ZR ANĚNÍ.NIKDY neumisťujte dětské zádržné zařízení orientované směrem dozadu na sedadlo chráněné AKTIVOVANÝM čelním AIRBAGEM. Hrozí nebezpečí
DABrug aldrig en bagudvendt barnestol på et sæde der er beskyttet af en aktiv airbag. Død eller alvorlig skade på barnet kan forekomme.
DEVer wenden Sie NIEMALS einen Kindersitz oder Babyschale gegen die Fahr trichtung bei AKTIVIERTEM Airbag, TOD oder ERNSTHAFTE VERLETZUNGEN können die Folge sein.
ELΜη χρησιμοποιείτε ΠΟΤΕ παιδικό κάθισμα με την πλάτη του προς το εμπρός μέρος του αυτοκινήτου, σε μια θέση που προστατεύεται από ΜΕΤΩΠΙΚΟ αερόσακο που είναι ΕΝΕΡΓΟΣ. Αυτό μπορεί να έχει σαν συνέπεια το ΘΑΝΑΤΟ ή το ΣΟΒΑΡΟ ΤΡΑΥΜΑΤΙΣΜΟ του ΠΑΙΔΙΟΥ
ENNEVER use a rear ward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur
ESNO INSTALAR NUNCA EL SISTEMA DE RETENCIÓN PAR A NIÑOS DE ESPALDAS AL SENTIDO DE LA CIRCULACIÓN SOBRE UN ASIENTO PROTEGIDO CON UN COJÍN INFLABLE FRONTAL ( AIRBAG ) ACTIVADO. ESTO PUEDE CAUSAR LA MUERTE DEL BEBE O HERIRLO GRAVEMENTE.
ETÄrge kasutage kunagi lapse tur vatooli seljaga sõidusuunas sõiduki istmel mis on kaitstud AKTIVEERITUD TURVAPADJAGA. See võib põhjustada lapsele R ASKEID VIGASTUSI või SURMA.
FIÄLÄ KOSK A AN aseta lapsen tur vaistuinta selkä ajosuuntaan istuimelle, jonka edessä suojana on käyttöön aktivoitu TURVAT Y YNY. Sen laukeaminen voi aiheuttaa LAPSEN KUOLEMAN tai VAK AVAN LOUKK A ANTUMISEN.
FRNE JAMAIS installer de système de retenue pour enfants faisant face vers l’arrière sur un siège protégé par un COUSSIN GONFLABLE frontal ACTIVÉ.Cela peut provoquer la MORT de l’ENFANT ou le BLESSER GR AVEMENT
HRNIK ADA ne postavljati dječju sjedalicu leđima u smjeru vožnje na sjedalo zaštićeno UKLJUČENIM prednjim ZR AČNIM JASTUKOM. To bi moglo uzrokovati SMRT ili TEŠKU OZLJEDU djeteta.NIK ADA ne postavljati dječju sjedalicu leđima u smjeru vožnje na sjedalo zaštićeno UKLJUČENIM prednjim ZR AČNIM JASTUKOM. To bi moglo uzrokovati SMRT ili TEŠKU OZLJEDU djeteta.NIK ADA ne postavljati dječju sjedalicu leđima u smjeru vožnje na sjedalo zaštićeno UKLJUČENIM prednjim ZR AČNIM JASTUKOM. To bi moglo
HUSOHA ne használjon menetiránynak háttal beszerelt gyermekülést olyan ülésen, amely AKTIVÁLT ÁLLAPOTÚ (BEK APCSOLT) FRONTLÉGZSÁKK AL van védve. Ez a gyermek halálát vagy súlyos sérülését okozhatja.
ITNON installare MAI seggiolini per bambini posizionati in senso contrario a quello di marcia su un sedile protetto da un AIRBAG frontale ATTIVATO. Ciò potrebbe provocare la MORTE o FERITE GR AVI al bambino.
LTNIEK ADA neįrenkite vaiko prilaikymo priemonės su atgal atgręžtu vaiku ant sėdynės, kuri saugoma VEIKIANČIOS priekinės ORO PAGALVĖS. Išsiskleidus oro pagalvei vaikas gali būti MIRTINAI arba SUNKIAI TR AUMUOTAS.
183Child safety

187Child safety

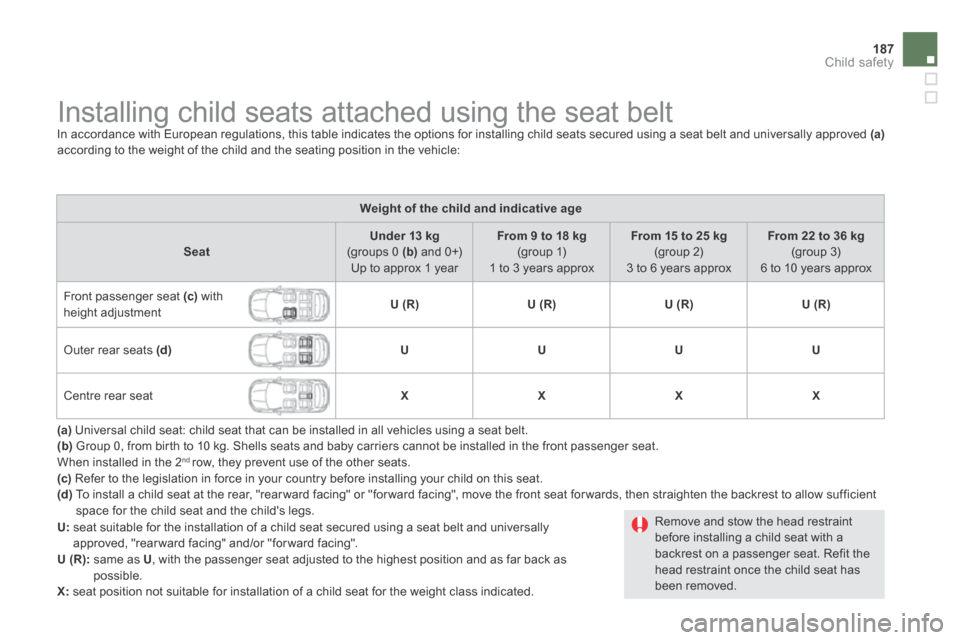

Installing child seats attached using the seat belt In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)according to the weight of the child and the seating position in the vehicle:
Weight of the child and indicative age
SeatUnder 13 kg (groups 0 ( b ) and 0+) Up to approx 1 year
From 9 to 18 kg (group 1) 1 to 3 years approx
From 15 to 25 kg (group 2) 3 to 6 years approx
From 22 to 36 kg (group 3) 6 to 10 years approx
Front passenger seat ( c ) with height adjustment U (R)U (R)U (R)U (R)
Outer rear seats (d) UUUU
Centre rear seat XXXX
(a) Universal child seat: child seat that can be installed in all vehicles using a seat belt. (b) Group 0, from birth to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat .When installed in the 2 nd row, they prevent use of the other seats .(c) Refer to the legislation in force in your country before installing your child on this seat. (d) To install a child seat at the rear, "rear ward facing" or "for ward facing", move the front seat for wards, then straighten the backrest to allow sufficient space for the child seat and the child's legs. Remove and stow the head restraint before installing a child seat with a backrest on a passenger seat. Refit the head restraint once the child seat has
been removed.
U: seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rearward facing" and/or "forward facing". U (R): same as U , with the passenger seat adjusted to the highest position and as far back as possible. X: seat position not suitable for installation of a child seat for the weight class indicated.

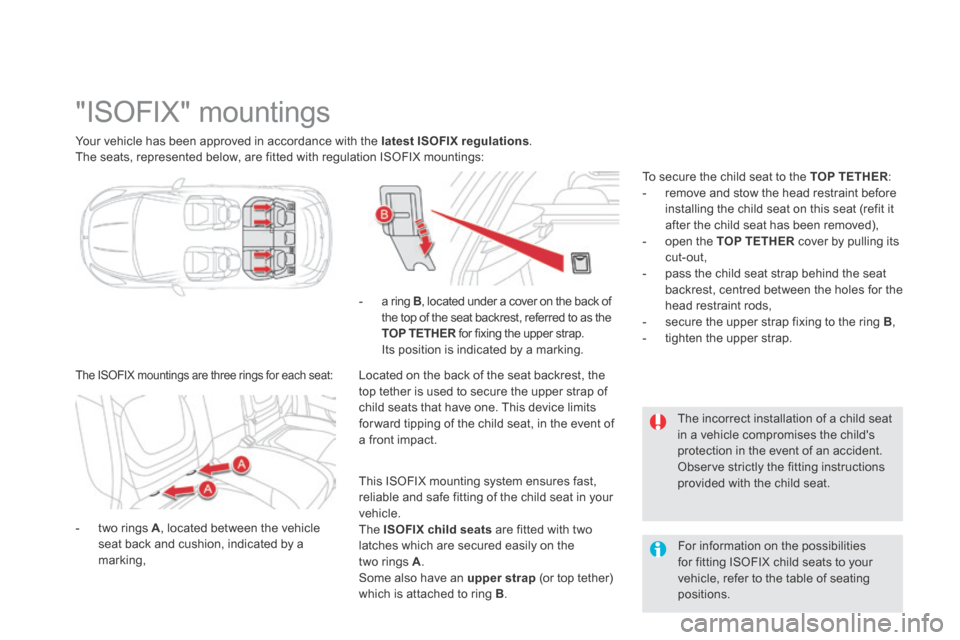

Your vehicle has been approved in accordance with the latest ISOFIX regulations . The seats, represented below, are fitted with regulation ISOFIX mountings:
"ISOFIX" mountings
The ISOFIX mountings are three rings for each seat:
To secure the child seat to the TOP TETHER : - remove and stow the head restraint before installing the child seat on this seat (refit it after the child seat has been removed), - open the TOP TETHER cover by pulling its cut-out, - pass the child seat strap behind the seat backrest, centred between the holes for the head restraint rods, - secure the upper strap fixing to the ring B , - tighten the upper strap.
The incorrect installation of a child seat
in a vehicle compromises the child's protection in the event of an accident. Observe strictly the fitting instructions provided with the child seat.
For information on the possibilities for fitting ISOFIX child seats to your vehicle, refer to the table of seating positions.
- a ring B , located under a cover on the back of the top of the seat backrest, referred to as the TOP TETHER for fixing the upper strap. TOP TETHER for fixing the upper strap. TOP TETHER Its position is indicated by a marking.
- two rings A , located between the vehicle seat back and cushion, indicated by a marking,
This ISOFIX mounting system ensures fast, reliable and safe fitting of the child seat in your vehicle. The ISOFIX child seats are fitted with two latches which are secured easily on the two rings A . Some also have an upper strap (or top tether) which is attached to ring B .
Located on the back of the seat backrest, the top tether is used to secure the upper strap of child seats that have one. This device limits for ward tipping of the child seat, in the event of a front impact.

191Child safety
I UF: seat suitable for the installation of an I sofix U niversal seat, " F or ward-facing" secured using the top belt secured to the upper ring on ISOFIX seating positions.
IL- SU: seat suitable for the installation of an I sofix S emi- U niversal seat either: - "rear ward facing" fitted with a top belt or a support leg, - "for ward facing" fitted with a support leg, - a sleeper cot fitted with an upper strap or a support leg.
* Sleeper cots cannot be fitted to the front passenger's seat. ** The ISOFIX sleeper cot, fixed to the lower ISOFIX rings, occupies all of the rear seats.
Remove and stow the head restraint before installing a child seat with a backrest on a passenger seat. Refit the head restraint once the child seat has been removed.
For advice on securing of the top belt, refer to the "Isofix mountings" section. X: seat not suitable for the installation of a child seat or shell for the weight group indicated.

The incorrect installation of a child seat in a vehicle compromises the child's protection in the event of an accident. Ensure that there is no seat belt or seat belt buckle under the child seat, as this could
destabilise it. Remember to fasten the seat belts or the child seat harnesses keeping the slack relative to the child's body to a minimum, even for short journeys. When installing a child seat using the seat belt, ensure that the seat belt is tightened correctly on the child seat and that it secures the child seat firmly on the seat of your vehicle. If your passenger seat is adjustable, move it for wards if necessary. At rear seating positions, always leave sufficient space between the front seat and: - a "rear ward facing" child seat, - the child's feet for a child seat fitted "forward facing". To do this, move the front seat for wards and, if necessary, move its backrest into the upright position.

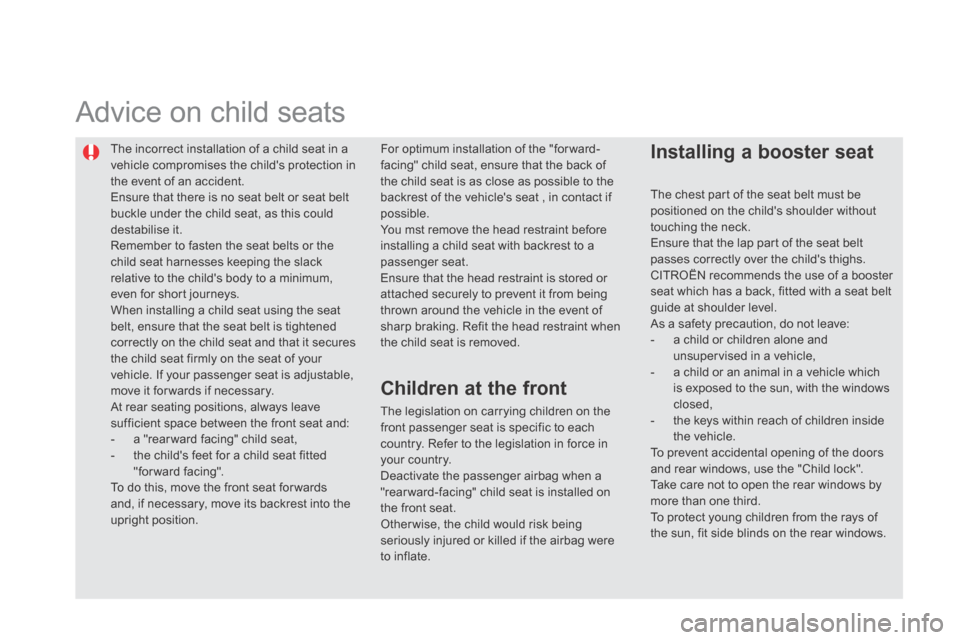

Advice on child seats
Installing a booster seat
The chest part of the seat belt must be positioned on the child's shoulder without
touching the neck. Ensure that the lap part of the seat belt passes correctly over the child's thighs. CITROËN recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level. As a safety precaution, do not leave: - a child or children alone and unsupervised in a vehicle, - a child or an animal in a vehicle which is exposed to the sun, with the windows closed, - the keys within reach of children inside the vehicle. To prevent accidental opening of the doors and rear windows, use the "Child lock". Take care not to open the rear windows by more than one third. To protect young children from the rays of the sun, fit side blinds on the rear windows.
The legislation on carrying children on the front passenger seat is specific to each country. Refer to the legislation in force in your country. Deactivate the passenger airbag when a "rear ward-facing" child seat is installed on the front seat. Otherwise, the child would risk being seriously injured or killed if the airbag were to inflate.
Children at the front
For optimum installation of the "forward-facing" child seat, ensure that the back of the child seat is as close as possible to the backrest of the vehicle's seat , in contact if possible.
You mst remove the head restraint before installing a child seat with backrest to a passenger seat. Ensure that the head restraint is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking. Refit the head restraint when the child seat is removed.

247Practical information

Accessories
A wide range of accessories and genuine parts is available from the CITROËN dealer network. These accessories and parts have been tested and approved for reliability and safety. They are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.
"Comfort":
door deflectors, side window blinds, rear screen blind, isotherm module, coat hanger fixed to head restraint, mobile reading lamp, mirror for caravan, parking sensors, scented air freshener, cigarette lighter...
"Transport systems":
child seats and booster cushions, boot carpet, boot liner, boot net, boot spacers, transverse roof bars, bicycle carrier, ski carrier, roof boxes, towbars, wiring harnesses... If a towbar and wiring harness are fitted outside the CITROËN dealer network, the installation must be done using the vehicle's electrical pre-equipment and fitted following the
manufacturer's recommendations.
"Styling":
aluminium pedals, aluminium foot rest, alloy wheels, chrome mirror shells, ...
* To avoid any risk of jamming the pedals: - ensure that mats are correctly positioned and secured, - never fit one mat on top of another.
"Security and safety":
anti-intrusion alarm, anti-tilt unit, stolen vehicle tracking system, child seats and booster cushions, dog guard, breathalyser, first aid kit, fire extinguisher, warning triangle, belt cutter/glass breaker, high visibility vest, wheel security bolts, snow chains, non-slip covers...
"Protection":
mats * , mud flaps, bumper protection strips, boot sill protector, vehicle cover... The rear bodywork has been designed to avoid s p r ay.

Accessories .............................................33, 247Accessory position...........................................33Accessory socket, 12 V ..........................116, 117Adjusting headlamps .....................................168Adjusting head restraints .......................106, 109Adjusting seat belt height ..............................203Adjusting the steering wheel..........................11 5Airbags ............................................................69Airbags, curtain......................................207, 208Airbags, front .........................................205, 208Airbags, lateral.......................................207, 208Air conditioning ........................................47, 126Air conditioning, automatic ....................123, 124Air conditioning, manual ................................123Air fi lter ..........................................................Air fi lter ..........................................................Air fi lter261Air fl ow .............................................................47Air vents.........................................................122Alarm ...............................................................94Anti-lock braking system (ABS) .....................198Anti-pinch.........................................................99Anti-theft ..........................................................33Armrest ..........................................................11 6Armrest, front .................................................11 8Armrest, rear ..................................................Armrest, rear ..................................................Armrest, rear11 9Ashtray, portable ............................................11 6Assistance call ...............................197, 274, 275Assistance, emergency braking.....................198Audible warning .............................................197Audio streaming (Bluetooth) ..........317, 344, 346Audio system .................................................331Automatic headlamps ..............................60, 165Automatic illumination of headlamps .....161, 164Automatic operation of hazard warning lamps .............................................196
Automatic rain sensitive windscreen wipers ..................................................171, 173Auxiliary socket..............................................343
Backup starting ........................................34, 239Backup switching off ........................................Backup switching off ........................................Backup switching off34Battery ...............8, 28, 50-52, 113, 238-240, 260Battery, charging .....................................238-240Battery, remote control ..............................89, 90Black panel ......................................................75Bluetooth (hands-free) ...........................300, 345Bluetooth (telephone) ....................................300Boot .................................................................93Boot fl oor, adjustable .....................................120Boot (opening) .................................................83Brake discs ....................................................262Brake lamps...................................................232Brake pads ....................................................262Brakes .....................................................62, 262Braking assistance system ............................198
Capacity, fuel tank .........................................101CD .................................................................338CD MP3 .................................................339, 340Central locking ...........................................83, 86Changing a bulb ............................227, 232, 234
Date (display) ................................................321Date (setting) .............................................76, 77Daytime running lamps ..................227, 230, 231Deactivating ESP ...........................................200
Changing a fuse ............................................235Changing a wheel ..........................................218Changing a wiper blade .........................174, 242Changing the date .............................76, 77, 321Changing the remote control battery ...............89Changing the time .............................76, 77, 321Checking levels .............................256, 258, 260Checking the engine oil level ...........................73Checking tyre pressures (using the kit) .........212Checks............................................254, 260-262Children .........................................187, 189, 190Child seats ....................180, 181, 185, 186, 192Child seats, conventional.......................186, 187Cigar lighter ...................................................Cigar lighter ...................................................Cigar lighter11 7CITROËN Localised Assistance CallCigar lighterCITROËN Localised Assistance CallCigar lighter .............275CITROËN Localised Emergency Call ............275Clock................................................................76Closing the boot...............................................93Closing the doors.......................................83, 86Connectors, audio .........................118, 341, 343Coolant level ............................................70, 258Coolant temperature indicator .........................Coolant temperature indicator .........................Coolant temperature indicator70Courtesy lamps..............................................175Cruise control ........................................149, 152Cup holder .....................................................Cup holder .....................................................Cup holder11 6

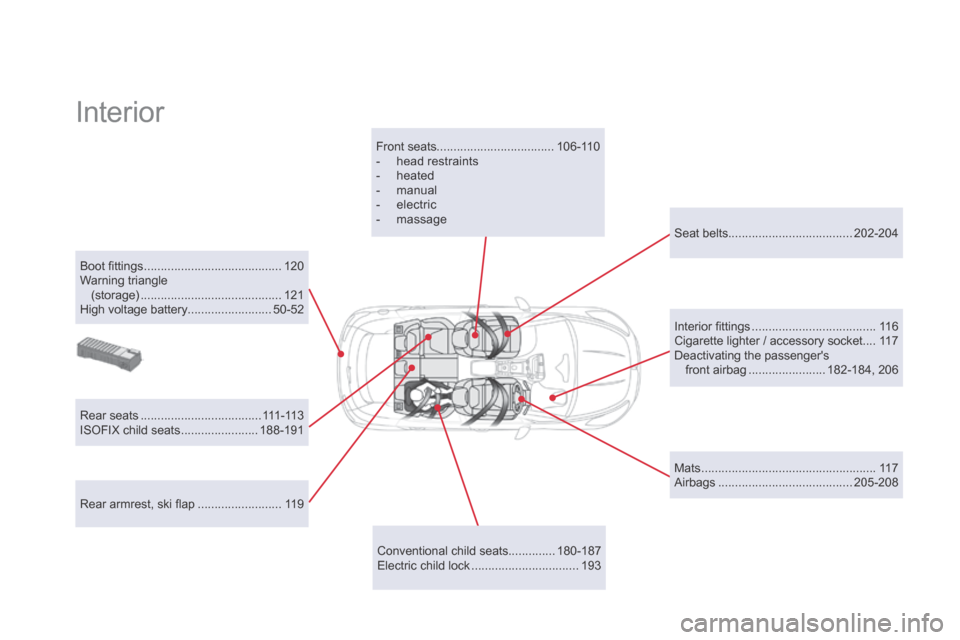

Interior
Boot fi ttings .........................................120
Warning triangle (storage) .......................................... 121
High voltage battery .........................50-52
Conventional child seats ..............180-187
Electric child lock ................................ 193
Front seats
................................... 106-110
- head restraints - heated - manual - electric - massage
Rear armrest, ski fl ap ......................... 119 Mats ....................................................
117
Airbags ........................................ 205-208
Interior fi ttings .....................................
116
Cigarette lighter / accessory socket ....117
Deactivating the passenger's front airbag ....................... 182-184, 206
Seat belts
..................................... 202-204
Rear seats .................................... 111-113
ISOFIX child seats ....................... 188-191
