11Familiarisation
Automatic headlamp dipping
This system automatically switches between dipped and main beam, depending on the lighting and driving conditions, using a camera placed in the interior rear view mirror. placed in the interior rear view mirror.
165
Front and rear parking sensors Front and rear parking sensors
This systems warns you of the presence of obstacles located in front of or behind the vehicle during parking manoeuvres.
15 4
Temporary puncture repair kit
This kit is a complete system consisting of a compressor and a sealant cartridge, to allow
the temporary repair of a tyre.
Exterior expressive stickers
Do not have your vehicle washed in a high pressure car wash.
212
Exterior Reversing camera
This system, available only with satellite navigation, is activated automatically on engaging reverse gear and provides an image in the colour screen.
15 6

19Familiarisation
Sitting comfortably
Door mirrors
Adjustment
1. Selection of the left or right mirror. 2. Adjusting the position of the mirror glass. 3. Deselection of the mirror. 4. Folding the mirror.
Rear view mirror
1. Automatic detection of day/night mode. 2. Rear view mirror adjustment.
Front seat belts
1. Fastening. 2. Adjusting for height.
114
115
202

Warning / indicator lampStateCauseAction / Observations

Left-hand direction indicator flashing with buzzer. The lighting stalk is pushed down.


Right-hand direction indicator flashing with buzzer. The lighting stalk is pushed up.


Sidelamps fixed. The lighting stalk is in the "Sidelamps" position.

Dipped beam headlamps fixed. The lighting stalk is in the "Dipped beam headlamps" position.

Main beam headlamps fixed. The lighting stalk is pulled towards you. Pull the stalk to return to dipped beam headlamps.

Front foglamps fixed. The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off the front foglamps.
For more information on the lighting controls, refer to the corresponding section.
Automatic headlamp dipping
fixed. The lighting stalk has been pulled towards you and the button (to the right of the steering wheel) has been pressed. Its warning lamp is on.
The camera, located in the interior rear view mirror, authorises or not switching between main and dipped beam, depending on the exterior lighting and the driving conditions. Pull the lighting stalk to return to dipped beam.
Ready fixed. The vehicle is ready to move off; you can press the accelerator. It comes on once high voltage is established in the vehicle.
Operation indicator lamps
If one of the following indicator lamps comes on in the instrument panel and/or instrument panel screen, this confirms that the corresponding system has come into operation.

11 5Comfort
Automatic day/night model
By means of a sensor, which measures the light from the rear of the vehicle, this system automatically and progressively changes between the day and night uses.
Adjustable mirror providing a central rearward view. Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to the driver caused by the sun, headlamps from other vehicles...
Rear view mirror
In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reverse gear is engaged.
Steering wheel adjustment
 When stationary , pull the control lever to When stationary , pull the control lever to When stationaryrelease the adjustment mechanism.  Adjust the height and reach to suit your driving position.  Push the control lever to lock the adjustment mechanism.
As a safety precaution, these operations should only be carried out with the vehicle stationary.
As a safety measure, the mirrors should be adjusted to reduce the "blind spot".
Seeing clearly
For better rear vision, align the bottom of the rear view mirror with the bottom of the rear screen.

The sidelamps and dipped beam headlamps are switched on automatically, without any action on the part of the driver, when a low level of external light is detected or in certain cases of activation of the windscreen wipers. As soon as the brightness returns to a sufficient level or after the windscreen wipers are switched off, the lamps are switched off automatically.
Automatic illumination of headlamps
Activation
Turn the ring to the "AUTO" position, automatic illumination of headlamps is activated and a message is displayed in the screen.
Deactivation
 Turn the ring to another position. Deactivation is accompanied by a message in the screen.
Association with the automatic "Guide-me-home" lighting
Association with the automatic lighting provides the "guide-me-home" lighting with the following additional options after the ignition is switched off: - selection of the lighting duration of 15, 30 or 60 seconds in the vehicle parameters in the vehicle configuration menu, - automatic activation of "guide-me-home" lighting when automatic illumination of headlamps is in operation.
Operating fault
In the event of a malfunction of the sunshine sensor, the lighting comes on, this warning lamp is displayed in the instrument panel and/or a message appears in the screen, accompanied by an audible signal. Contact a CITROËN dealer or a qualified workshop.
In fog or snow, the sunshine sensor may detect sufficient light. In this case, the lighting will not come on automatically. Do not cover the sunshine sensor, coupled with the rain sensor and located in the centre of the windscreen behind the rear view mirror; the associated functions would no longer be controlled.

165Visibility
Automatic headlamp dipping
Switching on
System which automatically changes between dipped and main beam according to the lighting and traffic conditions, using a camera located in the rear view mirror.
 Put the lighting control stalk ring in the "AUTO" position.
This automatic headlamp dipping system is a driving aid. The driver remains responsible for the vehicle's lighting, its correct use for the prevailing conditions of light, visibility and traffic and observation of driving and vehicle regulations.
 Flash the headlamps (pull the stalk beyond the point of resistance) to activate the function. This indicator lamp comes on in the instrument panel to confirm activation.
 Press the button, its indicator lamp comes on.
Switching off
 Press the button, its indicator lamp goes off, the lighting system changes to "automatic illumination of headlamps" mode.
Pause
 Flashing the headlamps again pauses the function and the lighting system changes to "automatic illumination of headlamps" mode.
 Flash the headlamps again to reactivate the system.
Operation
Once activated, the system operates as follows: - if there is adequate light and/or if the traffic conditions do not allow the use of main beam, then dipped beam is maintained, - if the light level is low and the traffic
conditions allow, main beam comes on automatically. The system will be operational as soon as you have exceeded 15 mph (25 km/h). If the speed drops below 9 mph (15 km/h), the system no longer operates.
If the situation requires a change of headlamp beam, the driver can take over at any time.

173Visibility
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automatically, without any action on the part of the driver, if rain is detected (sensor behind the rear view
mirror), adapting their speed to the intensity of the rainfall.
Switching on
Briefly push the control stalk downwards. A wiping cycle confirms that the instruction has been accepted.
Briefly push the control stalk downwards again, or place the control stalk in another position (Int, 1 or 2).
Switching off
The automatic rain sensitive windscreen wipers must be reactivated by pushing the control stalk downwards, if the ignition has been off for more than one minute. This warning lamp comes on in the instrument panel and a message is displayed. This warning lamp goes off in the instrument panel and a message is displayed.

Do not cover the rain sensor, linked with the sunshine sensor and located in the centre of the windscreen behind the rear view mirror. Switch off the automatic rain sensitive wipers when using an automatic car wash. In winter, it is advisable to wait until the windscreen is completely clear of ice before activating the automatic rain sensitive wipers.
Operating fault
If a fault occurs with the automatic rain sensitive wipers, the wipers will operate in intermittent mode. Have it checked by CITROËN dealer or a qualified workshop.
Special position of the
windscreen wipers
This position permits release of the windscreen wiper blades. It is used for cleaning or replacement of the blades. It can also be useful, in winter, to detach the blades from the windscreen.
To maintain the effectiveness of the "flat-blade" type of wiper blades, it is advisable to: - handle them with care, - clean them regularly using soapy water, - avoid using them to retain cardboard on the windscreen, - replace them at the first signs of w e a r.
 Any action on the wiper stalk in the minute after switching off the ignition places the blades vertically on the screen.  To park the blades again, switch on the ignition and operate the wiper stalk.

Jack ...............................................................218JACK socket ..........................................118, 343
Key not recognised ..........................................34Key with remote control ...................................33Main beam ........................60, 160, 227-229, 231Maintenance ....................................................47Markings, identifi cation ..................................270Massage function .........................................11 0Mat.................................................................11 7Menu, main ....................................................334Mini fuel level .................................................101Mirror, rear view .............................................11 5Mirrors, door ..................................................Mirrors, door ..................................................Mirrors, door11 4Misfuel prevention .........................................102Motorway function (direction indicators) ....................................196Mountings for ISOFIX seats ..........................188MP3 CD .................................................339, 340Music media players ......................................313
Navigation..............................................283, 284Number plate lamps ......................................234
Oil change .....................................................256Oil consumption .............................................256Oil fi lter ..........................................................Oil fi lter ..........................................................Oil fi lter261Oil level ....................................................73, 256Opening the boot ..................................82-84, 93Opening the doors .....................................82, 84Operation indicator lamps..............60, 61, 63, 66
Labels, identifi cation ......................................270Lamps, warning and indicator..............59, 63, 64Lane Departure Warning System (LDWS) ........................................................146LED daytime running lamps ..........................163LEDs - light-emitting diodes...........................232Level, brake fl uid ...........................................258Level, headlamp wash ...................................259Level, power steering fl uid .............................258Levels and checks .................254, 256, 258, 260Light-emitting diodes - LEDs .........................232Lighting ..........................................................176Lighting bulbs (replacement) ..............................227, 232, 234Lighting control stalk ..............................160, 166Lighting dimmer ...............................................Lighting dimmer ...............................................Lighting dimmer74Lighting, guide-me home .......................164, 166Lighting, interior .....................................Lighting, interior .....................................Lighting, interior175, 176Lighting on reminder ......................................Lighting on reminder ......................................Lighting on reminder162Loading ....................................................47, 246Load reduction mode .....................................241Locating your vehicle .......................................86Locking from the inside....................................91Locking the doors ............................................91Long objects, transporting .............................11 9Luggage retaining strap .................................120Lumbar ..........................................................Lumbar ..........................................................Lumbar11 0
Keeping children safe ......................180, 181, 185, 189, 190, 205Key ..........................................82, 84, 86, 89, 90Key, electronic ..........................34, 82-84, 86, 88Keyless Entry and Starting ........................84, 90
Identifi cation plates ........................................270Ignition .............................................................33Ignition on ........................................................33Indicator lamps, status.....................................61Indicators, direction .......................................196Infl ating accessories (using the kit) ...............212Infl ating tyres ...................................................47Inputs for audio system .................................343Instrument panel lighting .................................74Instrument panels ............................................58Instruments and controls .................................16Intelligent Traction Control .............................199Interior fi ttings ................................................11 6Interior mood lighting .....................................176ISOFIX ...........................................................189ISOFIX child seats ..................................188-190ISOFIX mountings .........................................188

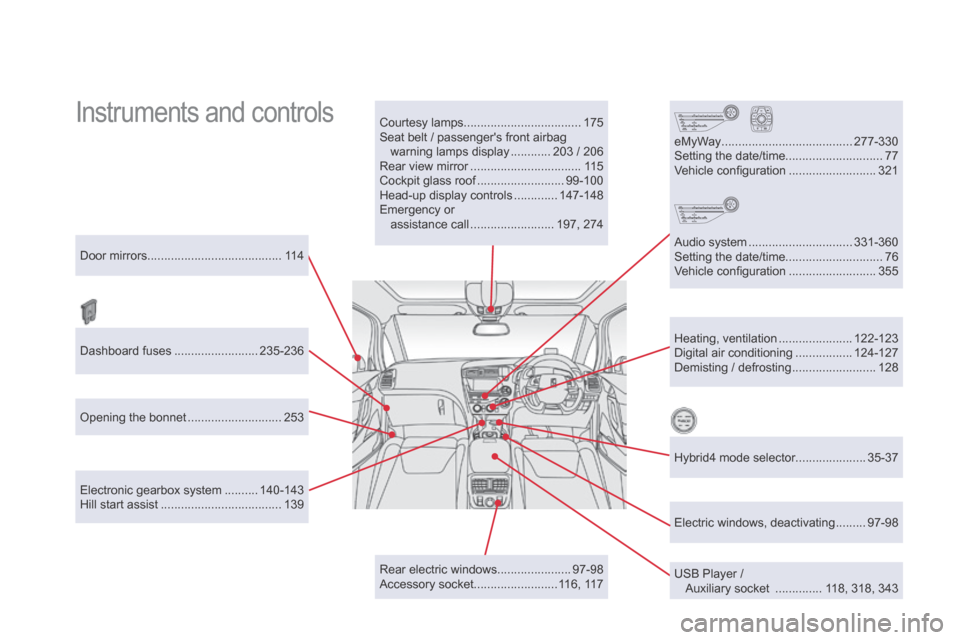

Instruments and controls Courtesy lamps................................... 175
Seat belt / passenger's front airbag warning lamps display ............203 / 206
Rear view mirror ................................. 115
Cockpit glass roof ..........................99-100
Head-up display controls .............147-148
Emergency or assistance call ......................... 197, 274
Door mirrors ........................................ 114
Heating, ventilation ......................122-123
Digital air conditioning .................124-127
Demisting / defrosting .........................128
USB Player / Auxiliary socket ..............118, 318, 343
Dashboard fuses .........................
235-236
Electronic gearbox system .......... 140-143
Hill start assist .................................... 139 eMyWay .......................................
277-330
Setting the date/time .............................77
Vehicle confi guration ..........................321
Audio system ............................... 331-360
Setting the date/time .............................76
Vehicle confi guration ..........................355
Opening the bonnet ............................253
Rear electric windows ......................97-98
Accessory socket .........................116, 117 Electric windows, deactivating
.........97-98
Hybrid4 mode selector
.....................35-37
