display Citroen DS5 RHD 2012.5 1.G User Guide

47Monitoring
eMyWay
Select " Synchronize the minuteswith GPS" so that setting the minutesis done automatically by satellitereception.
The clock, located in the dashboard, is synchronised with the time in thescreen. It is set once the time isadjusted using the " SETUP " menu and every time the ignition is switched on.

Pr
ess SETUPto display the "Configuration
"menu.
Select "Display configuration
" and confirm.
Select " Set date and time" and confirm.
Select the setting to adjust.
Confirm by pressing OK
, then adjust the setting and confirm again to save the modification.

Ad
just the settings one by one.
Then select " OK" on the screen and confirm to
save the settings.

Tr i p c o m p u t e r
)When the trip required is displayed, press
the control for more than two secondsor use the left hand thumb wheel of the
steering mounted controls.
Trips "1"
and "2"are independent but their use
is identical.
For example, trip "1"
can be used for daily
figures, and trip "2"
for monthly figures.
Instrument panel screen
Information displa
y
)Press the button on the end of the wiper control stalk
to display the various tabs in succession.- Th
e current information tab with:
●
the range,
●
the current fuel consumption,
●
the Stop & Star t time counter.


-
Trip "1"
with:
●
the average speed, for the first trip.
●
the average fuel consumption.
-
Trip "2"with:
●
the average speed, for the second trip.
●
the average fuel consumption.


Tr i p r e s e t
- Radio or media.
- Satellite navigation.

49Monitoring
If dashes are displayed continuouslywhile driving in place of the digits, contact a CITROËN dealer or aqualified workshop.

This value may vary following a changein the style of driving or the relief,resulting in a significant change in thecurrent fuel consumption.
Trip computer, a few definitions…


Range
(miles or km)
This indicates the distance
which can still be travelled with
the fuel remaining in the tank
in relation to the average fuelconsumption over the last few
miles (kilometres) travelled.
When the ran
ge falls below 20 miles (30 km),
dashes are displayed. After filling with at least5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (10 0 km).
This function is only displayed from 20 mph (30 km/h).


Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption
during the last few seconds.
Average fuelconsumption
(mpg or l/100 km or km/l)
This is the average fuel consumption since the last tripcomputer zero reset.
Average speed
(mph or km/h)
This is the average speed calculated
since the last trip computer zero reset (ignition on).
Stop & Start timecounter
(minutes / seconds or hours /
minutes)
I
f your vehicle is fitted with Stop & Star t, a time counter calculates the time spent in STOP
mode during a journey. It resets to zero every time the ignition is switched on with the STA R T/STOP button.

Storing driving positions
System which stores the electrical settings
of the driver's seat and the head-up display settings. It enables you to store up to
two positions using the buttons on the side of
the driver's seat.

Storing a position usingbuttons M / 1 / 2

)
Switch on the ignition. )
Adjust your seat and the head-up display.)
Press button M
, then press button 1or 2within four seconds.
An audible signal indicates that the positionhas been stored.
Storing a new position cancels the previous
position.

Recalling a stored position
)Briefly press button 1
or 2to recall the corresponding position.
An audible signal indicates the end of the
adjustment.
You can interrupt the current movementby pressing button M, 1
or 2
or by using one of the seat controls. A stored position cannot be recalled while driving. Recalling stored positions is deactivated 45 seconds after switching off the ignition.

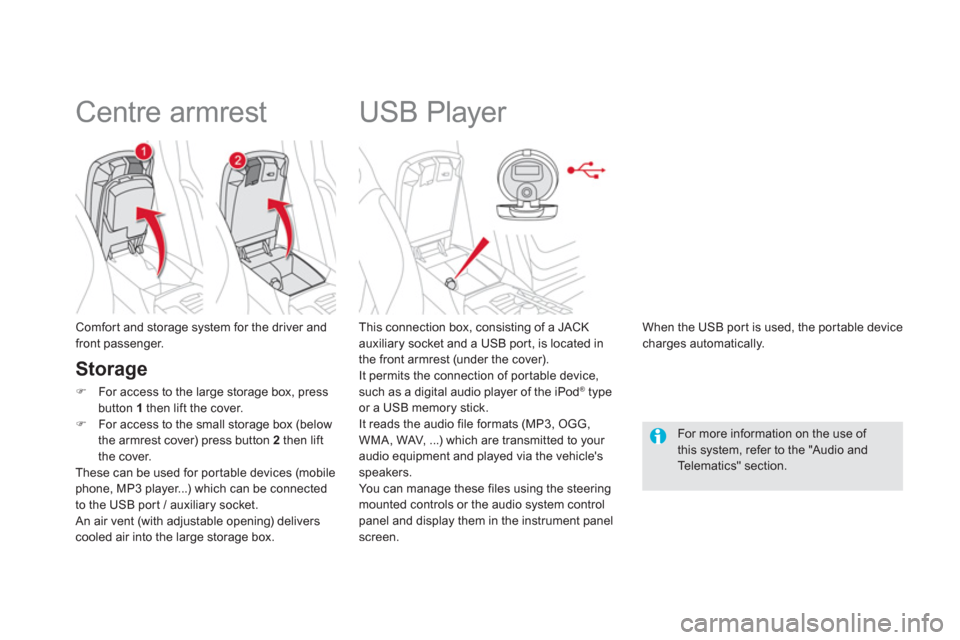

USB Player


This connection box, consisting of a JACK
auxiliary socket and a USB por t, is located in
the front armrest (under the cover).
It permits the connection of por table device,
such as a di
gital audio player of the iPod® type®
or a USB memory stick.
It reads the audio file formats (MP3, OGG,
WMA , WAV, ...) which are transmitted to your
audio equipment and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel and display them in the instrument panel screen.
When the U
SB por t is used, the por table devicecharges automatically.


For more information on the use of this system, refer to the "Audio andTelematics" section.
Comfor t and storage system for the driver andfront passenger.














Centre armrest
Storage
)For access to the large storage box, press button 1then lift the cover.)For access to the small storage box (below
the armrest cover
) press button 2then lift
the cover.
These can be used for por table devices (mobilephone, MP3 player...) which can be connected
to the USB por t / auxiliary socket.
An air vent (with adjustable opening) delivers cooled air into the large storage box.

Dual-zone digital air conditioning
1. Automatic comfort programme

We recommend the use of one of
the three AUTO modes available:
they provide optimised regulation of
the temperature in the passen
ger compartment according to the comfort value
that you have chosen.
These three modes automatically control the system, according to the desired setting, while also maintaining the desired comfort value.
) Press the "AUTO"
button repeatedly:


- a first indicator lamp comes on; the "low"setting mode is selected,

- a second indicator lamp comes on; the
"medium" setting mode is selected,

- a third indicator lamp comes on; the
"hi
gh" mode setting is selected.

Use the "medium" and "high" settings in
preference to maintain the comfort level at the
rear.

When the engine is cold, the air flow will reach its optimum levelprogressively, taking account of the
weather and the desired comfort levelso as to avoid too great a distributionof cold air.
On entering the vehicle, if the interior temperature is much colder or warmer than the comfort value, there is noneed to change the value displayed in order to obtain the comfort required. Inall seasons, with the windows closed the system corrects the differencein temperature automatically and asquickly as possible.
This s
ystem is designed to operate effectivelyin all seasons, with the windows closed.
Automatic operation

93Comfort

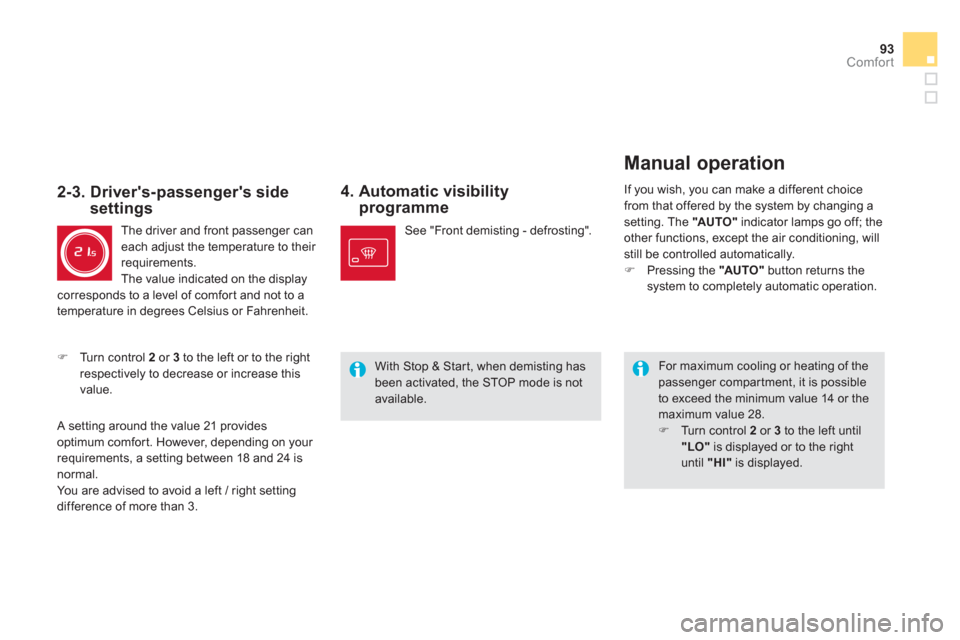

4. Automatic visibilityprogramme


For maximum cooling or heating of thepassenger compar tment, it is possibleto exceed the minimum value 14 or themaximum value 28.)
Turn control 2or 3
to the left until "LO"is displayed or to the right until "HI"
is displayed. See "Front demistin
g - defrosting".


2-3. Driver's-passenger's side
settings
The driver and front passenger can each adjust the temperature to their requirements.
The value indicated on the display corresponds to a level of comfor t and not to a
temperature in degrees Celsius or Fahrenheit.
)Turn control 2or 3to the left or to the right respectively to decrease or increase this
value.

A setting around the value 21 provides
optimum comfort. However, depending on your
requirements, a setting between 18 and 24 isnormal.
You are advised to avoid a left / right settingdifference of more than 3.

Manual operation

If you wish, you can make a different choice from that offered by the system by changing asetting. The "AUTO"
indicator lamps go off; theother functions, except the air conditioning, willstill be controlled automatically.)
Pressing the "AUTO"
button returns the system to completely automatic operation.
With Stop & Star t, when demisting hasbeen activated, the STOP mode is not available.

95
Comfort

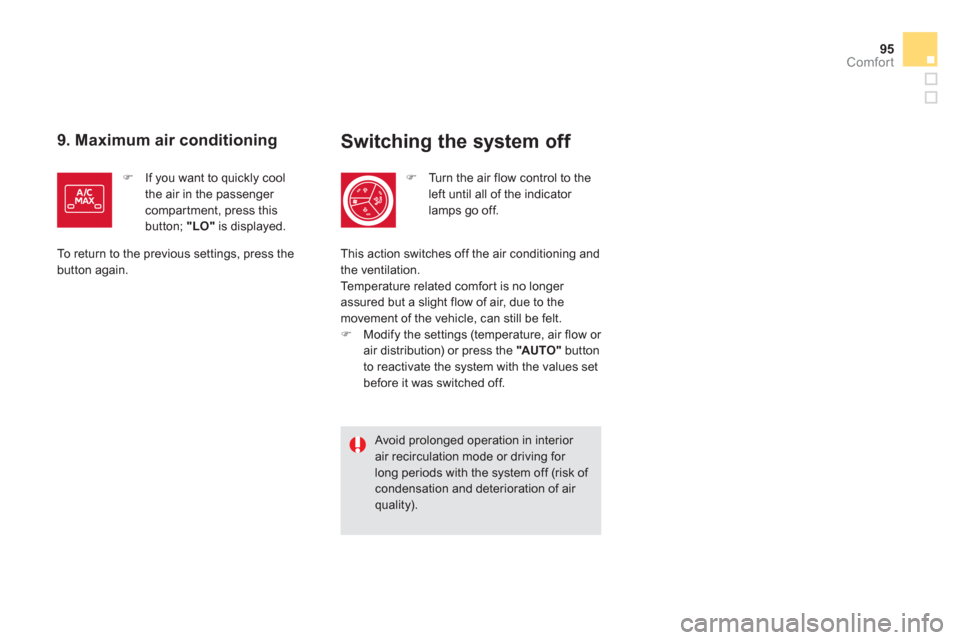

Switching the system off
)Turn the air flow control to theleft until all of the indicator lamps go off.
Avoid prolonged operation in interior air recirculation mode or driving for long periods with the system off (risk of condensation and deterioration of air quality). This action switches o
ff the air conditioning and
the ventilation.
Temperature related comfor t is no longer assured but a slight flow of air, due to the
movement of the vehicle, can still be felt.
) Modify the settings (temperature, air flow or
air distribution) or press the "AUTO"button
to reactivate the system with the values setbefore it was switched off.

9. Maximum air conditioning
)
If you want to quickly cool
the air in the passenger compartment, press this
button; "LO"is displayed.

To return to the previous settings, press the button again.

103Driving

It is recommended that you do not apply the parking brake in very coldconditions (ice) and during towing (breakdown, caravan...). For this, with the ignition on, deactivate the automatic functions and release theparking brake manually:)Manual gearbox:
engage first gear or reverse. )Electronic gearbox system
: select position Aor R.)
Automatic gearbox:
select position Por R.

The electric parking brake combines
2 operating modes:

-
Automatic Application/Release Application is automatic when the engine stops, release is automatic on use of the accelerator (this mode is activated by
default), -Manual Application/Release Manual application of the parking brake is done by pulling control lever A. Manual release is done by pulling
thenreleasing the control lever, while pressing
the brake pedal .

When the driver's door is opened, there is an
audible signal and a message is displayed if the
brake is not applied.
Programming the automatic
mode
Depending on the country of sale of the vehicle,
the automatic application when the engine is switched off and the automatic release when
you press the accelerator can be deactivated.
You can contact a CITROËN dealer or a qualified workshop to have it activated.
In this case, pro
gramming is done via
the configuration menu.








Electric parking brake
If deactivated, the parking brake must
be applied and released manually.
If this warning lamp comes on in the instrument panel, the automatic modeis deactivated.
Never leave the vehicle withoutchecking that the parking brake is on.
This warning lamp comes onfixed.
Label on door panel

With the ignition on or the engine running,
to release the parking brake, pressthe brakepedal , pull
then release control lever A.
The full release of the parking brake
is confirmed b
y:

Manual release



- the braking warning lamp and
the Pwarning lamp in the control lever A going off,

- display of the message "Parking brake off".
I
f you pull the control lever A
without pressing
the brake pedal, the parking brake will not
be released and a message appears in the
instrument panel.
I
f necessary, you can make a maximum application
of the parking brake. It is obtained
by means of a long pull
on control lever A
,
until you see the message "Parking brake
applied fully" and an audible signal is heard.
Maximum application is essential:

- in the case of a vehicle towing a caravan
or a trailer, if the automatic functions are activated but you are applying the parking
brake manually,

- when the slope
you are parked on may
vary (e.g. on a ferry, on a lorry, duringtowing).


Maximum application


In the case of towing, a loaded vehicle or parking on a gradient, make amaximum application of the parking brake then turn the front wheels towardsthe pavement and engage a gear when you park.
After a maximum application, therelease time will be longer.



Before leaving the vehicle, check thatparking brake warning lamps in the instrument panel and the control lever Aare on fixed, not flashing.
With the vehicle stationary, to apply the parkingbrake whether the engine is running or off, pullcontrol lever A.
Manual application
The application of the parking brake is confirmed by:


- illumination of the brakin
g warning
lamp and of the P warning lamp in
the control lever A,
- display of the message "Parkingbrake on".
When the driver
’s door is opened with the engine running, there is an audible signal and amessage is displayed if the parking brake has not been applied, unless the selector lever is
in position P (Park) in the case of an automatic
gearbox.
