04
335

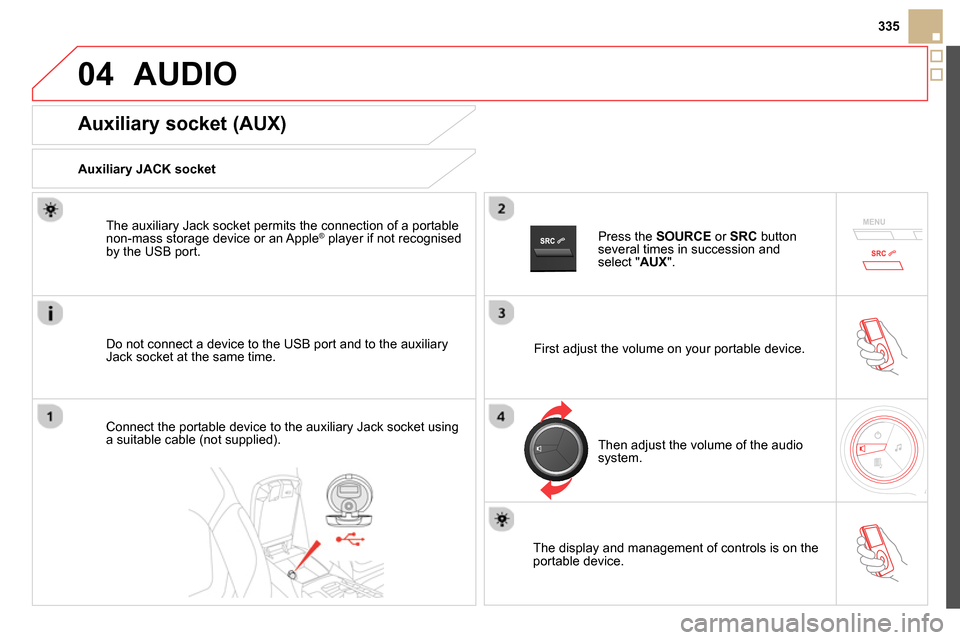

AUDIO
















Auxiliary socket (AUX)


Auxiliary JACK socket

Do not connect a device to the USB port and to the auxiliary
Jack socket at the same time.
The auxiliary Jack socket permits the connection of a portable
non-mass storage device or an Apple
® player if not recognised
by the USB port.

Connect the portable device to the auxiliary Jack socket using
a suitable cable (not supplied).
Press the SOURCE
or SRC
button
several times in succession and
select " AUX
".

First adjust the volume on your portable device.

Then adjust the volume of the audio
system.

The display and management of controls is on the
portable device.

04 AUDIO

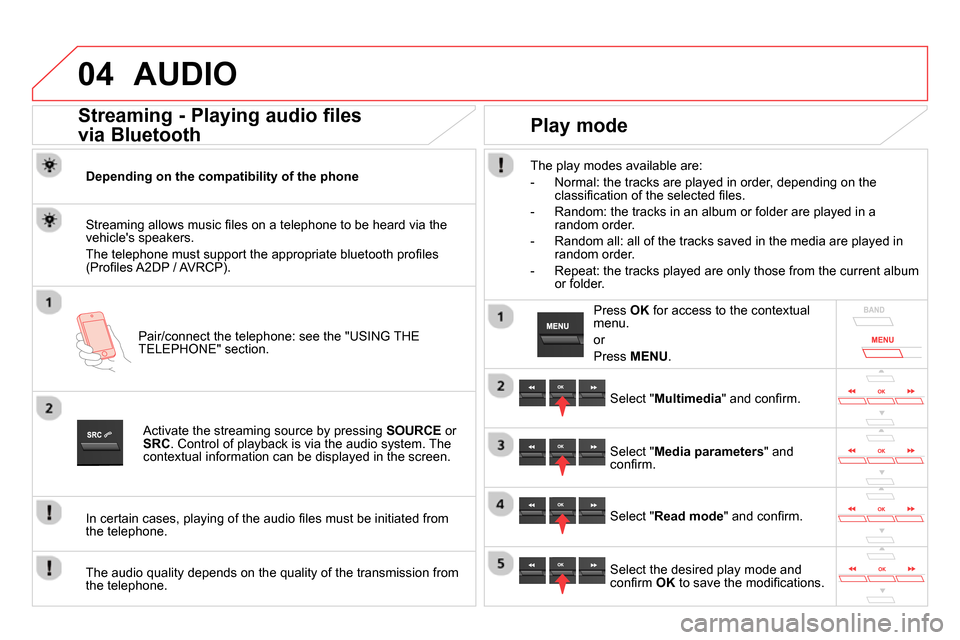

Streaming - Playing audio files
via Bluetooth

Depending on the compatibility of the phone

Pair/connect the telephone: see the "USING THE
TELEPHONE" section.
Streaming allows music fi les on a telephone to be heard via the
vehicle's speakers.
The telephone must support the appropriate bluetooth profi les
(Profi les A2DP / AVRCP).

Activate the streaming source by pressing SOURCE
or
SRC
. Control of playback is via the audio system. The
contextual information can be displayed in the screen.

In certain cases, playing of the audio fi les must be initiated from
the telephone.

The audio quality depends on the quality of the transmission from
the telephone.



Play mode


The play modes available are:


- Normal: the tracks are played in order, depending on the
classifi cation of the selected fi les.

- Random: the tracks in an album or folder are played in a
random order.

- Random all: all of the tracks saved in the media are played in
random order.

- Repeat: the tracks played are only those from the current album
or folder.


Select " Multimedia
" and confi rm.

Select " Media parameters
" and
confi rm.

Select " Read mode
" and confi rm.

Select the desired play mode and
confi rm OK
to save the modifi cations.

Press OK
for access to the contextual
menu.
or
Press MENU
.

05
337

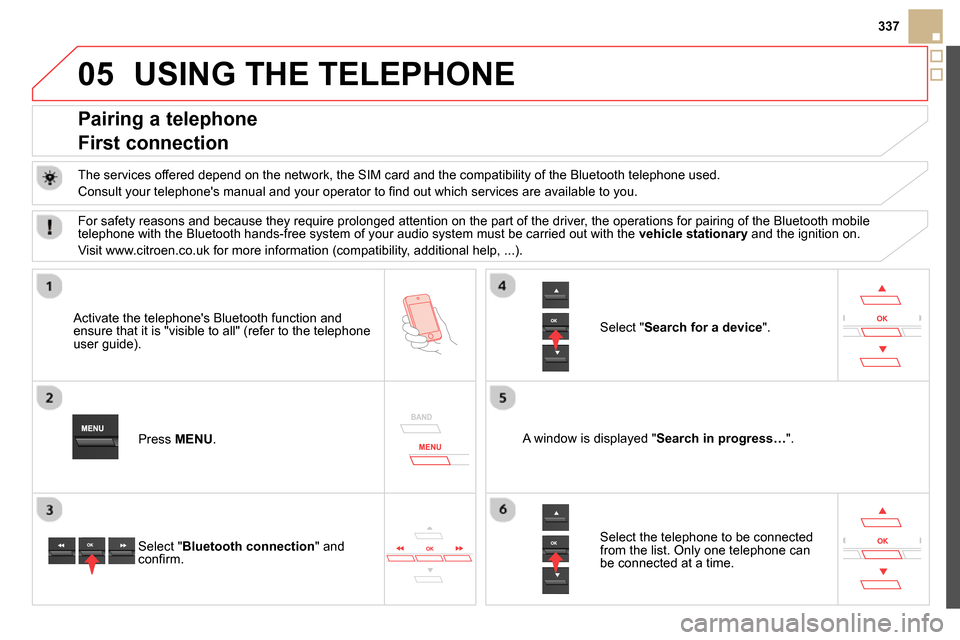

USING THE TELEPHONE










Pairing a telephone
First connection

The services offered depend on the network, the SIM card and the compatibility of the Bluetooth telephone used.
Consult your telephone's manual and your operator to fi nd out which services are available to you.

Activate the telephone's Bluetooth function and
ensure that it is "visible to all" (refer to the telephone
user guide).

Press MENU
.
A window is displayed " Search in progress…
".

Select the telephone to be connected
from the list. Only one telephone can
be connected at a time.
Select " Search for a device
".
For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile
telephone with the Bluetooth hands-free system of your audio system must be carried out with the vehicle stationary
and the ignition on.
Visit www.citroen.co.uk for more information (compatibility, additional help, ...).

Select " Bluetooth connection
" and
confi rm.

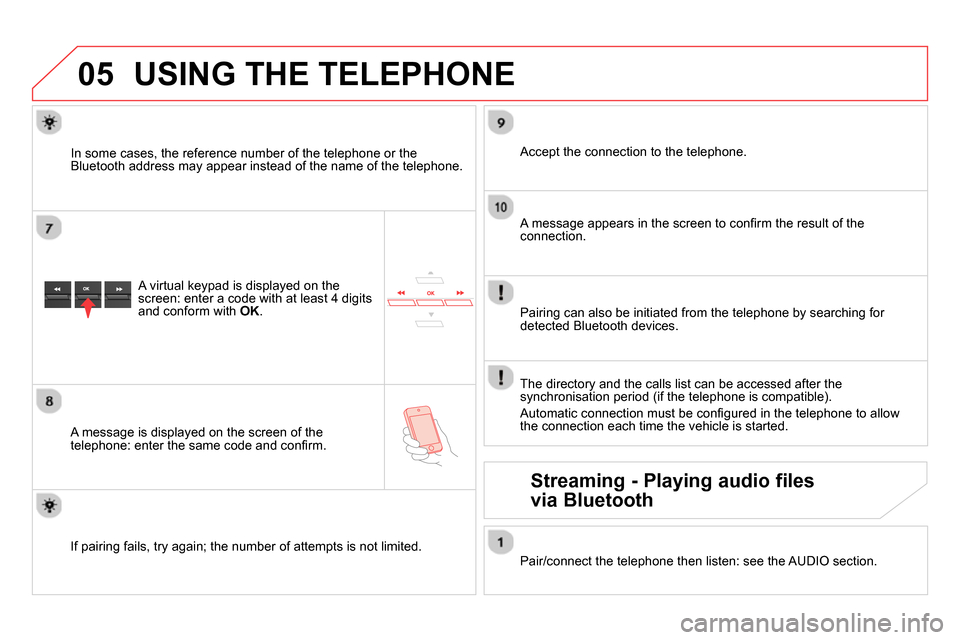

05 USING THE TELEPHONE


A virtual keypad is displayed on the
screen: enter a code with at least 4 digits
and conform with OK
.

A message is displayed on the screen of the
telephone: enter the same code and confi rm.
A message appears in the screen to confi rm the result of the
connection.

Pairing can also be initiated from the telephone by searching for
detected Bluetooth devices.
Accept the connection to the telephone.

If pairing fails, try again; the number of attempts is not limited.
The directory and the calls list can be accessed after the
synchronisation period (if the telephone is compatible).
Automatic connection must be confi gured in the telephone to allow
the connection each time the vehicle is started.

In some cases, the reference number of the telephone or the
Bluetooth address may appear instead of the name of the telephone.

Pair/connect the telephone then listen: see the AUDIO section.








Streaming - Playing audio files
via Bluetooth

05
339
USING THE TELEPHONE


The telephone connection automatically includes hands free
operation and audio streaming.
The ability of the system to connect to just one profi le depends on
the telephone. Both profi les may connect by default.

Press MENU
.

Select " Bluetooth connection
" and
confi rm. Indicates connection of the audio steaming profi le.

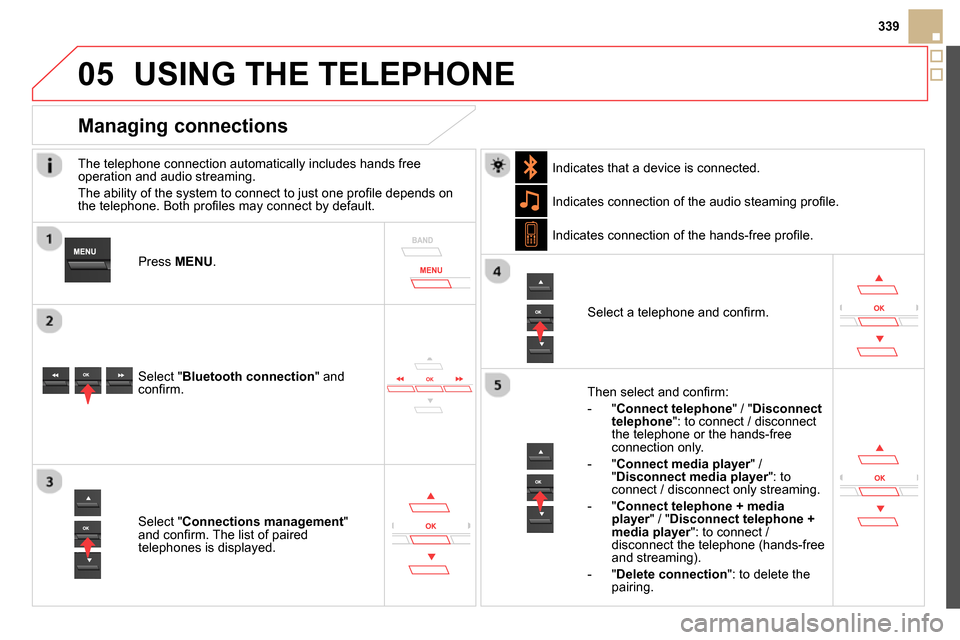

Managing connections


Select " Connections management
"
and confi rm. The list of paired
telephones is displayed.
Select a telephone and confi rm. Indicates connection of the hands-free profi le.

Then select and confi rm:


- " Connect telephone
" / " Disconnect
telephone
": to connect / disconnect
the telephone or the hands-free
connection only.

- " Connect media player
" /
" Disconnect media player
": to
connect / disconnect only streaming.

- " Connect telephone + media
player
" / " Disconnect telephone +
media player
": to connect /
disconnect the telephone (hands-free
and streaming).

- " Delete connection
": to delete the
pairing.


Indicates that a device is connected.

05 USING THE TELEPHONE


To display the " TELEPHONE
" menu:


- Make along press on SOURCE

or SRC
.

- Or, press OK
to display the
contextual menu. Select " Call
" and
confi rm.

- Or, press MENU
, select
" Telephone
" and confi rm.
Select " Call
" and confi rm.


Select " Dial
" to enter a number and
confi rm.
To display the " TELEPHONE
" menu:


- Make a long press on SRC/TEL
.

- Or, press the dial to display the
contextual menu. Select " Call
" and
confi rm.

- Or, press MENU
, select
" Telephone
" and confi rm.
Select " Call
" and confi rm.


Select OK
and confi rm to start the
call.

Select " Calls list
" and confi rm.

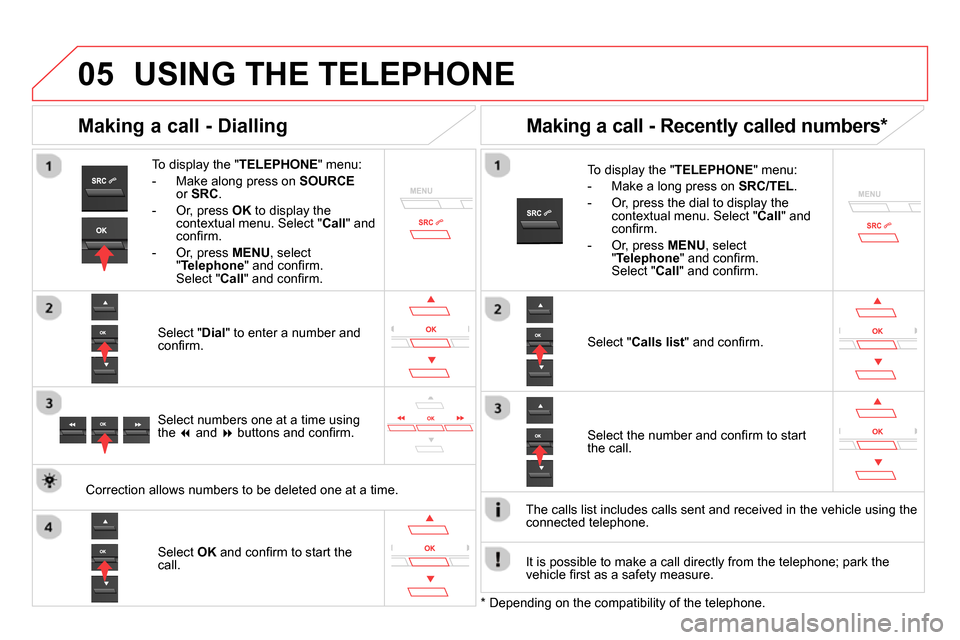

Making a call - Dialling


Select numbers one at a time using
the 
and 
buttons and confi rm.


Making a call - Recently called numbers *


Select the number and confi rm to start
the call.

The calls list includes calls sent and received in the vehicle using the
connected telephone.

*
Depending on the compatibility of the telephone.
Correction allows numbers to be deleted one at a time.

It is possible to make a call directly from the telephone; park the
vehicle fi rst as a safety measure.

05
SRC
341
USING THE TELEPHONE


To display the " TELEPHONE
" menu:


- Make a long press on SRC/TEL
.

- Or, press the dial to display the
contextual menu. Select " Call
" and
confi rm.

- Or, press MENU
, select
" Telephone
" and confi rm.
Select " Call
" and confi rm.


Select " Directory
" and confi rm.
An incoming call is announced by a ring and a superimposed display
in the multifunction screen.
Mobile
(depending on the information
available in the contact records of
the telephone connected).
" YES
" to accept the call is selected by
default.
Press OK
to accept the call.
Select " NO
" and confi rm to reject the
call.
or
Press one of these buttons to accept
the call.

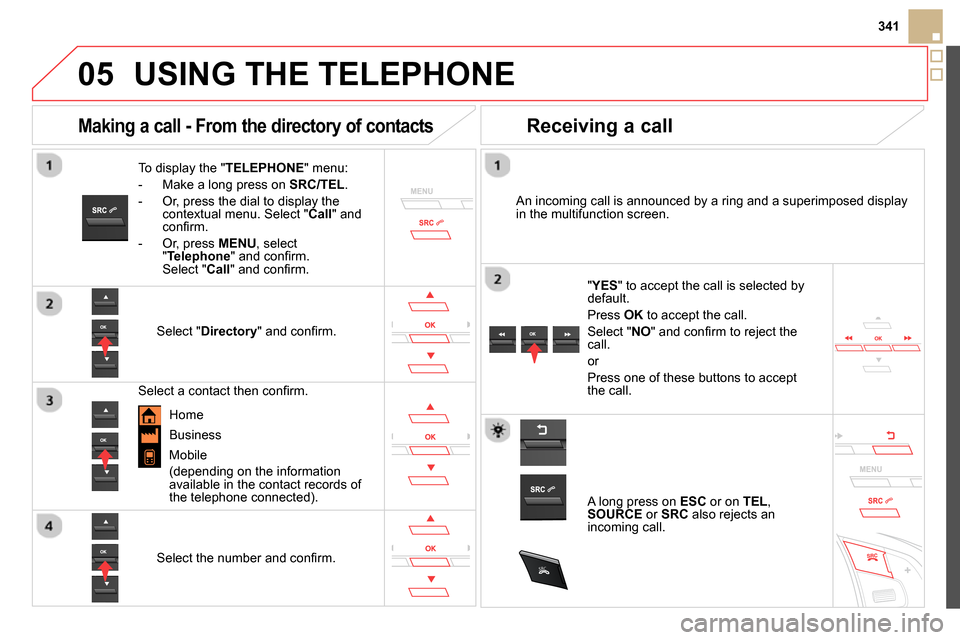

Making a call - From the directory of contacts


Select a contact then confi rm.


Receiving a call


Select the number and confi rm.

A long press on ESC
or on TEL
,
SOURCE
or SRC
also rejects an
incoming call.
Business
Home

05
SRC

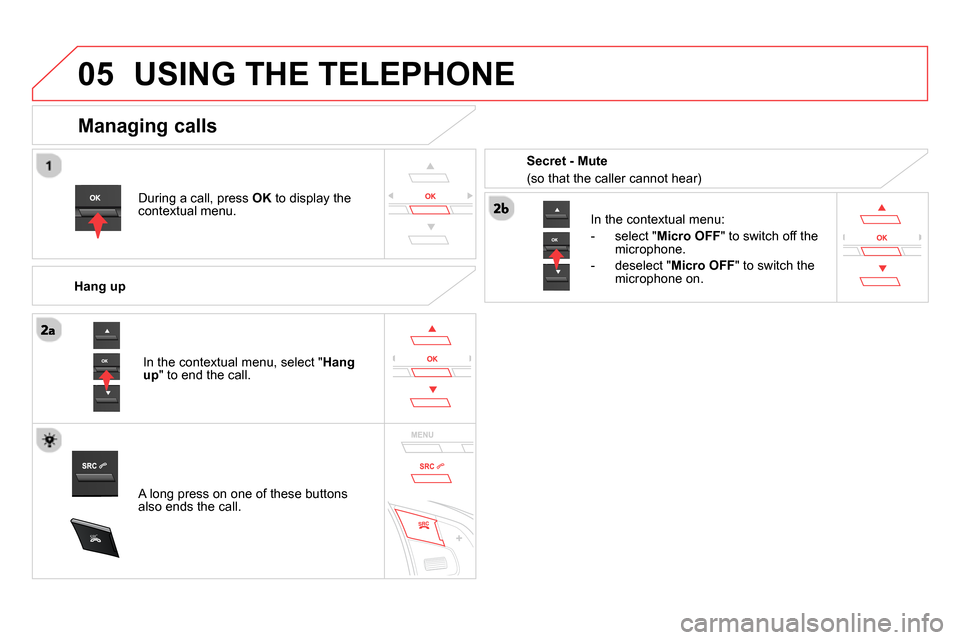

USING THE TELEPHONE


During a call, press OK
to display the
contextual menu.

Hang up
In the contextual menu:


- select " Micro OFF
" to switch off the
microphone.

- deselect " Micro OFF
" to switch the
microphone on.



Managing calls


A long press on one of these buttons
also ends the call. In the contextual menu, select " Hang
up
" to end the call.
Secret - Mute
(so that the caller cannot hear)

06
345

Press 
to display the audio settings
menu.

The settings available are:


- Ambience,

- Bass,

- Treble,

- Loudness,

- Distribution: Personalised or Driver,

- Left / right balance,

- Fader (front / rear balance),

- Auto. volume.

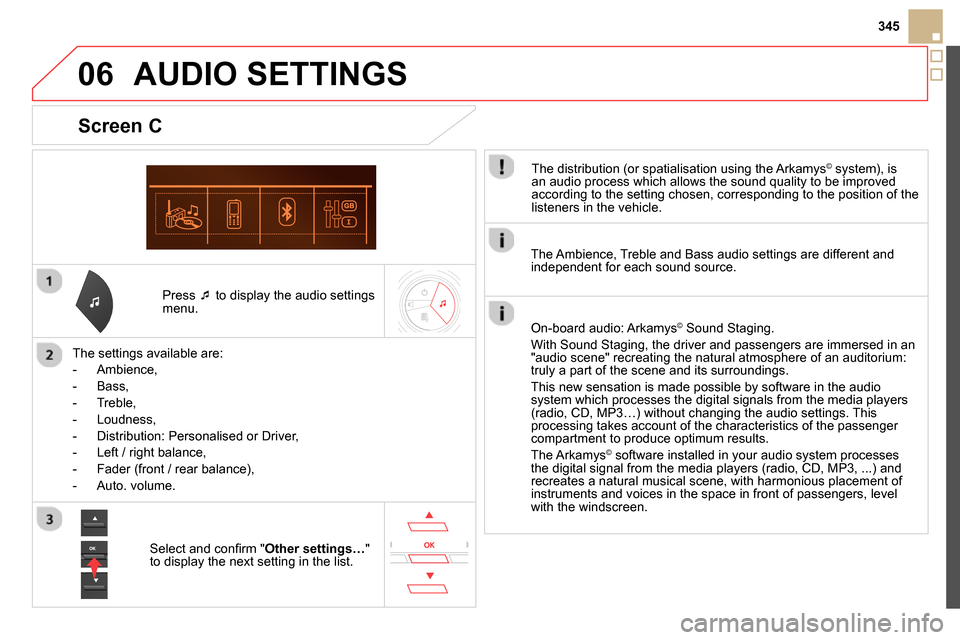

Screen C


The distribution (or spatialisation using the Arkamys© system), is
an audio process which allows the sound quality to be improved
according to the setting chosen, corresponding to the position of the
listeners in the vehicle.

AUDIO SETTINGS


Select and confi rm " Other settings…
"
to display the next setting in the list.
The Ambience, Treble and Bass audio settings are different and
independent for each sound source.



On-board audio: Arkamys
©
Sound Staging.
With Sound Staging, the driver and passengers are immersed in an
"audio scene" recreating the natural atmosphere of an auditorium:
truly a part of the scene and its surroundings.
This new sensation is made possible by software in the audio
system which processes the digital signals from the media players
(radio, CD, MP3…) without changing the audio settings. This
processing takes account of the characteristics of the passenger
compartment to produce optimum results.
The Arkamys
© software installed in your audio system processes
the digital signal from the media players (radio, CD, MP3, ...) and
recreates a natural musical scene, with harmonious placement of
instruments and voices in the space in front of passengers, level
with the windscreen.

07
347

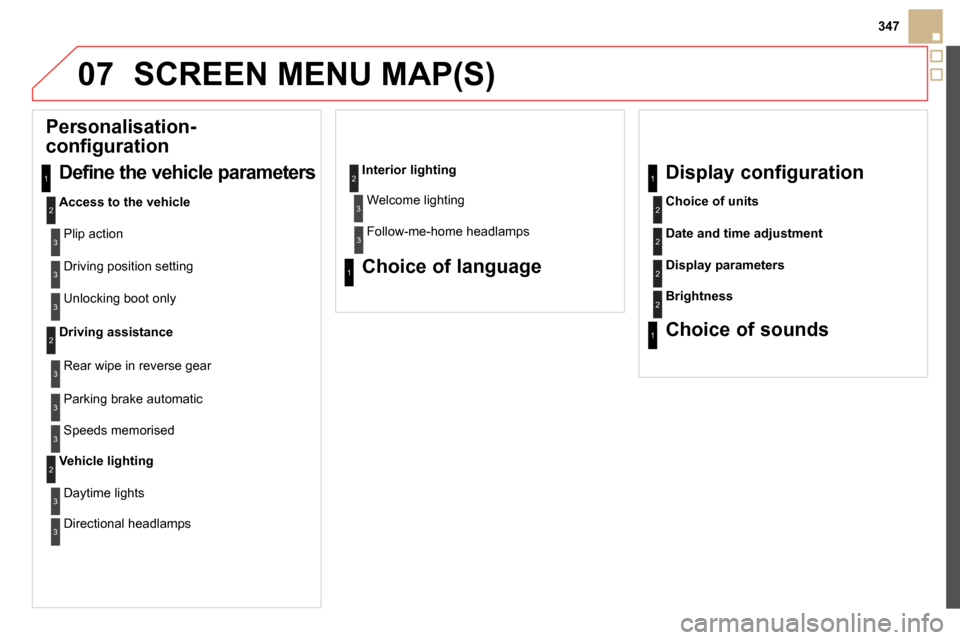

SCREEN MENU MAP(S)







Personalisation-
configuration
Define the vehicle parameters



Access to the vehicle

Plip action
Driving position setting
Unlocking boot only

Driving assistance

Rear wipe in reverse gear
Parking brake automatic
Speeds memorised

Vehicle lighting

Daytime lights
Directional headlamps
Interior lighting

Welcome lighting
Follow-me-home headlamps



Choice of language Display configuration



Choice of units


Date and time adjustment


Display parameters


Brightness





Choice of sounds
1
2
3
3
3
2
3
3
3
2
3
3
2
3
3
1
1
2
2
2
2
1
