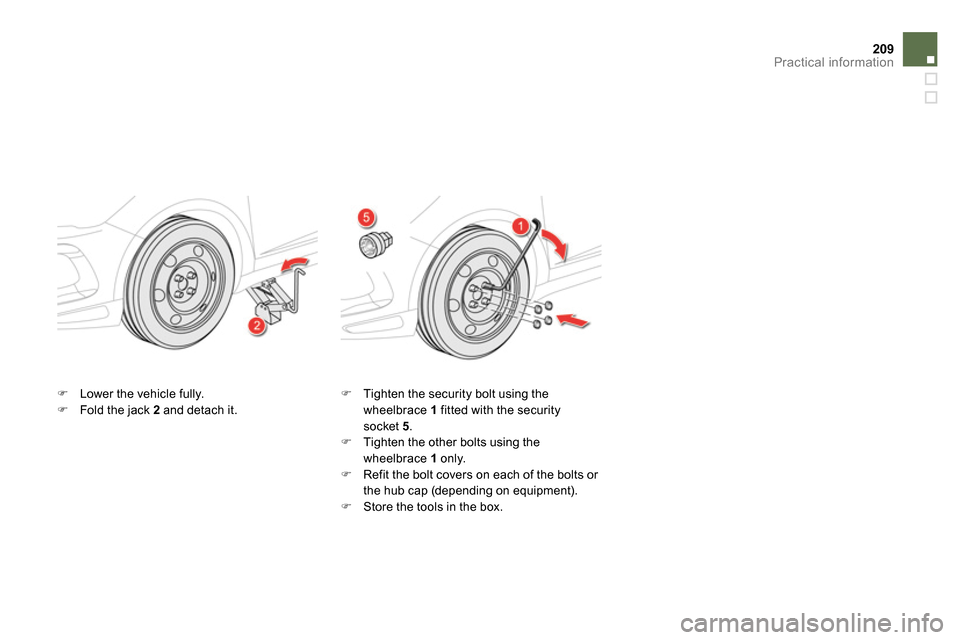

Lower the vehicle fully.


Fold the jack 2
and detach it.

Tighten the security bolt using the
wheelbrace 1
fitted with the security
socket 5
.


Tighten the other bolts using the
wheelbrace 1
only.


Refit the bolt covers on each of the bolts or
the hub cap (depending on equipment).


Store the tools in the box.

Snow chains


In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when braking.

The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.

Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.


Advice on installation




If you have to fit the chains during a
journey, stop the vehicle on a flat sur face
on the side of the road.


Apply the parking brake and position any
wheel chocks to prevent movement of your
vehicle.


Fit the chains following the instructions
provided by the manufacturer.


Move off gently and drive for a few
moments, without exceeding 30 mph
(50 km/h).


Stop your vehicle and check that the snow
chains are correctly tightened.


Avoid driving on roads that have been
cleared of snow, to avoid damaging
your vehicle's tyres and the road
sur face. It is recommended that before
you leave, you practise fitting the snow
chains on a level and dry sur face. If
your vehicle is fitted with alloy wheels,
check that no part of the chain or its
fixings is in contact with the wheel rim.


Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
Original tyre size Maximum link size.
215/60 R16
9 mm
225/50 R17
235/45 R18
cannot be fitted with
snow chains
235/40 R19
For more information on snow chains, contact a
CITROËN dealer or a qualified workshop.

211Practical information











Changing a bulb


Front lamps
























Model with xenon headlamps



1.

Main beam headlamps (H1-35W).

2. Directional dipped / directional
headlamps

(D1S-35W).

3. Daytime running lamps / sidelamps
(light emitting diodes - LEDs).

4. Direction indicators (HY21-21W).

5. Directional foglamps
(H11).




























Model with halogen headlamps



1.

Main beam headlamps (H1- 55W).

2. Dipped beam headlamps (H7- 55W).

3. Daytime running lamps/sidelamps
(Light emitting diodes - LEDs).

4. Direction indicators (HY21-21W).

5. Directional foglamps
(H11).
For H7 type bulbs with lugs... take care
to obser ve their correct installation so as
to ensure the best lighting per formance.

In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.



Risk of electrocution

Xenon bulbs (D1S-35W) must be
replaced by a CITROËN dealer or a
qualified workshop.

Main beam headlamps
(xenon model)



Remove the protective plastic cover by
pulling on the tab.


Remove the connector with the bulb by
pressing on the lug at the bottom.


Remove the bulb and change it.
For reassembly, carry out these operations in
reverse order.

The headlamps are fitted with
polycarbonate glass with a protective
coating:



do not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,



use a sponge and soapy water or a
pH neutral product,


when using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for a few minutes (risk of serious
burns).



Do not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.










Dipped beam headlamps
(xenon model)
D1S xenon bulbs must be changed
by a CITROËN dealer or a qualified
workshop, as there is a risk of
electrocution.
It is recommended that the D1S bulbs
are changed at the same time when
one of them fails.

213Practical information







Dipped beam headlamps
(halogen model)





Main beam headlamps
(halogen model)


Press on the top of the connector then
pivot the assembly downwards.


Remove the connector with the bulb.


Remove the bulb and change it.
For reassembly, carry out these operations in
reverse order, but engaging the bottom of the
bulb first.



Remove the protective plastic cover by
pulling on the tab.


Remove the protective plastic cover by
pulling on the tab.


Remove the connector with the bulb by
pressing on the lug at the bottom.


Remove the bulb and change it.
For reassembly, carry out these operations in
reverse order.

Daytime running lamps / sidelamps

For the replacement of this type of LED lamp
and lighting guides, contact a CITROËN dealer
or a qualified workshop.
A replacement kit for the LEDs is available from
CITROËN dealers.








Direction indicators

Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
The direction indicator bulb is located below
the front lamp.



Turn the bulb holder a quarter turn and pull
it out.


Remove the bulb and change it. For reassembly, carry out these operations in
reverse order.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.

215Practical information







Front foglamps




Remove the deflector under the body.


Disconnect the bulb connector.


Turn the bulb a quarter of a turn, withdraw
and change it.
To refit, carry out these operations in reverse
order.
To replace these bulbs you may also contact a
CITROËN dealer or a qualified workshop.

















Integrated direction indicator
side repeaters





Door mirror spotlamps

You should contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.
You should contact a CITROËN dealer or a
qualified workshop for the replacement of the
light emitting diode - LED.

1. Sidelamps
(light emitting diodes - LEDs).

2. Direction indicators (PY21W amber).

3. Reversing lamps (P21W).

4. Brake lamps (P21W).

5. Foglamps (P21W).























Rear lamps























Direction indicators and brake
lamps (on the wings)



Open the boot then remove the access
cover.


Disconnect the lamp connector.


Remove the two lamp fixing nuts.

Carefully remove the lamp unit from
outside. The retaining clips unclip
automatically.


Turn the bulb holder a quarter of a turn and
change the bulb.
For reassembly, carry out these operations in
reverse order.



Changing the light emitting
diode-LED lamps
For replacement, contact a CITROËN
dealer or qualified workshop.

217Practical information

Reversing lamp (tailgate)



Carefully remove the lamp from the
outside. The retaining clips unclip
automatically.


Turn the bulb holder a quarter of a turn and
replace the bulb.
For reassembly, carry out these operations in
reverse order.









Foglamp




Open the tailgate.


Unclip the skirt of the lamp.


Remove the access cover and the lamp
fixing nut. Access is by passing a hand under the bumper.



Turn the bulb holder a quarter of a turn and
pull it out.


Change the bulb.
To refit, carry out these operations in reverse
order.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.

Number plate lamps




Insert a thin screwdriver into the slot
in the lens.


Push it outwards to unclip it.


Remove the lens.


Pull the bulb out and change it.
















Third brake lamp
(light emitting diodes - LEDs)
Contact a CITROËN dealer or qualified
workshop.
