AdBlue ®
additive
Failure of the SCR system
Illumination of these warning lamps indicates
that your vehicle has become polluting
.
Indication of an SCR fault.
Emissions control fault aler t.
" Emissions control
fault
"
" Emissions control
fault: Starting
prevented in
xxxx (mi/km)
"
Star ting prevented in
680 miles (1100 km).
Star ting prevented
in 0 miles (or "No
start in 0 miles").
Freezing of the AdBlue ®
additive
If your vehicle has recently been subjected to ambient temperatures
below -11°C and the emissions warning lamp is on, the AdBlue ®
additive may be frozen.
Park the vehicle in a warmer area (garage, ...) for around half a day
(duration variable depending in the temperature in the area) until the
additive is liquid again.
The emissions warning lamp does not go off immediately and will
occur after several mile of running.
You have 680 miles (1100 km) to contact a franchised dealer or a qualified
workshop to have the injection system adjusted. the alert will be repeated
every 62 miles (100 km).
After the 680 miles (1100 km) you will not be able to start the engine until it
has been checked.
Page 382 of 400
4
AdBlue ®
additive
Never dispose of the AdBlue ®
container
with the household waste. Place it in
special waste bins provided for this
purpose or take it to your dealer.

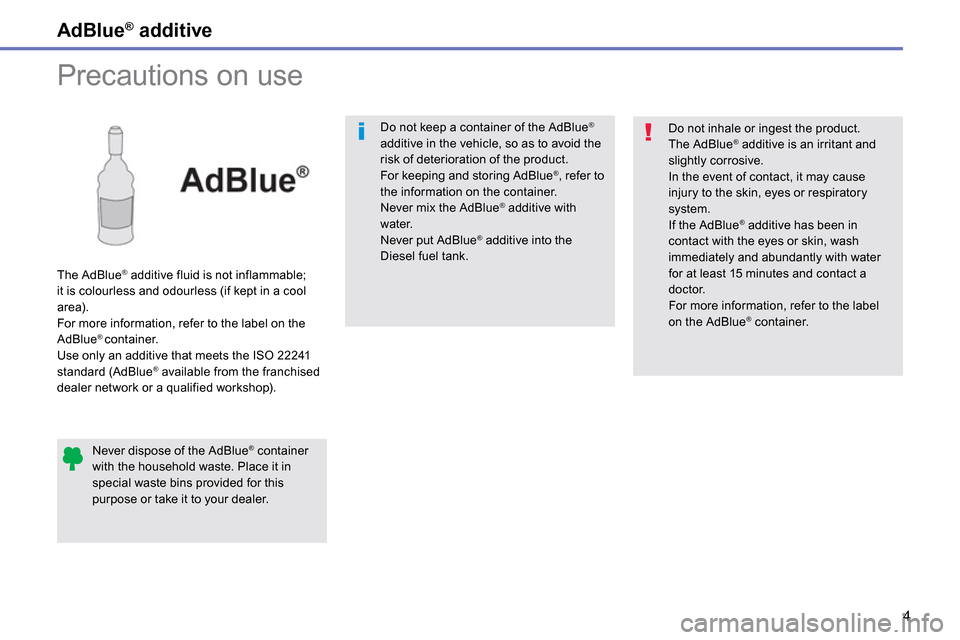

Precautions on use
The AdBlue ®
additive fluid is not inflammable;
it is colourless and odourless (if kept in a cool
area).
For more information, refer to the label on the
AdBlue
® container.
Use only an additive that meets the ISO 22241
standard (AdBlue
® available from the franchised
dealer network or a qualified workshop).
Do not inhale or ingest the product.
The AdBlue
®
additive is an irritant and
slightly corrosive.
In the event of contact, it may cause
injury to the skin, eyes or respiratory
system.
If the AdBlue
®
additive has been in
contact with the eyes or skin, wash
immediately and abundantly with water
for at least 15 minutes and contact a
doctor.
For more information, refer to the label
on the AdBlue
® container.
Do not keep a container of the AdBlue
®
additive in the vehicle, so as to avoid the
risk of deterioration of the product.
For keeping and storing AdBlue
®
, refer to
the information on the container.
Never mix the AdBlue
®
additive with
water.
Never put AdBlue
®
additive into the
Diesel fuel tank.
Page 383 of 400
5
AdBlue ®
additive
Topping up the AdBlue ®
additive
If the AdBlue ®
additive is spilt outside
of the tank, wash the spillage using
cold water to avoid crystallisation of the
product and damage to surrounding
materials.
If the AdBlue
®
additive has already
formed crystals, wipe them of with a
sponge and hot water.
As soon as the "UREA" warning lamp comes on,
you must fill or top up the additive tank as soon
as possible.
For filling of the AdBlue
®
tank, it is recommended
that you contact a franchised dealer or a
qualified workshop.
This refilling operation forms part of the routine
ser vicing of your vehicle (refer to the ser vicing
booklet).
If the AdBlue
®
additive is completely used up
("starting prevented" or "No start on 0 km"
message), you will not be able to restart the
vehicle.
To allow starting, you can top-up yourself,
adding at least 3.8 litres of the AdBlue
® additive
(equivalent to around 3 000 miles (5 000 km) of
range for the AdBlue
® additive) before making an
appointment with a dealer as soon as possible to
have the AdBlue
® tank filled. If you have to top-up yourself, ensure that the
vehicle is on a flat and level sur face (not over a
kerb or on a slope, ...) so as to ensure correct
filling.
Do not fill the tank when the ambient temperature
is below -10°C.
)
If necessary, use the
screwdriver end of the
towing eye, located in the
boot.
)

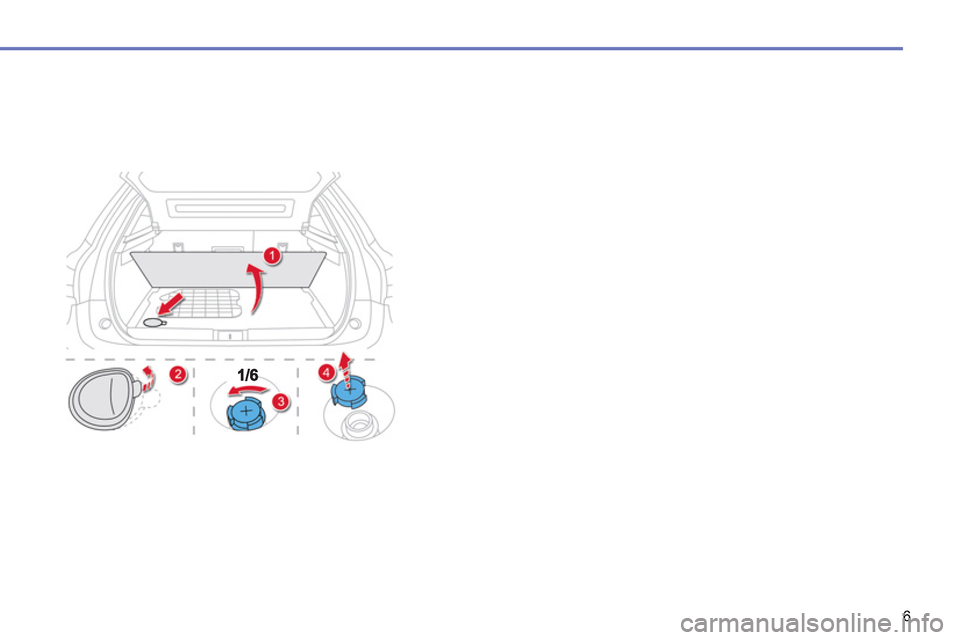

Remove the ignition key, or if your vehicle
has one, press the START/STOP button to
switch off the engine.
)
Lift the boot carpet then the cover or spare
wheel for access to the tank filler cap.
)
Unscrew and remove the black cap.
)
Unscrew and remove the 2nd cap (blue).
)
Remove the cap from the AdBlue
®
additive
container
)
To top-up, follow the instructions on the
container.
)
Wipe any splashes of the AdBlue
®
additive
)
Once you have finished topping-up, refit the
blue and then the black cap.
)
Wait for around 5 minutes without doing
anything on the vehicle (opening a door,
radio, …) before switching on the ignition.
Page 384 of 400
6
Page 385 of 400
1Monitoring
Service indicator
More than 1 800 miles (3 000 km) remain before the next service is due
When the ignition is switched on, no service information appears in the screen.
System which informs the driver when the next service is due, in accordance with the manufacturer's servicing schedule. The point at which the service is due is calculated from the last indicator zero reset, according to the mileage covered and the time elapsed since the last service. For Blue HDi Diesel versions, depending on the country of sale, the level of deterioration of the engine oil may also be taken into account.
Between 600 miles (1 000 km) and 1 800 miles (3 000 km) remain before the next service is due
For 5 seconds after the ignition is switched on, the spanner symbolising the service operations comes on. The distance recorder display line indicates the distance remaining before the next service is due. Example: 1 700 miles (2 800 km) remain before the next service is due. For 5 seconds after the ignition is switched on, the screen indicates:
5 seconds after the ignition is switched on, the spanner goes off ; the distance recorder the spanner goes off ; the distance recorder the spanner goes offresumes its normal operation. The screen then indicates the total and trip distances.
Less than 600 miles (1 000 km) remain before the next service is due
Example: 560 miles (900 km) remain before the next service is due. For 5 seconds after the ignition is switched on, the screen indicates:
5 seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner remains on to indicate that a service must be carried out soon.
Page 386 of 400
Service overdue
For 5 seconds after the ignition is switched on, the spanner flashes to indicate that the service must be carried out as soon as possible. Example: the service is overdue by 186 miles (3 0 0 k m). For 5 seconds after the ignition is switched on, the screen indicates:
5 seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner remains on . With Blue HDi Diesel versions, the Servicewarning lamp also comes on when the ignition is switched on.
Therefore, the spanner may come on if you have exceeded the period since the last service, as indicated in the maintenance and warranty guide. For Blue HDi versions, the spanner may also come on early, according to the
level of deterioration of the engine oil, which depends on the driving conditions in which the vehicle is used.
Page 387 of 400
1Monitoring
Service indicator
More than 1 800 miles (3 000 km) remain before the next service is due
When the ignition is switched on, no service information appears in the screen.
System which informs the driver when the next service is due, in accordance with the manufacturer's servicing schedule. The point at which the service is due is calculated from the last indicator zero reset, according to the mileage covered and the time elapsed since the last service. For Blue HDi Diesel versions, depending on the country of sale, the level of deterioration of the engine oil may also be taken into account.
Between 600 miles (1 000 km) and 1 800 miles (3 000 km) remain before the next service is due
For 5 seconds after the ignition is switched on, the spanner symbolising the service operations comes on. The distance recorder display line indicates the distance remaining before the next service is due. Example: 1 700 miles (2 800 km) remain before the next service is due. For 5 seconds after the ignition is switched on, the screen indicates:
5 seconds after the ignition is switched on, the spanner goes off ; the distance recorder the spanner goes off ; the distance recorder the spanner goes offresumes its normal operation. The screen then indicates the total and trip distances.
Less than 600 miles (1 000 km) remain before the next service is due
Example: 560 miles (900 km) remain before the next service is due. For 5 seconds after the ignition is switched on, the screen indicates:
5 seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner remains on to indicate that a service must be carried out soon.
Page 388 of 400
Service overdue
For 5 seconds after the ignition is switched on, the spanner flashes to indicate that the service must be carried out as soon as possible. Example: the service is overdue by 186 miles (3 0 0 k m). For 5 seconds after the ignition is switched on, the screen indicates:
5 seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner remains on . With Blue HDi Diesel versions, the Servicewarning lamp also comes on when the ignition is switched on.
Therefore, the spanner may come on if you have exceeded the period since the last service, as indicated in the maintenance and warranty guide. For Blue HDi versions, the spanner may also come on early, according to the
level of deterioration of the engine oil, which depends on the driving conditions in which the vehicle is used.
Page 389 of 400
3Practical information
AdBlue ® additive and SCR system
for Blue HDi Diesel engines
To assure respect for the environment and conformity with the new Euro 6 emissions standard, without adversely affecting the per formance or fuel consumption of Diesel
engines, CITROËN has taken the decision to equip its vehicles with an effective system that associates SCR (Selective Catalytic Reduction) with a particle emissions filter (PEF) for the treatment of exhaust gases.
Presentation of the SCR system
Using an additive called AdBlue ® containing urea, ® containing urea, ®
a catalytic converter turns up to 85% of nitrous oxides (NOx) into nitrogen and water, which are harmless to health and the environment.
The AdBlue ® additive is held in a special ® additive is held in a special ®
tank located under the boot at the rear of the vehicle. It has a capacity of 17 litres: this provides a driving range of about 12 500 miles
(20 000 km), after which an alert is triggered warning you when the reserve remaining is enough for just 1 500 miles (2 400 km).
During each scheduled service of your vehicle by a CITROËN dealer or a qualified workshop, the AdBlue ® additive tank is refilled in order to ® additive tank is refilled in order to ®
allow normal operation of the SCR system.
If the estimated mileage between two services is greater than 12 500 miles (20 000 km), we recommend that you go to a dealer to have the necessary top-up carried out.
Once the AdBlue ® tank is empty, ® tank is empty, ®
a system required by regulations prevents starting of the engine.
If the SCR is faulty, the level of emissions from your vehicle will longer meet the Euro 6 standard: you vehicle becomes polluting. In the event of a confirmed fault with the SCR system, you must go to a CITROËN dealer or a qualified workshop as soon as possible: after a running distance of 650 miles (1 100 km), a system will be triggered automatically to prevent engine starting.
Page 390 of 400
Range indicators
When switching on the ignition, an indicator gives an estimate of the distance that can be travelled with your vehicle before engine starting is automatically prevented, once the vehicle starts using the reserve of AdBlue ® or ® or ®
after a fault is detected with the SCR system. In the event of simultaneous system fault and low AdBlue ® level, the shortest range is ® level, the shortest range is ®
the one displayed.
In the event of the risk of non-starting related to a lack of AdBlue ® In the event of the risk of non-starting related to a lack of AdBlue ® In the event of the risk of non-starting related to a lack of AdBlue
The engine start prevention system required by regulations is activated automatically once the AdBlue ® tank ® tank ®
is empty.
Range greater than 1 500 miles (2 400 km) When the ignition is switched on, no information on range is displayed automatically in the instrument panel.
Pressing this button displays the driving range temporarily. Above 3 000 miles (5 000 km), the value is not specified.
