Citroen DS5 RHD 2016 1.G Owner's Manual

9 Audio and Telematics






"Radio Media" voice commands


These commands can be issued from any screen page after pressing the voice command or telephone button on the steering wheel, as long as
there is no telephone call in progress.


"Voice command"



Help message



Tune to channel <...>
You can pick a radio station by saying "tune to" and the station name or frequency.
For example "tune to channel Talksport" or "tune to 98.5 FM". To listen to a preset radio
station, say "tune to preset number". For example "tune to preset number five".

What's playing
To display the details of the current "track", "artist" and "album", you can say What's
playing

Play song <...>

Use the command "play" to select the type of music you'd like to hear. You can pick by
"song", "artist", or "album". Just say something like "play artist, Madonna", "play song, Hey
Jude", or "play album, Thriller".
Play artist <...>


Play album <...>


Media voice commands are available only for a USB connection.

"Voice command"



Help message



Call contact <...>

*
To make a phone call, say "call" followed by the contact name, for example: "Call David
Miller".
You can also include the phone type, for example: "Call David Miller at home".
To make a call by number, say "dial" followed by the phone number, for example,
"Dial 107776 835 417".
You can check your voicemail by saying "call voicemail".
To send a text, say "send quick message to", followed by the contact, and then the name
of the quick message you'd like to send.
For example, "send quick message to David Miller, I'll be late".
To display the list of calls, say "display calls".
For more information on SMS, you can say "help with texting".
Dial <...> *


Display contacts

*

Display calls

*

Call (message box | voicemail)

*

*
This function is available only if the telephone connected to the system supports downloading of contacts and recent calls and if the download has
been done.






"Telephone" voice commands


If a telephone is connected to the system, these voice commands can be issued from any main screen page after pressing the telephone
button on the steering wheel, as long as there is no telephone call in progress.
If there is no telephone connected by Bluetooth, a voice message announces: "Please first connect a telephone" and the voice session will be
closed.

11 Audio and Telematics



"Voice command"



Help message



Send text to <...>
To hear your messages, you can say "listen to most recent message".
When you want to send a text, there's a set of quick messages ready for you to use.
Just use the quick message name and say something like "send quick message to Bill
Carter, I'll be late".
Check the phone menu for the names of the supported messages.


Please say "call" or "send quick message to", and then select a line from the list.
To move around a list shown on the display, you can say "go to start", "go to end",
"next page" or "previous page".
To undo your selection, say "undo".
To cancel the current action and start again, say "cancel".
Listen to most recent message

*






"Test message" voice commands


If a telephone is connected to the system these voice commands can be issued from any main screen page after pressing the telephone button
on the steering wheel, as long as there is no telephone call in progress.
If no telephone has been connected by Bluetooth, a voice message announces: "Please first connect a telephone" and the voice session will be
closed.

*

This function is only available if the telephone connected to the system supports downloading of contacts and recent calls and if the download has
been done.
The system only sends predefined "Quick messages".

12:13 23 °C
1
12:13 23 °C












Level 1



Level 2



Level 3

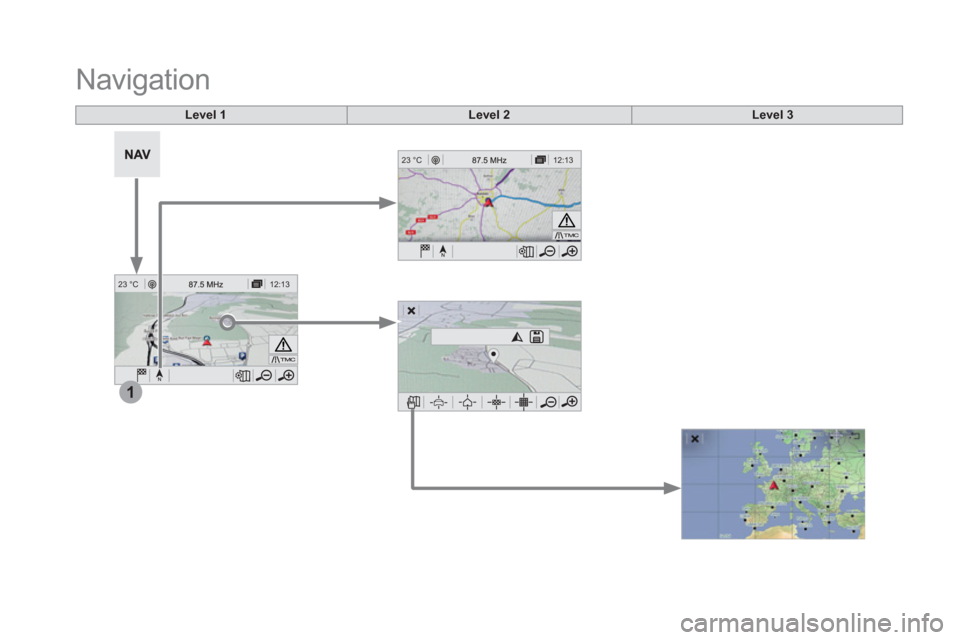

Navigation

13 Audio and Telematics


Level 1


Level 2



Level 3



Comments




Navigation


Select the orientation of the map; north up,
vehicle direction up or perspective.


Navigation


Display the traffic information available.


Navigation

World map Manually locate an area on the world map or
enter the latitude and longitude coordinates.
Around the vehicle
Display the location critera selected.
Around home
Around the destination
2D mode Switch to a 2D map.
Zoom out.
Zoom in.
Start navigation to the current address.
Save the current address.
Zoom out.
Zoom in.

12:13 23 °C
1
23456
712:1323 °C

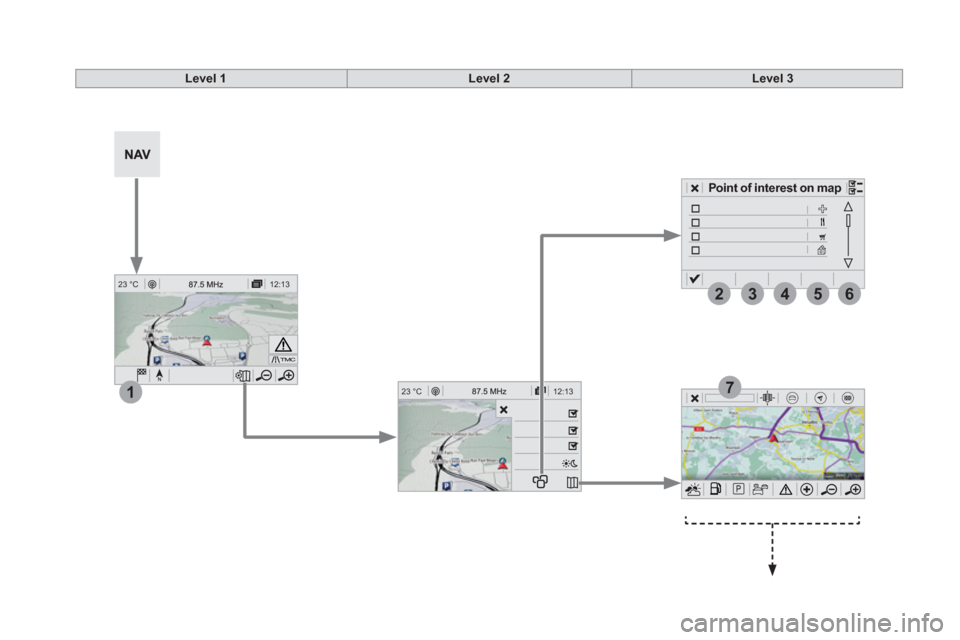

Point of interest on map











Level 1



Level 2



Level 3

7
2
3
4
5
6
15 Audio and Telematics



Level 1



Level 2



Level 3



Comments




Navigation


Stations

Activate or deactivate the content available
(stations, car parks, risk areas and danger
areas).
Car park


Danger area


Map color
Select day or night mode for display of the map.

POI on map
Tr a v e l
Select the POIs available. Active life
Commercial
Public
Geographic
Select all Select or deselect all.
Confirm Save your choice or selection.

View map
Modify city Select or modify a city.
Weather
Display on the map the content available in non-
connected mode. Petrol Station
Car park
Tr a f f i c
Danger area
Select POI Select from the POIs available.
Zoom out.
Zoom in.

Level 3



Level 4



Level 5

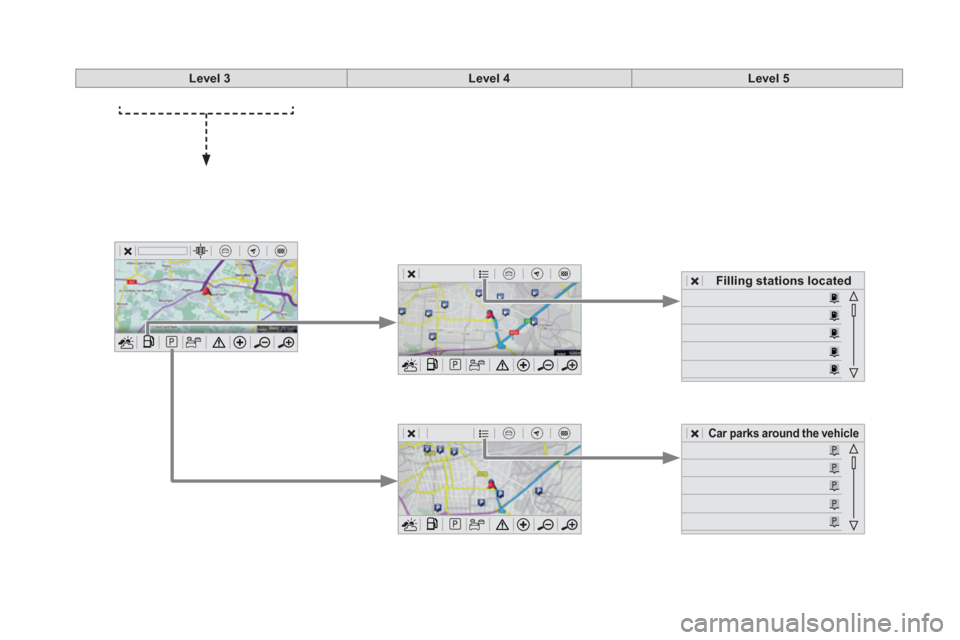

Filling stations located





Car parks around the vehicle

17 Audio and Telematics


Level 3

Level 4

Level 5

Comments

Zoom in Confirm Zoom in around the city selected.
Around the vehicle
Select a location option.
On the route
At the destination
Weather
IWeather information transmitted in TMC mode.
Filling stations Filling stations around the vehicle
Display the list of POIs. Filling stations on the route
Filling stations at the destination
Car park Car parks around the vehicle
Car parks on the route
Car parks at the destination
Zoom out.
Zoom in.

Level 3



Level 4



Level 5

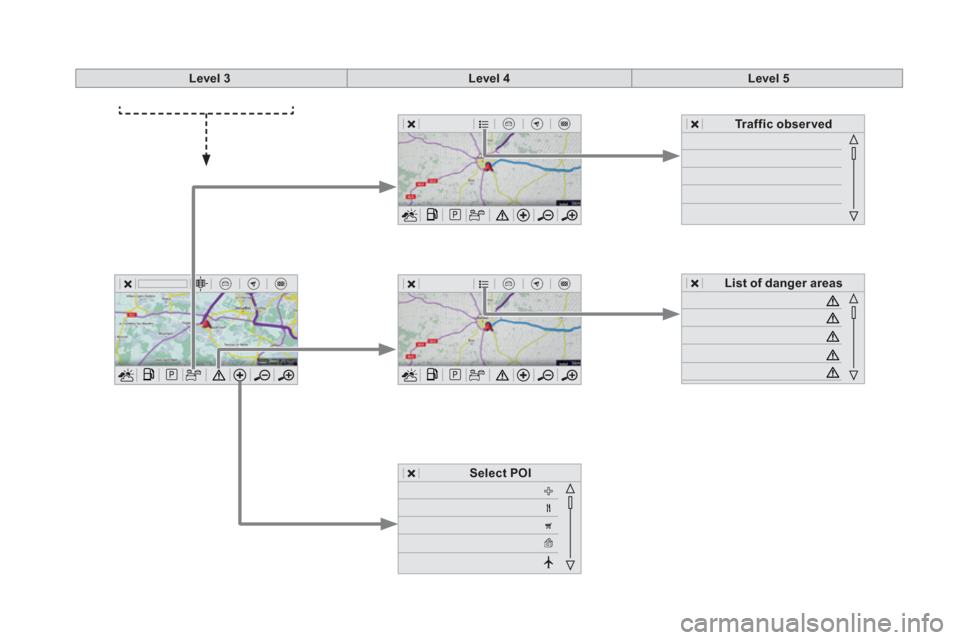

Select POI



List of danger areas



Tr a f f i c o b s e r v e d
