Citroen DS5 RHD 2016 1.G Owner's Manual

SUPPLEMENT

DS Connect Nav

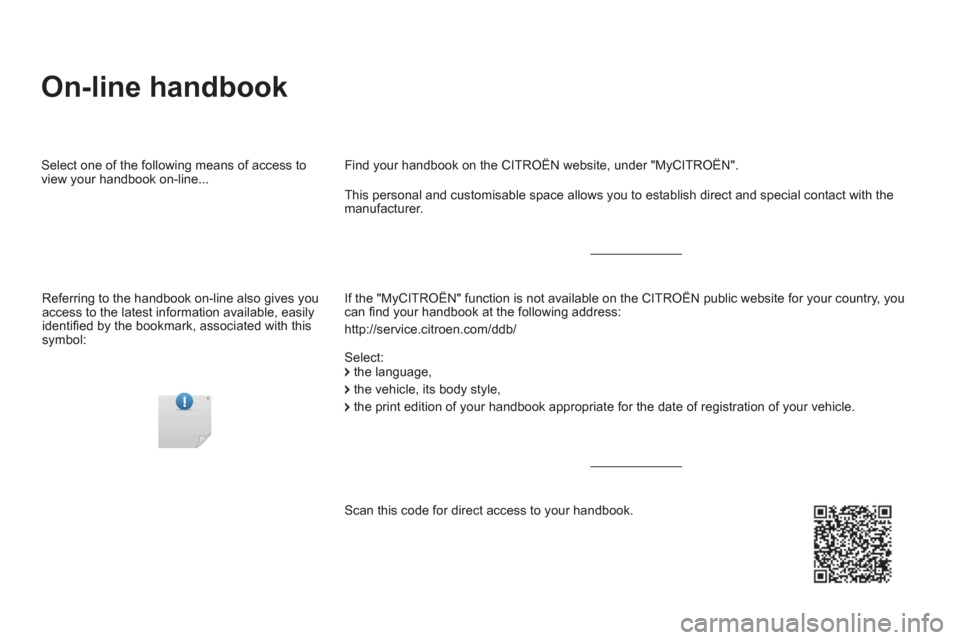

On-line handbook


If the "MyCITROËN" function is not available on the CITROËN public website for your country, you
can fi nd your handbook at the following address:
http://service.citroen.com/ddb/
Find your handbook on the CITROËN website, under "MyCITROËN".

Select:
Select one of the following means of access to
view your handbook on-line...


This personal and customisable space allows you to establish direct and special contact with the
manufacturer.

the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration of your vehicle.

Scan this code for direct access to your handbook.
Referring to the handbook on-line also gives you
access to the latest information available, easily
identifi ed by the bookmark, associated with this
symbol:

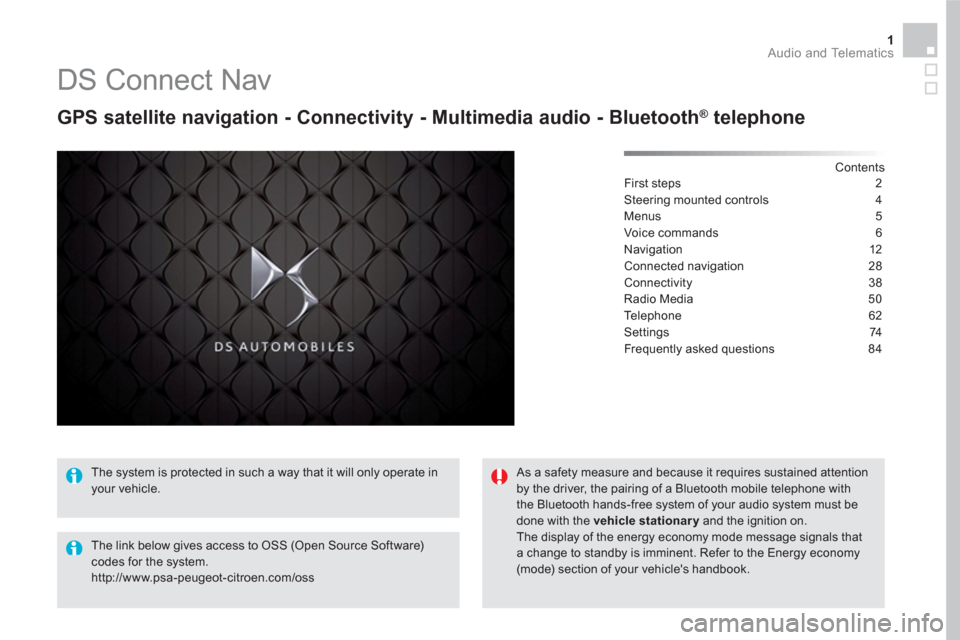

1 Audio and Telematics







DS Connect Nav


GPS satellite navigation - Connectivity - Multimedia audio - Bluetooth ®
telephone


Contents
First steps 2
Steering mounted controls 4
Menus 5
Voice commands 6
Navigation 12
Connected navigation 28
Connectivity 38
Radio Media 50
Te l e p h o n e 6 2
Settings 74
Frequently asked questions 84

The system is protected in such a way that it will only operate in
your vehicle.

The link below gives access to OSS (Open Source Software)
codes for the system.
http://www.psa-peugeot-citroen.com/oss
As a safety measure and because it requires sustained attention
by the driver, the pairing of a Bluetooth mobile telephone with
the Bluetooth hands-free system of your audio system must be
done with the vehicle stationary
and the ignition on.
The display of the energy economy mode message signals that
a change to standby is imminent. Refer to the Energy economy
(mode) section of your vehicle's handbook.

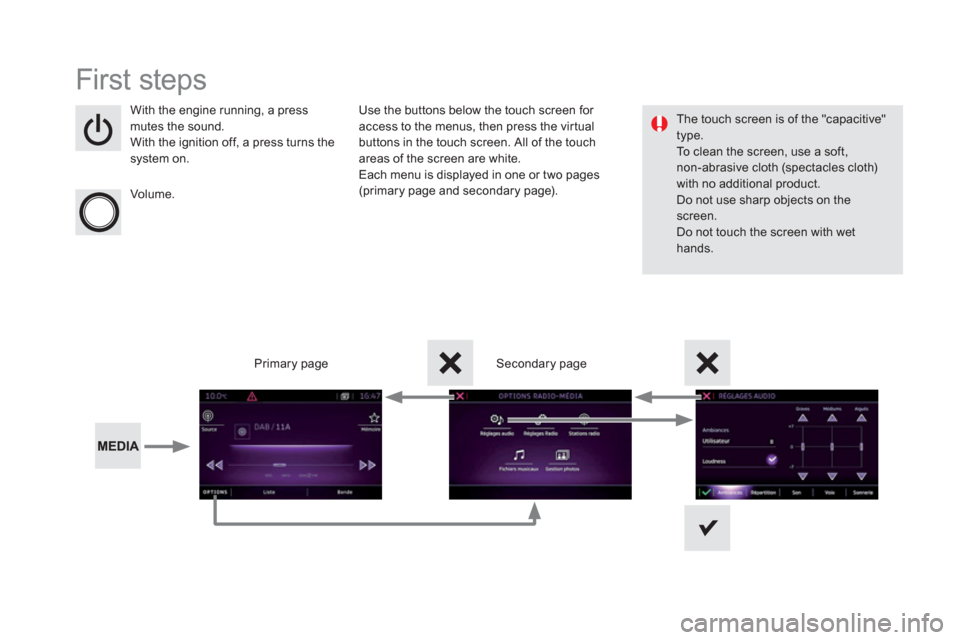

First steps


With the engine running, a press
mutes the sound.
With the ignition off, a press turns the
system on.

Volume.

Use the buttons below the touch screen for
access to the menus, then press the virtual
buttons in the touch screen. All of the touch
areas of the screen are white.
Each menu is displayed in one or two pages
(primary page and secondary page).

Secondary page

Primary page
The touch screen is of the "capacitive"
type.
To clean the screen, use a soft,
non-abrasive cloth (spectacles cloth)
with no additional product.
Do not use sharp objects on the
screen.
Do not touch the screen with wet
hands.

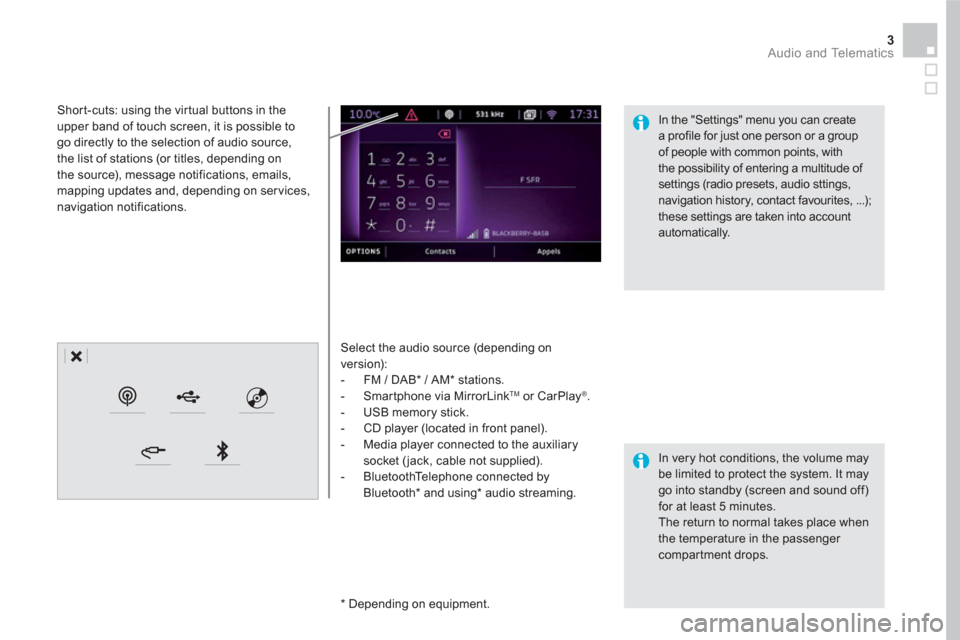

3 Audio and Telematics


Select the audio source (depending on
version):


- FM / DAB * / AM * stations.

- Smartphone via MirrorLink
TM
or CarPlay ®
.

- USB memory stick.

- CD player (located in front panel).

- Media player connected to the auxiliary
socket ( jack, cable not supplied).

- BluetoothTelephone connected by
Bluetooth * and using*
audio streaming.


* Depending on equipment.

Short-cuts: using the virtual buttons in the
upper band of touch screen, it is possible to
go directly to the selection of audio source,
the list of stations (or titles, depending on
the source), message notifications, emails,
mapping updates and, depending on services,
navigation notifications.

In very hot conditions, the volume may
be limited to protect the system. It may
go into standby (screen and sound off)
for at least 5 minutes.
The return to normal takes place when
the temperature in the passenger
compartment drops.



In the "Settings" menu you can create
a profile for just one person or a group
of people with common points, with
the possibility of entering a multitude of
settings (radio presets, audio sttings,
navigation history, contact favourites, ...);
these settings are taken into account
automatically.

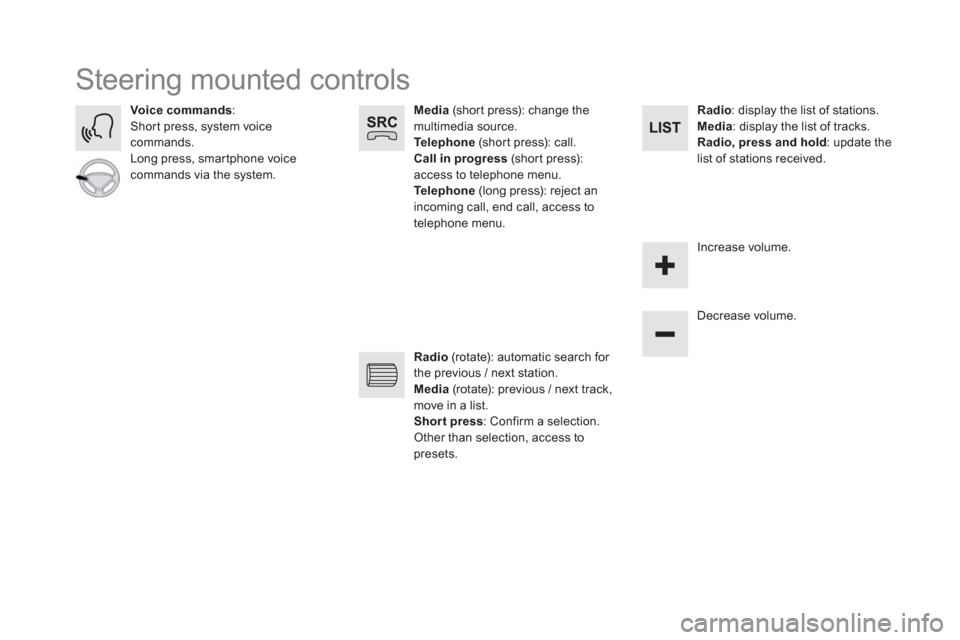

Steering mounted controls



Media
(short press): change the
multimedia source.

Te l e p h o n e
(short press): call.

Call in progress
(short press):
access to telephone menu.

Te l e p h o n e
(long press): reject an
incoming call, end call, access to
telephone menu.






Voice commands
:
Short press, system voice
commands.
Long press, smartphone voice
commands via the system.

Decrease volume.



Radio
(rotate): automatic search for
the previous / next station.

Media
(rotate): previous / next track,
move in a list.

Shor t press
: Confirm a selection.
Other than selection, access to
presets.

Radio
: display the list of stations.

Media
: display the list of tracks.

Radio, press and hold
: update the
list of stations received.

Increase volume.

5 Audio and Telematics

Menus






Settings
Radio Media




Connected navigation

Driving
Connectivity

Te l e p h o n e


Enter settings for a personal profile and/
or adjust the settings for sound (balance,
ambience, ...), colour schemes and the display
(language, units, date, time, ...).

Select an audio source, a radio station, display
photographs.

Enter navigation settings and choose a
destination.
Use ser vices available in real time, depending
on equipment.


Access the trip computer.
Activate, deactivate, set certain vehicle
functions.



Operate certain applications on a smartphone
connected via MirrorLink
TM or CarPlay ®
.
Check the state of Bluetooth and Wi-Fi
connections.


Connect a telephone by Bluetooth
®
, read
messages and emails and send quick
messages.

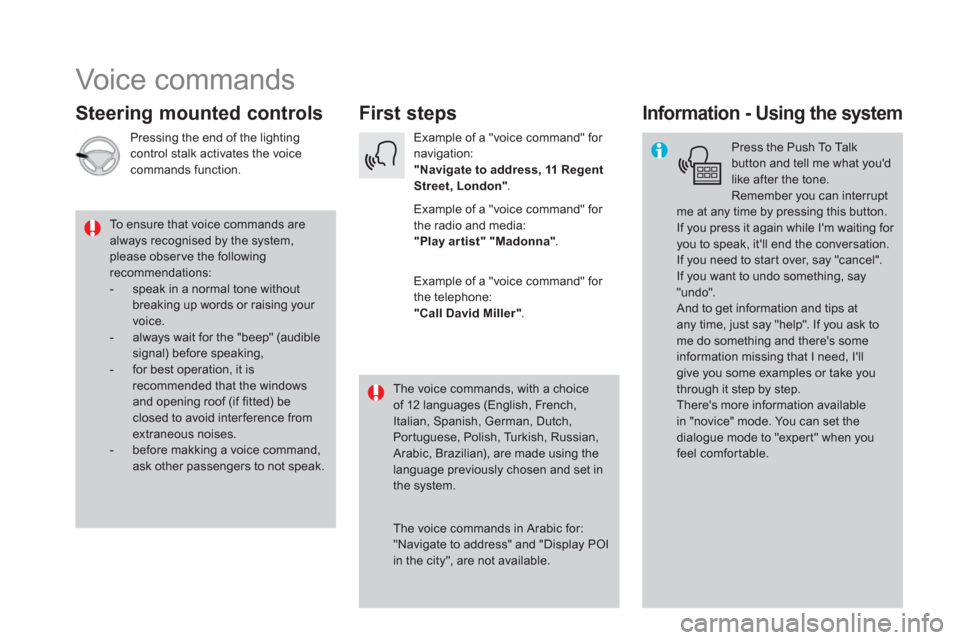

Voice commands






First steps





Steering mounted controls





Information - Using the system


Press the Push To Talk
button and tell me what you'd
like after the tone.
Remember you can interrupt
me at any time by pressing this button.
If you press it again while I'm waiting for
you to speak, it'll end the conversation.
If you need to start over, say "cancel".
If you want to undo something, say
"undo".
And to get information and tips at
any time, just say "help". If you ask to
me do something and there's some
information missing that I need, I'll
give you some examples or take you
through it step by step.
There's more information available
in "novice" mode. You can set the
dialogue mode to "expert" when you
feel comfortable.

To ensure that voice commands are
always recognised by the system,
please obser ve the following
recommendations:


- speak in a normal tone without
breaking up words or raising your
voice.

- always wait for the "beep" (audible
signal) before speaking,

- for best operation, it is
recommended that the windows
and opening roof (if fitted) be
closed to avoid inter ference from
extraneous noises.

- before makking a voice command,
ask other passengers to not speak.


The voice commands, with a choice
of 12 languages (English, French,
Italian, Spanish, German, Dutch,
Portuguese, Polish, Turkish, Russian,
Arabic, Brazilian), are made using the
language previously chosen and set in
the system.

The voice commands in Arabic for:
"Navigate to address" and "Display POI
in the city", are not available.

Example of a "voice command" for
navigation:

"Navigate to address, 11 Regent
Street, London"
.

Example of a "voice command" for
the radio and media:

"Play ar tist" "Madonna"
.

Example of a "voice command" for
the telephone:

"Call David Miller"
.
Pressing the end of the lighting
control stalk activates the voice
commands function.

7 Audio and Telematics






Global voice commands


These commands can be made from any screen page after pressing the voice command or telephone button located on the steering wheel, as
long as there is no telephone call in progress.


"Voice command"



Help message



Help

There are lots of topics I can help you with.
You can say: "help with phone", "help with navigation", "help with media" or "help with radio".
For an overview on how to use voice controls, you can say "help with voice controls".
Voice command help


Navigation help


Radio help


Media help


Te l e p h o n e h e l p


Set dialogue mode as <...>
Select "beginner" or "expert" mode.

Select profile <...>
Select profile 1, 2 or 3.

Ye s

Say "yes" if I got that right. Other wise, say "no" and we'll start that again.

No

"Navigation" voice commands


These commands can be issued from any screen page after pressing the voice command or telephone button on the steering wheel, as long as
there is no telephone call in progress.

Depending on the country, give the destination instructions (address) in the language used by the system.


"Voice command"



Help message



Navigate home

To start guidance or add a stopover, say "navigate to" and then the address or contact
name.
For example, "navigate to address 11 Regent Street, London", or "navigate to contact, John
Miller".
You can specify if it's a preferred or recent destination. For example, "navigate to preferred
address, Tennis club", "navigate to recent destination, 11 Regent Street, London".
Other wise, just say, "navigate home".
To see points of interest on a map, you can say things like "show hotels in Banbury" or
"show nearby petrol station".
For more information you can ask for "help with route guidance".
Navigate to work


Navigate to preferred address <...>


Navigate to contact <...>


Navigate to address <...>


Show nearby POI <...>


Remaining distance

To get information about your current route, you can say "tell me the remaining time",
"distance" or "arrival time".
Try saying "help with navigation" to learn more commands.
Remaining time


Arrival time


Stop route guidance
