299
C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

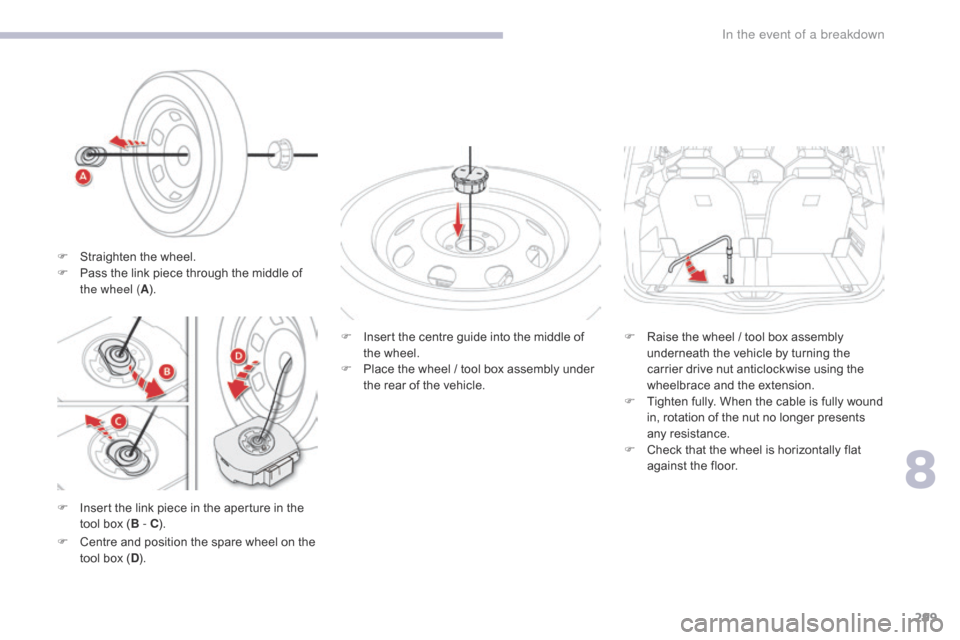

F Insert the link piece in the aperture in the tool box ( B - C). F
I
nsert the centre guide into the middle of
the wheel.
F
P
lace the wheel / tool box assembly under
the rear of the vehicle.
F
C
entre and position the spare wheel on the
tool box ( D). F
R
aise the wheel / tool box assembly
underneath the vehicle by turning the
carrier drive nut anticlockwise using the
wheelbrace and the extension.
F
T
ighten fully. When the cable is fully wound
in, rotation of the nut no longer presents
any resistance.
F
C
heck that the wheel is horizontally flat
against the floor.
F
S
traighten the wheel.
F
P
ass the link piece through the middle of
the wheel ( A).
8
In the event of a breakdown
Page 302 of 527

300
C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016
Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not
block traffic: the ground must be level,
stable and not slippery.
Apply the parking brake unless it has
been programmed to automatic mode,
switch off the ignition and engage first
gear* to block the wheels.
Check that the braking warning lamp
and the P warning lamp in the parking
brake control lever come on.
For greater safety, place the chock 2
against the wheel opposite to the one
being changed.
The occupants must get out of the
vehicle and wait where they are safe.
Never go underneath a vehicle
supported by a jack; use an axle stand.
List of operations
F Remove the wheel bolt cover(s) using the tool 4 (depending on equipment).
F
F
it the security socket 5 on the
wheelbrace
1 to slacken the security bolt
(if
fitted).
F
S
lacken the other bolts (no more than a
1/4
turn) using the wheelbrace 1 o n l y.
* Position P for an automatic gearbox. Do not use:
-
t
he jack for any purpose other than
lifting the vehicle,
-
a
ny other jack than the one
supplied by the manufacturer. F
P
lace the foot of the jack 3 on the ground
and check that it is directly below the
front A or rear B jacking point provided on
the underbody, whichever is closest to the
wheel to be changed.
Ensure that the jack is stable. If the
ground is slippery or loose, the jack
may slip or drop - Risk of injury!
Ensure that the jack is positioned only
at one of the jacking points A or B
under the vehicle, making sure that the
vehicle's contact sur face is centred on
the head of the jack. Other wise there is
a risk of damage to the vehicle and/or of
the jack dropping - Risk of injury!
In the event of a breakdown
Page 303 of 527

301
C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

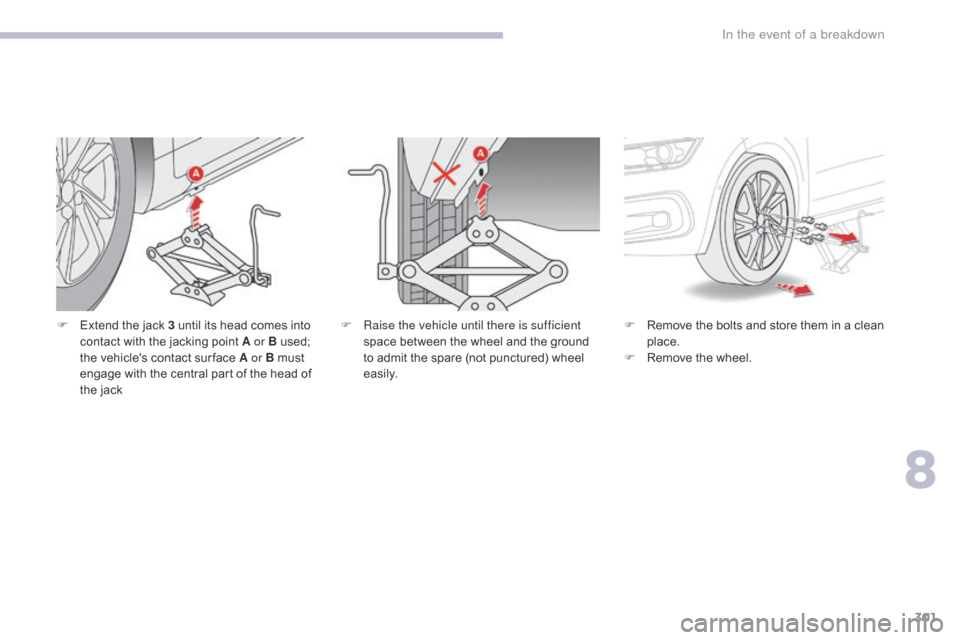

F Extend the jack 3 until its head comes into contact with the jacking point A or B used;
the vehicle's contact sur face A or B must
engage with the central part of the head of
the jack F
R emove the bolts and store them in a clean
place.
F
R
emove the wheel.
F
Ra ise the vehicle until there is sufficient
space between the wheel and the ground
to admit the spare (not punctured) wheel
easily.
8
In the event of a breakdown
Page 304 of 527

302
C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016
Fitting a wheel
F Lower the vehicle fully.
F F old the jack 3 and detach it.
List of operations
F Put the wheel in place on the hub.
F S crew in the bolts fully by hand.
F
P
re-tighten the security bolt using the
wheelbrace 1 fitted with the security
socket
5
(depending on equipment).
F
P
re-tighten the other bolts using the
wheelbrace 1 o n l y.
The jack must only be used to change a
wheel with a damaged tyre.
The jack does not require any
maintenance.
The jack conforms to European
legislation, such as defined in the
Machinery Directive 2006/42/CE.
In the event of a breakdown
Page 305 of 527

303
C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016
Fitting the "space-saver"
spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it
is normal to notice that the washers
do not come into contact with the
"space-saver" spare wheel. The wheel
is secured by the conical sur face of
each bolt.
After changing a wheel
To correctly store the punctured wheel
in the boot (not in the location for the
space-saver wheel ), first remove the
central cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80
km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a CITROËN dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.
F
T
ighten the security bolt using the
wheelbrace 1 fitted with the security
socket 5
(depending on equipment).
F
T
ighten the other bolts using the
wheelbrace 1 o n l y.
F
R
efit the wheel bolt cover(s) (depending on
equipment).
F
S
tow the tools in the box. The tyre inflation pressures are given on this
label.
8
In the event of a breakdown
Page 306 of 527

304
C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

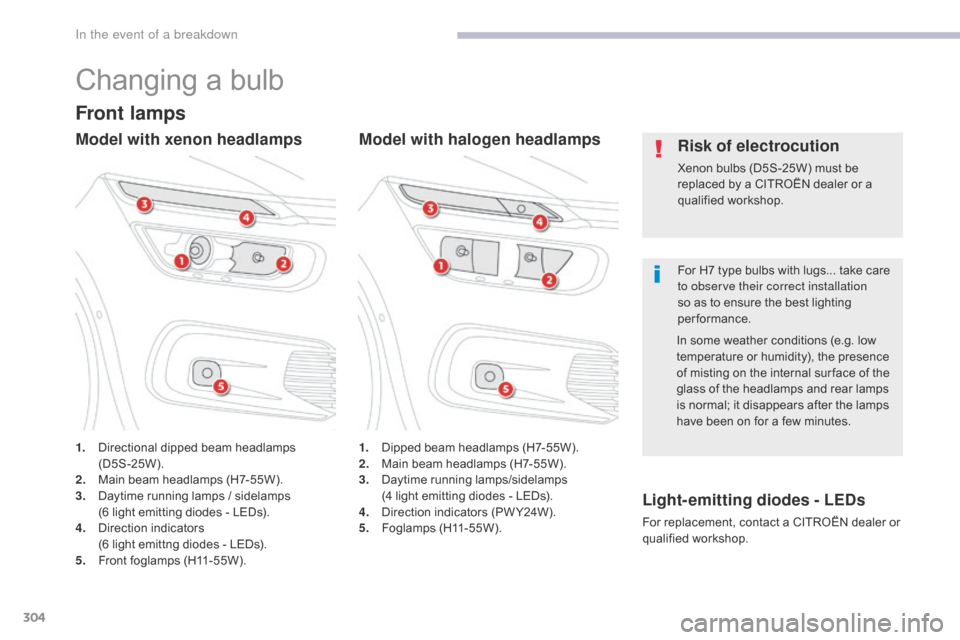

Changing a bulb
For H7 type bulbs with lugs... take care
to observe their correct installation
so as to ensure the best lighting
performance.
Risk of electrocution
Xenon bulbs (D5S-25W) must be
replaced by a CITROËN dealer or a
qualified workshop.
Front lamps
1. Directional dipped beam headlamps (D5S-25W).
2.
M
ain beam headlamps (H7-55W).
3.
D
aytime running lamps / sidelamps
(
6 light emitting diodes - LEDs).
4.
D
irection indicators
(
6 light emittng diodes - LEDs).
5.
F
ront foglamps (H11-55W). 1. D
ipped beam headlamps (H7-55W).
2. M ain beam headlamps (H7-55W).
3.
D
aytime running lamps/sidelamps
(
4 light emitting diodes - LEDs).
4.
D
irection indicators (PW Y24W).
5.
F
oglamps (H11-55W).In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Light- emitting diodes - LEDs
For replacement, contact a CITROËN dealer or
qualified workshop.
Model with xenon headlamps Model with halogen headlamps
In the event of a breakdown
Page 307 of 527

305
C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

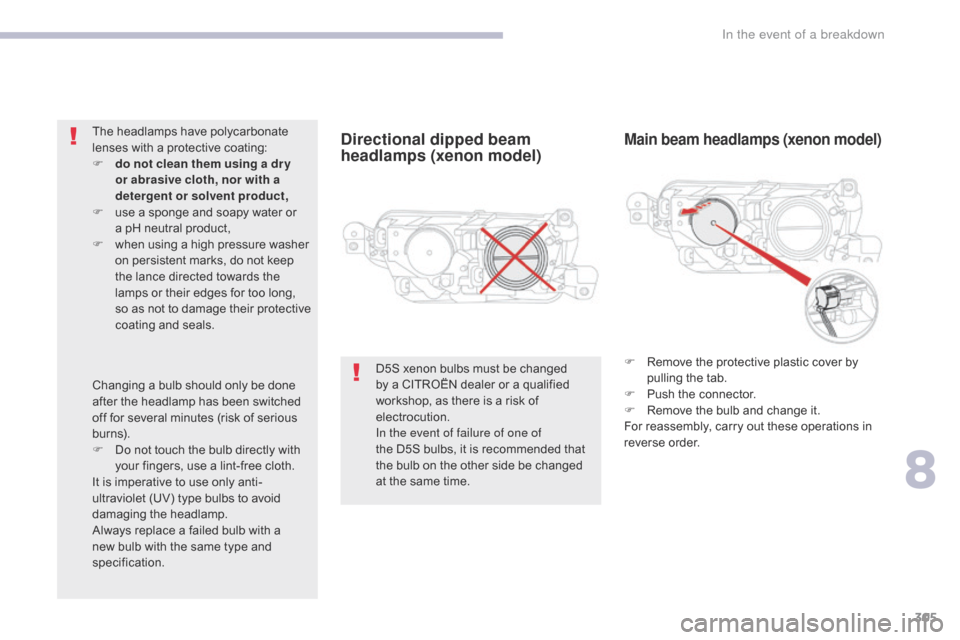

Directional dipped beam
headlamps (xenon model)Main beam headlamps (xenon model)
F Remove the protective plastic cover by pulling the tab.
F
P
ush the connector.
F
R
emove the bulb and change it.
For reassembly, carry out these operations in
reverse order.
D5S xenon bulbs must be changed
by a CITROËN dealer or a qualified
workshop, as there is a risk of
electrocution.
In the event of failure of one of
the D5S bulbs, it is recommended that
the bulb on the other side be changed
at the same time.
The headlamps have polycarbonate
lenses with a protective coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
u
se a sponge and soapy water or
a
pH neutral product,
F
w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F
D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
8
In the event of a breakdown
Page 308 of 527

306
C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

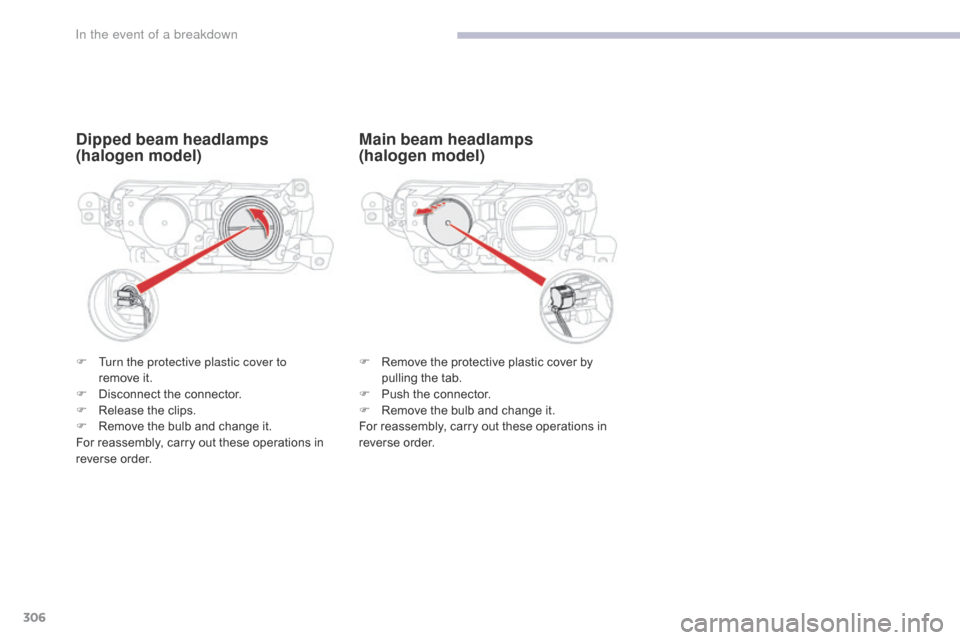

Dipped beam headlamps
(halogen model)
F Remove the protective plastic cover by pulling the tab.
F
P
ush the connector.
F
R
emove the bulb and change it.
For reassembly, carry out these operations in
reverse order.
Main beam headlamps
(halogen model)
F Turn the protective plastic cover to remove it.
F
D
isconnect the connector.
F
R
elease the clips.
F
R
emove the bulb and change it.
For reassembly, carry out these operations in
reverse order.
In the event of a breakdown
Page 309 of 527

307
C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

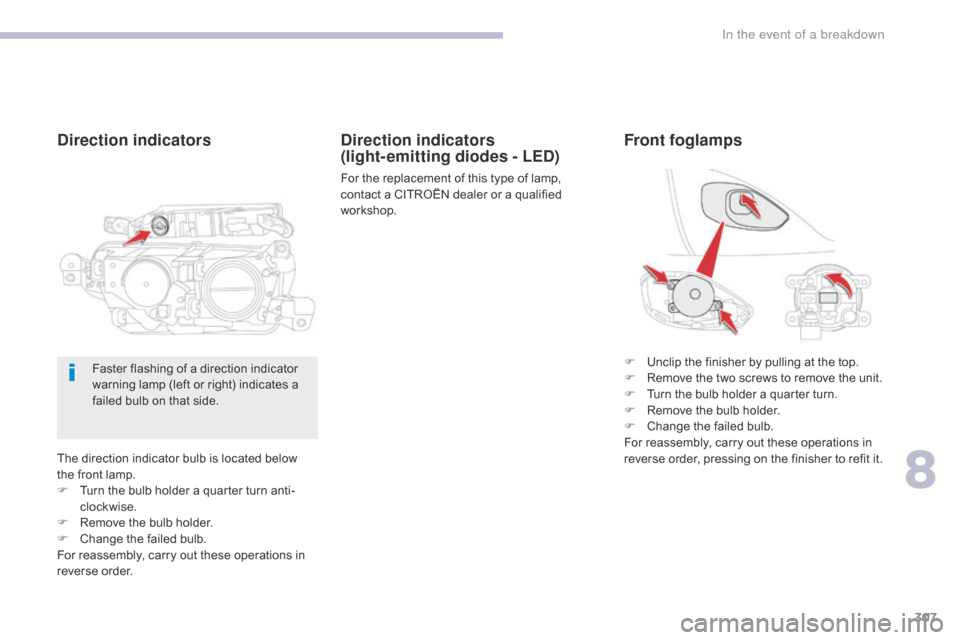

The direction indicator bulb is located below
the front lamp.
F
T
urn the bulb holder a quarter turn anti-
clockwise.
F
R
emove the bulb holder.
F
C
hange the failed bulb.
For reassembly, carry out these operations in
reverse order.
Direction indicators Front foglamps
F Unclip the finisher by pulling at the top.
F
R emove the two screws to remove the unit.
F
T
urn the bulb holder a quarter turn.
F
R
emove the bulb holder.
F
C
hange the failed bulb.
For reassembly, carry out these operations in
reverse order, pressing on the finisher to refit it.
Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
Direction indicators
(light- emitting diodes - LED)
For the replacement of this type of lamp,
contact a CITROËN dealer or a qualified
workshop.
8
In the event of a breakdown
Page 310 of 527

308
C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016
You should contact a CITROËN dealer or a
qualified workshop for the replacement of the
light-emitting diode - LED.
Door mirror spotlamps
Integrated direction indicator
side repeaters
You should contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.1.
D
irection indicators (PY21W amber).
2.
S
idelamps / foglamps (P21/5W).
Rear lamps
Light-emitting diodes -
LEDs
For replacement, contact a CITROËN
dealer or qualified workshop.
3.
B
rake lamps / sidelamps (light-emitting
diodes - LEDs).
4. R
eversing lamps (W16W).
5.
D
irection indicators (PY21W).
Model with LED lamps3. Sidelamps (5W5).
4. B rake lamps (P21/ W).
5.
D
irection indicators (W Y16W).
6.
R
eversing lamps (W16W).
Model with conventional bulb lamps
