F Start the engine of the vehicle with the good battery and leave it running for a
few
m

inutes.
F

O
perate the starter on the broken down
vehicle and let the engine run.
I

f the engine does not start straight
away, switch off the ignition and wait a
few
moments before trying again.
F

W
ait until the engine returns to idle then
disconnect the jump lead cables in the
reverse order.
F

R
efit the plastic cover to the (+) terminal, if
your vehicle has one.
F

A
llow the engine to run for at least
30
minutes, by driving or with the vehicle
stationary, so that the battery reaches an
adequate state of charge.
Starting using another battery
Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.
F

R

aise the plastic cover on the (+) terminal,
if your vehicle has one.
F

C

onnect the red cable to the positive
terminal (+) of the flat battery A (at the metal
elbow) then to the positive terminal

(+) of the
slave battery B or the booster.
F

C

onnect one end of the green or black
cable to the negative terminal (-) of the
slave battery B or the booster (or earth
point on the other vehicle).
F

C

onnect the other end of the green or black
cable to the earth point C on the broken
down vehicle.
Never try to start the engine by
connecting a battery charger.
Never use a 24 V or higher battery
b o o s t e r.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact
with each other.
Switch off the electrical consumers on
both vehicles (audio system, wipers,
lighting,
...

).
Ensure that the jump lead cables do
not pass close to moving parts of the
engine (cooling fan, belts,

...).
Do not disconnect the (+) terminal when
the engine is running.
When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables or a battery booster.
8
In the event of a breakdown

320
C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016
Never try to charge a frozen battery.
If the battery has been frozen, have
it checked by a CITROËN dealer or a
qualified workshop, who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.
F

S

witch off the ignition.
F

S

witch off all electrical consumers (audio
system, lighting, wipers,

...).
F

S

witch off the charger B before connecting
the cables to the battery, so as to avoid any
dangerous sparks.
F

E

nsure that the charger cables are in good
condition.
F

R

aise the plastic cover, if your vehicle has
one, on the (+) terminal.
F
C
onnect the charger B cables as follows:
-

t

he positive (+) red cable to the (+)
terminal of the battery A ,
-

t

he negative (-) black cable to the earth
point C on the vehicle.
F

A

t the end of the charging operation, switch
off the charger B before disconnecting the
cables from the battery A .
It is not necessary to disconnect the
battery.
If you envisage charging your vehicle's
battery yourself, use only a charger
compatible with lead-acid batteries of a
nominal voltage of 12 V. Follow the instructions for use provided
by the manufacturer of the charger.
Never reverse polarities.
Charging the battery using a battery charger
If this label is present, it is essential
to use only a 12 V charger, to avoid
causing irreversible damage to the
electrical components related to the
Stop & Start system.
For optimum service life of the battery, it is
essential to maintain an adequate state of
charge.
In some circumstances it may be necessary to
charge the battery:
-

i

f you use your vehicle essentially for short
journeys,
-

i

f the vehicle is to be taken off the road for
several weeks.
Contact a CITROËN dealer or a qualified
workshop.
In the event of a breakdown

321
C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016
The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the ambient
temperature and the state of charge of
the battery (up to about 8 hours).
Do not force the lever as locking will
not be possible if the clamp is not
positioned correctly; start the procedure
again.
Disconnecting the (+) terminal
F

Ra

ise the lever A fully to release the
clamp
B .
F


R

emove the clamp B by lifting it off. Reconnecting the (+) terminal
F

Ra

ise the lever A fully.
F

R

efit the open clamp B on the (+) terminal.
F

P

ush the clamp B fully down.
F

L

ower the lever A to lock the clamp B
.
Disconnecting the battery
In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of service for a long
period.
Before disconnecting the battery:
F

c
lose all openings (doors, boot, windows,
roof),
F

s
witch off all electrical consumers (audio
system, wipers, lighting,
...),
F

s
witch off the ignition and wait for four
minutes.
At the battery, detach just the (+) terminal.Following reconnection of the battery
Following reconnection of the battery, switch on
the ignition and wait 1 minute before starting to
permit initialisation of the electronic systems.
However, if problems remain following this
operation, contact a CITROËN dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise (depending on
version):
-

t
he remote control key,
-

t
he electric blind(s),
-
...
Quick-release terminal clamp
8
In the event of a breakdown

322
C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

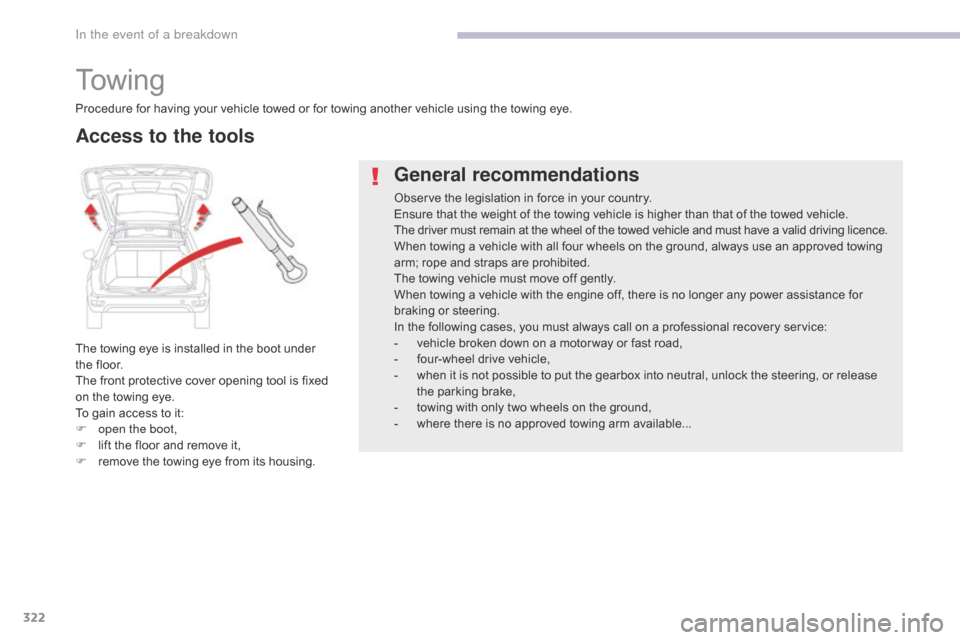

To w i n g
The towing eye is installed in the boot under
the floor.
The front protective cover opening tool is fixed
on the towing eye.
To gain access to it:
F
o
pen the boot,
F

l
ift the floor and remove it,
F

r
emove the towing eye from its housing.
General recommendations
Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed vehicle.
The driver must remain at the wheel of the towed vehicle and must have a valid driving licence.
When towing a vehicle with all four wheels on the ground, always use an approved towing
arm; rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off, there is no longer any power assistance for
braking or steering.
In the following cases, you must always call on a professional recovery service:
-

v
ehicle broken down on a motor way or fast road,
-

f
our-wheel drive vehicle,
-

w
hen it is not possible to put the gearbox into neutral, unlock the steering, or release
the parking brake,
-

t
owing with only two wheels on the ground,
-

w
here there is no approved towing arm available...
Procedure for having your vehicle towed or for towing another vehicle using the towing eye.
Access to the tools
In the event of a breakdown

323
C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

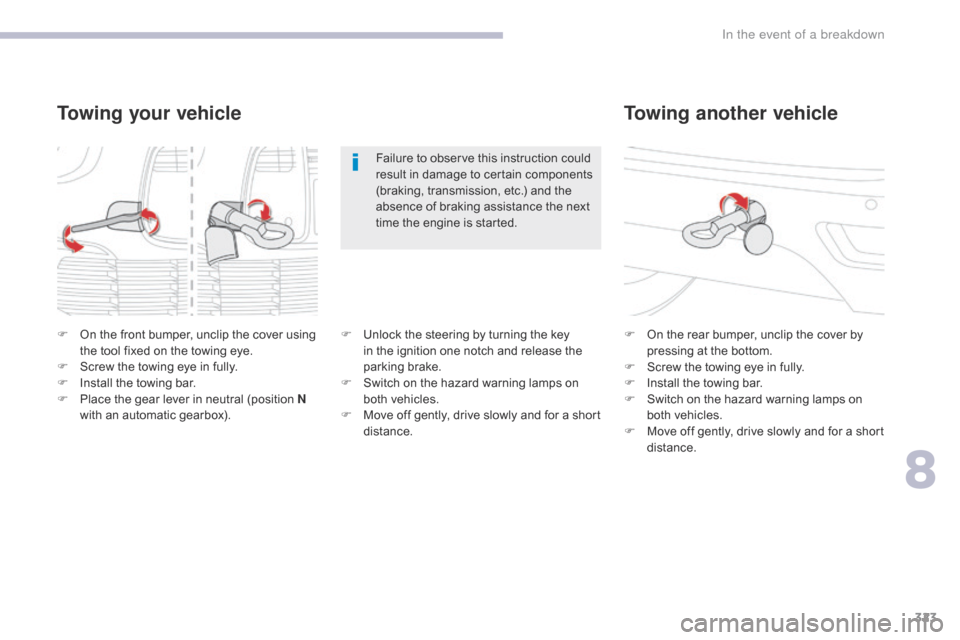

Towing another vehicle
F On the rear bumper, unclip the cover by pressing at the bottom.
F

S
crew the towing eye in fully.
F

I
nstall the towing bar.
F

S
witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently, drive slowly and for a short
distance.
F
O
n the front bumper, unclip the cover using
the tool fixed on the towing eye.
F

S

crew the towing eye in fully.
F

I

nstall the towing bar.
F

P

lace the gear lever in neutral (position N
with an automatic gearbox).
Towing your vehicle
Failure to observe this instruction could
result in damage to certain components
(braking, transmission, etc.) and the
absence of braking assistance the next
time the engine is started.
F

U

nlock the steering by turning the key
in the ignition one notch and release the
parking brake.
F

S

witch on the hazard warning lamps on
both vehicles.
F

M

ove off gently, drive slowly and for a short
distance.
8
In the event of a breakdown

324
C4-Picasso-II_en_Chap08_en-cas-panne_ed02-2016

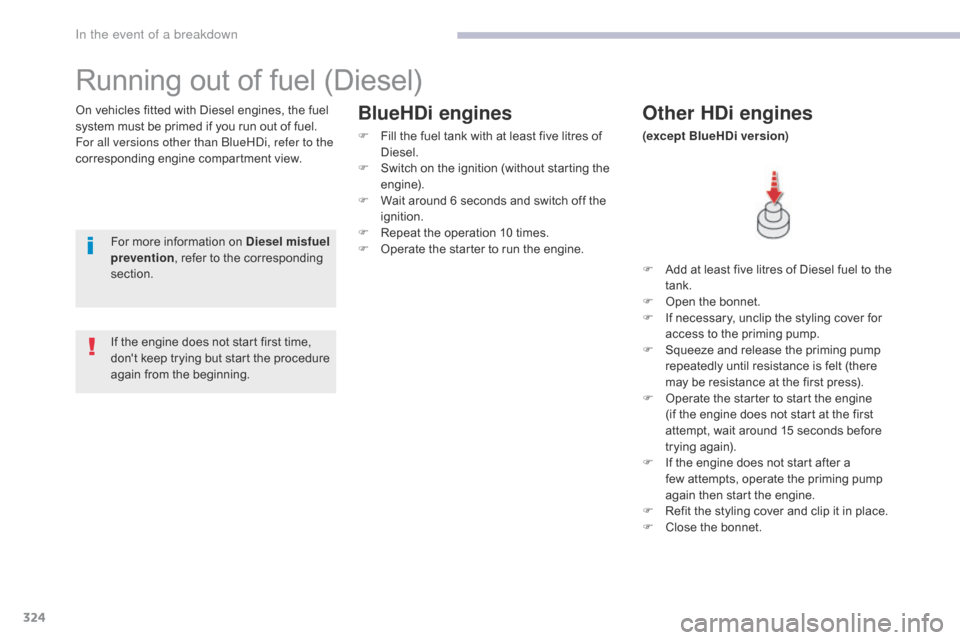

Running out of fuel (Diesel)
On vehicles fitted with Diesel engines, the fuel
system must be primed if you run out of fuel.
For all versions other than BlueHDi, refer to the
corresponding engine compartment view.Other HDi engines
(except BlueHDi version)
For more information on Diesel misfuel
prevention , refer to the corresponding
section.
If the engine does not start first time,
don't keep trying but start the procedure
again from the beginning.
BlueHDi engines
F Fill the fuel tank with at least five litres of Diesel.
F

S
witch on the ignition (without starting the
engine).
F

W
ait around 6 seconds and switch off the
ignition.
F

R
epeat the operation 10 times.
F

O
perate the starter to run the engine. F

A
dd at least five litres of Diesel fuel to the
tank.
F

O
pen the bonnet.
F

I
f necessary, unclip the styling cover for
access to the priming pump.
F

S
queeze and release the priming pump
repeatedly until resistance is felt (there
may be resistance at the first press).
F

O
perate the starter to start the engine
(if the engine does not start at the first
attempt, wait around 15 seconds before
trying again).
F

I
f the engine does not start after a
few
attempts, operate the priming pump
again then start the engine.
F

R
efit the styling cover and clip it in place.
F

C
lose the bonnet.
In the event of a breakdown

325
C4-Picasso-II_en_Chap09_caracteristiques-techniques_ed02-2016
Petrol enginePureTech 110 S&SPureTech 130 S&S
Gearbox Manual (6-speed)Manual (6-speed)EAT6 automatic (6 -speed)
Model code 3D
3D... 3E... 3A... 3D... 3E... 3A...
HNX...
M/1S - M/2SM HNY…
M/1S - M/2SM HNY…
T/1S - T/2S
Cubic capacity (cc) 1 199
Bore x stroke (mm) 75 x 90.5
Max power*: EU standard (kW) 96
Max power engine speed (rpm) 5 500
Max torque: EU standard (Nm) 230
Max torque engine speed (rpm) 1 750
Fuel Unleaded
Catalytic converter yes
Engine oil capacity (in litres) (with filter
replacement) 4.25
Petrol engines and gearboxes
3D...:
CITROËN C4 Picasso (5 -seat). 3A...: CITROËN Grand C4 Picasso (7-seat).
3E...: CITROËN Grand C4 Picasso (5 -seat).
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
9
Technical data

326
C4-Picasso-II_en_Chap09_caracteristiques-techniques_ed02-2016
3D...: CITROËN C4 Picasso (5 -seat). 3A...: CITROËN Grand C4 Picasso (7-seat).
3E...: CITROËN Grand C4 Picasso (5 -seat).
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
** For Israel. Petrol engine
THP 150 / 160THP 165 S&S THP 165 S&S**
Gearbox EAT6 automatic (6 -speed) EAT6 automatic (6 -speed) EAT6 automatic (6 -speed)
Model code 3D... 3E... 3A...
3D... 3E... 3A...3D... 3E... 3A...
5GX - 5GY...
A-A/1-A/2-A/D- A/1D- A/2D- Y-Y/1-Y/ 2 5G Z T/S
5GY...
A /S - A /1S - A /2S
Cubic capacity (cc) 1 5981 5981 598
Bore x stroke (mm) 77 x 85.877 x 85.877 x 85.8
Max power*: EU standard (kW) 110 / 121121121
Max power engine speed (rpm) 6 0006 0006 000
Max torque: EU standard (Nm) 240240240
Max torque engine speed (rpm) 1 4001 4001 400
Fuel UnleadedUnleadedUnleaded
Catalytic converter yesyesyes
Engine oil capacity (in litres) (with filter
replacement) 4.25
4.254.25
Technical data

327
C4-Picasso-II_en_Chap09_caracteristiques-techniques_ed02-2016
* The weight values are calculated with a towbar.
** The kerb weight is equal to the unladen weight + driver (75 kg).
***
T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Petrol engine
PureTech 110 S&S*PureTech 130 S&S*
Gearbox Manual (6-speed)Manual (6-speed)EAT6 automatic (6 -speed)
Model code 3D
3D... 3E... 3A... 3D... 3E... 3A...
HNX...
M/1S - M/2SM HNY…
M/1S - M/2SM HNY…
T/1S - T/2S
Unladen weight 1 2801 280 - 1 295 - 1 297 1 298 - 1 315 - 1 317
Kerb weight** 1 3551 355 - 1 370 - 1 372 1 373 - 1 390 - 1 392
Gross vehicle weight (GV W) 1 9051 905 - 2 075 - 2 125 1 918 -1 957 - 2 136
Gross train weight (GTW)
on a 12% gradient 3 035
3 175 - 3 125 - 3 175 3 188 - 3 007 - 3 186
Braked trailer (within the GTW limit)
on a 10% or 12% gradient 1 130
1 270 - 1 050 - 1 050 1 270 - 1 050 - 1 050
Braked trailer*** (with load transfer within the
GTW limit) 1 330
1 470 - 1 350 - 1 350 1 470 - 1 350 - 1 350
Unbraked trailer 640640 - 647 - 648 640 - 647 - 648
Recommended nose weight 707070
Petrol weights and towed loads (in kg)
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the speed must never exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the exterior temperature is above 37 °C,
limit the towed load.
9
Technical data

328
C4-Picasso-II_en_Chap09_caracteristiques-techniques_ed02-2016
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
When towing, the speed must never exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the exterior temperature is above 37 °C,
limit the towed load.Petrol engine
THP 150 / 160THP 165 S&STHP 165 S&S***
Gearbox EAT6 automatic (6 -speed) EAT6 automatic (6 -speed) EAT6 automatic (6 -speed)
Model code 3D... 3E... 3A...
3D... 3E... 3A...3D... 3E... 3A...
5GX - 5GY...
A-A/1-A/2-A/D- A/1D- A/2D- Y-Y/1-Y/ 2 5G Z T/S
5GY...
A /S - A /1S - A /2S
Unladen weight 1 405 - 1 428 - 1 4301 310 - 1 318 - 1 3201 390 - 1 425 - 1 425
Kerb weight* 1 480 - 1 503 - 1 5051 385 - 1 393 - 1 3951 465 - 1 500 - 1 500
Gross vehicle weight (GV W) 1 940 - 2 140 - 2 1601 930 - 2 100 - 2 1501 930 - 2 100 - 2 150
Gross train weight (GTW)
on a 12% gradient 2 740 - 2 940 - 2 960
3 330 - 3 350 - 3 350 3 330 - 3 350 - 3 350
Braked trailer (within the GTW limit)
on a 10% or 12% gradient 800
1 400 - 1 250 - 1 200 1 400 - 1 250 - 1 200
Braked trailer** (with load transfer within the
GTW limit) 800
1 600 - 1 550 - 1 500 1 600 - 1 550 - 1 500
Unbraked trailer 600685 - 690 - 690 685 - 690 - 690
Recommended nose weight 707070
* The kerb weight is equal to the unladen weight + driver (75 kg).
**
T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
*** For Israel.
Technical data
