indicator Citroen GRAND C4 PICASSO 2017 2.G Owner's Guide

53
C4-Picasso-II_en_Chap02_ouvertures_ed02-2016
Electronic key - remote control
System which permits remote locking or unlocking
of the vehicle as well as opening the boot and,
depending on version, operation of the alarm.
It also allows the location and starting of the
vehicle as well as providing protection against
theft.Unlocking the vehicle
F Press this button.
Unlocking the vehicle and
opening the boot
The direction indicators flash for a few
seconds. The door mirror spot lamps
come on. Depending on version, the
door mirrors unfold, the welcome
lighting comes on and the alarm is
deactivated.F

M
ake a long press on this
button to unlock the vehicle
and, depending on version,
release the tailgate or open the
motorised tailgate.
F

T

o unlock the other doors and the boot,
press this button again.
The setting of selective unlocking is done in the
Driving menu.
Select " Unlock driver's door ".
Complete unlocking is activated by default.
Complete unlocking
F To unlock only the driver's door, press this button once.
Selective unlockingSettings for the motorised tailgate can be
adjusted in the Driving menu.
Motorised operation is activated by default.
A.
U

nlocking the vehicle.
B.
C

entral locking the vehicle.
C.
U

nlocking the vehicle and, depending on
version, release of the tailgate or opening
of the motorised tailgate.
The electronic key includes an integral back-up
emergency key.
2
Access

54
C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

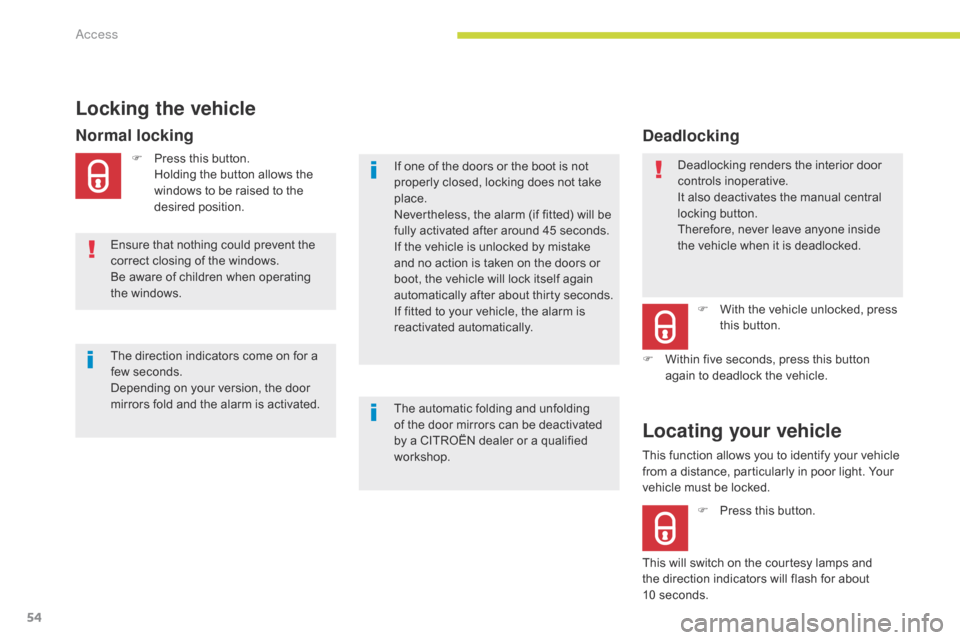

Deadlocking renders the interior door
controls inoperative.
It also deactivates the manual central
locking button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Deadlocking
F With the vehicle unlocked, press this button.
F

W

ithin five seconds, press this button
again to deadlock the vehicle.
This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must be locked.
Locating your vehicle
F Press this button.
This will switch on the courtesy lamps and
the direction indicators will flash for about
10

seconds.
F

P

ress this button.
H

olding the button allows the
windows to be raised to the
desired position.
Normal locking
If one of the doors or the boot is not
properly closed, locking does not take
place.
Nevertheless, the alarm (if fitted) will be
fully activated after around 45 seconds.
If the vehicle is unlocked by mistake
and no action is taken on the doors or
boot, the vehicle will lock itself again
automatically after about thirty seconds.
If fitted to your vehicle, the alarm is
reactivated automatically.
The direction indicators come on for a
few seconds.
Depending on your version, the door
mirrors fold and the alarm is activated.
Locking the vehicle
Ensure that nothing could prevent the
correct closing of the windows.
Be aware of children when operating
the windows.
The automatic folding and unfolding
of the door mirrors can be deactivated
by a CITROËN dealer or a qualified
workshop.
Access

55
C4-Picasso-II_en_Chap02_ouvertures_ed02-2016
System that allows the unlocking, locking
and starting of the vehicle while keeping the
electronic key on your person.For reasons of safety and theft protection,
do not leave your electronic key in the
vehicle, even when you are close to it.
It is recommended that you keep it on
your person.The electronic key can also be used as
a remote control.
For more information on the Electronic
key - remote control
, refer to the
corresponding section.
Keyless Entry and Starting
Unlocking the vehicle
Complete unlocking
F With the electronic key on your person and in the recognition zone A , pass your hand
behind the door handle of one of the front
doors to unlock the vehicle or press the
tailgate opening control (located centrally).
Selective unlocking
F To unlock only the driver's door, with the electronic key on your person, pass your
hand behind the driver's door handle.
F

T
o unlock the complete vehicle, pass your
hand behind the front passenger door
handle with the electronic key close to
the passenger door, or press the tailgate
opening control with the electronic key
close to the rear of the vehicle.
Activation or deactivation of selective unlocking
is done in the Driving menu.
Select " Unlock driver's door ".
By default, complete unlocking is activated.
The direction indicators flash for a
few
seconds.
Depending on version, the door mirrors
unfold, the alarm is deactivated and the
welcome lighting comes on.
2
Access

56
C4-Picasso-II_en_Chap02_ouvertures_ed02-2016
Ensure that nothing could prevent the
correct operation of the windows.
Be aware of children when operating
the windows.

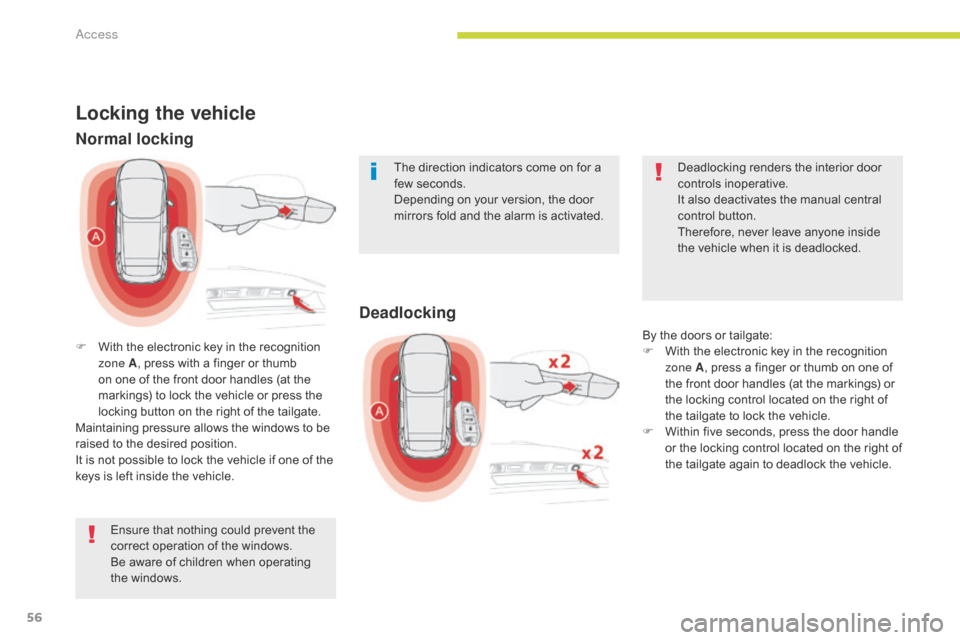

Locking the vehicle
F With the electronic key in the recognition zone A , press with a finger or thumb
on one of the front door handles (at the
markings) to lock the vehicle or press the
locking button on the right of the tailgate.
Maintaining pressure allows the windows to be
raised to the desired position.
It is not possible to lock the vehicle if one of the
keys is left inside the vehicle. The direction indicators come on for a
few seconds.
Depending on your version, the door
mirrors fold and the alarm is activated.
Normal locking
Deadlocking
By the doors or tailgate:
F W ith the electronic key in the recognition
zone A , press a finger or thumb on one of
the front door handles (at the markings) or
the locking control located on the right of
the tailgate to lock the vehicle.
F

W
ithin five seconds, press the door handle
or the locking control located on the right of
the tailgate again to deadlock the vehicle. Deadlocking renders the interior door
controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Access

58
C4-Picasso-II_en_Chap02_ouvertures_ed02-2016
F Turn the key towards the rear of the vehicle to lock the vehicle completely.
Deadlocking
F Turn the key towards the rear in the driver's door lock to lock the vehicle completely.
F

T
urn the key towards the rear again within
five seconds to deadlock the vehicle.
Depending on version, the direction
indicators flash for a few seconds, the
door mirrors fold.
For versions with alarm: it is not deactivated / activated when unlocking / locking the vehicle
with the integral key.
The siren will sound on opening the door with the key (integral with the remote control). It
stops when the ignition is switched on.
Emergency procedure
The integral key is used to lock and unlock the
vehicle when the electronic key cannot operate
and in the event of a fault with the Keyless
Entry and Starting system:
-

c
ell battery flat, vehicle battery discharged
or disconnected,
...
-

v
ehicle located in an area with strong
electromagnetic signals.
F

T
o extract the emergency mechanical key
from the electronic key, press button 1 and
guide the key 2 out.
The integral key is also used to deactivate/
reactivate the passenger's airbag.
It provides a backup means of locking the
passenger doors.
It also allows locking of the vehicle without
activation of the alarm.
Emergency unlocking/locking using the integral key
F Turn the key towards the front of the vehicle to unlock the vehicle.
Depending on version, the direction
indicators flash for a few seconds, the
door mirrors unfold and the welcome
lighting comes on.
For versions with alarm: the siren will
sound on opening the door with the key
(in the remote control). It stops when
the ignition is switched on.
Unlocking Normal locking
Access

69
C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

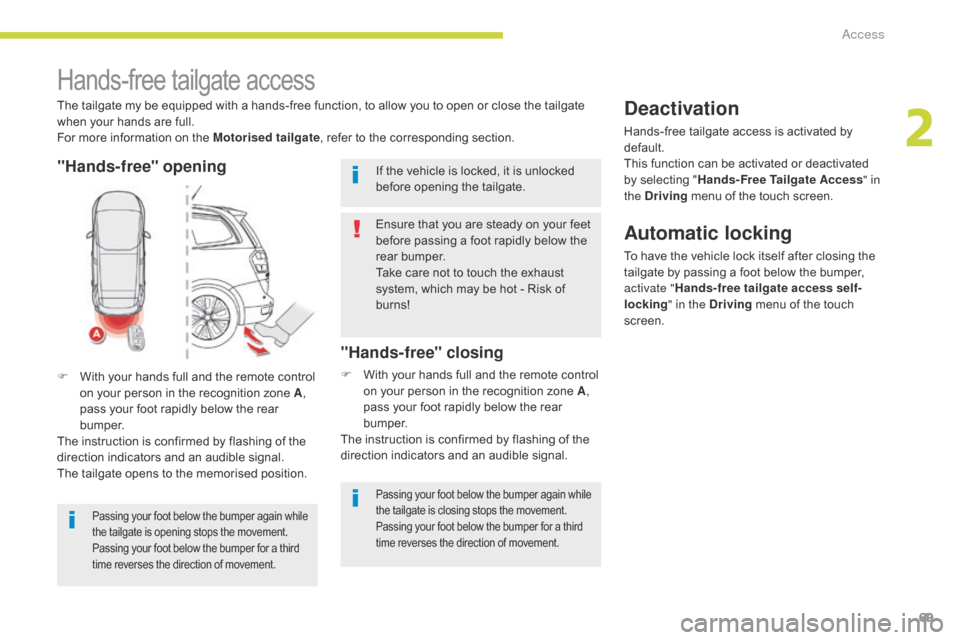

Hands-free tailgate access
The tailgate my be equipped with a hands-free function, to allow you to open or close the tailgate
when your hands are full.
For more information on the Motorised tailgate, refer to the corresponding section.
F

W
ith your hands full and the remote control
on your person in the recognition zone
A,
pass your foot rapidly below the rear
b u m p e r.
The instruction is confirmed by flashing of the
direction indicators and an audible signal.
The tailgate opens to the memorised position.
Passing your foot below the bumper again while
the tailgate is opening stops the movement.
Passing your foot below the bumper for a third
time reverses the direction of movement.
"Hands-free" closing
F With your hands full and the remote control on your person in the recognition zone A,
pass your foot rapidly below the rear
b u m p e r.
The instruction is confirmed by flashing of the
direction indicators and an audible signal.
Deactivation
Hands-free tailgate access is activated by
default.
This function can be activated or deactivated
by selecting " Hands-Free Tailgate Access " in
the Driving menu of the touch screen.
Ensure that you are steady on your feet
before passing a foot rapidly below the
rear bumper.
Take care not to touch the exhaust
system, which may be hot - Risk of
burns! If the vehicle is locked, it is unlocked
before opening the tailgate.
Automatic locking
To have the vehicle lock itself after closing the
tailgate by passing a foot below the bumper,
activate " Hands-free tailgate access self-
locking " in the Driving menu of the touch
screen.
Passing your foot below the bumper again while
the tailgate is closing stops the movement.
Passing your foot below the bumper for a third
time reverses the direction of movement.
"Hands-free" opening
2
Access

71
C4-Picasso-II_en_Chap02_ouvertures_ed02-2016
For all work on the alarm system,
contact a CITROËN dealer or a
qualified workshop.
AlarmSystem which protects and provides a deterrent against theft and break-ins. It provides the following types of monitoring:
- Exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot or the bonnet...
- Interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.
Self-protection function
The system checks for the
disconnection of any of its components.
The alarm is triggered if the battery,
the button or the siren wiring is
disconnected or damaged.
Locking the vehicle with full
alarm system
Activation
If an opening (door, boot, bonnet...) is not
closed fully, the vehicle is not locked but the
exterior perimeter monitoring will be activated
after a delay of 45 seconds, at the same time
as the interior volumetric monitoring.F

L
ock the vehicle using the
remote control.
F
Switch off the ignition and get out of the vehicle.
or
F
L ock the vehicle using the "Keyless Entry
and Starting" system.
The monitoring system is active: the indicator
lamp in the button flashes once per second
and the direction indicators come on for about
2 seconds.
After a command to lock the vehicle using
the remote control or the Keyless Entry
and Starting system, the exterior perimeter
monitoring is activated after a delay of
5
seconds, the interior volumetric monitoring
after 45 seconds.
2
Access

72
OFF
C4-Picasso-II_en_Chap02_ouvertures_ed02-2016
Locking the vehicle with exterior perimeter
monitoring only
Deactivate the interior volumetric monitoring
to avoid unwanted triggering of the alarm in
certain cases such as:
-
l
eaving a window partially open,
-

w
ashing your vehicle,
-

c
hanging a wheel,
-

t
owing your vehicle,
-

t
ransport on a ferry.
Deactivating the volumetric
monitoring
F Switch off the ignition and within ten seconds press this button
until its indicator lamp is on fixed.
F

G

et out of the vehicle.
F

I

mmediately lock the vehicle using the
remote control or the "Keyless Entry and
Starting" system.
Only the exterior perimeter protection system is
active: the indicator lamp in the button flashes
once per second.
To be effective, this deactivation must be done
every time the ignition is switched off.
In the case of automatic locking of the
vehicle (which occurs after a period
of 30 seconds if a door or the boot is
not opened), the monitoring system is
reactivated automatically.
Deactivation
F Press one of the unlocking buttons on the
remote control:
short press
long press
or
F

U
nlock the vehicle using the "Keyless Entry
and Starting" system.
The monitoring system is deactivated: the
indicator lamp in the button is off and the
direction indicators flash for about 2 seconds.
Reactivating the interior
volumetric monitoring
F Deactivate the exterior perimeter monitoring by unlocking the vehicle using
the remote control or the Keyless Entry and
Starting system.
The indicator lamp in the button goes off.
F

R
eactivate the full alarm system by locking
the vehicle using the remote control or the
"Keyless Entry and Starting" system.
The indicator lamp in the button flashes once
per second again.
Access

73
C4-Picasso-II_en_Chap02_ouvertures_ed02-2016
Triggering of the alarm
This is indicated by sounding of the siren
and flashing of the direction indicators for
thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
When the vehicle is unlocked using the remote
control or the Keyless Entry and Starting
system, rapid flashing of the indicator lamp
in the button informs you that the alarm was
triggered during your absence. When the
ignition is switched on, this flashing stops
immediately.
Failure of the remote control
To deactivate the monitoring functions:
F

U
nlock the vehicle using the key (integral
with the remote control) in the driver's door
lock.
F

O
pen the door; the alarm is triggered.
F

S
witch on the ignition; the alarm stops. The
indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key (integral with the remote control) in the
driver's door lock.
Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a CITROËN dealer or a
qualified workshop.
Automatic activation*
2 minutes after the last door or the boot is
closed, the system is activated automatically.
F

T
o avoid triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the Keyless Entry and Starting
system.
* Depending on the country of sale.
2
Access

75
C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

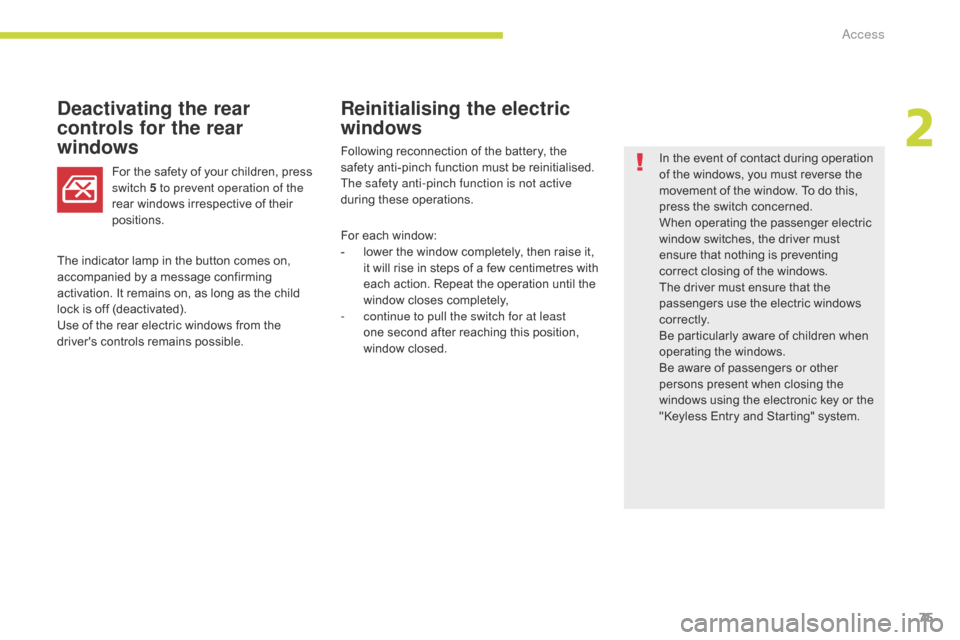

Reinitialising the electric
windows
Deactivating the rear
controls for the rear
windows
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this,
press the switch concerned.
When operating the passenger electric
window switches, the driver must
ensure that nothing is preventing
correct closing of the windows.
The driver must ensure that the
passengers use the electric windows
c o r r e c t l y.
Be particularly aware of children when
operating the windows.
Be aware of passengers or other
persons present when closing the
windows using the electronic key or the
"Keyless Entry and Starting" system.
Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations.
For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
positions.
The indicator lamp in the button comes on,
accompanied by a message confirming
activation. It remains on, as long as the child
lock is off (deactivated).
Use of the rear electric windows from the
driver's controls remains possible. For each window:
-

l

ower the window completely, then raise it,
it will rise in steps of a few centimetres with
each action. Repeat the operation until the
window closes completely,
-

c

ontinue to pull the switch for at least
one

second after reaching this position,
window closed.
2
Access
