indicator Citroen GRAND C4 PICASSO 2017 2.G Owner's Guide

32
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016
Warning / indicator lampStateCause Action / Observations
Dynamic
stability control
(DSC/ASR) flashing.
The DSC/ASR regulation is
operating. The system optimises traction and improves the
directional stability of the vehicle in the event of loss of
grip or trajectory.
fixed. The DSC/ASR system has a fault. Have the system checked by a CITROËN dealer or a
qualified workshop.
Engine
autodiagnosis
system flashing.
The engine management system has
a fault. Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or a qualified
workshop.
fixed. The emission control system has a
fault.
The warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or qualified
workshop without delay.
Collision Risk
Alert / Active
Safety Brake flashing.
The system is operating. The system brakes briefly so as to reduce the speed
of collision with the vehicle ahead.
fixed, accompanied
by a message and an
audible signal. The system has a fault.
Have the system checked by a CITROËN dealer or a
qualified workshop.
Instruments

33
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016
Low fuel levelfixed, accompanied by
an audible signal and
a message. When it first comes on there remains
approximately 6 litres of fuel
in the
tank.
You are then using the fuel reserve. You must refuel as soon as possible to avoid running
out of fuel.
Until sufficient fuel is added, this warning lamp will
come on every time the ignition is switched on,
accompanied by an audible signal and a message.
This audible signal and message are repeated with
increasing frequency as the fuel level drops towards "0".
Fuel tank capacity: approximately 57 litres (petrol) or
55 litres (Diesel).
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
Warning / indicator lamp
StateCause Action / Observations
Seat belt not
fastened /
unfastened fixed
or flashing
accompanied by an
audible signal. A seat belt has not been fastened or
has been unfastened.
Pull the strap then insert the tongue in the buckle.
Airbags on temporarily. This warning lamp comes on for a
few seconds when you turn on the
ignition, then goes off.
This warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a qualified
workshop.
fixed.One of the airbag or seat belt
pretensioner systems has a fault. Have them checked by a CITROËN dealer or a
qualified workshop.
Passenger
airbag system flashing.
The passenger airbag system has a
fault. Do not have a passenger seated in the front
passenger seat.
Have it checked by a CITROËN dealer or a qualified
workshop.
1
Instruments

34
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016
Warning / indicator lampStateCause Action / Observations
Battery charge fixed. The battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt,
...).The warning lamp should go off when the engine is
started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.
Maximum
coolant
temperature fixed.
The temperature of the cooling
system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping-
up the level, if necessary.
If the problem persists, contact a CITROËN dealer or
qualified workshop.
Directional
headlamps
flashing.
The directional headlamps system
has a fault. Have it checked by a CITROËN dealer or a qualified
workshop.
Door(s) open * fixed, associated with
a message identifying
the door. A door or the boot is still open and
the speed is lower than 6 mph
(10
km/h).Close the door or the boot.
fixed, associated with a
message identifying the
door and accompanied
by an audible signal.A door or the boot is still open and
the speed is higher than 6 mph
(10
km/h).
* Only with the monochrome digital instrument panel. Engine oil
pressure
fixed.
There is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
Instruments

35
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016
Under-inflationfixed, accompanied by
an audible signal and
a message. The pressure in one or more tyres is
too low.
Check the tyre pressures as soon as possible.
This check should preferably be carried out when the
tyres are cold.
You must reinitialise the system after the adjustment
of one or more tyre pressures and after changing one
or more wheels.
For more information on Under-inflation detection
,
refer to the corresponding section.
+ flashing then fixed,
accompanied by the
Service warning lamp.The system has a fault: the tyre
pressures are no longer monitored.
Check the tyre pressures as soon as possible.
Have the system checked by a CITROËN dealer or a
qualified workshop.
Warning / indicator lamp
StateCause Action / Observations
Foot on the
brake pedal *fixed.
The brake pedal is not pressed. With an automatic gearbox, press the brake pedal to
move the gear selector out of position P.
Foot on the
clutch* fixed.
In the STOP mode of Stop & Start,
changing to START mode is denied
because the clutch pedal is not fully
down. You must declutch fully to allow the change to engine
START mode.
* Only with the monochrome digital instrument panel.
1
Instruments

36
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016
Warning / indicator lampStateCause Action / Observations
AdBlue
®
(BlueHDi Diesel) fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating the
remaining driving range. The remaining driving range is
between 350 miles (600 km) and
1500 miles (2400 km).
Top-up the AdBlue® as soon as possible or go to a
CITROËN dealer or a qualified workshop.
+ flashing, associated
with the SERVICE
warning lamp,
accompanied by an
audible signal and a
message indicating the
remaining driving range.The remaining driving range is
between 0 and 350 miles (600 km).
You must top-up the AdBlue
® to avoid a breakdown

or go to a CITROËN dealer or a qualified workshop.
flashing, associated
with the SERVICE
warning lamp,
accompanied by an
audible signal and a
message indicating that
starting is prevented. The AdBlue
® tank is empty: the
starting inhibition system required
by legislation prevents starting of the
engine. To be able to start the engine, you must top-up
the
AdBlue® or call on a CITROËN dealer or a qualified
workshop.
It is essential to add at least 3.8 litres of AdBlue
® to
the fluid tank
For topping-up or for more information on AdBlue
® and the SCR system , refer to the corresponding section.
Instruments

37
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016
Warning / indicator lampState CauseAction / Observations
+
+ SCR emissions
control system

(BlueHDi Diesel) fixed, on switching on the ignition,
associated with the SERVICE and
engine diagnostic warning lamps,
accompanied by an audible signal and
a message. A fault with the SCR emissions control
system has been detected.
This alert disappears once the
exhaust emissions return to normal
levels.
flashing, on switching on the ignition,
associated with the SERVICE and
engine diagnostic warning lamps,
accompanied by an audible signal and
a message indicating the remaining
driving range. After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.
Contact a CITROËN dealer or a
qualified workshop
without delay,
to avoid a breakdown .
flashing, on switching on the ignition,
associated with the SERVICE and
engine diagnostic warning lamps,
accompanied by an audible signal and
a message. You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine starting inhibition
system prevents starting of the
engine.To be able to start the engine, you
must
call on a CITROËN dealer or a
qualified workshop.
1
Instruments

38
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016
Service indicator
System which informs the driver when the
next service is due, in accordance with the
manufacturer's service schedule.
The point at which the service is due is
calculated from the last indicator zero reset,
according to the mileage covered and the time
elapsed since the last service.
For BlueHDi Diesel versions, depending on the
country of sale, the degree of deterioration of
the engine oil may also be taken into account.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no service
information appears in the screen.
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 560 miles (900 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For 5 seconds after the ignition is switched on, the
spanner symbolising the service operations comes
on. The distance recorder display line indicates the
distance remaining before the next service is due.
Example: 1 700 miles (2 800 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on, the
screen indicates:
5 seconds after the ignition is switched on,
the spanner goes off ; the distance recorder
resumes its normal operation. The screen then
indicates the total and trip distances. 5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation.
The spanner remains on to
indicate that a service must be carried out
soon.
Gauges and indicators
Instruments

40
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

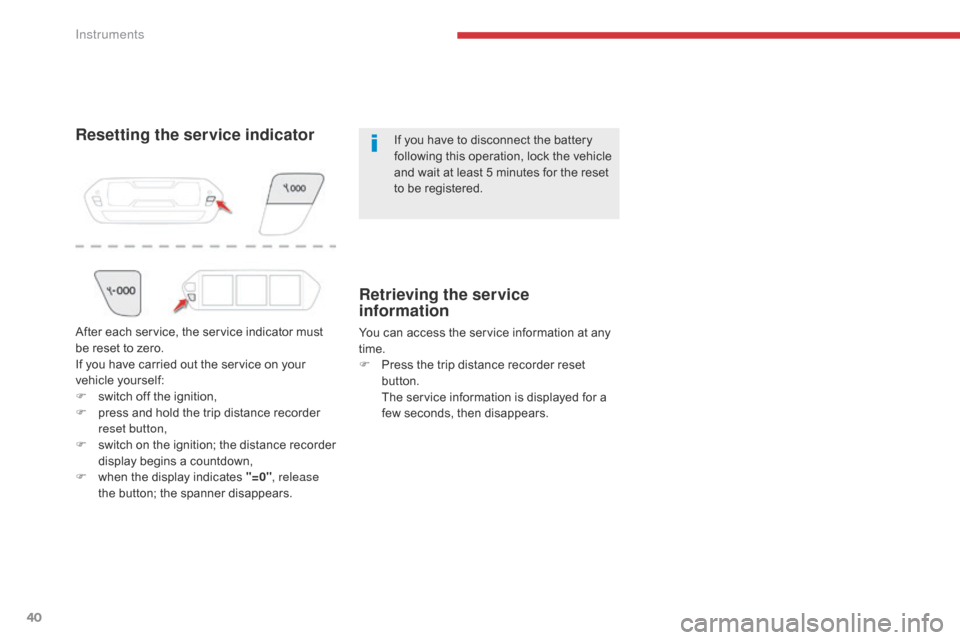

Resetting the service indicatorIf you have to disconnect the battery
following this operation, lock the vehicle
and wait at least 5 minutes for the reset
to be registered.
After each service, the service indicator must
be reset to zero.
If you have carried out the service on your
vehicle yourself:
F

s

witch off the ignition,
F

p

ress and hold the trip distance recorder
reset button,
F

s

witch on the ignition; the distance recorder
display begins a countdown,
F

w

hen the display indicates "=0" , release
the button; the spanner disappears.
Retrieving the service
information
You can access the service information at any
time.
F

P
ress the trip distance recorder reset
button.
T

he service information is displayed for a
few seconds, then disappears.
Instruments

42
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016
Engine oil level indicator*
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, after the servicing information.The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30
m

inutes.Oil level correct
This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the service warning
lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
For more information on Checking levels,
refer to the corresponding section. This is signalled by the display of the message
"Oil level measurement invalid" in the
instrument panel.
Contact a CITROËN dealer or a qualified
workshop.
In the event of a fault with the electric indicator,
the oil level is no longer monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
For more information on Checking
levels,
refer to the corresponding section.
* Depending on version.
Oil level incorrect Oil level indicator fault
Instruments

43
C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

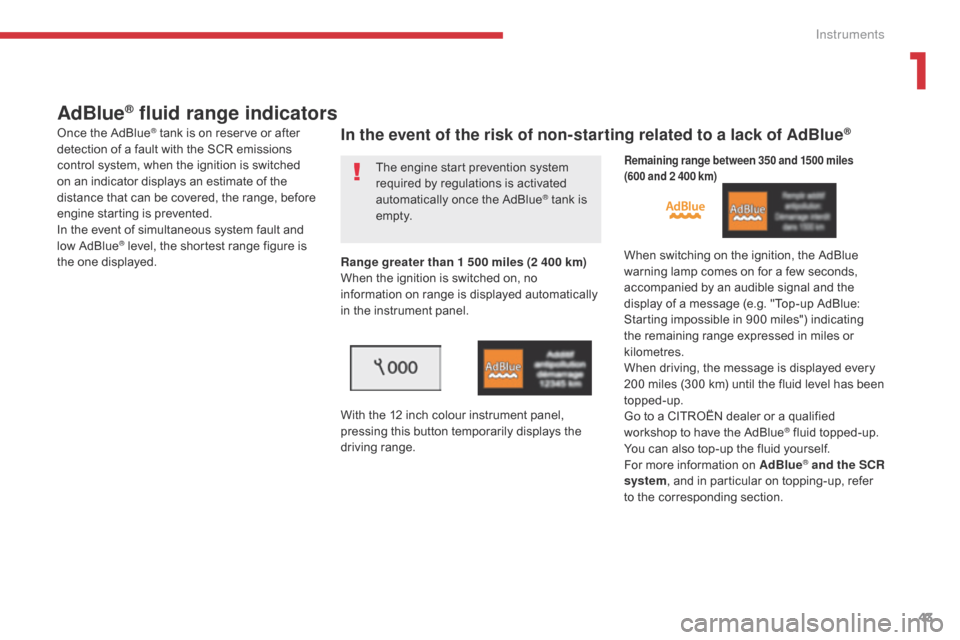

AdBlue® fluid range indicators
Once the AdBlue® tank is on reserve or after
detection of a fault with the SCR emissions
control system, when the ignition is switched
on an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
In the event of simultaneous system fault and
low AdBlue
® level, the shortest range figure is
the one displayed. Range greater than 1 500 miles (2 400 km)
When the ignition is switched on, no
information on range is displayed automatically
in the instrument panel.
With the 12 inch colour instrument panel,
pressing this button temporarily displays the
driving range.
In the event of the risk of non-starting related to a lack of AdBlue®
The engine start prevention system
required by regulations is activated
automatically once the AdBlue
® tank is
e m pt y.
Remaining range between 350 and 1500 miles
(600 and 2 400 km)
When switching on the ignition, the AdBlue
warning lamp comes on for a few seconds,
accompanied by an audible signal and the
display of a message (e.g. "Top-up AdBlue:
Starting impossible in 900 miles") indicating
the remaining range expressed in miles or
kilometres.
When driving, the message is displayed every
200 miles (300 km) until the fluid level has been
topped-up.
Go to a CITROËN dealer or a qualified
workshop to have the AdBlue
® fluid topped-up.
You can also top-up the fluid yourself.
For more information on AdBlue
® and the SCR
system, and in particular on topping-up, refer
to the corresponding section.
1
Instruments
