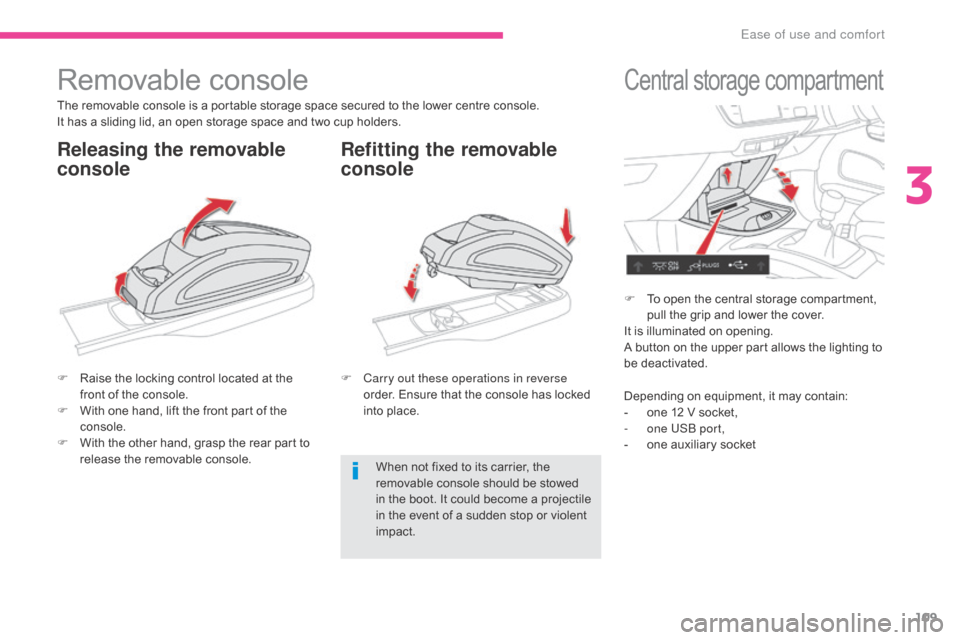

Removable console
The removable console is a portable storage space secured to the lower centre console.
It has a sliding lid, an open storage space and two cup holders.
F
R
aise the locking control located at the
front of the console.
F

W
ith one hand, lift the front part of the
console.
F

W
ith the other hand, grasp the rear part to
release the removable console. F

C
arry out these operations in reverse
order. Ensure that the console has locked
into place.
When not fixed to its carrier, the
removable console should be stowed
in the boot. It could become a projectile
in the event of a sudden stop or violent
impact.
Releasing the removable
console Refitting the removable
console
Central storage compartment
F To open the central storage compartment,
pull the grip and lower the cover.
It is illuminated on opening.
A button on the upper part allows the lighting to
be deactivated.
Depending on equipment, it may contain:
-

o
ne 12 V socket,
-

o
ne USB port,
-

o
ne auxiliary socket
3
Ease of use and comfort

110
When the USB port is used, the
portable device charges automatically.
A message is displayed if the power
consumption of the portable device
exceeds the current supplied by the
vehicle.
12 V socket
The auxiliary socket is located in the central
storage box.
It permits the connection of a portable device,
such as a digital audio player of the iPod
® type,
to listen to your music files using the vehicle's
speakers.
The management of the files is done using your
portable device. The USB port is located in the central storage
compartment.
It allows the connection of a portable device or
a USB memory stick.
It plays the audio files transmitted to your audio
system and heard via the vehicle's speakers.
You can manage these files using the steering
mounted or touch screen controls.
Auxiliary socket
USB port
For more information on the use of this
equipment, refer to the "Audio and telematics"
supplement.
F

T

o connect a 12 V accessory (maximum
power: 120 Watts), lift the cover and
connect a suitable adaptor.
Do not exceed the maximum power
rating of the socket (other wise there is a
risk of damaging your portable device).
The connection of an electrical device
not approved by CITROËN, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
Ease of use and comfort

111
To remove the mat on the driver's side:
F m ove the seat as far back as possible,
F

u
nclip the fixings,
F

r
emove the mat.
Mats
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the
carpet. To avoid any risk of jamming of the
pedals:
-

o
nly use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
-

n
ever fit one mat on top of another.
The use of mats not approved by
CITROËN may inter fere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.
The mats approved by CITROËN have
two fixings located below the seat.
To refit the mat on the driver's side:
F

p
osition the mat correctly,
F
r
efit the fixings by pressing,
F
c
heck that the mat is secured correctly.
Fitting
Removal
Refitting
Storage boxes
F Raise the grip and lower the storage box
c ove r.
Opening
Do not place heavy objects in the
boxes.
Depending on equipment, storage boxes are
located under the front seats.
3
Ease of use and comfort

112
Storage below
the steering wheel
This storage compartment below the steering
wheel is intended for stowing your vehicle's
handbook pack.

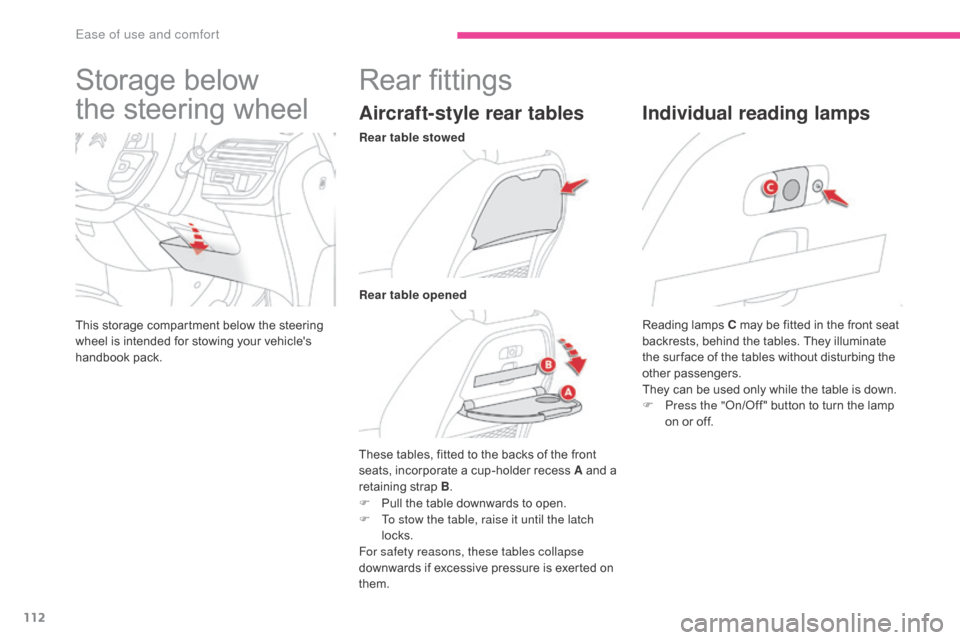

Rear fittings
Aircraft-style rear tables
These tables, fitted to the backs of the front
seats, incorporate a cup-holder recess A and a
retaining strap B .
F

P
ull the table downwards to open.
F

T
o stow the table, raise it until the latch
locks.
For safety reasons, these tables collapse
downwards if excessive pressure is exerted on
them. Reading lamps C may be fitted in the front seat
backrests, behind the tables. They illuminate
the sur face of the tables without disturbing the
other passengers.
They can be used only while the table is down.
F

P
ress the "
On/Of
f " button to turn the lamp
on or off.
Individual reading lamps
Rear table stowed
Rear table opened
Ease of use and comfort

113

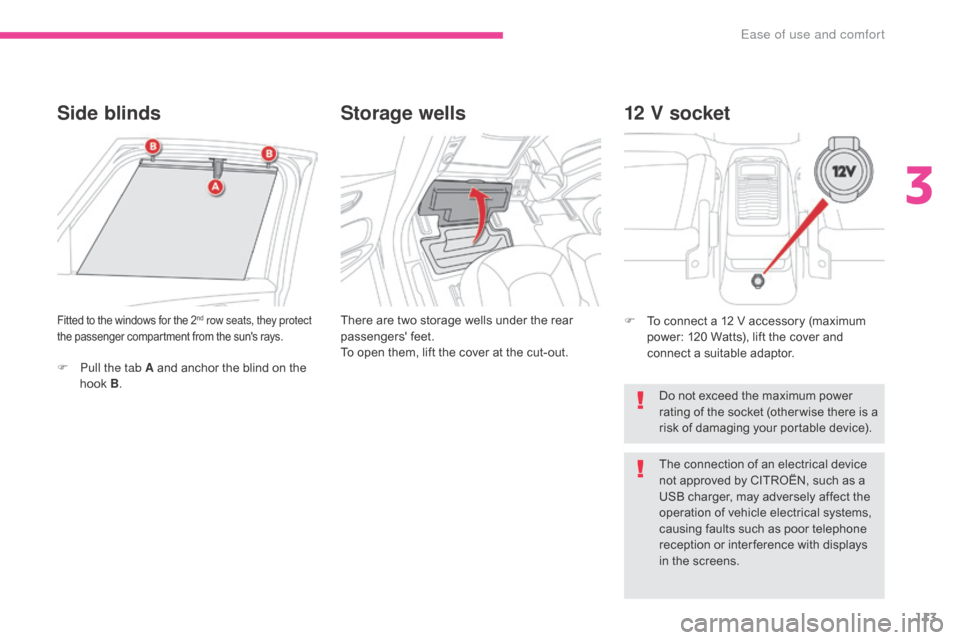

Side blindsStorage wells
There are two storage wells under the rear
passengers' feet.
To open them, lift the cover at the cut-out.Fitted to the windows for the 2nd row seats, they protect
the passenger compartment from the sun's rays.
F Pull the tab A and anchor the blind on the hook B .
12 V socket
F To connect a 12 V accessory (maximum
power: 120 Watts), lift the cover and
connect a suitable adaptor.
Do not exceed the maximum power
rating of the socket (other wise there is a
risk of damaging your portable device).
The connection of an electrical device
not approved by CITROËN, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
3
Ease of use and comfort

114

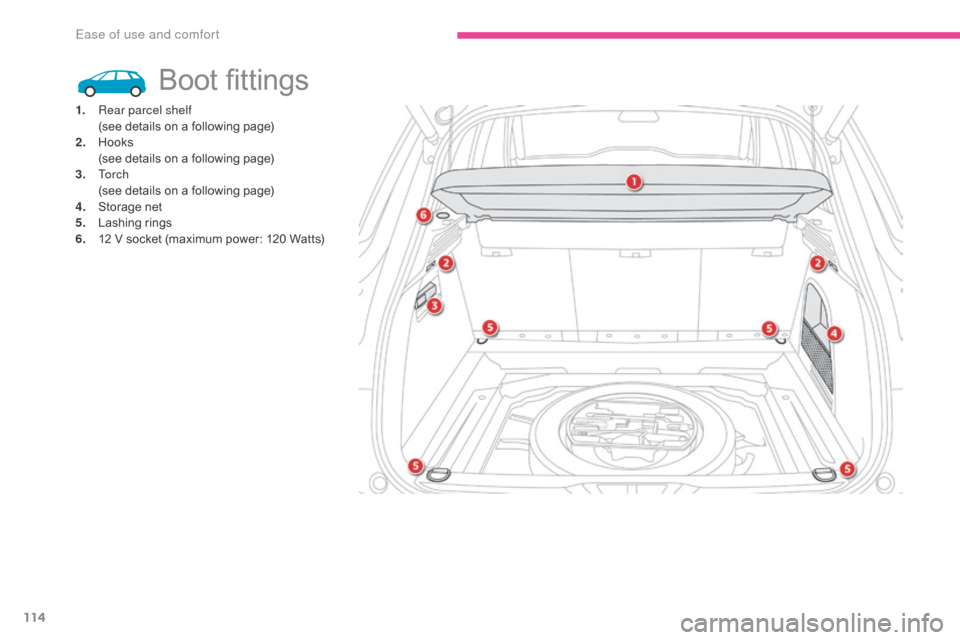

Boot fittings
1. Rear parcel shelf (see details on a following page)
2.
H

ooks
(

see details on a following page)
3.


To r c h
(

see details on a following page)
4.
St

orage net
5.
L

ashing rings
6.
1

2 V socket (maximum power: 120 Watts)
Ease of use and comfort

115
To remove the shelf:
F u nhook the two cords,
F

r
aise the shelf slightly, then remove it.
Rear parcel shelf
There are several options for storing the shelf:
- e ither upright behind the front seats,
-

o
r flat at the base of the boot. The hooks can be used to secure shopping
bags.
Hooks
3
Ease of use and comfort

116

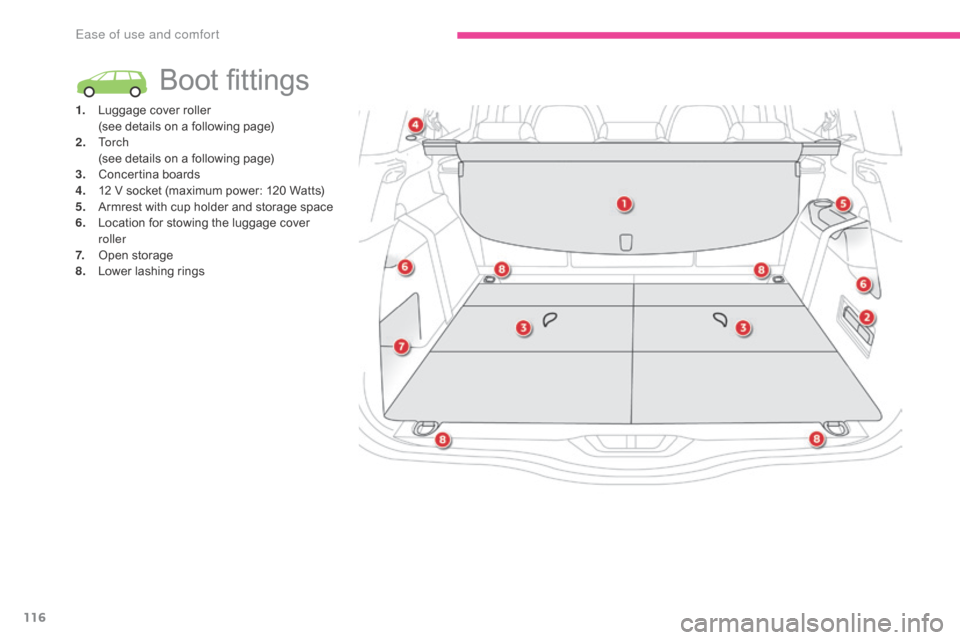

Boot fittings
1. Luggage cover roller (see details on a following page)
2.
T

o r c h
(

see details on a following page)
3.
C

oncertina boards
4.
1

2 V socket (maximum power: 120 Watts)
5.
A

rmrest with cup holder and storage space
6.
L

ocation for stowing the luggage cover
roller
7.
O

pen storage
8.
L

ower lashing rings
Ease of use and comfort

117

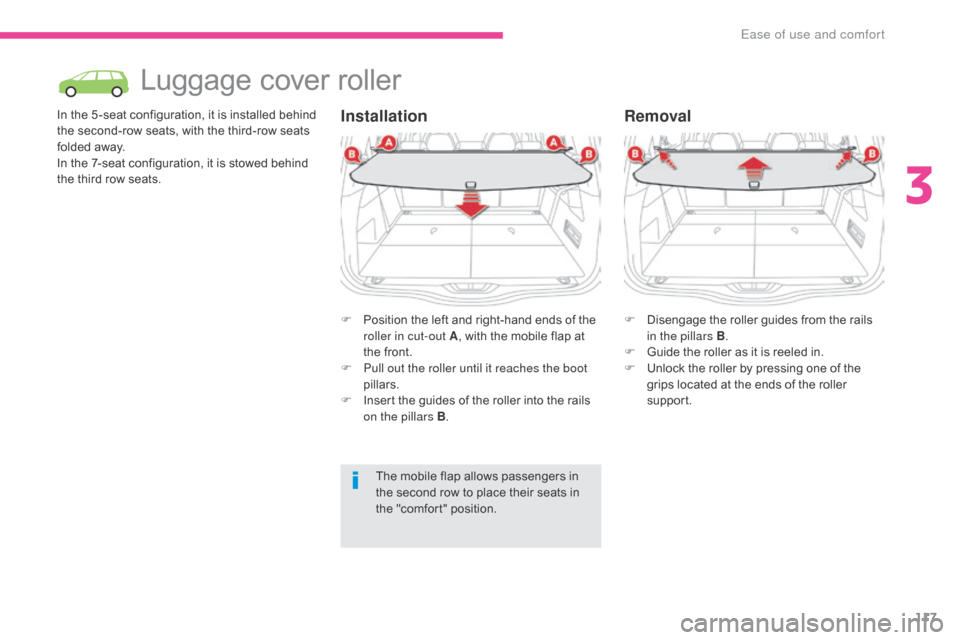

Luggage cover roller
In the 5 -seat configuration, it is installed behind
the second-row seats, with the third-row seats
folded away.
In the 7-seat configuration, it is stowed behind
the third row seats.F

P
osition the left and right-hand ends of the
roller in cut-out A , with the mobile flap at
the front.
F

P
ull out the roller until it reaches the boot
pillars.
F

I
nsert the guides of the roller into the rails
on the pillars B . F

D
isengage the roller guides from the rails
in the pillars B .
F

G
uide the roller as it is reeled in.
F

U
nlock the roller by pressing one of the
grips located at the ends of the roller
support.
The mobile flap allows passengers in
the second row to place their seats in
the "comfort" position.Installation Removal
3
Ease of use and comfort

118

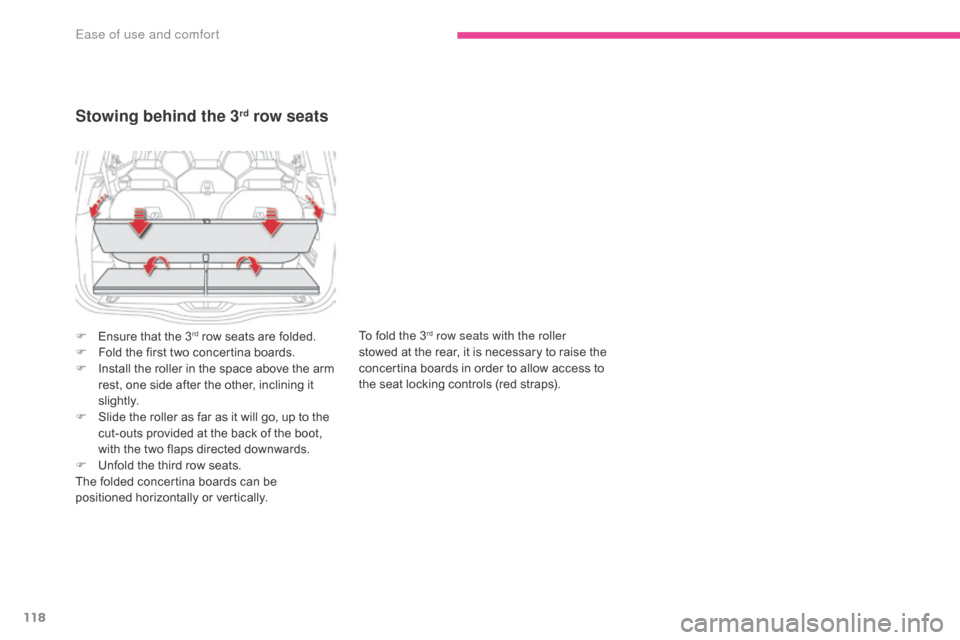

Stowing behind the 3rd row seats
To fold the 3rd row seats with the roller
stowed at the rear, it is necessary to raise the
concertina boards in order to allow access to
the seat locking controls (red straps).
F
E
nsure that the 3rd row seats are folded.
F
F
old the first two concertina boards.
F

I

nstall the roller in the space above the arm
rest, one side after the other, inclining it
s li g ht l y.
F

S

lide the roller as far as it will go, up to the
cut-outs provided at the back of the boot,
with the two flaps directed downwards.
F

U

nfold the third row seats.
The folded concertina boards can be
positioned horizontally or vertically.
Ease of use and comfort
