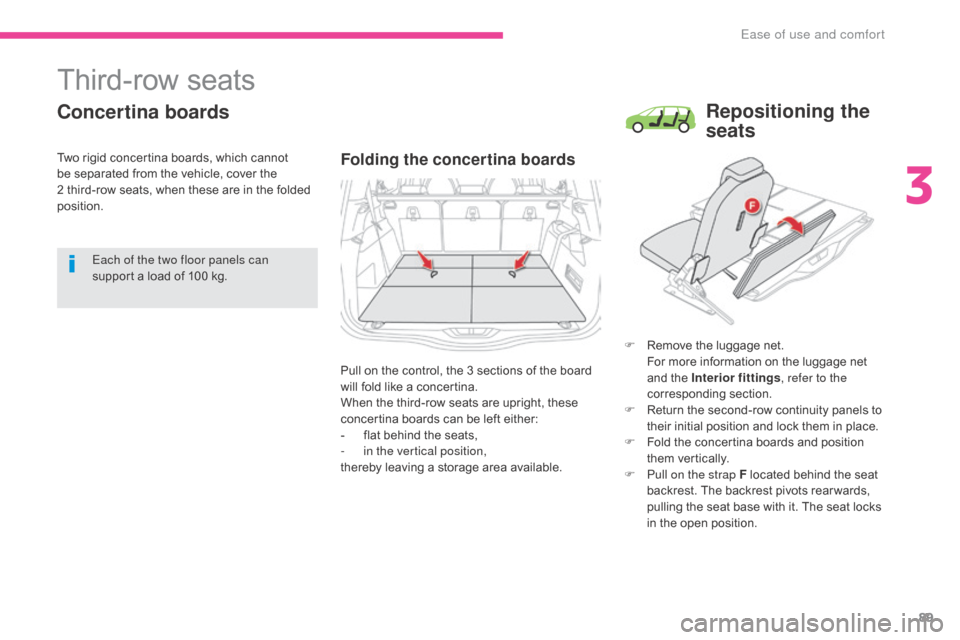

Third-row seats
Concertina boards
Folding the concertina boards
F Remove the luggage net.
F or more information on the luggage net
and the Interior fittings , refer to the
corresponding section.
F

R
eturn the second-row continuity panels to
their initial position and lock them in place.
F

F
old the concertina boards and position
them vertically.
F

P
ull on the strap F located behind the seat
backrest. The backrest pivots rear wards,
pulling the seat base with it. The seat locks
in the open position.
Each of the two floor panels can
support a load of 100 kg.
Pull on the control, the 3 sections of the board
will fold like a concertina.
When the third-row seats are upright, these
concertina boards can be left either:
-

f

lat behind the seats,
-

i

n the vertical position,
thereby leaving a storage area available.
Repositioning the
seats
Two rigid concertina boards, which cannot
be separated from the vehicle, cover the
2
third-row seats, when these are in the folded
position.
3
Ease of use and comfort

90
F Return the second-row continuity panels to their initial position and lock them.
F

L
ower the head restraints.
F

C
orrectly position the concertina board
vertically behind the seat.
F

C
heck that the seat belts for the 3
rd row
seats are correctly fixed to the loops and
are not folded.
F

P

ull the strap G , located at the bottom of
the seat backrest. The seat unlocks. Before moving the third-row seats,
return the rigid floor plates of the
second-row seats to the upright position
and lock them in place.
Do not try to fold a third-row seat that
has not first had the backrest fully
locked in place.
Do not leave objects either on or
underneath the seat bases of the third-
row seats when you are folding them.
Do not leave your hand on the control
G
as you fold the seats, as you risk
trapping your fingers.
Do not allow children to operate the
seats without supervision.
F

N
ext push the backrest gently for wards.
The backrest pivots, folding onto the seat
base. The seat base then folds into the
stowage area provided for that purpose.
F
R
eposition the concertina boards over the
folded seats.

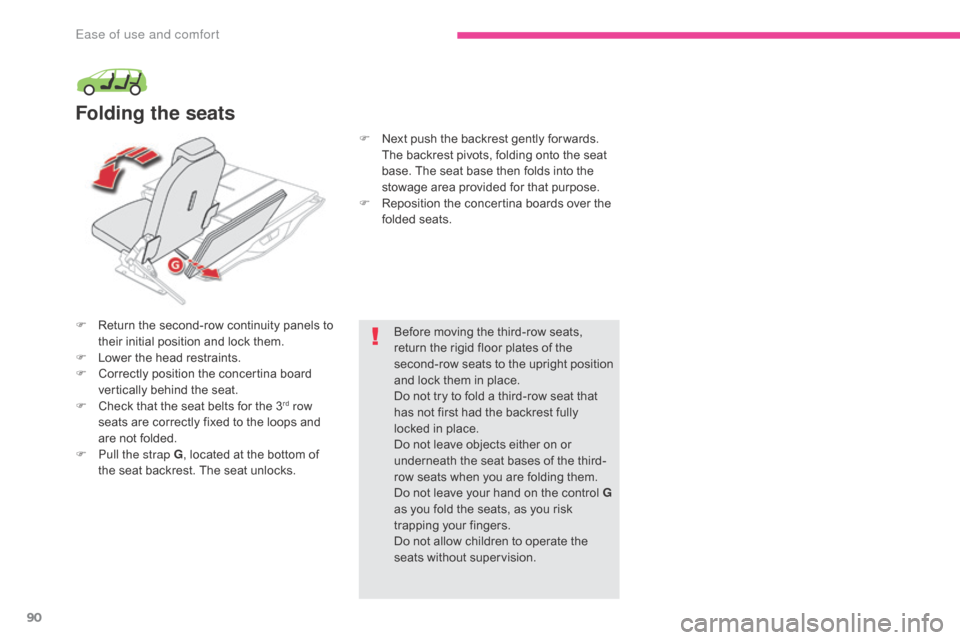

Folding the seats
Ease of use and comfort

91

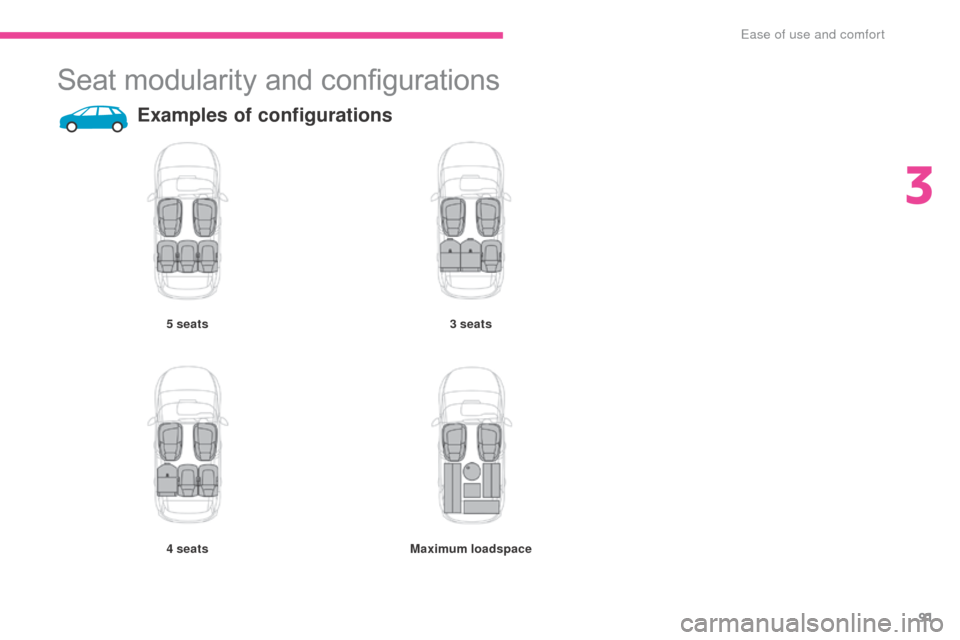

Seat modularity and configurations
Examples of configurations
5 seats
4 seats3 seats
Maximum loadspace
3
Ease of use and comfort

92

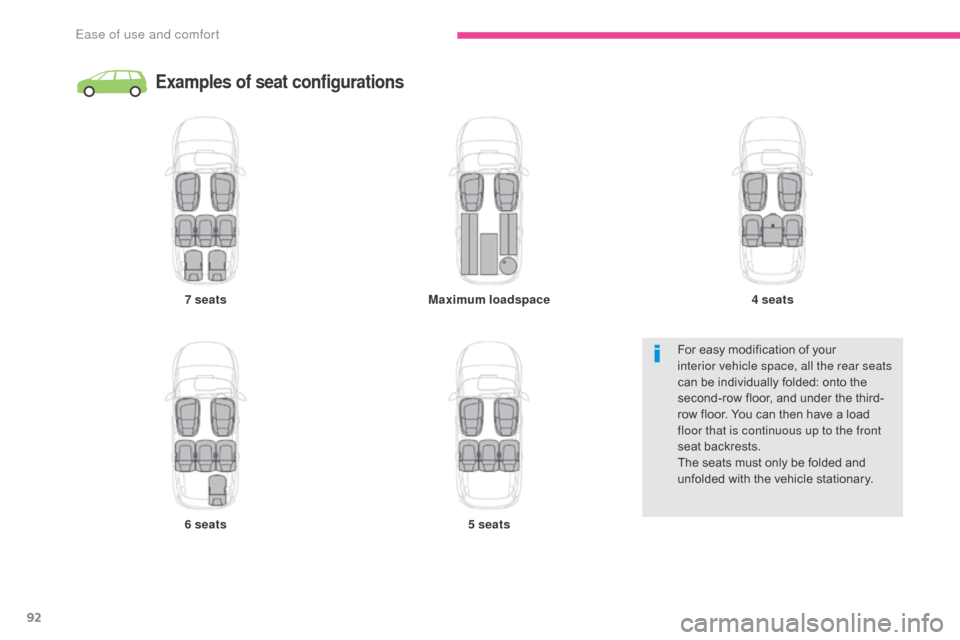

Examples of seat configurations
7 seats
6 seatsMaximum loadspace
5 seats 4 seats
For easy modification of your
interior
vehicle space, all the rear seats
can be individually folded: onto the
second-row floor, and under the third-
row floor. You can then have a load
floor that is continuous up to the front
seat backrests.
The seats must only be folded and
unfolded with the vehicle stationary.
Ease of use and comfort

93

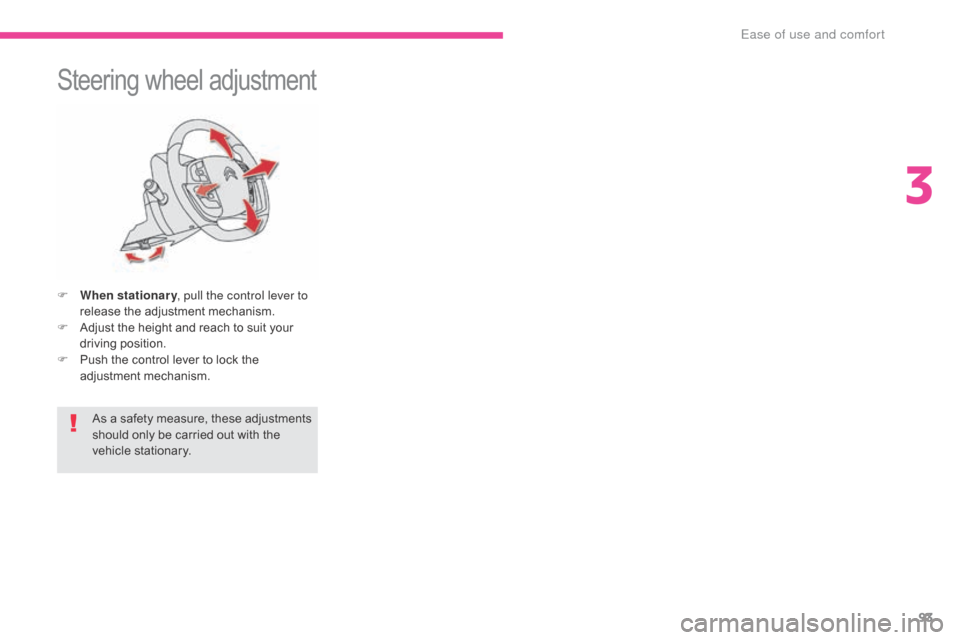

Steering wheel adjustment
F When stationary, pull the control lever to
release the adjustment mechanism.
F

A
djust the height and reach to suit your
driving position.
F

P
ush the control lever to lock the
adjustment mechanism.
As a safety measure, these adjustments
should only be carried out with the
vehicle stationary.
3
Ease of use and comfort

94
Ventilation
Air intake
The air circulating in the passenger
compartment is filtered and originates either
from the outside via the grille located at the
base of the windscreen or from the inside in air
recirculation mode.
Air treatment
The incoming air follows various routes
depending on the controls selected by the
driver:
-
d
irect arrival in the passenger
compartment (air intake),
-

p
assage through a heating circuit (heating),
-

p
assage through a cooling circuit (air
conditioning).
Control panel
The controls of this system are accessible
in the Air conditioning menu of the touch
screen


A.
The demisting/defrosting controls for the
windscreen and rear screen are located on the
left of the touch screen. 1. W
indscreen demisting-defrosting vents.
2. F ront quarter light demisting-defrosting
vents.
3.
F

ront side window demisting-defrosting
vents.
A

djustable side air vents.4. C
entral adjustable air vents.
5. A ir outlets for the front footwells.
6.
S

ide vents for the 2
nd row.
7. A
ir outlets for 2nd row footwells.
8. S
unshine sensor.
Air distribution
Ease of use and comfort

95
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F
T
o obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F

D
o not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
F

O
perate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F

E
nsure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
W

e recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F

T
o ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the maintenance and warranty guide.
F

I
f the system does not produce cold air, switch it off and contact a CITROËN dealer or a
qualified workshop.
Recommendations for ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
per fectly normal.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
Stop & Start
The heating and air conditioning
systems only work when the engine is
running.
To maintain a comfortable temperature
in the passenger compartment, you can
temporarily deactivate the Stop & Start
system.
For more information on Stop & Star t ,
refer to the corresponding section.
3
Ease of use and comfort

96
Heating
Temperature adjustment
F Press one of the arrows, or move the cursor from blue (cold) to red
(hot) to adjust the temperature to
your wishes.
Air flow adjustment
F Press one of these buttons to increase or decrease the speed
of the booster fan.
Air distribution adjustmentThe recirculation of interior air prevents exterior
odours and smoke entering the passenger
compartment.
This function also allows the air in the
passenger compartment to be heated or cooled
more quickly.
Windscreen.
Centre and side vents. Footwells. The air distribution can be varied by using
more than one button: illumination of the
button indicates that air is distributed in that
direction; no illumination indicates that air is not
distributed in that direction.
Pressing all three buttons gives an even
distribution in the passenger compartment.
Air intake / Air recirculation
F Press this button to select the
exterior air intake mode to the
passenger compartment.
Avoid driving for too long without
ventilation (risk of misting and
deterioration of air quality).
The heating system works only when the
engine is running.
Press the button for the Air conditioning

menu to display the page for the system
controls. The symbol for air flow (a fan) fills progressively
according to the air flow setting made.
By reducing the air flow to the minimum, you
are stopping ventilation of the passenger
compartment.
The air distribution in the passenger
compartment can be adjusted by combining the
use of several vents.
When the indicator lamp is off, air is taken from
outside the vehicle. When the indicator lamp is
on, the air inside the passenger compartment
is recirculated and the intake of air from outside
the vehicle is inhibited.
Ease of use and comfort

97
Dual-zone manual air conditioning with temperature regulation
The air conditioning system only works with the
engine running.
The temperature at the nozzles and vents
is regulated by the system according to the
temperature in the passenger compartment
and the temperature setting.
Press the button for the Air conditioning
menu to display the system controls page.Temperature adjustment
F Press one of these buttons to reduce (blue) or increase
(red) the value.
Air flow adjustment
Press one of these buttons to
increase or decrease the speed of
the air booster fan.
The driver and front passenger can each adjust
the temperature independently.
The value indicated corresponds to a level of
comfort and not to a precise temperature.
It is recommended that a difference between
left and right of more than 3 should be avoided. The air flow symbol (a fan) fills progressively
according to the quantity of air wanted.
By reducing the air flow to minimum, you are
stopping ventilation.
Avoid driving for too long without
ventilation (risk of misting and
deterioration of air quality).
3
Ease of use and comfort

98
Air intake / Air recirculation
The intake of exterior air prevents the formation
of mist on the windscreen and side windows.
The recirculation of interior air isolates the
passenger compartment from exterior odours
and smoke.F

P
ress this button to choose
how air enters the passenger
compartment.
Air conditioning On / Off
Switching on
Switching off
The air conditioning does not operate
when the air flow adjustment is set
to
off.F

P
ress this button to activate the
air conditioning system.
Avoid driving for too long with
recirculation of interior air (risk of
misting and deterioration of air quality). This function allows hot or cold air to be
delivered selectively and more quickly. The air conditioning is designed to operate
effectively in all seasons, with the windows closed.
It enables you to:
-
l

ower the temperature, in summer,
-
i

ncrease the effectiveness of the demisting in
winter, above 3°C.
F
P
ress this button again to
deactivate the air conditioning
system.
Air distribution adjustment
These buttons are used to arrange
the distribution of air in the passenger
compartment by combining several air outlets.
Windscreen.
The air distribution can be adapted by using
several buttons: illumination of the button
confirms the presence of fan boosted air in
the direction indicated, the button going off
indicates the absence of fan boosted air in the
direction indicated.
For a uniform distribution of air in the
passenger compartment, the three buttons can
be used simultaneously. Footwells.
Central and side vents.
When the indicator lamp is off, air is taken from
outside the vehicle. When the indicator lamp is
on, air is recirculated from inside the vehicle,
the intake for air outside the vehicle is inhibited. When the indicator lamp is on, the air
conditioning function is activated.
When the indicator lamp is off, the air
conditioning function is deactivated.
Ease of use and comfort
