key Citroen GRAND C4 PICASSO RHD 2017 2.G User Guide

60
Lost electronic key
Visit a CITROËN dealer with the vehicle's registration certificate, your personal identification documents and if possible the key code label.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a new key.
Electronic key
The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without
you being aware of it.
Do not repeatedly press the buttons of your electronic key out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
The electronic key cannot operate as a remote control when it is in the reader or even when the ignition is switched on.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), take the electronic key with you when you leave the vehicle, even for a short time.
Electrical interference
The electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
Don't forget to turn the wheel to lock the steering column.
When purchasing a second-hand vehicle
Have all of the keys in your possession paired by a CITROËN dealer, to ensure that only your keys allow your vehicle to be unlocked
and started.
Access

61

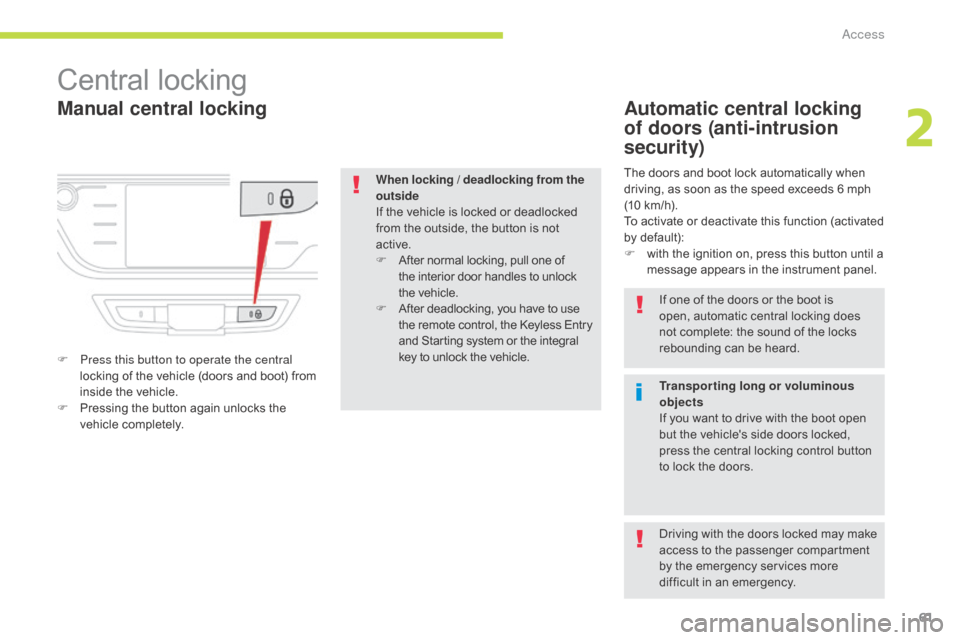

Manual central locking
Central locking
F Press this button to operate the central locking of the vehicle (doors and boot) from
inside the vehicle.
F

P
ressing the button again unlocks the
vehicle completely.
Automatic central locking
of doors (anti-intrusion
security)
The doors and boot lock automatically when
driving, as soon as the speed exceeds 6 mph
(10 km/h).
To activate or deactivate this function (activated
by default):
F

w
ith the ignition on, press this button until a
message appears in the instrument panel.
When locking / deadlocking from the
outside
If the vehicle is locked or deadlocked
from the outside, the button is not
active.
F

A

fter normal locking, pull one of
the interior door handles to unlock
the

vehicle.
F

A

fter deadlocking, you have to use
the remote control, the Keyless Entry
and Starting system or the integral
key to unlock the vehicle. If one of the doors or the boot is
open, automatic central locking does
not complete: the sound of the locks
rebounding can be heard.
Transporting long or voluminous
objects
If you want to drive with the boot open
but the vehicle's side doors locked,
press the central locking control button
to lock the doors.
Driving with the doors locked may make
access to the passenger compartment
by the emergency services more
difficult in an emergency.
2
Access

62
Doors
Opening
F After unlocking the vehicle using the remote control or the Keyless Entry and
Starting system, pull the door handle. F
P ull the front or rear door lever to open the
d o o r. If a door is not properly closed:
-

w
ith the engine running
, this
warning lamp and a message
appear in the instrument panel
(monochrome digital) for a
few seconds,
-
w
ith the vehicle moving
(speed
above 6 mph (10 km/h)), this
warning lamp and a message,
accompanied by an audible
signal, appear in the instrument
panel (monochrome digital
and 12 inch colour) for a few
seconds.
Closing
From outside From inside
Access

63
Back-up control
F Insert the key into the lock barrel to lock / unlock the door.
You can also apply this procedure for the
passenger doors. F
O pen the doors.
F F or the rear doors, check that the child lock
is not on.
F

I
nsert the key in the latch located on the
edge of the door and turn it an eighth of a
turn to the right for the right-hand door, and
to the left for the left-hand door.
L

ocking is effective when the slot is
horizontal.
F

C
lose the doors and check that the vehicle
has locked correctly from the outside.
Unlocking the passenger
doors
F Pull the interior door opening control.
For more information on the Child lock , refer
to the corresponding section.
To manually lock and unlock the doors in the event of a central locking or battery failure.
To ensure complete locking of the
vehicle, only disconnecting the battery
inhibits opening of the tailgate from the
outside.
Driver's door (locking /
unlocking)Locking the passenger doors
2
Access

64
Boot
Opening the tailgate
With the electronic key / remote
control
F With the vehicle unlocked or with the electronic key of the Keyless Entry and
Starting system in the zone covered, press
the tailgate control A .
F

Ra
ise the tailgate.
F

M

ake a long press on this button
to release the tailgate. If the
vehicle was locked, this action
first unlocks the vehicle.
F

Ra

ise the tailgate.
When selective unlocking is activated,
the electronic key must be close to the
rear of the vehicle.
Closing the tailgate
F Lower the tailgate using the interior grips.
F R elease the grips and press down on the
outside of the tailgate to close it.
If the tailgate is not properly closed:
The tailgate is not designed to take a
bicycle carrier. -

e
ngine running, this warning
lamp and a message appear
in the instrument panel
(monochrome digital) for a
few
seconds,
-

v
ehicle moving (speed
above 6 mph (10 km/h)), this
warning lamp and a message
appear in the instrument panel
(monochrome digital and 12
inch
colour) for a few seconds,
accompanied by an audible
signal.With the tailgate opening control
Access

66
or
Opening the tailgate with the
electronic key / remote control (A)
Opening the tailgate with the
"Keyless Entry and Starting"
system "B"
Opening the tailgate
F Make a long press on the remote control button.
F

P

ress button B on the tailgate, with the
electronic key in the zone covered.
When selective locking is activated, the
electronic key must be near the rear of
the vehicle.
By default, the tailgate opens
completely or alternatively to the
memorised position.
F

A

fter complete unlocking of the vehicle,
press control B on the tailgate.
The instruction is confirmed by an audible
signal.
Motorised closing
There are two possibilities:
F P ress and release the exterior control B .
or
The motorised tailgate has an anti-
pinch system that interrupts closing if it
encounters an obstacle.F

P
ress and then release button C .
There are several ways of operating the
motorised tailgate:
-

u

sing the Keyless Entry and Starting
electronic key (A) ,
-

u

sing the exterior control on the
tailgate
(

B),
-

u

sing the interior control on the tailgate (C) ,
-

b

y a movement of your foot, if your vehicle
has the hands-free tailgate access
function.
Motorised opening
For more information on Hands-free tailgate
access , refer to the corresponding section.
Operation
Operation of the tailgate can be
interrupted at any time:
-

b
y pressing
one of these
two


buttons,
or
-

b
y pressing the exterior control B .
After interruption of an operation,
another press on one of the controls
resumes the movement, with the
exception of a press on the remote
control button, which only allows
opening.
Access

70
Recommendations related to the "Hands-free tailgate
access" function
If several passes of your foot below the rear
bumper fail to open the tailgate, wait a few
seconds before starting again.
The function is automatically deactivated in the
event of heavy rain or accumulation of snow.
If the function fails to operate, check that
the electronic key is not exposed to strong
electromagnetic inter ference (a smartphone, ...).
The function may not work correctly with a
prosthetic leg.
The function may not work correctly if your
vehicle is fitted with a towbar. In some circumstances, the tailgate may only
open or close, particularly if:
-

y
our vehicle is fitted with a towbar,
-

y
ou hitch or unhitch a trailer,
-

y
ou fit or remove a bicycle carrier,
-

y
ou load or unload bicycles from a bicycle
c a r r i e r,
-

y
ou place or lift something behind the
vehicle,
-

a
n animal approaches the rear bumper,
-

y
ou are washing your vehicle,
-

a s
ervice is being carried out on your
vehicle,
-

y
ou are accessing the spare wheel
(depending on version).
To avoid such operating problems, keep the
electronic key away from the recognition zone
or deactivate "Hands-free tailgate access".
Ensure that no object or person might prevent
the correct opening or closing of the tailgate.
Be particularly aware of children when
operating the tailgate.
Access

71
For all work on the alarm system,
contact a CITROËN dealer or a
qualified workshop.
AlarmSystem which protects and provides a deterrent against theft and break-ins. It provides the following types of monitoring:
- Exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot or the bonnet...
- Interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.
Self-protection function
The system checks for the
disconnection of any of its components.
The alarm is triggered if the battery,
the button or the siren wiring is
disconnected or damaged.
Locking the vehicle with full
alarm system
Activation
If an opening (door, boot, bonnet...) is not
closed fully, the vehicle is not locked but the
exterior perimeter monitoring will be activated
after a delay of 45 seconds, at the same time
as the interior volumetric monitoring.F

L
ock the vehicle using the
remote control.
F
Switch off the ignition and get out of the vehicle.
or
F
L ock the vehicle using the "Keyless Entry
and Starting" system.
The monitoring system is active: the indicator
lamp in the button flashes once per second
and the direction indicators come on for about
2 seconds.
After a command to lock the vehicle using
the remote control or the Keyless Entry
and Starting system, the exterior perimeter
monitoring is activated after a delay of
5
seconds, the interior volumetric monitoring
after 45 seconds.
2
Access

72
OFF
Locking the vehicle with exterior perimeter
monitoring only
Deactivate the interior volumetric monitoring
to avoid unwanted triggering of the alarm in
certain cases such as:
-
l
eaving a window partially open,
-

w
ashing your vehicle,
-

c
hanging a wheel,
-

t
owing your vehicle,
-

t
ransport on a ferry.
Deactivating the volumetric
monitoring
F Switch off the ignition and within ten seconds press this button
until its indicator lamp is on fixed.
F

G

et out of the vehicle.
F

I

mmediately lock the vehicle using the
remote control or the "Keyless Entry and
Starting" system.
Only the exterior perimeter protection system is
active: the indicator lamp in the button flashes
once per second.
To be effective, this deactivation must be done
every time the ignition is switched off.
In the case of automatic locking of the
vehicle (which occurs after a period
of 30 seconds if a door or the boot is
not opened), the monitoring system is
reactivated automatically.
Deactivation
F Press one of the unlocking buttons on the
remote control:
short press
long press
or
F

U
nlock the vehicle using the "Keyless Entry
and Starting" system.
The monitoring system is deactivated: the
indicator lamp in the button is off and the
direction indicators flash for about 2 seconds.
Reactivating the interior
volumetric monitoring
F Deactivate the exterior perimeter monitoring by unlocking the vehicle using
the remote control or the Keyless Entry and
Starting system.
The indicator lamp in the button goes off.
F

R
eactivate the full alarm system by locking
the vehicle using the remote control or the
"Keyless Entry and Starting" system.
The indicator lamp in the button flashes once
per second again.
Access

73
Triggering of the alarm
This is indicated by sounding of the siren
and flashing of the direction indicators for
thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
When the vehicle is unlocked using the remote
control or the Keyless Entry and Starting
system, rapid flashing of the indicator lamp
in the button informs you that the alarm was
triggered during your absence. When the
ignition is switched on, this flashing stops
immediately.
Failure of the remote control
To deactivate the monitoring functions:
F

U
nlock the vehicle using the key (integral
with the remote control) in the driver's door
lock.
F

O
pen the door; the alarm is triggered.
F

S
witch on the ignition; the alarm stops. The
indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key (integral with the remote control) in the
driver's door lock.
Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a CITROËN dealer or a
qualified workshop.
Automatic activation*
2 minutes after the last door or the boot is
closed, the system is activated automatically.
F

T
o avoid triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the Keyless Entry and Starting
system.
* Depending on the country of sale.
2
Access
