Citroen JUMPER DAG 2008 2.G Owner's Manual

109
5
SAFETY
Air bags
Good practice

If your vehicle is fitted with front, side
and curtain air bags, in order for these to
be fully effective, observe the following
safety rules:
Wear a correctly adjusted seat belt.
Sit in a normal upright position.
Do not leave anything between the
occupants and the air bags (child, animal,
object...).
This could hamper the operation of the air
bags or injure the occupants.
All work on the air bag systems is strictly
prohibited unless it is carried out by qualified
personnel of the CITROËN network.
After an accident or if the vehicle has been
stolen or broken into, have the air bag
systems checked. Front air bags
Do not drive holding the steering wheel
by its spokes or resting your hands on the
centre part of the wheel.
Passengers must not place their feet on the
fascia.
Smoke as little as possible; deployment of
the air bags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel
or hit it violently.
Side air bags
Only put approved covers on the front seats.
Consult a CITROËN dealer.
Do not fix or glue anything to the front seat
backs. This could cause injury to the chest
or arms when the side air bag is deployed.
Do not sit with the upper part of the body
any nearer to the door than necessary. Curtain air bags
Do not fix or glue anything to the pillars or
the roof. This could cause injury to the head
when the curtain air bag is deployed.
Do not remove the bolts from the grab
handles installed on the roof, they play a
part in securing the curtain air bags.

110
Child safety
CHILD SAFETY
GENERAL POINTS RELATING TO CHILD SEATS
Although one of CITROËN 's main criteria
when designing your vehicle, the safety of
your children also depends on you.
For maximum safety, please follow these
precautions:
- in accordance with Directive 2003/20, all
children under the age of 12 or less
than one metre fifty tall must travel in
approved child seats suited to their
weight , on seats fitted with a seat belt
or ISOFIX mountings.
- statistically, the safest seats in your
vehicle for the transportation of
children are the rear seats,
- a child weighing less than 9 kg must
travel in the "rearwards-facing"
position in the front.

CITROËN
recommends that children should
travel in the rear seats of your vehicle:
- "rearwards-facing"
up to the age of 2 ,
- "forwards-facing" from
the age of 2.
Chapter 4, "MODE"
INSTALLING A CHILD SEAT USING A THREE POINT SEAT
BELT
"Rearwards-facing"
Do not forget to disarm the air
bag before installing the child.
When a "rearwards-facing" child
seat is installed on the front passenger
seat , it is essential that the passenger
air bag is disarmed. Otherwise, the child
would risk being seriously injured or
killed if the air bag were to inflate . "Forwards-facing"
When a "forwards-facing" child
seat is installed on the
front
passenger seat , leave the
passenger air bag armed.
The rules for transporting children are
specific to each country. Consult the current
legislation in your country.
Please consult the list of seats approved
in your country. The Isofix mountings, the
rear seats, the passenger air bag and the
disarming of this air bag depend on the
version sold.

111
5
SAFETY
Child safety
The child seats function is shared by
the entire CITROËN range. However,
each individual model has its own special
features.
"ISOFIX" MOUNTINGS
These seats are fitted with
ISOFIX mountings.
If your vehicle is fitted with this function, the
passenger air bag must be disarmed using
the trip computer MODE button.
The intermediate longitudinal position is not
adjustable with the 2-seat bench.
The passenger must not travel with a child
on his lap. This ISOFIX mounting system guarantees
reliable, safe and fast fitting of the child seat
in your vehicle.
These are two rings located between the
seat back and the seat cushion.

The ISOFIX child seats are fitted with two
locks which are secured easily on these
rings.

111
5
SAFETY
Child safety
The child seats function is shared by
the entire CITROËN range. However,
each individual model has its own special
features.
"ISOFIX" MOUNTINGS
These seats are fitted with
ISOFIX mountings.
If your vehicle is fitted with this function, the
passenger air bag must be disarmed using
the trip computer MODE button.
The intermediate longitudinal position is not
adjustable with the 2-seat bench.
The passenger must not travel with a child
on his lap. This ISOFIX mounting system guarantees
reliable, safe and fast fitting of the child seat
in your vehicle.
These are two rings located between the
seat back and the seat cushion.

The ISOFIX child seats are fitted with two
locks which are secured easily on these
rings.

112
Child safety

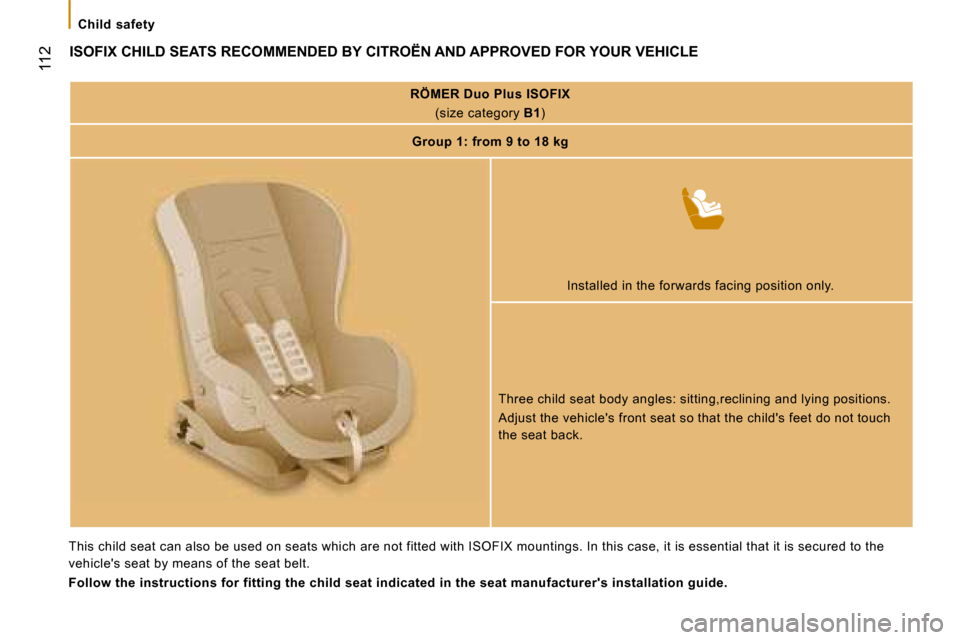

ISOFIX CHILD SEATS RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE

RÖMER Duo Plus ISOFIX
(size category B1 )

Group 1: from 9 to 18 kg
Installed in the forwards facing position only.
Three child seat body angles: sitting,reclining an d lying positions.
Adjust the vehicle's front seat so that the child's feet do not touch
the seat back.
This child seat can also be used on seats which ar e not fitted with ISOFIX mountings. In this case, it is essential that it is secured to the
vehicle's seat by means of the seat belt.

Follow the instructions for fitting the child seat indicated in the seat manufacturer's installation g uide.

113
5
SAFETY
Child safety

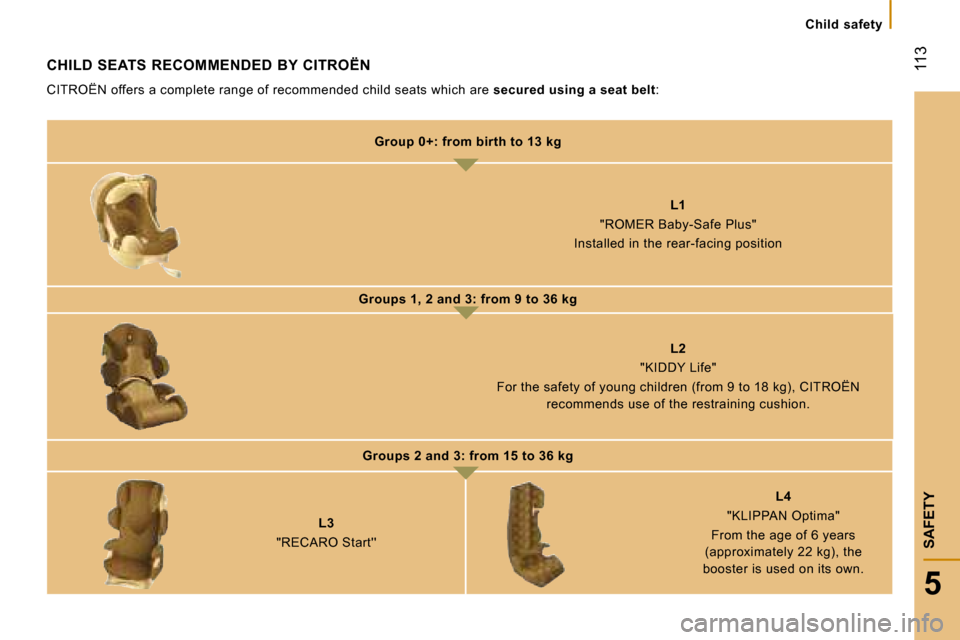

CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended c hild seats which are secured using a seat belt :

Group 0+: from birth to 13 kg

L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position

Groups 1, 2 and 3: from 9 to 36 kg

L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), CITROËN
recommends use of the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the
booster is used on its own.

Child safety
INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT
In accordance with the European regulation (Directive 2000/3), this table indicates the options for installing child seats secured using a seat
belt and universally approved in accordance with th e weight of the child and the seat in the vehicle.

Seat
Weight of the child and indicative age

Under 13 kg
(groups 0 ( a ) and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passengerseat ( b )
U U U U
Front passengerbench seat with centreand side seat ( b )
U U U U
Side seats in rows 2 and 3
U U U U
Centre seat in rows 2 and 3
U U U U

a: Group 0: from birth to 10 kg.

b: consult the legislation in force in your country before installing your child on this seat.

U: seat suitable for the installation of a child sea t secured using a seat belt and universally approve d, "rear facing" and/or "forward facing".

115
5
SAFETY
Child safety
ADVICE ON CHILD SEATS
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child's body to a minimum ,
even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle's seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent. Disarm the passenger air bag when a "rear
facing" child seat is installed on the front
seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag were
to inflate.
Installing a booster seat
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with the windows
closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the doors,
use the "Child Lock". Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds to the rear windows.

116
Towing a trailer
TOWING A TRAILER, CARAVAN, BOAT, ETC...
For more information about weights, refer to
the administrative documents
(V5 registration document, ...)
Distribution of loads: distribute the load in
the trailer so that the heaviest objects are as
close as possible to the axle and the nose
weight is close to the maximum authorised
without, however, exceeding it.
Driving advice
A towed vehicle must free wheel: gearbox in
neutral.

117
6
ACCESSORIES
Towing a trailer

Cooling: towing a trailer on a slope
increases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on the
engine speed.
On the contrary, use a high gear to lower the
engine speed and reduce your speed.
In all cases, pay attention to the coolant
temperature.
Tyres: check the tyre pressures of the
towing vehicle (see the "Identification
features" section of chapter 9) and of
the trailer, observing the recommended

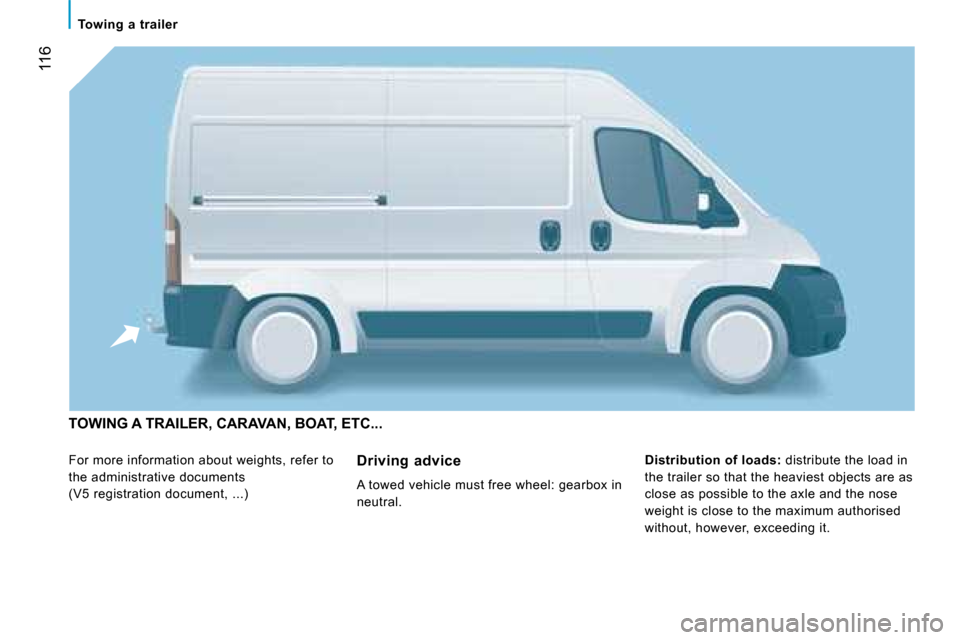

pressure. Towbar
We recommend the use of original
CITROËN towbars and their harnesses,
which have been tested and approved from
the design stage of your vehicle and that
the fitting of this equipment is entrusted to a
CITROËN dealer.
If this equipment is not fitted by a
CITROËN dealer, it is imperative that it is
fitted using the electrical pre-equipment
installed at the rear of the vehicle and
in accordance with the manufacturer's
instructions.
Good practice
In certain cases of particularly arduous
use (towing the maximum load up a steep
slope in high temperatures), the engine
automatically limits its power. In this
case, the automatic cutting off of the air
conditioning allows the engine power to be
recovered.
If the coolant temperature
warning light comes on, stop the
vehicle and switch off the engine
as soon as possible.
See the "Levels" section of chapter 7.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake gradually.

Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.

ABS: the system only controls the vehicle,
not the trailer.

Rear parking assistance: the assistance
does not function while the vehicle is towing.
