Mode
73
4
IN-CAR TECHNOLOGY

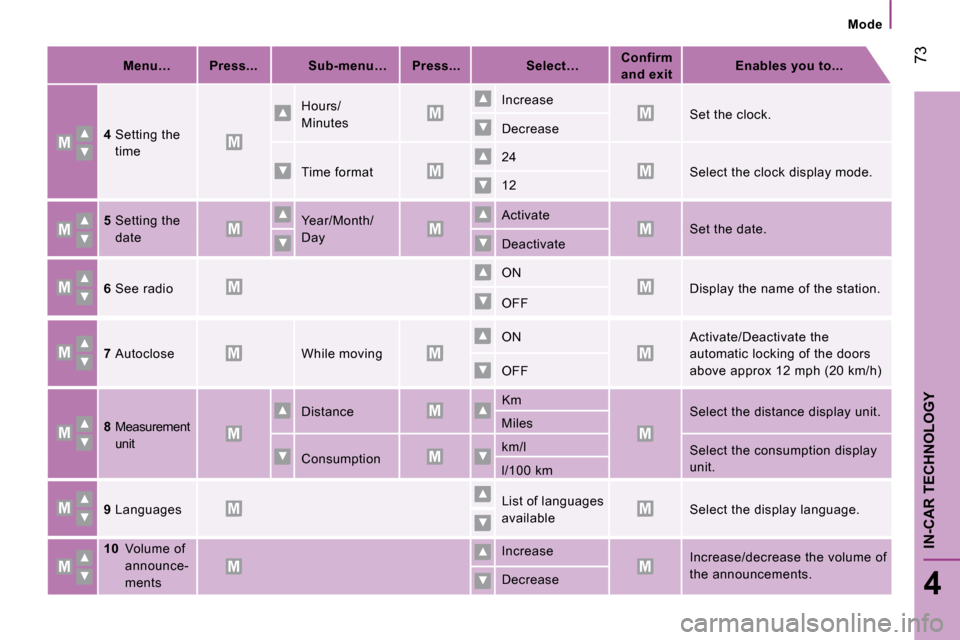

Menu… Press... Sub-menu… Press... Select…
Confirm
and exit
Enables you to...

4 Setting the
time
Hours/
Minutes
Increase
Set the clock.
Decrease
Time format 24
Select the clock display mode.
12

5 Setting the
date Year/Month/
Day Activate
Set the date.
Deactivate

6 See radio
ON
Display the name of the station.
OFF
7 Autoclose
While moving ON
Activate/Deactivate the
automatic locking of the doors
above approx 12 mph (20 km/h)
OFF

8 Measurement
unit

Distance
Km
Select the distance display unit.
Miles
Consumption km/l
Select the consumption display
unit.
l/100 km

9 Languages List of languages
available Select the display language.
10
Volume of
announce-
ments

Increase
Increase/decrease the volume of
the announcements.
Decrease

74
Mode
Menu... Press... Sub-menu… Press... Select…
Confirm
and exit
Enables you to...

11 Volume of
the buttons Increase
Increase/decrease the volume of
the buttons.
Decrease
12 Service
Service (Km/
Miles before oil
change)
Display the kilometres/miles
remaining before the next oil
change.
Oil Display the oil level.

13 Passenger
air bag ON
Yes
Activate the passenger air bag
No
OFF Yes
Disarm the passenger air bag.
No

14 Exit from
menu Exit from the menu. Press the
arrow at the bottom to go to the
first menu.

kmC I T Y
Parking assistance
75
4
IN-CAR TECHNOLOGY
AUDIBLE REAR PARKING ASSISTANCE
If fitted on your vehicle, the system consists
of four proximity sensors, installed in the
rear bumper.
They detect any obstacle: person, vehicle,
tree, fence, behind the vehicle during the
manoeuvre.
However, objects the size or thickness of
which are detected at the beginning of the
manoeuvre will no longer be detected at the
end of the manoeuvre: blind spots between
and below the sensors. Examples: stake,
roadworks cone or pavement post. Engage reverse gear
The proximity information is indicated by an
audible signal which becomes more rapid as
the vehicle approaches the obstacle.
When the distance between the rear of the vehicle
and the obstacle is less than approximately thirty
centimetres, the audible signal becomes continuous.

The system cannot, in any circumstances,
take the place of the vigilance and
responsibility of the driver.
Stop the assistance
Change to neutral. Operating fault
If this warning light comes on on
the instrument panel, contact a
CITROËN dealer.
If your vehicle is fitted
with this display, a
message appears.
Good practice
In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or
snow.

76
Reversing camera
REVERSING CAMERA
If your vehicle is fitted with this camera, it
is located at the rear of the van, next to the
third brake light.
It sends views to the screen installed
in the cab. This rear vision is an aid to
manoeuvring. Screen
The camera sends the images to a 4 inch or
6.5 inch adjustable colour LCD which takes
the place of the interior mirror.
Press the button and place the screen in the
required position.
Activation
With the key in the running position, unfold
the screen.
The camera comes into operation when
reverse gear is engaged and remains active
up to approximately 9 mph (15 km/h). It is
deactivated above 11 mph (18 km/h).
When a forward gear is engaged, the last
image remains displayed for approximately
5 seconds then switches off.
Fold the screen. Buttons
Brightness adjustment.
Back-lighting adjustment.
ON/OFF enables you to see rear
views without engaging reverse
gear.

Reversing camera
77
4
IN-CAR TECHNOLOGY
Initial settings With reverse gear not engaged,
press and hold the ON/OFF
button for approximately
3 seconds. The button
flashes twice to confirm the
reinitialisation.
Alarm display on the screen
In the ON position, information in text
format accompanies the manoeuvre and is
displayed on the screen:
- each time reverse gear is engaged, a message appears before the first view is
transmitted,
- at 11 mph (18 km/h) in reverse gear, the rear view disappears and the
screen switches to "Stand by". The view
appears again when the vehicle returns
to a speed below 9 mph (15 km/h).
Change of language
With reverse gear not engaged, press
the ON/OFF button and any other button
simultaneously.
Scroll through the languages by pressing
ON/OFF.
When the language has been selected, wait
approximately 3 seconds for it to be stored. Good practice
When vehicle conditions are optimum
(position on the road, loading level) the
maximum area of visibility covered by the
camera has a field depth approximately 3 m
long and 5.5 m wide.
The area of visibility may vary depending on
the external weather conditions (brightness,
rain, snow, fog, ...), the load in the vehicle
and the position of the vehicle on the road.
Please store the screen in its housing when
no longer in use.
When cleaning the camera and the screen,
avoid using a detergent or a tool which may
scratch the glass.
Use a non-abrasive cloth or a small brush.
Following a collision, if the screen glass has
cracked and allows liquid crystal to flow out:
do not touch it.
If you have come into contact with it, quickly
wash the contaminated part of the body with
soapy water.
Contact a CITROËN dealer to have the
screen repaired.

78
Pneumatic suspension
PNEUMATIC SUSPENSION
If your vehicle is fitted with the pneumatic
suspension, you can adjust the height of
the rear sill to make loading and unloading
easier.
The control pad is located on the fascia.
There is a nominal level as well as 6 sill
adjustment levels, raising (from +1 to +3) or
lowering (from -1 to -3). Each level reached
is indicated on the instrument panel display. Manual adjustment of the loading
sill
Raise: upwards adjustment of the
platform sill
Press the control, release to
stop the movement. Each press
increases by one level: +1 to +3.
Lower: downwards adjustment of
the platform sill Press the control, release to stop
the movement.
Each press decreases by one
level: -1 to -3. Return to the optimum sill height
Press the same number of times in reverse
as the level of the position displayed.
Warning light
Refer to the "Instruments and controls"
section of chapter 2.
Good practice
Driving with the sill too high or too low risks
damaging the components under the body.
You must avoid this control in the following
circumstances:
- when working underneath the vehicle,
- when changing a wheel,
- when the vehicle is being transported by lorry, train, ferry, boat, ...

Chronotachograph
79
4
IN-CAR TECHNOLOGY
CHRONOTACHOGRAPH
If your vehicle is fitted with a
chronotachograph, this permits storing of
all of the data relating to the vehicle in the
equipment and on a card inserted in it.
Example: at the beginning of each journey
or change of team. When the card is inserted, all of the data
can be:
- displayed on the tachograph screen,
- printed,
- transferred to external storage media via
an interface. For further information, refer to the
documents supplied by the manufacturer of
the chronotachograph.
If your vehicle is fitted with a
chronotachograph, disconnection of the
negative (-) terminal of the battery (located
under the floor on the left-hand side, in the
cab) is recommended if the vehicle is not to
be used for a period of more than 5 days.

80
Audio equipment

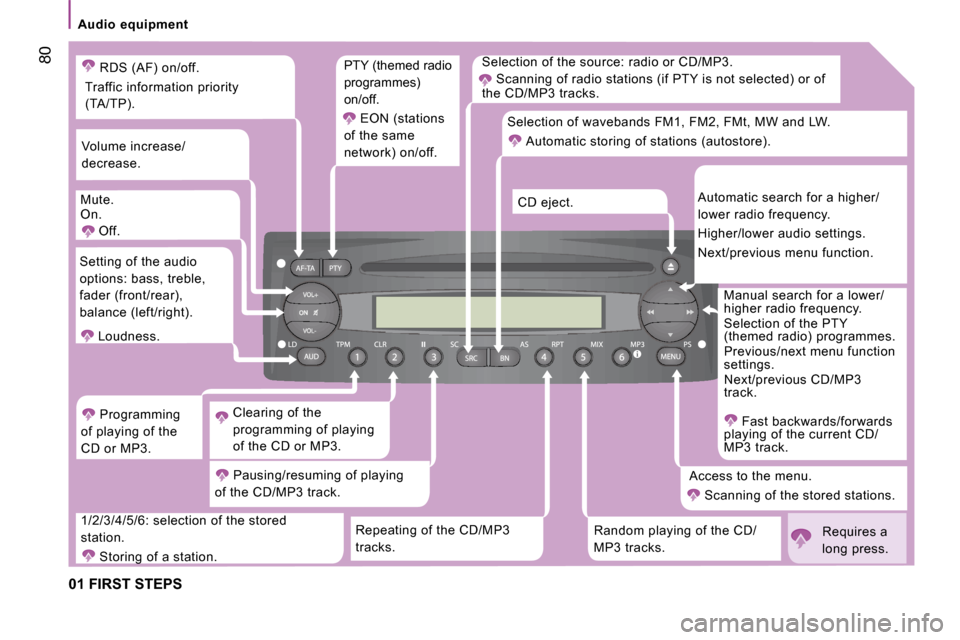

01 FIRST STEPS
Selection of the source: radio or CD/MP3. Scanning of radio stations (if PTY is not selected ) or of
the CD/MP3 tracks.
Repeating of the CD/MP3
tracks. Random playing of the CD/
MP3 tracks. Access to the menu.
Scanning of the stored stations. Manual search for a lower/
higher radio frequency.
Selection of the PTY
(themed radio) programmes.
Previous/next menu function
settings.
Next/previous CD/MP3
track.
Fast backwards/forwards
playing of the current CD/
MP3 track.
Automatic search for a higher/
lower radio frequency.
Higher/lower audio settings.
Next/previous menu function.
CD eject.
Selection of wavebands FM1, FM2, FMt, MW and LW.
Automatic storing of stations (autostore).
1/2/3/4/5/6: selection of the stored
station. Storing of a station. Pausing/resuming of playing
of the CD/MP3 track. Clearing of the
programming of playing
of the CD or MP3.
Programming
of playing of the
CD or MP3.
Setting of the audio
options: bass, treble,
fader (front/rear),
balance (left/right).
Loudness.
Volume increase/
decrease.
Mute.
On. Off. PTY (themed radio
programmes)
on/off.
EON (stations
of the same
network) on/off.
RDS (AF) on/off.
Traffic information priority
(TA/TP).
Requires a
long press.

Audio equipment
4
IN-CAR TECHNOLOGY

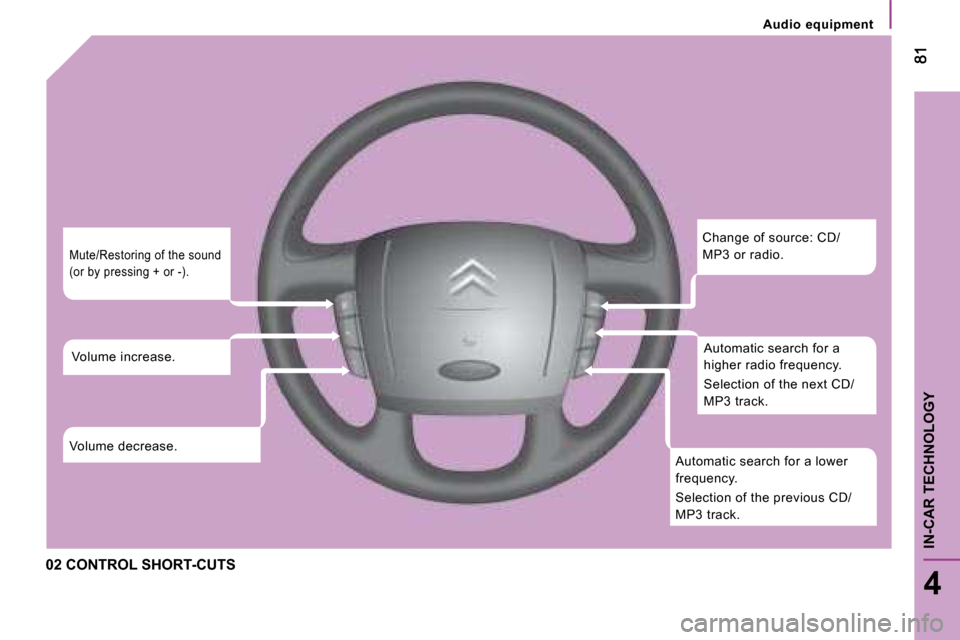

02 CONTROL SHORT-CUTS
Change of source: CD/
MP3 or radio. Automatic search for a
higher radio frequency.
Selection of the next CD/
MP3 track.
Automatic search for a lower
frequency.
Selection of the previous CD/
MP3 track.
Mute/Restoring of the sound
(or by pressing + or -).
Volume increase.
Volume decrease.

82

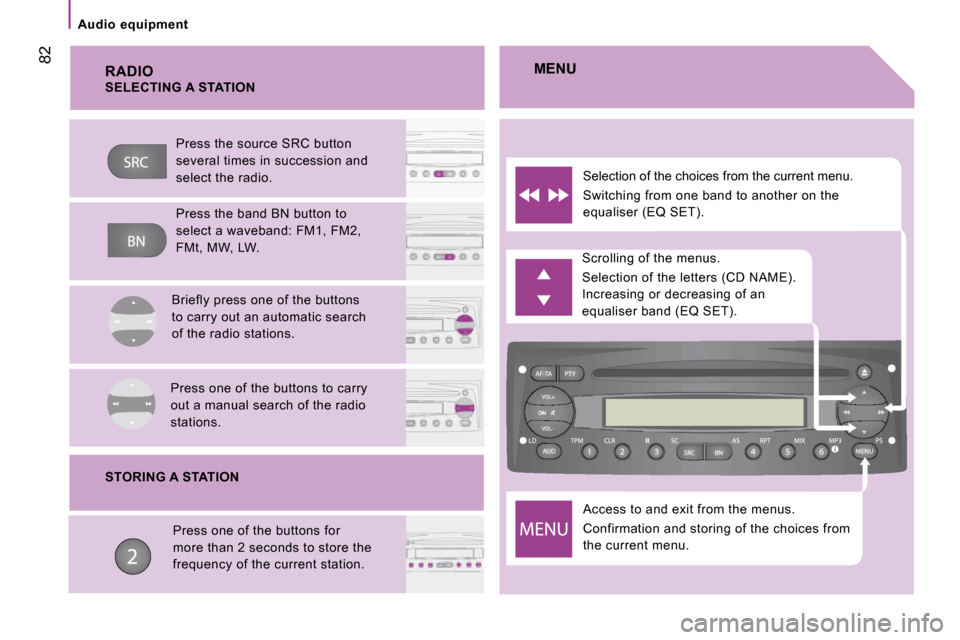

Audio equipment RADIO
Access to and exit from the menus.
Confirmation and storing of the choices from
the current menu.
Scrolling of the menus.
Selection of the letters (CD NAME).
Increasing or decreasing of an
equaliser band (EQ SET).
Selection of the choices from the current menu.
Switching from one band to another on the
equaliser (EQ SET).
MENU
SELECTING A STATION
Press the source SRC button
several times in succession and
select the radio.
Press the band BN button to
select a waveband: FM1, FM2,
FMt, MW, LW.
Briefly press one of the buttons
to carry out an automatic search
of the radio stations.
Press one of the buttons to carry
out a manual search of the radio
stations.
STORING A STATION Press one of the buttons for
more than 2 seconds to store the
frequency of the current station.
