Page 178 of 194
176
Changing a fuse
RIGHT-HAND SIDE FASCIA PANEL FUSES
- T i l t t h e s t o r a g e c o m p a r t m e n t t h e n p u l l i t f i r m l y t o a c c e s s t h e f u s e s .
Fuses A (amps) Allocation
1 15 R e a r w i p e r
2 - Free
3 5 A i r b a g c o n t r o l u n i t
4 10 S t e e r i n g w h e e l a n g l e s e n s o r , D i a g n o s t i c s o c k e t , E S P s e n s o r ,
M a n u a l v e n t i l a t i o n , C l u t c h s w i t c h , H e a d l a m p b e a m h e i g h t ,
P a r t i c l e e m i s s i o n f i l t e r p u m p
5 30 E l e c t r i c m i r r o r s ,
P a s s e n g e r e l e c t r i c w i n d o w m o t o r
6 30 F r o n t e l e c t r i c w i n d o w s s u p p l y
7 5 C o u r t e s y l i g h t s a n d g l o v e b o x l i g h t
8 20 M u l t i f u n c t i o n d i s p l a y , A n t i - t h e f t a l a r m s i r e n ,
A u d i o e q u i p m e n t , C o m p a c t d i s c c h a n g e r ,
A u d i o / t e l e p h o n e , T r a i l e r f u s e b o x ( a c c e s s o r y )
9 10 R o w 2 a c c e s s o r i e s s o c k e t
10 30 R e a r r i d e h e i g h t c o r r e c t o r , S t e e r i n g w h e e l s w i t c h i n g ,
I n s t r u m e n t p a n e l
11 15 D i a g n o s t i c s o c k e t , I g n i t i o n s w i t c h
12 15 H a n d s - f r e e k i t , A i r b a g c o n t r o l u n i t ,
P a r k i n g a s s i s t a n c e c o n t r o l u n i t
13 5 E n g i n e f u s e b o x , T r a i l e r f u s e b o x
14 15 R a i n s e n s o r , R e a r v e n t i l a t i o n , A u t o m a t i c a i r c o n d i t i o n i n g ,
I n s t r u m e n t p a n e l
15 30 L o c k i n g / u n l o c k i n g / d e a d l o c k i n g o f t h e a c c e s s e s
16 - Free
17 40 H e a t e d r e a r s c r e e n , H e a t e d m i r r o r s
Page 179 of 194
Changing a fuse
TROUBLESHOOTING
8
PASSENGER COMPARTMENT FUSES
- U n c l i p t h e b a t t e r y c o m p a r t m e n t c o v e r .
- R e m o v e t h e r e d b a t t e r y t e r m i n a l ( + ) .
When you have finished, close the cover
carefully.
Fuses A (amps) Allocation
1 30 Heated seats
2 20 R o w 3 1 2 V s o c k e t
3 40/50 T r a i l e r f u s e b o x ( a c c e s s o r y )
4 - Free
36 15 H i n g e d d o o r l o c k s
37 10 H i n g e d d o o r l o c k s
38 20 H i n g e d d o o r r e a r w i p e r
39 10 R e a r v e n t i l a t i o n
40 5 F o l d i n g m i r r o r s
Page 180 of 194

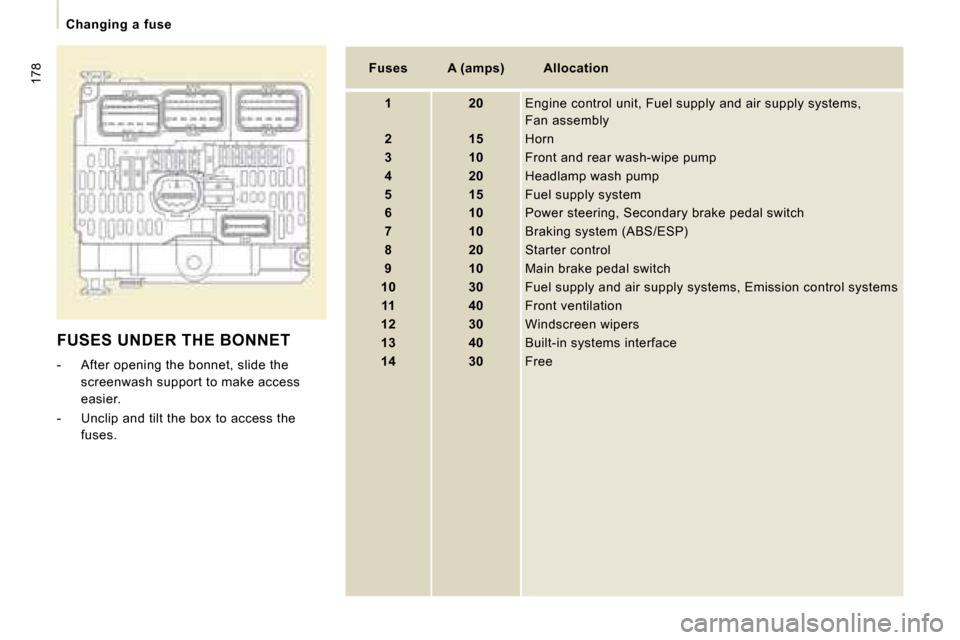

FUSES UNDER THE BONNET
- A f t e r o p e n i n g t h e b o n n e t , s l i d e t h e s c r e e n w a s h s u p p o r t t o m a k e a c c e s s
e a s i e r .
- U n c l i p a n d t i l t t h e b o x t o a c c e s s t h e f u s e s .
Fuses A (amps) Allocation
1 20 E n g i n e c o n t r o l u n i t , F u e l s u p p l y a n d a i r s u p p l y s y s t e m s ,
F a n a s s e m b l y
2 15 Horn
3 10 Front and rear wash-wipe pump
4 20 Headlamp wash pump
5 15 F u e l s u p p l y s y s t e m
6 10 P o w e r s t e e r i n g , S e c o n d a r y b r a k e p e d a l s w i t c h
7 10 B r a k i n g s y s t e m ( A B S / E S P )
8 20 Starter control
9 10 M a i n b r a k e p e d a l s w i t c h
10 30 F u e l s u p p l y a n d a i r s u p p l y s y s t e m s , E m i s s i o n c o n t r o l s y s t e m s
11 40 F r o n t v e n t i l a t i o n
12 30 Windscreen wipers
13 40 B u i l t - i n s y s t e m s i n t e r f a c e
14 30 Free
178
Changing a fuse
