Page 151 of 231
9.10
9 9
1111
1 2 1 2
1 3 1 3
1 5 1 5
1010
1 4 1 4
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the letters of t h e t o w n o n e b y o n e c o n fi r m i n g e a c h time by pressing the dial.
Turn the dial and select OK.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
To speed up the process, the POST CODE can be entered instead of the name of the town. Use the alphanumeric keypad to enter the letters and digits and "*" to correct.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Select OK on the ENTER AN ADDRESS page.
Repeat steps 8 to 12 for the ROAD and N° functions .
OK
OK
Select the STORE function to record the address entered in a d i r e c t o r y r e c o r d a n d p r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n . The points of interest (POI) indicate all of the service locations in the vicinity (hotels, various businesses, airports, ... ).
STORE
PARIS
POI
Page 152 of 231
11
2 2
3 3
4 4
5 5
6 6
7 7
8 8
0 3
9.11
GUIDANCE OPTIONS
GPS
The route presented depends directly on the guidance options. Changing these options may completely change the r oute.
Press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the GUIDANCE OPTIONS function.
Turn the dial and select the DEFINE CALCULATION CRITERIA function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
GUIDANCE OPTIONSDISTANCE/TIME
DEFINE CALCULATION CRITERIA
Turn the dial and select, for example, the DISTANCE/TIME function.
Page 153 of 231
9.12
9 9
1010
1111
1 2 1 2
2 2
11
3 3
Turn the dial and select the TRAFFIC INFO function if you wish to receive the TRAFFIC INFO announcements.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Select OK and press the dial to c o n fi r m .
TRAFFIC INFO
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
T i c k t h i s b o x f o r o p t i m u m o p e r a t i o n o f t h e t r a f fi c i n f o r m a t i o n , diversions will be suggested.
OK
SETTING HAZARDOUS AREAS
ALERT PARAMETERS
Turn the dial and select the SET HAZARDOUS AREAS PARAMETERS function, then press t h e d i a l t o c o n fi r m t h e w a r n i n g m e s s a g e . P r e s s t h e d i a l t o c o n fi r m the selection.
Select: - visual warnings, - audible warnings with an announcement duration (in seconds), - warn during guidance only, then select OK and press the dial to c o n fi r m .
These functions are only available if the hazardou s areas have been downloaded and installed on the system. T h e h a z a r d o u s a r e a s a r e , i n g e n e r a l , fi x e d s p e e d c a m e r a s , l e v e l crossings, dangerous uphill and downhill gradients. They may change on a regular basis.
Repeat steps 1 to 5 of the guidance option.
SET HAZARDOUS AREAS PARAMETERS
OK
Page 154 of 231
6 6
8 8
7 7
5 5
11
2 2
3 3
4 4
0 3
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
ADJUST SPEECH SYNTHESIS
D E A C T I V A T E
OK
Select the ADJUST SPEECH SYNTHESIS function and press the d i a l t o c o n fi r m .
Press the dial then adjust the volume of the speech synthesis or select the DEACTIVATE function and press the d i a l t o c o n fi r m .
Select OK and press the dial to c o n fi r m .
GUIDANCE SPEECH SYNTHESIS
During announcements, the volume of each speech synthesis f u n c t i o n ( g u i d a n c e , t r a f fi c i n f o r m a t i o n . . . ) c a n b e a d j u s t e d d i r e c t l y using the volume button.
GPS
Press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the GUIDANCE OPTIONS function.
GUIDANCE OPTIONS
Page 155 of 231
9.14
0 3
1
2 2
3 3
4 4
6 6
7 7
8 8
5 5
GPS
Press the MENU button.
Turn the dial and select the MAP function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the MAP DETAILS function. Permits selection of the services which can be seen on the map (hotels, restaurants, hazardous areas...).
ACTIONS ON THE MAP
MAP DETAILS
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the orientation of your choice.
Select OK and press the dial to c o n fi r m .
Repeat steps 1 to 3 then turn the dial and select the MAP ORIENTATION function.
3 D V I E W / M A P O R I E N T A T I O N
MAP ORIENTATION
3 D V I E W
OK
NORTH DIRECTION
V E H I C L E D I R E C T I O N
For improved visibility, beyond the scale of 10 km, the map automatically switches to North Orientation.
Page 156 of 231
11
2 2
3 3
4 4
5 5
6 6
7 7
0 3
9.15
Press the MENU button.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the MAP function.
Turn the dial and select the MAP IN WINDOW or FULL SCREEN MAP tab.
Select OK and press the dial to c o n fi r m .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the DISPLAY MAP function.

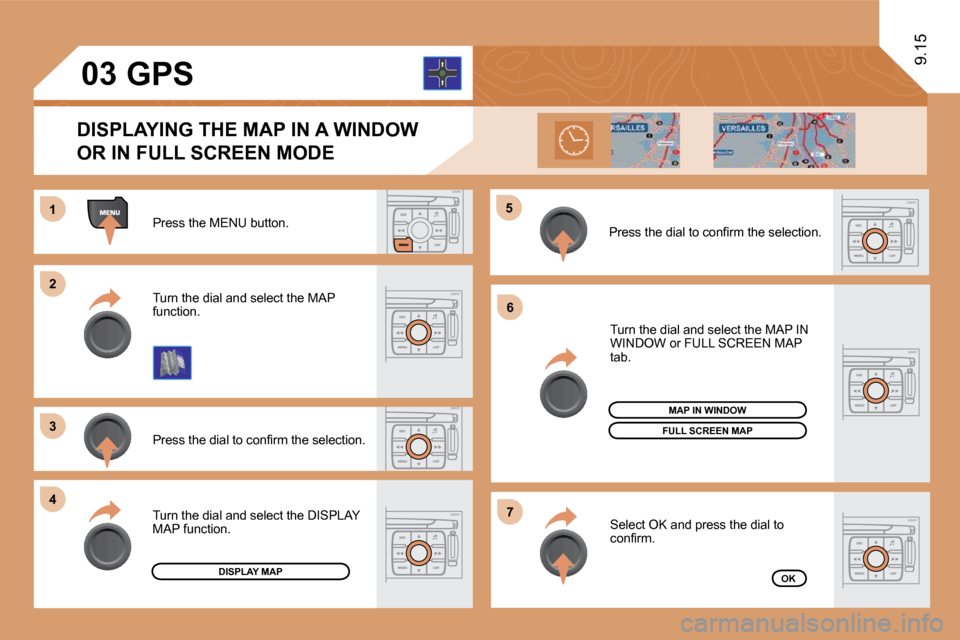

DISPLAYING THE MAP IN A WINDOW
OR IN FULL SCREEN MODE
GPS
DISPLAY MAP
FULL SCREEN MAP
OK
MAP IN WINDOW
Page 157 of 231
9.16
0 3
List of POI
GPS
Page 158 of 231
11
2 2
3 3
4 4
5 5
9 9
8 8
7 7
6 6
0 3
9.17
ADDING A STAGE
During guidance, press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the JOURNEY LEGS AND ROUTE function.
JOURNEY LEGS AND ROUTE
Select OK and press the dial to c o n fi r m t h e o r d e r o f t h e s t a g e s .
When the new address has been entered, select OK and press the dial t o c o n fi r m .
Enter for example a new address.
Select the ADD A STAGE function(9 stages maximum) and press the d i a l t o c o n fi r m .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n . Select STRICT (the stage must be completed in order to continue to t h e n e x t d e s t i n a t i o n ) o r P R O X I M I T Y t h e n p r e s s t h e d i a l t o c o n fi r m .
ENTER AN ADDRESS
ADD A STAGE
GPS
Page 159 of 231
9.18
5 5
6 6
7 7
8 8
11
2 2
3 3
4 4
0 4
A C T I V A T I N G T H E F I L T E R O N T H E R O U T E
W e r e c o m m e n d a fi l t e r o n t h e r o u t e a n d a fi l t e r a r o u n d t h e v e h i c l e o f : - 3 m i l e s ( 5 k m ) o r 6 m i l e s ( 1 0 k m ) f o r a r e g i o n w i t h h e a v y t r a f fi c , - 1 2 m i l e s ( 2 0 k m ) f o r a r e g i o n w i t h a n o r m a l l e v e l o f t r a f fi c , - 60 miles (100 km) for long journeys (motorway) .
Press the MENU button.
Turn the dial and select the TRAFFIC INFORMATION function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
FILTER TRAFFIC INFORMATION
Turn the dial and select the FILTER TRAFFIC INFORMATION function.
TRAFFIC INFORMATION
P r e s s t h e d i a l t o c o n fi r m t h e selection.
Select the GEOGRAPHIC FILTER f u n c t i o n a n d p r e s s t h e d i a l t o c o n fi r m .
T u r n t h e d i a l a n d s e l e c t t h e fi l t e r o f your choice.
Select OK and press the dial to c o n fi r m .
GEOGRAPHIC FILTER
A R O U N D T H E V E H I C L E
ON THE ROUTE
OK
Page 160 of 231
11
2 2
3 3
4 4
6 6
5 5
7 7
0 4
9.19
Press the MENU button.
READ MESSAGES
NEW MESSAGE DISPLAY
OK
CONFIGURING THE TMC MESSAGE
ANNOUNCEMENTS W e r e c o m m e n d t h a t y o u d o n o t t i c k t h e N E W M E S S A G E D I S P L A Y t a b f o r r e g i o n s w i t h h e a v y t r a f fi c .
Turn the dial and select the TRAFFIC INFORMATION function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the CONFIGURE MESSAGE ANNOUNCEMENT function.
Select the READ MESSAGES tab. T h e T r a f fi c I n f o r m a t i o n M e s s a g e s w i l l be read by the voice synthesiser.
Select the NEW MESSAGE DISPLAY tab. T h e t r a f fi c i n f o r m a t i o n m e s s a g e s a r e e x t e n d e d t o t h e fi l t e r s s e l e c t e d (geographic...) and can also be displayed when guidance is not active.
CONFIGURE MESSAGE ANNOUNCEMENT
TRAFFIC INFORMATION
Select OK and press the dial to c o n fi r m .
