F When stationary, lower the control lever
to release the steering wheel adjustment
mechanism.
F

A
djust the height and reach to suit your
driving position.
F

P
ull the control lever to lock the steering
wheel adjustment mechanism.
As a safety precaution, these
operations should only be carried out
while the vehicle is stationary.
Front seats with manual adjustments
F Raise the control and slide the seat for wards or backwards. F
I f fitted to your vehicle, pull the control
upwards to raise or push it downwards to
lower, as many times as required to obtain
the position required.
Forwards-backwards Height
As a safety measure, seat adjustments should only be carried out when stationary.
Before moving the seat backwards, ensure that there is nothing that might prevent the full
travel of the seat, so as to avoid the risk of jamming the seat caused by the presence of
objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement
immediately. For more information on the Seat belts ,
refer to the corresponding section.
3
Ease of use and comfort

102
Electric front seat
Forwards-backwardsBackrest angleHeight
To avoid discharging the battery, carry out
these adjustments with the engine running.
For more information on the Seat belts
,
refer to the corresponding section.
F

P

ush the control for wards or rear wards to
slide the seat. F

T

ilt the control for wards or rear wards to
adjust the angle of the seat backrest. F

T

ilt the control upwards or downwards to
obtain the desired height.
Before moving the seat backwards, ensure that there is nothing that might prevent the full
travel of the seat, so as to avoid the risk of jamming the seat caused by the presence of
objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement
immediately.
Ease of use and comfort

103
With the engine running, the front seats can be
heated separately.
Heated seats control
If fitted to your vehicle.
F T o raise the head restraint, pull it upwards.
F

T
o remove the head restraint, press the
lug
A and pull the head restraint upwards.
F

T
o put the head restraint back in place,
engage the head restraint rods in the
apertures keeping them in line with the
seat backrest.
F

T
o lower the head restraint, press the lug A
and the head restraint at the same time. The head restraint rods have notches
which prevent the head restraint
lowering; this is a safety device in case
of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Head restraint height
adjustment
Additional adjustments
Armrest
The armrest has notched positions.
F
R aise the armrest fully up.
F

L
ower it fully down.
F

R
aise the armrest to the desired position. F

U
se the adjustment wheel to switch on and
select the level of heating required:
0 : Off.
1 : Low.
2 : Medium.
3 : High.
3
Ease of use and comfort

104
Head restraint height
adjustment
F To raise the head restraint, pull it upwards.
F T o remove the head restraint, press the
lug
A and pull the head restraint upwards.
F

To put the head restraint back in place, engage
the head restraint stems in the openings
keeping them in line with the seat back
.
F
T
o lower the head restraint, press the lug A
and the head restraint at the same time. The head restraint rods have notches
which prevent the head restraint
lowering; this is a safety device in case
of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
2-seat front bench seat
If fitted to your vehicle, this is fixed and has a seat belt on the backrest for the seat alongside the
driver.
For more information on the Seat belts,
refer to the corresponding section.
Ease of use and comfort

155
To avoid causing a nuisance to
other road users, the beams of
the halogen headlamps should be
adjusted according to the load in
the vehicle.
0 -

1 o

r 2 people in the front seats.
1 -

5 p

eople.
2 -

6 t

o 9 people.
3 -

D

river + maximum authorised loads. The initial setting is position "0" .
The initial setting is position "0" .
Manual headlamp beam height adjustment
To avoid causing a nuisance to
other road users, the beams of
the halogen headlamps should be
adjusted according to the load in
the vehicle.
0

U

nladen.
1

P

art load.
2

M

edium load.
3

M

aximum authorised load.
4
Lighting and visibility

166
Seat belts
Front seat beltsFastening
Unfastening
F Press the red button on the buckle.
F G uide the seat belt as it reels in.
The front seat belts are fitted with a
pretensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side impact.
Depending on the severity of the impact, the
pretensioning system instantly tightens the seat
belts against the body of the occupants.
The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the
seat belt on the chest of the occupant, so
improving their protection.
Height adjustment
The upper part of the diagonal strap
should lie across the shoulder.
F

T

o lower the attachment point, while
moving control A downwards, slide the
assembly down to the desired position.
F

T

o raise the attachment point, slide the
assembly up to the desired position.
F

P

ull the strap, then insert the tongue in the
buckle.
F

C

heck that the seat belt is fastened
correctly by pulling the strap.
Safety

187

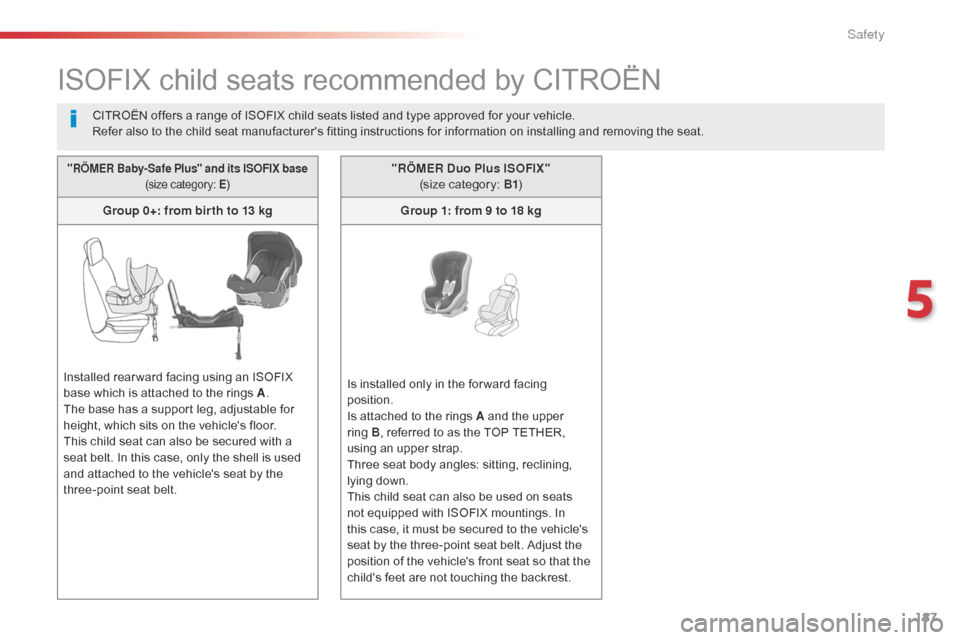

ISOFIX child seats recommended by CITROËN
CITROËN offers a range of ISOFIX child seats listed and type approved for your vehicle.
Refer also to the child seat manufacturer's fitting instructions for information on installing and removing the seat.
"RÖMER Baby- Safe Plus" and its ISOFIX base
(size category: E )
Group 0+: from bir th to 13 kg
Installed rear ward facing using an ISOFIX
base which is attached to the rings A .
The base has a support leg, adjustable for
height, which sits on the vehicle's floor.
This child seat can also be secured with a
seat belt. In this case, only the shell is used
and attached to the vehicle's seat by the
three-point seat belt. "RÖMER Duo Plus ISOFIX"
(size category: B1 )
Group 1: from 9 to 18 kg
Is installed only in the for ward facing
position.
Is attached to the rings A and the upper
ring
B, referred to as the TOP TETHER,
using an upper strap.
Three seat body angles: sitting, reclining,
lying down.
This child seat can also be used on seats
not equipped with ISOFIX mountings. In
this case, it must be secured to the vehicle's
seat by the three-point seat belt. Adjust the
position of the vehicle's front seat so that the
child's feet are not touching the backrest.
5
Safety
