Familiarisation
INSTRUMENTS AND CONTROLS
1. Steering wheel adjustment control.
2. Lights and direction indicators controls.
3. Instrument panel.
4. Driver’s air bag.
Horn.
5. Cruise control, speed limiter controls.
6. Gear lever.
7. Handbrake.
8. Bonnet release.
9. Exterior mirror controls.
10. Fuse box.
11. Manual headlamp height adjustment.
12. Adjustable and closeable side vent.
13. Front side window demisting vent.
14. Windscreen demisting vent.
15. Steering lock and ignition.
16. Wipers/wash-wipe/trip computer controls.
17. Adjustable and closeable central vents.
18. Passenger air bag.
19. MENU button.
20. Glove box.
21. Lighter.
22. Ashtray.
23. Heating/air conditioning controls.
24. Audio equipment.
25. Electric window controls.
26. 12 V socket.

13
Familiarisation
FAMILIARISATION
SEE CLEARLY
Ring
Lights off.
Side lights.
Dipped/main beam headlamps.
Fog lamps
Rear fog lamp.
or
Front and rear fog lamps.
 37
Direction indicators
"Motorway" function
Press up or down once, without passing the
point of resistance; the corresponding direction
indicators will fl ash three times.
 37
Wipers
Ring A: windscreen wipers
 39
Ring B: rear wiper
 39
Single wipe.
Intermittent wipe.
Wash-wipe.
Wash-wipe.
Park.
Lighting
Park.
Intermittent.
Slow continuous.
Rapid continuous.

19
1
READY TO SET OFF
Instruments and controls
INSTRUMENT PANELS
1. Distance recorder in Kilometres/miles.
2. Display.
3. Fuel gauge.
4. Coolant temperature.

5. Rev counter.
Instrument panel with level 1 display Instrument pa nel with level 2 display
Instrument panel display level 1
- Time,
- Kilometres/miles travelled,
- Trip computer/range, consumption,
average speed,
- Headlamp height,
- Programmable overspeed warning,
- Arming or disarming of the passenger air bag.
Instrument panel display level 2
- Time,
- Date,
- Radio,
- Kilometres/miles travelled,
- Exterior temperature,
- Modes and gears selected in electronic
gearbox system,
- Trip computer/range, consumption,
average speed,
- Headlamp height,
- Programmable overspeed warning,
- Selection of display language,
- Arming or disarming of the passenger air
bag,
- Activation or deactivation of the
automatic locking of the doors while
driving.

20
Instruments and controls
Instrument panel with level 3 display
Instrument panel display level 3
- Cruise control/speed limiter,
- Time,
- Date,
- Radio,
- Kilometres/miles travelled,
- Outside temperature,
- Modes and gears selected in electronic gearbox system, - Trip computer/range, fuel consumption,
average speed,
- Headlamp height,
- Programmable overspeed warning,
- Selection of display language,
- Arming or disarming of passenger air bag,
- Arming or disarming of automatic door locking while driving.

24
Instruments and controls
Warning light lightightis indicates Solution - action
Water in diesel filter on, accompanied by a message on the display.
that there is water in the diesel fuel filter. Have the filter bled by a CITROËN dealer . Refer to the "Checks" section of chapter 7.
Low fuel level on with the gauge needle in zone E. that the fuel reserve is being used.
Fill up with fuel without delay. The evaluation of the fuel reserve is a parameter which is sensitive to the style of driving, the profile of the road, the time elapsed and the distance travelled since the warning light first came on.
Diesel pre-heating on. that the weather conditions impose pre-heating.
Wait for the warning light to switch off before operating the starter.
Side lights on. manual selection. Turn the ring on the lights stalk to the first position.
Dipped headlamps
on.
manual selection. Turn the ring on the lights stalk to the second position.
Main beam headlamps pulling of the stalk towards you. Pull the stalk to return to dipped headlamps.

25
1
READY TO SET OFF
Instruments and controls
Warning lightis indicates Solution - action
Direction indicators flashing with buzzer.
a change of direction using the lights stalk, to the left of the steering wheel.
To the Right: press the stalk upwards. To the Left: press the stalk downwards.
Front fog lamps on. that the button on the fascia panel has been pressed.
Manual selection. The fog lamps only operate if the side lights or dipped headlamps are on.
Rear foglamps on. that the button on the fascia panel has been pressed.
Manual selection. The lamps only operate if the dipped beams are on. When visibility is normal, please switch the fog lamps off to avoid breaking the law. This light is a dazzling red.
Faulty bulb on, accompanied by a message on the display.
that one or more bulbs have blown.
Have the bulb changed. Refer to the "Changing a bulb" section of chapter 7 or consult a CITROËN dealer .
Cruise control on. cruise control selected.Manual selection. Chapter 1, "Gearbox and
steering wheel" section.
Speed limiter on. speed limiter selected. Manual selection. Chapter 1, "Gearbox and
steering wheel" section.

26
Instruments and controls
Warning lightis indicates Solution - action
Rear parking assistance on. failure of the system. The audible assistance is no longer active. Have the system checked by a CITROËN dealer without delay.
Electronic gearbox system on, accompanied by a flashing of "AUTO". a gearbox fault. Have the system checked by a CITROËN dealer without delay.
Display displays indicates Solution - action
External temperature
the temperature which flashes accompanied by a message on the display.
weather conditions which could result in the presence of ice on the road.
Be especially vigilant and do not brake sharply. Refer to the "Driving safety" section of chapter 5.
Date 11:00:00
a setting: of the Date. of the Time.
a configuration via the MENU menu. Refer to the "Menu" section of chapter 3.
Headlamp beam height a headlamp height setting.
a position from 0 to 3 depending on the load carried.
Adjust using the control on the fascia panel. Refer to the "Steering wheel controls" section of chapter 1.

26
Instruments and controls
Warning lightis indicates Solution - action
Rear parking assistance on. failure of the system. The audible assistance is no longer active. Have the system checked by a CITROËN dealer without delay.
Electronic gearbox system on, accompanied by a flashing of "AUTO". a gearbox fault. Have the system checked by a CITROËN dealer without delay.
Display displays indicates Solution - action
External temperature
the temperature which flashes accompanied by a message on the display.
weather conditions which could result in the presence of ice on the road.
Be especially vigilant and do not brake sharply. Refer to the "Driving safety" section of chapter 5.
Date 11:00:00
a setting: of the Date. of the Time.
a configuration via the MENU menu. Refer to the "Menu" section of chapter 3.
Headlamp beam height a headlamp height setting.
a position from 0 to 3 depending on the load carried.
Adjust using the control on the fascia panel. Refer to the "Steering wheel controls" section of chapter 1.

37
1
READY TO SET OFF
Steering wheel controls

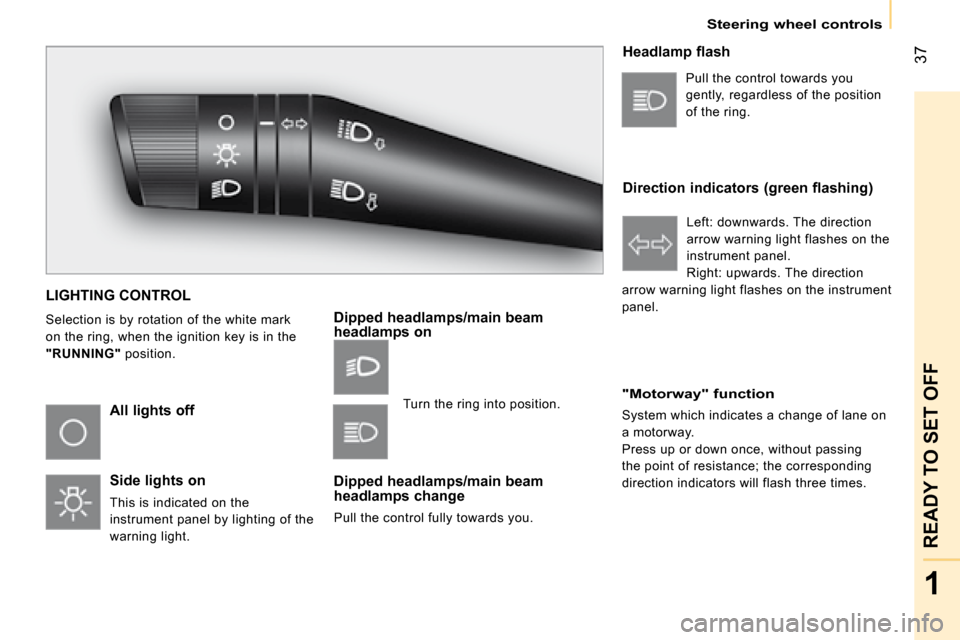

LIGHTING CONTROL
Selection is by rotation of the white mark
on the ring, when the ignition key is in the
"RUNNING" position.
All lights off
Side lights on
This is indicated on the
instrument panel by lighting of the
warning light.
Dipped headlamps/main beam
headlamps on
Dipped headlamps/main beam
headlamps change
Pull the control fully towards you.
Headlamp flash
Direction indicators (green flashing)
"Motorway" function
System which indicates a change of lane on
a motorway.
Press up or down once, without passing
the point of resistance; the corresponding
direction indicators will flash three times.
Pull the control towards you
gently, regardless of the position
of the ring. Left: downwards. The direction
arrow warning light flashes on the
instrument panel.
Right: upwards. The direction
arrow warning light flashes on the instrument
panel.
Turn the ring into position.

38
Steering wheel controls
Headlamp beam
You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
This function can only be accessed in
the main beam headlamps and dipped
headlamps position.
Press these controls, located
on the fascia panel, several
times in succession to adjust the
headlamps.
Fog lamps
The controls are located on the fascia panel
control pad.
Front and rear fog lamps
The fog lamps should only be used in
fog or when snow is falling.
In clear weather or in rain, both day and
night, lit rear fog lamps dazzle and are
prohibited.
Do not forget to switch them off when they
are no longer necessary.
"Guide me home" lighting
The temporary maintaining of the dipped
headlamps, after switching off the vehicle’s
ignition, makes the driver ’s exit easier when
the light is poor and lights the space in front
of the vehicle.
Activation
With the ignition key in the STOP position
or removed, pull the lighting control towards
the steering wheel within 2 minutes after
switching off the engine.
Each time the control is operated, the
duration for which the lights will remain on is
extended by 30 seconds, up to a maximum
of 210 seconds. Once this period of time has
elapsed, the lights switch off automatically.
Deactivation
Pull the lighting control towards the steering
wheel for more than 2 seconds.
The front fog lamps operate with
the side lights and the dipped
headlamps.
The rear fog lamps operate with
the dipped headlamps.
Press one of these controls to switch on the
lights.
The warning light comes on,
accompanied by a message
on the display, the first time
the control is operated and
remains on until the function is deactivated
automatically.
An indicator light on the display
indicates the adjustment position
selected (0, 1, 2, 3).
