Changing a wheel



Refitting a wheel


6.
Put the trim back in place, starting by
placing its notch facing the valve, and
press with the palm of your hand.

7.
Stow the tools and the wheel.

8.
Check the wheel inflation pressure (see
"Identification") and have the balance
checked. Refer to the "Identification markings"
section of chapter 8 to locate the
tyre label.
Have the tightening of the bolts and the
pressure of the spare wheel checked by a
CITROËN dealer or a qualified workshop
without delay.


1.
Put the wheel in place using the centring
guide 2
to assist you.

2.
Screw in the 3 bolts by hand and remove
the centring guide. Position the 4th bolt.

3.
Pre-tighten using the wheelbrace 1
.

4.
Fold the jack 4
and detach it.

5.
Tighten the wheel bolts using the
wheelbrace. Also, have the original wheel repaired
and refitted by a CITROËN dealer
or a qualified workshop as soon as
possible.

152



Changing a fuse



Mark

ing


Rating


Functions


F01
60 A Control unit

F02
40 A Passenger compartment fan.

F03
20 A Starter motor supply

F04
40 A ABS hydraulic block pump supply

F06
30 A Single speed cooling fan control

F07
40 A High speed cooling fan control

F08
30 A Air conditioning compressor

F09
15 A Towbar harness.

F10
10 A Horn

F11
10 A Engine management secondary load supply

F14
15 A Main beam headlamps

F15
15 A 12 V accessory socket.


Table of fuses in the engine
compartment

154



Having your vehicle towed


BEING TOWED


The removable towing eye is located in the
tool kit behind the driver's seat (Light van) or
behind the rear bench seat (Combi).


From the front

In the front bumper, unclip the cover on the
right using a flat tool.
Screw the removable towing eye in fully.
Then hook the towbar on the towing eye.
Unlock the steering by turning the the
ignition key one notch and release the
parking brake.
Switch on the hazard warning lamps on both
vehicles.
Move off gently and drive slowly, towing for
a short distance only.
On the towed vehicle, the gear
lever must be put in neutral; failure
to observe this special condition
may result in damage to certain braking
components (brakes, transmission...) and
the absence of braking assistance when the
engine is started.


From the rear

In the rear bumper, unclip the cover at the
bottom using a flat tool.
Screw the removable towing eye in fully.
Then hook the towbar on the towing eye.
Switch on the hazard warning lamps on both
vehicles.
Move off gently and drive slowly, towing for
a short distance only.


General recommendations

Observe the legislation in force in your
country.
Ensure that the weight of the towing vehicle
is higher than that of the towed vehicle.
The driver must stay at the wheel of the
towed vehicle.
Driving on motorways and fast roads is
prohibited when towing.
When towing a vehicle with all four wheels
on the ground, always use an approved
towing bar; rope and straps are prohibited.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
In the following cases, you must always call
on a professional recovery service:


- vehicle broken down on a motorway or
fast road,

- when it is not possible to put the gearbox
into neutral, unlock the steering, or
release the parking brake,

- towing with only two wheels on the
ground,

- where there is no approved towing bar
available...

159
7
QUICK HELP

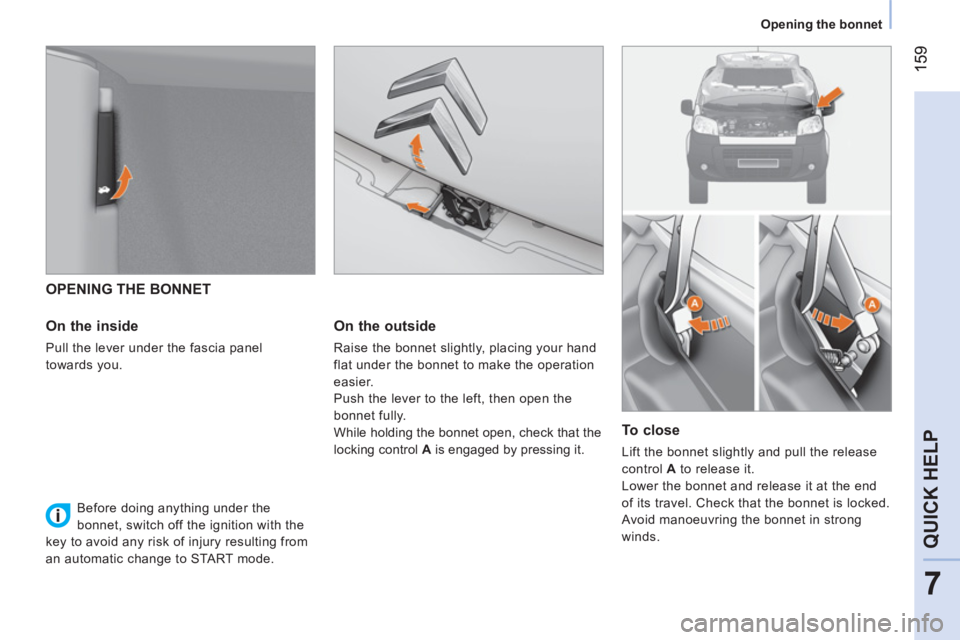

Opening the bonnet




OPENING THE BONNET

On the inside

Pull the lever under the fascia panel
towards you.


On the outside

Raise the bonnet slightly, placing your hand
flat under the bonnet to make the operation
easier.
Push the lever to the left, then open the
bonnet fully.
While holding the bonnet open, check that the
locking control A is engaged by pressing it.


To close

Lift the bonnet slightly and pull the release
control A to release it.
Lower the bonnet and release it at the end
of its travel. Check that the bonnet is locked.
Avoid manoeuvring the bonnet in strong
winds.





Before doing anything under the
bonnet, switch off the ignition with the
key to avoid any risk of injury resulting from
an automatic change to START mode.
159
7

164



Checks


CHECKS


Bleeding water from
the Diesel filter

If this warning lamp comes
on, you must bleed the filter;
otherwise bleed the filter
regularly, every time the engine is
changed.
To remove the water, unscrew the bleed
screw or the water in Diesel sensor, located
at the base of the filter. Operate until all of
the water has flowed out. Then tighten the
bleed screw or the water sensor.
HDi engines use advanced technology. All
work requires specialist knowledge, which
all CITROËN dealers have.


Battery

At the start of winter, have your battery
checked by a CITROËN dealer or a qualified
workshop.


Air filter and passenger compartment filter

A blocked passenger compartment filter
may reduce the performance of the
air conditioning system and generate
undesirable odours. The replacement
intervals for these components are indicated
in the servicing booklet.
Depending on the environment (dusty
atmosphere...) and the use of the vehicle
(urban driving...), change them twice as
often if necessary, refer to the "Under the
bonnet" section of chapter 7.


Brake pads

Brake pad wear depends on the style of
driving, in particular for vehicles which are
used in town, over short distances. It may
be necessary to check the brake pad wear,
even between services.
Unless there is a leak on the system, a drop
in the brake fluid level indicates that the
brake pads are worn.


Brake disc/drum wear

For all information on checking the brake
disc/drum wear, contact a CITROËN dealer
or a qualified workshop.


Parking brake

Where the parking brake travel is too great
or there is a reduction in the performance
of the system, the parking brake should be
adjusted, even between services.
Have the system checked by a CITROËN
dealer or a qualified workshop.


Oil filter

Change the filter regularly, in accordance
with the servicing schedule.





The presence of this label, in particular with
the Stop & Start system, indicates the use
of a specific 12 V lead-acid battery with
special technology and specification, for
which the involvement of a CITROËN dealer
or a qualified workshop is required when
replacing or disconnecting the battery.
Failure to observe this recommendation may
shorten the life of the battery.

167
8
