69

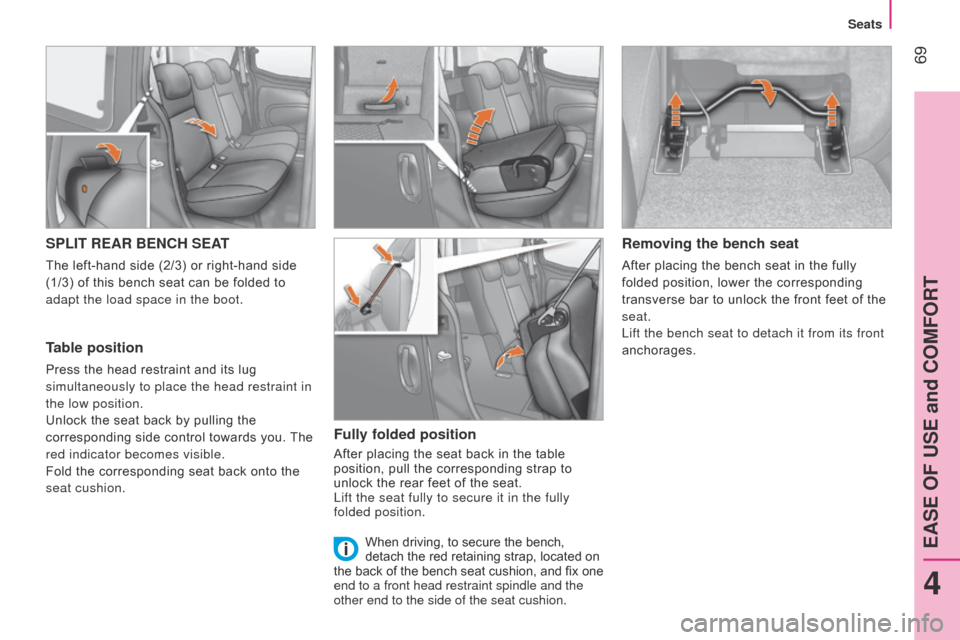

SPLIT REAR BENCH SEAT
The left-hand side (2/3) or right-hand side
(1/3) of this bench seat can be folded to
adapt the load space in the boot.
Table position
Press the head restraint and its lug
simultaneously to place the head restraint in
the low position.
Unlock the seat back by pulling the
corresponding side control towards you. The
red indicator becomes visible.
Fold the corresponding seat back onto the
seat cushion.
Fully folded position
After placing the seat back in the table
position, pull the corresponding strap to
unlock the rear feet of the seat.
Lift the seat fully to secure it in the fully
folded position.
Removing the bench seat
After placing the bench seat in the fully
folded position, lower the corresponding
transverse bar to unlock the front feet of the
seat.
Lift the bench seat to detach it from its front
anchorages.
When driving, to secure the bench,
detach the red retaining strap, located on
the back of the bench seat cushion, and fix one
end to a front head restraint spindle and the
other end to the side of the seat cushion.
4
EASE OF USE and COMFORT
Seats

70
Returning the bench seat to its
position
Put the bench seat in place in its front
anchorages in the fully folded position.
Fold the bench seat to the table position,
the front and rear feet of the seat lock
automatically.
Returning the bench seat to the sitting
position
Lift the bench seat back.
Take care not to trap the seat belts.
Lock the seat back by pushing it fully
towards the rear. The red indicator is no
longer visible.
Repeat all of these operations for the other
part of the rear bench seat.
Seats

71
DEMISTING AND DEFROSTING
Windscreen
The vents located at the base of the
windscreen and the side vents for the side
windows increase the effectiveness of the
demisting and defrosting. Do not obstruct
these eight vents.
The manual air conditioning includes a
pollen filter and air recirculation.
The pollen filter permits continuous and
effective filtering of dust.
a
ir recirculation (which can be operated by
the driver or the passenger) isolates the
passenger compartment from the exterior
atmosphere. However, this position should
only be used temporarily, you should
normally drive with the control in the exterior
air intake position. Manual mode
Turn the control to this air
distribution setting.
For faster and more effective
demisting and defrosting of the
windscreen:-

increase the air flow setting,
Return to the exterior air intake


position as soon as possible to
allow renewal of the air in the
passenger compartment. Rear screen and mirrors defrosting
This function only operates when
the engine is running. Pressing
this button activates the rapid
demisting/defrosting of the rear
screen and mirrors. This function switches
off automatically to prevent an excessive
consumption of energy. It switches off when
the engine is switched off. Pressing this
button switches the function off.
-

move the exterior air intake

control temporarily to air
recirculation.
4
EASE OF USE and COMFORT
Ventilation

72VENTILATION
Recommended interior
settings
I require... Heating or Manual air conditioning
Air distribution Air flow Air recirculation/Intake of
exterior air Temperature
Manual AC
HOT
COLD
DEMISTING
DEFROSTING
Ventilation

73
CORRECT USE OF THE AIR
CONDITIONING
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in perfect working order.
Have the filter elements (air filter and
passenger compartment filter) replaced
regularly. If you drive in a dusty environment,
have them replaced twice as often.
It is normal that the condensation created by
the air conditioning system results in a flow
of water which may form a puddle under the
vehicle when parked.
If the system does not produce cold air, do
not use it and contact a CITR
o Ë n dealer or
a qualified workshop.VENTS
For optimum distribution and diffusion of hot
or cool air in the passenger compartment,
there are:
-

2 adjustable central vents,
-


2 adjustable and closing side vents,
-


2 vents directed towards the floor of

the
vehicle.
In order to be effective, the air conditioning
should only be used with the windows
closed. However, if the interior temperature
is high after a prolonged period parked
in the sun, first ventilate the passenger
compartment for a few minutes.
For even air distribution, ensure that the
exterior air intake grille located at the base
of the windscreen is not obstructed and that
the side and central vents, the air outlets on
the floor and the air extractor at the rear are
open.
The air conditioning is useful in all seasons
as it eliminates condensation and air
humidity.
4
EASE OF USE and COMFORT
Ventilation

74
These controls are located on the centre console.
Air conditioning
The air conditioning mode is operational
when the engine is running. The LED is on.
Temperature adjustment
Control positioned:
-
in the blue zone delivers cool

air,
Air flow
The air flow fan setting varies
from 1 to the strongest 4 . Adjust
this control in order to reach the
desired level of comfort. To switch
off the fan, place the control in position 0 .
The air distribution is varied
by turning the control turned
towards:
the side vents and the central
vents,
the side vents, the central vents
and the footwells,
the footwells,
the windscreen, the front side
windows and the footwells,
the windscreen.
Press the air flow fan control. The
LE
d
comes on.
The air flow fan control must not
be in position 0 (zero flow) for air
conditioning to be obtained.
Turn the control to the position required. -

in the red zone delivers


heating of the interior air.
Air distribution
Ventilation

75Intake of exterior air
This is the preferred operating
position.
Recirculation of interior air
This position should only be
temporary.
Used with the air conditioning
switched on and using the
appropriate air fan setting (from 1 to 4),
recirculation enables you to obtain the
desired level of comfort with either hot or
cold settings.
Recirculation prevents exterior odours
and smoke from entering the passenger
compartment. Defrosting is faster in
this

position.
o

nce the required level of comfort has been
reached, return to the intake of exterior air
position to permit renewal of the air in the
passenger compartment and demisting. This
is the preferred operating position.
4
EASE OF USE and COMFORT
Ventilation

76
Smoker's kit
Located at the base of the centre console,
this consists of a cigarette lighter and an
ashtray.
12 V socket (180 W max)
An accessory socket is provided next to the
cigarette lighter.
FRONT FITTINGS
Folding writing table (Light van)
This is located in the centre of the
dashboard. In the absence of a table, the
vehicle is fitted with a storage compartment.
The clip can be used to secure
a
5 format
documents, slips, etc.
Pull the top of the table to unfold it, push to
fold it.
Door pockets
With recess for storing a 1 litre bottle.
Practical information

77
Sun visor
To avoid glare from ahead, fold and direct
the sun visor down.
Toll cards, tickets, etc. can be slipped into
the sun visor on the driver's side.
The sun visor on the passenger's side may
be fitted with a courtesy mirror.
Glove box
To open it raise the handle.
It can accommodate a laptop computer.
It provides storage for the handbook pack.
Spectacles storage (Combi)
There is a spectacles storage compartment
on the driver's side, above the door.
To open it, unclip the cover pulling at
the centre.
4
EASE OF USE and COMFORT
Practical information

78
LOAD SPACE FITTINGS
Stowing rings
There are 6 stowing rings on the rear floor to
secure your loads.
a
s a safety precaution in case of sharp
braking, you are advised to place
heavy objects as far forwards towards the
driver's seat as possible.
Storage pocket
A storage pocket is provided at the rear left
of the load space.
Torch
A magnetic torch is provided at the rear right
of the load space.
Remove the torch from its base by
pressing the button then pivoting the torch
downwards by 90 degrees.
To switch on the torch, slide the switch
forwards.
To change the 4 rechargeable batteries
(
n iMH type), remove the protective cover
from the torch.
To put the torch back in place, engage
it in the notches on the base and pivot it
upwards.
Ladder type vertical partition
behind the driver's seat, a ladder type
vertical partition protects the driver against
the risk of load movement.
Partitions
Panel, glazed, mid-height panel with grille
and modular vertical grille type partitions are
available for your light van.
Carrying passengers in the load space
is not permitted.
It is advisable to immobilise the load
by securing it firmly using the stowing
rings on the floor. The torch's storage batteries recharge
automatically while driving.
a

n additional lamp is fitted in the middle
of the torch housing (refer to the "Interior
lighting" section).
