height Citroen NEMO DAG 2008.5 1.G Owner's Manual

11
Familiarisation
FAMILIARISATION
SIT COMFORTABLY
Driver's seat adjustment
Forwards-backwards Height Seat back angle (A)
Lumbar support (B)

 71

19
1
READY TO SET OFF
Instruments and controls

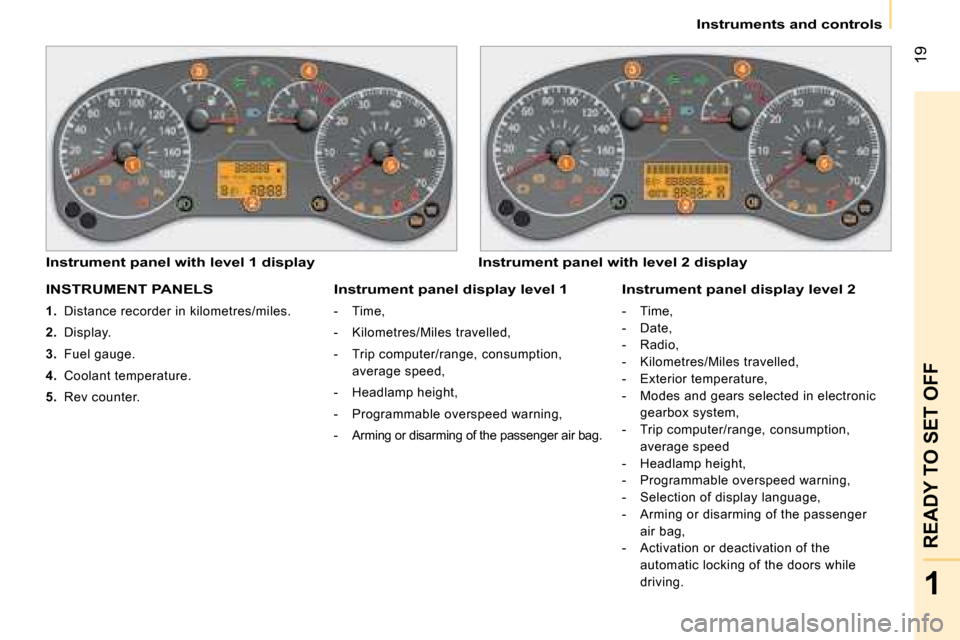

INSTRUMENT PANELS

1. Distance recorder in kilometres/miles.

2. Display.
3. Fuel gauge.
4. Coolant temperature.

5. Rev counter.
Instrument panel with level 1 display Instrument panel with level 2 display
Instrument panel display level 1
- Time,
- Kilometres/Miles travelled,
- Trip computer/range, consumption,
average speed,
- Headlamp height,
- Programmable overspeed warning,
- Arming or disarming of the passenger air bag.
Instrument panel display level 2
- Time,
- Date,
- Radio,
- Kilometres/Miles travelled,
- Exterior temperature,
-
Modes and gears selected in electronic
gearbox system,
- Trip computer/range, consumption,
average speed
- Headlamp height,
- Programmable overspeed warning,
-
Selection of display language,
- Arming or disarming of the passenger air bag,
- Activation or deactivation of the automatic locking of the doors while
driving.

20
Instruments and controls

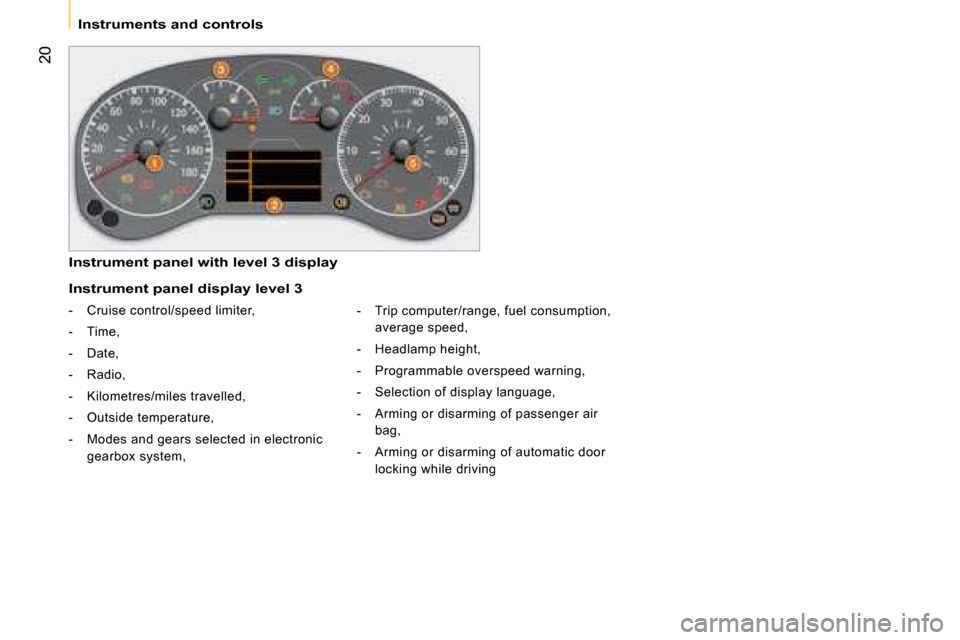

Instrument panel with level 3 display
Instrument panel display level 3
- Cruise control/speed limiter,
- Time,
- Date,
- Radio,
- Kilometres/miles travelled,
- Outside temperature,
- Modes and gears selected in electronic gearbox system, - Trip computer/range, fuel consumption,
average speed,
- Headlamp height,
- Programmable overspeed warning,
- Selection of display language,
- Arming or disarming of passenger air bag,
- Arming or disarming of automatic door locking while driving

26
Instruments and controls

Warning light
is indicates Solution - action
Rear parking assistance on. failure of the syste m. The audible assistance is no longer active.
Have the system checked by a CITROËN
dealer without delay.
Electronic gearbox
system
on, accompanied by a
flashing of "AUTO". a gearbox fault. Have the system checked by a CITROËN
dealer without delay.

Display
displays indicates Solution - action

External temperature the temperature which
flashes accompanied
by a message on the
display. weather conditions
which could result in the
presence of ice on the
road.
Be especially vigilant and do not brake sharply.
Refer to the "Driving safety" section of
chapter 5.
Date
11:00:00 a setting:
of the Date.
of the Time. a configuration via the
MENU menu.
Refer to the "Menu" section of chapter 3.
Headlamp beam height a headlamp height
setting. a position from 0 to 3
depending on the load
carried. Adjust using the control on the fascia panel.
Refer to the "Steering wheel controls" section
of chapter 1.

26
Instruments and controls

Warning light
is indicates Solution - action
Rear parking assistance on. failure of the syste m. The audible assistance is no longer active.
Have the system checked by a CITROËN
dealer without delay.
Electronic gearbox
system
on, accompanied by a
flashing of "AUTO". a gearbox fault. Have the system checked by a CITROËN
dealer without delay.

Display
displays indicates Solution - action

External temperature the temperature which
flashes accompanied
by a message on the
display. weather conditions
which could result in the
presence of ice on the
road.
Be especially vigilant and do not brake sharply.
Refer to the "Driving safety" section of
chapter 5.
Date
11:00:00 a setting:
of the Date.
of the Time. a configuration via the
MENU menu.
Refer to the "Menu" section of chapter 3.
Headlamp beam height a headlamp height
setting. a position from 0 to 3
depending on the load
carried. Adjust using the control on the fascia panel.
Refer to the "Steering wheel controls" section
of chapter 1.

38
Steering wheel controls
Headlamp beam
You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
This function can only be accessed in
the main beam headlamps and dipped
headlamps position. Press these controls, located
on the fascia panel, several
times in succession to adjust the
headlamps.
Fog lamps
The controls are located on the fascia panel
control pad.
Front and rear fog lamps
The fog lamps should only be used in
fog or when snow is falling.
In clear weather or in rain, both day and
night, lit rear fog lamps dazzle and are
prohibited.
Do not forget to switch them off when they
are no longer necessary.
"Follow me home" lighting
The temporary maintaining of the dipped
headlamps, after switching off the vehicle’s
ignition, makes the driver ’s exit easier when
the light is poor and lights the space in front
of the vehicle.

Activation
With the ignition key in the STOP position
or removed, pull the lighting control towards
the steering wheel within 2 minutes after
switching off the engine.
Each time the control is operated, the
duration for which the lights will remain on is
extended by 30 seconds, up to a maximum
of 210 seconds. Once this period of time has
elapsed, the lights switch off automatically.

Deactivation
Pull the lighting control towards the steering
wheel for more than 2 seconds.
The front fog lamps operate with
the side lights and the dipped
headlamps.
The rear fog lamps operate with
the dipped headlamps.
Press one of these controls to switch on the
lights. The warning light comes on,
accompanied by a message
on the display, the first time
the control is operated and
remains on until the function is deactivated
automatically. An indicator light on the display
indicates the adjustment position
selected (0, 1, 2, 3).

38
Steering wheel controls
Headlamp beam
You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
This function can only be accessed in
the main beam headlamps and dipped
headlamps position. Press these controls, located
on the fascia panel, several
times in succession to adjust the
headlamps.
Fog lamps
The controls are located on the fascia panel
control pad.
Front and rear fog lamps
The fog lamps should only be used in
fog or when snow is falling.
In clear weather or in rain, both day and
night, lit rear fog lamps dazzle and are
prohibited.
Do not forget to switch them off when they
are no longer necessary.
"Follow me home" lighting
The temporary maintaining of the dipped
headlamps, after switching off the vehicle’s
ignition, makes the driver ’s exit easier when
the light is poor and lights the space in front
of the vehicle.

Activation
With the ignition key in the STOP position
or removed, pull the lighting control towards
the steering wheel within 2 minutes after
switching off the engine.
Each time the control is operated, the
duration for which the lights will remain on is
extended by 30 seconds, up to a maximum
of 210 seconds. Once this period of time has
elapsed, the lights switch off automatically.

Deactivation
Pull the lighting control towards the steering
wheel for more than 2 seconds.
The front fog lamps operate with
the side lights and the dipped
headlamps.
The rear fog lamps operate with
the dipped headlamps.
Press one of these controls to switch on the
lights. The warning light comes on,
accompanied by a message
on the display, the first time
the control is operated and
remains on until the function is deactivated
automatically. An indicator light on the display
indicates the adjustment position
selected (0, 1, 2, 3).

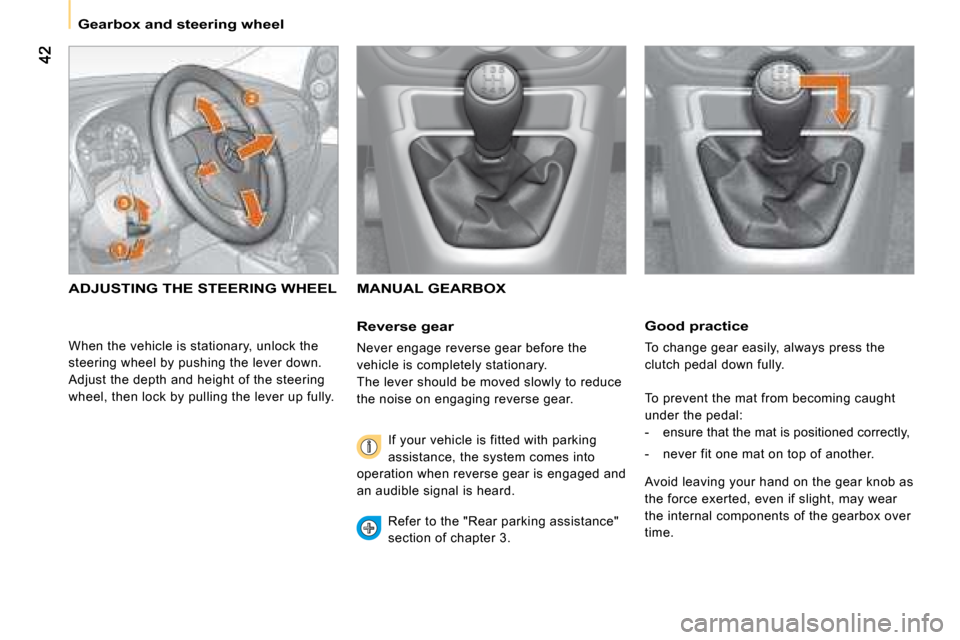

Gearbox and steering wheel
Good practice
To change gear easily, always press the
clutch pedal down fully.
To prevent the mat from becoming caught
under the pedal:
- ensure that the mat is positioned correctly,
- never fit one mat on top of another.
Avoid leaving your hand on the gear knob as
the force exerted, even if slight, may wear
the internal components of the gearbox over
time.
ADJUSTING THE STEERING WHEEL MANUAL GEARBOX
Reverse gear
Never engage reverse gear before the
vehicle is completely stationary.
The lever should be moved slowly to reduce
the noise on engaging reverse gear.
If your vehicle is fitted with parking
assistance, the system comes into
operation when reverse gear is engaged and
an audible signal is heard.
Refer to the "Rear parking assistance"
section of chapter 3.
When the vehicle is stationary, unlock the
steering wheel by pushing the lever down.
Adjust the depth and height of the steering
wheel, then lock by pulling the lever up fully.

2
Dimensions
TECHNICAL DATA
DIMENSIONS

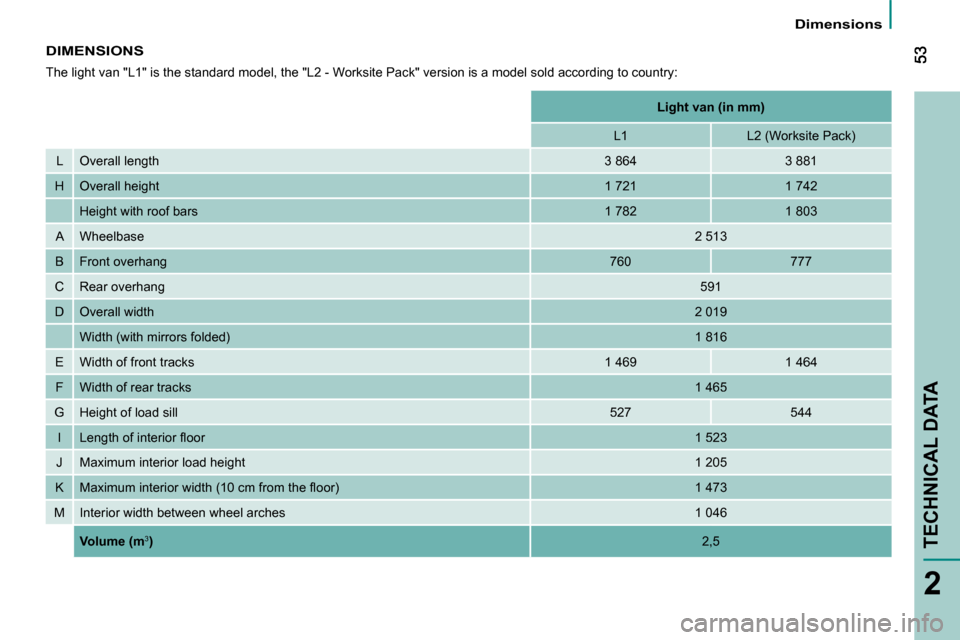

The light van "L1" is the standard model, the "L2 - Worksite Pack" version is a model sold according to country:




Light van
(in mm)
L1 L2 (Worksite Pack)
L Overall length 3 8643 881
H Overall height 1 7211 742
Height with roof bars 1 7821 803
A Wheelbase 2 513
B Front overhang 760777
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
E Width of front tracks 1 4691 464
F Width of rear tracks 1 465
G Height of load sill 527544
I Length of interior fl oor 1 523
J Maximum interior load height 1 205
K Maximum interior width (10 cm from the fl oor) 1 473
M Interior width between wheel arches 1 046

Volume
(m
3

) 2,5

55
2
Dimensions
TECHNICAL DATA

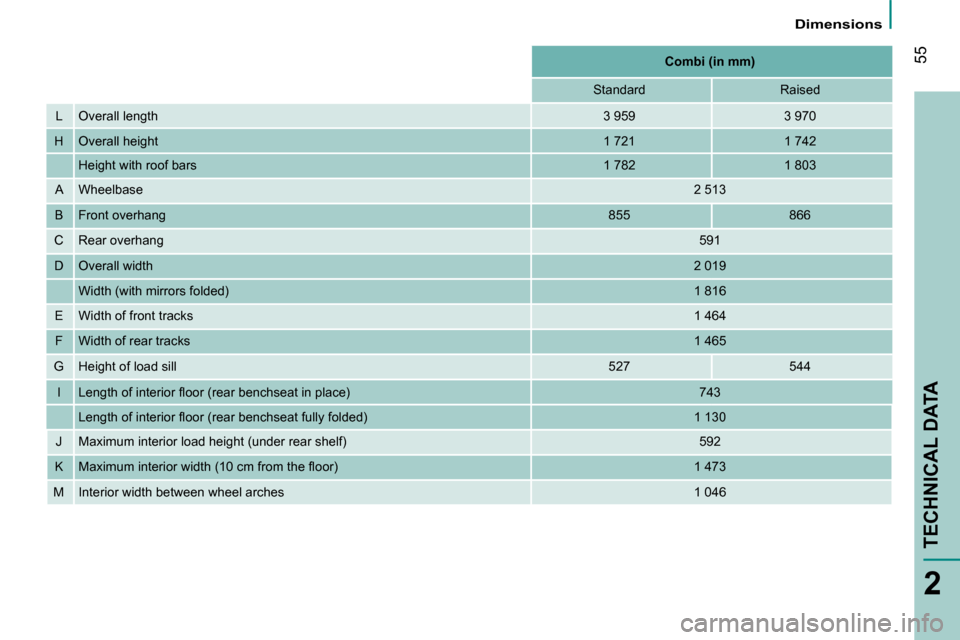

Combi (in mm)
StandardRaised
L Overall length 3 9593 970
H Overall height 1 7211 742
Height with roof bars 1 7821 803
A Wheelbase 2 513
B Front overhang 855866
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
E Width of front tracks 1 464
F Width of rear tracks 1 465
G Height of load sill 527544
ILength of interior fl oor (rear benchseat in place) 743
Length of interior fl oor (rear benchseat fully folded) 1 130
J Maximum interior load height (under rear shelf) 592
K Maximum interior width (10 cm from the fl oor) 1 473
M Interior width between wheel arches 1 046
