179

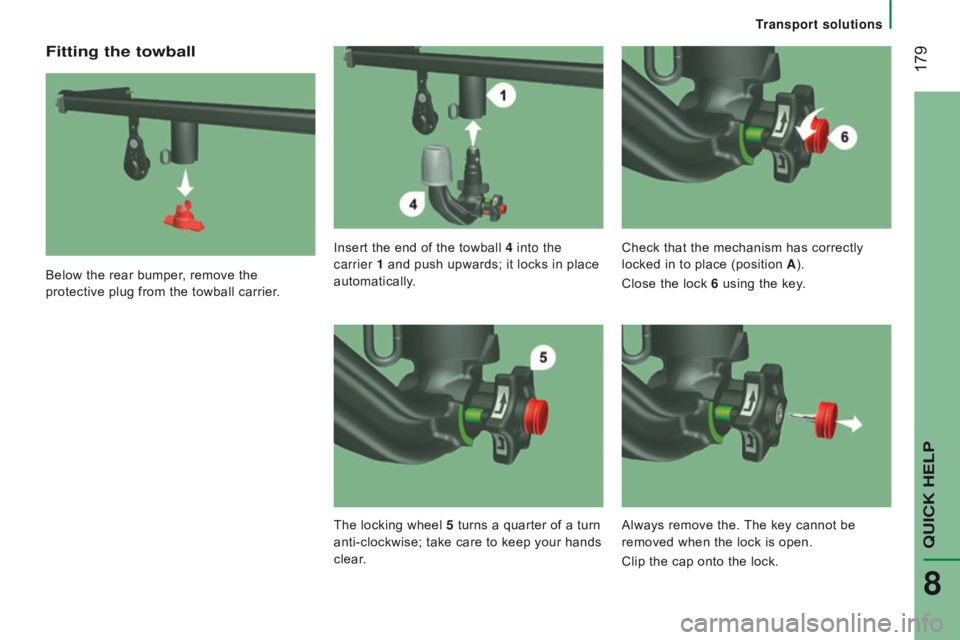

Fitting the towball
Below the rear bumper, remove the
protective plug from the towball carrier.Insert the end of the towball 4
into the
carrier 1 and push upwards; it locks in place
automatically. Check that the mechanism has correctly
locked in to place (position A
).
Close the lock 6 using the key.
The locking wheel 5 turns a quarter of a turn
anti-clockwise; take care to keep your hands
clear. Always remove the. The key cannot be
removed when the lock is open.
Clip the cap onto the lock.
transport solutions
QuIcK HELP
8

180
removing the towball
Disconnect the trailer harness from the
socket 2 on the carrier.
Detach the cable on the trailer from the
safety ring 3 on the carrier.
Unhook the trailer from the towball.
Refit the protective cover to the towball.
Remove the protective cover from the
towball.
Attach the trailer to the towball.
Attach the cable on the trailer to the safety
ring 3
on the carrier.
Connect the trailer harness to the socket 2
on the carrier. Remove the cap from the lock and press it
onto the head of the key.
Insert the key into the lock 6
.
Open the lock using the key.
transport solutions

181
Grasp the towball 4 firmly with one hand;
with the other hand, pull and turn the locking
wheel 5 clockwise as far as it will go; do not
release the locking wheel.
Maintenance
Correct operation is only possible if the
towball and its carrier remain clean.
Before cleaning the vehicle with a high
pressure jet wash, the towball must be
removed and the blanking plug inserted in
the carrier.
Apply the label provided to a clearly


visible area, close to the carrier or in
the boot.
For any work on the towbar, got to a
CITROËN dealer or a qualified workshop.
Refit the protective blanking plug to the
carrier.
Carefully stow the towball in its bag away
from knocks and dirt.
Extract the towball from the bottom of its
carrier 1.
Release the locking wheel; this automatically
stops in the unlocked position (position B ).
Transport solutions
QUICK HELP
8

182
GLOSSArY OF LABELS
This section groups together all of the texts that appear on labels present on the vehicle.under the bonnet
A
Original painting
Colour
Code
REFINISHING CODE
B
ONLY FOR JUMP START
c
DANGER
AUT

OMATIC ENGINE RESTART. EXTRACT
THE KEY FROM DASHBOARD WHEN
HOOD IS OPENED
For the vehicle identification labels, refer to the "Technical data" section.
Precautions...

183
d
1 - CAUTION
ORIGINAL LUBRICANTS AND FLUIDS
Engine oil Transmission
Radiater Brake system
Windscreen Washer Power steering
REFER TO OWNER HANDBOOK WEAR EYE PROTECTION
2 - SAFETY
The use of original parts, fluids and original lubrificants and respecting scheduled
maintenance guarantees your cars reliability and safety overtime.
3 - DANGER
KEEP OUT OF
CHILDREN'S REACH KEEP AWAY

FROM FLAMES DO NOT TOUCH
DO NOT OPEN CAP
WITH ENGINE WARM EXPLOSION
CORROSIVE LIQUID
MAY START AUTOMATICALLY EVEN
WITH ENGINE OFF HIGH PRESSURE GAS

DO NOT OPEN
AUTOMATIC ENGINE RESTART. EXTRACT THE KEY
FROM DASHBOARD WHEN BONNET HOOD IS OPENED HIGH VOLTAGE
QuIcK HELP
8
Precautions...

184
Behind the fuel filler flap
WARNING REMOVE SLOWLY
FUEL SPRAY MAY CAUSE INJURY
On the rear seat
A
Push backrest before folding it
B
PULL TO OPEN
c
PULL
LEVER 1 TO FOLD BACK
PULL LEVER 2 TO PULL DOWN BACKd
DON'T

TRAVEL BEHIND THE FOLDED
SEAT OR WITH LUGGAGE ON FIRST ROW
E
PULL TO FOLD
Precautions...

185
QUICK HELP
8
Precautions...

186
Dimensions

187
dIMEnSIOnS
The dimensions are given in millimetres.
This model is available in 4 lengths (L1...) and 3 heights (H1...); refer to the corresponding tables:VA
n
L1L2L3L4
H1 H2 H1 H2 H2 H3 H2 H3
L Overall length 4

9635
4135
9986
363
H Overall height 2
254 2 524 2 254 2 524 2 524 2 764 2 524 2 764
A Wheelbase 3
0003
4504
035
B Front overhang 948
cRear overhang1

0151
380
dOverall width (incl./excl. mirrors)2 508 / 2

050
E Width of front track 1
810
F Width of rear track 1
790
G Height of load floor 535 to 565
I Length of interior floor 2
6703
1203
7054
070
jMaximum interior load height1

662 1 932 1 662 1 932 1 932 2 172 1 932 2 172
K Maximum interior width 1
870
M Interior width between wheel arches 1
422
Volume (m
3) 89.5 10 11.5 13 15 15 17
9
TECHNICAL DATA
Dimensions

188
rEAr dOOrS
L1 L2L3L4
H1 H2 H1 H2 H2 H3 H2 H3
nRear door aperture height 1


520 1

790 1

520 1 790 1 790 2 030 1 790 2 030
O Rear door aperture width 1
562
