Citroen SPACETOURER 2016 1.G User Guide

9
Spacetourer-VP_en_Chap00b_vue-ensemble_ed01-2016
Maintenance - Technical data
Dimensions 323
Identification markings 3 27
Running out of fuel, (primimg pump)

3

22
Checking levels

2

73 -275
-

oil
-

b

rake fluid
-

p

ower steering fluid
-


coolant
-
s

creenwash, headlamp wash fluid
-

a

dditive (Diesel with particle filter)
Checking components

2

76 -277
-


battery
-
a

ir filter - passenger compartment filter
-

o

il filter
-

p

article filter
-

b

rake pads - discs
Changing bulbs
2

98-310
-

front
-

rear 12V battery

3
16 -320
Opening the bonnet

2

71
Under the bonnet

2

72
Engines
32

4-326
AdBlue
® 2 78 -281Weights
32
4-326
Load reduction, economy mode
26
6
Engine compartment
fuses
31
1- 312, 315
.
Over view

10
80
109 176
102-103
109
190 183
124 139 318 271
Spacetourer-VP_en_Chap00b_vue-ensemble_ed01-2016
Labels
Over view

11
Spacetourer-VP_en_Chap00c_eco-conduite_ed01-2016
Eco-driving is a range of everyday practices
that allow the motorist to optimise their fuel
consumption and CO
2 emissions.
Eco-driving
Optimise the use of your
gearbox
With a manual gearbox, move off gently and
change up without waiting. During acceleration
change up early.
With an automatic or electronic gearbox,
give preference to automatic mode and avoid
pressing the accelerator pedal heavily or
suddenly.
The gear shift indicator invites you to engage
the most suitable gear: as soon as the
indication is displayed in the instrument panel,
follow it straight away.
For vehicles fitted with an electronic or
automatic gearbox, this indicator appears only
in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use
engine braking rather than the brake pedal,
and press the accelerator progressively. These
practices contribute towards a reduction in fuel
consumption and CO
2 emissions and also help
to reduce the background traffic noise.
If your vehicle has cruise control, make use of
the system at speeds above 25 mph (40 km/h)
when the traffic is flowing well.
Control the use of your
electrical equipment
Switch off the demisting and defrosting controls,
if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps
when the level of light does not require their
use.
Avoid running the engine before moving off,
particularly in winter; your vehicle will warm up
much faster while driving.
As a passenger, if you avoid connecting
your multimedia devices (film, music, video
game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before
leaving the vehicle.
Before moving off, if the passenger compartment
is too warm, ventilate it by opening the windows
and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and
leave the air vents open.
Remember to make use of equipment that can
help keep the temperature in the passenger
compartment down (sunroof and window blinds...).
Switch off the air conditioning, unless it has
automatic regulation, as soon as the desired
temperature is attained.
.
Eco-driving

12
Spacetourer-VP_en_Chap00c_eco-conduite_ed01-2016
Limit the causes of excess
consumption
Spread loads throughout the vehicle; place the
heaviest items in the bottom of the boot, as
close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce
wind resistance (roof bars, roof rack, bicycle
carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit
your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly, when cold,
referring to the label in the door aperture,
driver's side.
Carry out this check in particular:
-
b
efore a long journey,
-

a
t each change of season,
-

a
fter a long period out of use.
Don't forget the spare wheel and the tyres on
any trailer or caravan.
Have your vehicle serviced regularly (engine
oil, oil filter, air filter, passenger compartment
filter...) and observe the schedule of operations
recommended in the manufacturer's service
schedule.
With a BlueHDi Diesel engine, if the SCR
system is faulty your vehicle becomes polluting;
go to a CITROËN dealer or a qualified
workshop without delay to have the emissions
of nitrogen oxides brought back to the legal
level. When refuelling, do not continue after the third
cut-off of the nozzle to avoid any over flow.
At the wheel of your new vehicle, it is only after
the first 1 800 miles (3 000 kilometres) that you
will see the fuel consumption settle down to a
consistent average.
Eco-driving

13
Spacetourer-VP_en_Chap01_instruments-de-bord_ed01-2016
1. Analogue speedometer (mph or km/h).
2. Fuel gauge.
3.
E

ngine coolant temperature gauge.
4.
C

ruise control or speed limiter settings.
5.
D

igital speedometer (mph or km/h). A. R
eset the service indicator. T
emporarily recall information on:
-
ser

vicing,
-

r
emaining driving range with the
emissions fluid (AdBlue
®).
B. M
ain lighting dimmer.
C.
R

eset the trip recorder.
6.
G

ear shift indicator.
G

ear with an automatic or electronic
gearbox.
7.
S

ervice indicator, then total distance
recorder (miles or km), trip recorder (miles
or km), display of messages, ...
8.
R

ev counter (x 1 000 rpm or tr/min).
Dials and screens Control buttons

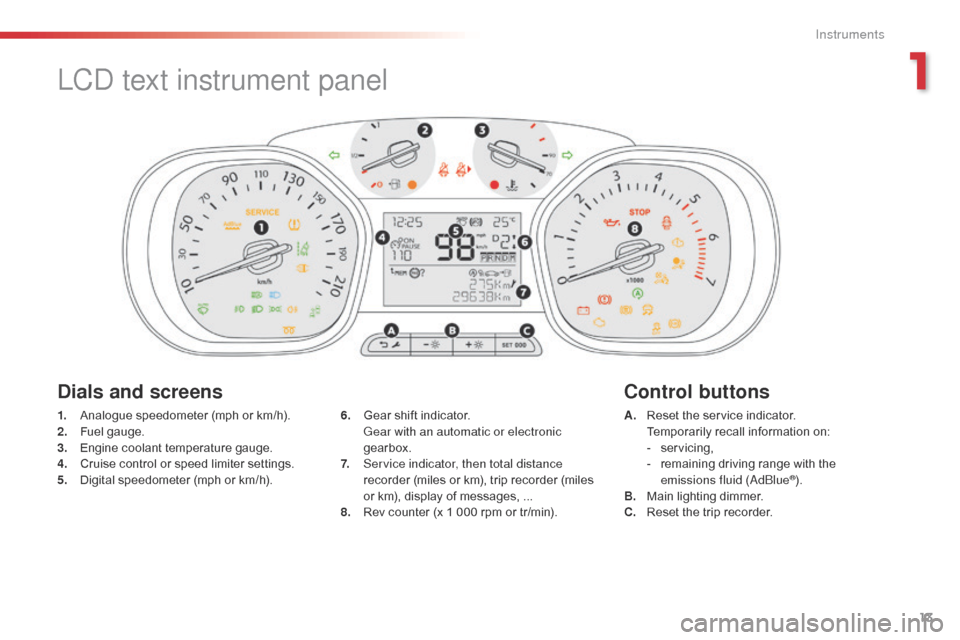

LCD text instrument panel
1
Instruments

14
Matrix instrument panel
1. Analogue speedometer (mph or km/h).
2. Fuel gauge.
3.
E

ngine coolant temperature gauge.
4.
C

ruise control or speed limiter settings.
5.
G

ear shift indicator.
G

ear with an automatic or electronic
gearbox. A. R
eset the service indicator. D
isplay the alert log.
R

ecall information on:
-
ser

vicing,
-

r
emaining driving range with the
emissions fluid (AdBlue
®).
B. M
ain lighting dimmer.
C.
R

eset the trip recorder.
6.
D

isplay area: alert or state of function
messages, trip computer, digital
speedometer (mph or km/h), ...
7.
S

ervice indicator, then total distance
recorder (miles or km). T
hese functions are displayed in turn when
the ignition is switched on.
8.
T

rip recorder (miles or km).
9.
R

ev counter (x 1 000 rpm or tr/min).
Dials and screens Control buttons
Instruments

15
Spacetourer-VP_en_Chap01_instruments-de-bord_ed01-2016
Indicator and warning
lamps
Visual indicators informing the driver that
a system is in operation or is switched off
(indicator lamp), or has a fault (warning lamp).
When the ignition is switched on
Certain warning lamps come on for a few seconds
when the vehicle's ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Associated warnings
Certain warning lamps may come on in one of
two modes: fixed (continuous) or flashing.
Only by relating the type of illumination to the
operation of the vehicle can it be determined
whether the situation is normal or a fault has
occurred. In the event of a fault, the illumination
of the warning lamp may be accompanied by
an audible signal and/or a message.
Warning lamps
When the engine is running or the vehicle is
being driven, illumination of one of the following
warning lamps indicates a fault which requires
action on the part of the driver.
Any fault resulting in the illumination of a
warning lamp must be investigated further
using the associated message.
If you encounter any problems, contact a
CITROËN dealer or a qualified workshop.
Operation indicator lamps
If one of the following indicator lamps comes on
in the instrument panel and/or instrument panel
screen, this confirms that the corresponding
system has come into operation.
Deactivation indicator lamps
If one of the following indicator lamps comes
on, this confirms that the corresponding system
has been switched off intentionally.
This is may be accompanied by an audible
signal and the display of a message.
1
Instruments

16
Warning / indicator lampStateCause Action / Observations
STOP fixed, associated with
another warning lamp,
accompanied by an
audible signal and a
message. Illumination of this warning lamp is
related to a serious fault detected
with the engine, the braking system,
the power steering, etc., or a major
electrical fault. You must stop as soon as it is safe to do so.
Park, switch off the ignition and call a CITROËN
dealer or a qualified workshop.
Parking brake fixed. The parking brake is applied or not
properly released. Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For more information on the Parking brake
, refer to
the corresponding section.
Braking fixed. The brake fluid level has dropped
significantly. You must stop as soon as it is safe to do so.
Top-up with brake fluid listed by CITROËN.
If the problem persists, have the system checked by a
CITROËN dealer or a qualified workshop.
+ fixed, associated
with the ABS warning
lamp.The electronic brake force distribution
(EBFD) system has a fault.
You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified
workshop.
Instruments

17
Spacetourer-VP_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
Seat belt(s)
not fastened /
unfastened fixed
or flashing
accompanied by an
audible signal. A seat belt has not been fastened or
has been unfastened.
Pull the strap then insert the tongue in the buckle.
*
Depending on the country of sale. Battery charge
*fixed. The battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...). The warning lamp should go off when the engine is
started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.
Engine oil
pressure fixed.
There is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
Maximum
coolant
temperature fixed with the needle
in the red zone.
The temperature of the cooling
system is too high. You must stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping-
up the level, if necessary.
If the problem persists, contact a CITROËN dealer or
a qualified workshop.
1
Instruments

18
Warning / indicator lampStateCause Action / Observations
Door(s) open fixed, associated with
a message identifying
the door, if the speed
is below 6 mph
(10
km/h).A front, side or rear door (side-hinged
rear door or tailgate) is still open.
If fitted to your vehicle, the tailgate
screen is still open.
Close the door in question.
If your vehicle has side-hinged rear doors and the
right hand door is still open, this will not be signalled
by this warning lamp.
fixed, associated with
a message identifying
the door, together with
an audible signal if the
speed is above 6 mph
(10 km/h).
Low fuel level fixed, with the needle
in the red zone. When it first comes on there remains
less than 8 litres of fuel in the tank. You must refuel as soon as possible to avoid running
out of fuel.
This warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is
made.
Fuel tank capacity: approximately 69 litres
.
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
Instruments
