Electronic engine immobiliser
The remote control contains an electronic chip
which has a special code. When the ignition is
switched on, this code must be recognised in
order for starting to be possible.
This electronic engine immobiliser locks the
engine management system a few moments
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
F

P

ress this button
Locating your vehicle
This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must have been locked for more than
five seconds.
This switches on the courtesy lamps and the
direction indicators flash for about ten seconds.
Remote operation of lighting
A short press on this button switches
on the lighting remotely (sidelamps,
dipped beam headlamps and number
plate lamps).
A second press on this button before
the end of the timed period cancels
the remote lighting.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle.
In this case, your vehicle will not start; contact
a CITROËN dealer as soon as possible.
If fitted to your vehicle.
2
Access

50
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Back-up control(s)
Locking the driver's doorLocking the front passenger door
F Open the door.
For mechanically locking and unlocking the doors in the event of a fault with the central locking
system or a battery failure.
If your vehicle has an alarm, it will not
be deactivated/activated on unlocking/
locking the vehicle.
Opening a door will trigger the alarm,
which can be stopped by switching on
the ignition.
Locking the sliding side
door
F If fitted to your vehicle, check that the electric child lock is not on.
F

O
pen the door.
Unlocking
F Insert the key in the door lock and turn it to the front.
Unlocking
Use the interior door handle.
Unlocking
F Use the interior door handle.
For more information on the Child lock ,
refer to the corresponding section.
F

R
emove the cap on the edge of the door.
F
I
nsert the key into the latch aperture
(without forcing) and turn the assembly.
F
R
emove the key and refit the cap.
F
C
lose the door and check from the outside
that it has locked correctly.
F

R

emove the cap on on the edge of the
d o o r.
F

I

nsert the key into the latch aperture
(without forcing) and turn the assembly.
F

R

emove the key and refit the cap.
F

C

lose the door and check from the outside
that it has locked correctly.
F

I

nsert the key in the door lock and turn it to
the rear.
Access

51
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Changing the battery
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.If the battery is flat, you are
informed by lighting of this warning
lamp in the instrument panel, an audible signal
and a message in the screen.
Reinitialisation
Locking the side-hinged doors
F If fitted to your vehicle, check that the
electric child lock is not on.
F

O
pen the left-hand door. Battery ref.: CR1620 / 3 volts.
F
L
ock the driver's door using the
key.
F

P
ress one of the remote control
buttons.
F

T
urn the key to position 2 (Ignition on).
F

S
witch off the ignition and remove the key
from the ignition switch.
The remote control is fully operational again.
Unlocking
F Use the interior door handle.
Remote control problem
Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
F

F
irst of all, use the key in the lock to unlock
or lock your vehicle.
F

T
hen reinitialise the remote control.
If the problem persists, contact a CITROËN
dealer as soon as possible.
F

I

nsert the key into the latch aperture on the
edge of the door (without forcing) and slide
the assembly upward.
F

R

emove the key.
F

C

lose the door and check from the outside
that it has locked correctly. F

U
nclip the cover using a screwdriver in the
cut-out.
F

R
emove the cover.
F

E
xtract the flat battery from its location.
F

P
lace the new battery into its location
observing the original direction.
F

C
lip the cover in place.
2
Access

52
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
"Keyless Entry and
Starting"
It allows the central locking or unlocking of the
vehicle from a distance.
It is also used to locate and start the vehicle, as
well as providing protection against theft.
Remote controlLocking
Ensure that no person or object could
prevent the correct closing of the
windows.
Be particularly aware of children when
operating the windows.
If a door is not correctly shut (except
the right-hand door with side-hinged
rear doors):
-

v
ehicle stationary and the engine
running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,
-

v
ehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.
F
To
totally lock the vehicle, press
this button.
F

T

o unlock the vehicle, press
this button.
With electric sliding door(s)
F To unlock the vehicle and open the side door,
press and hold this
button until the door has
opened
Unlocking is signalled by the rapid
flashing of the direction indicators for
about two seconds.
Depending on version, the door mirrors
unfold at the same time.
Unlocking
If fitted to your vehicle, pressing
and holding this button allows the
windows to be closed. The window
stops when you release the button.
Access

53
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Driving with the doors locked may make
access to the passenger compartment by
the emergency services more difficult in
the event of an emergency.
As a safety measure (children on board),
never leave the vehicle without your
remote control, even for a short period.
If your vehicle is not fitted with an
alarm, locking is signalled by the fixed
illumination of the direction indicators
for about two seconds.
Depending on version, the door mirrors
fold at the same time.
If one of the doors remains open, the
central locking does not take place.
If the vehicle is inadvertently unlocked,
it will automatically lock itself again
after about thirty seconds, if no door is
opened.
And if fitted to your vehicle, the alarm is
reactivated (with volumetric monitoring,
even if you had deactivated it).If fitted to your vehicle, pressing
and holding this button allows the
windows to be closed. The window
stops when you release the button.

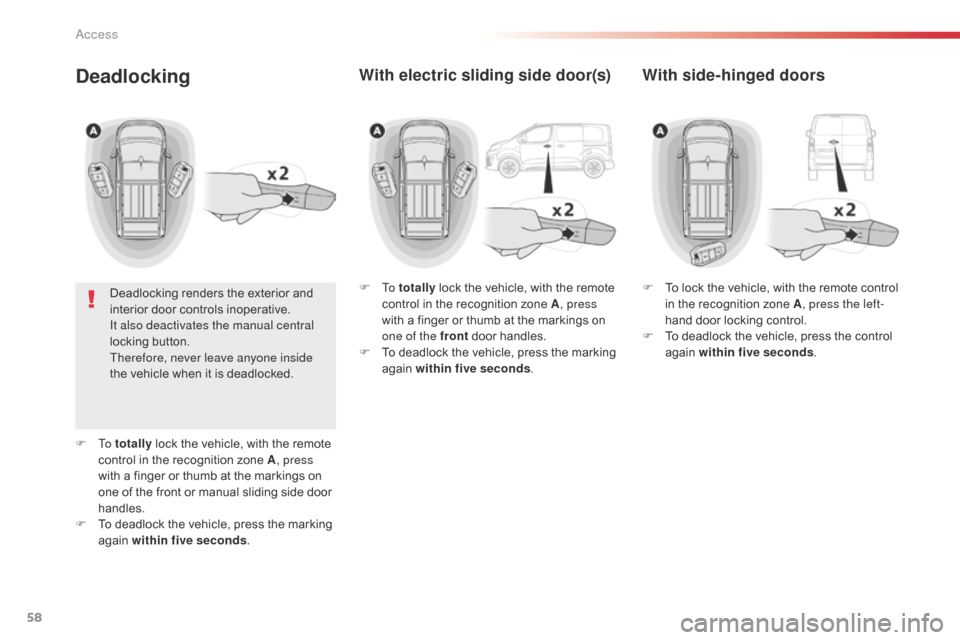

Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
F

P
ress this button. F
Then
within five seconds after
locking , press this button again.
Ensure that no person or object could
prevent the correct closing of the
windows.
Be particularly aware of children when
operating the windows.
Depending on version, the door mirrors
fold at the same time. If your vehicle is not fitted with an alarm,
deadlocking is signalled by the fixed
illumination of the direction indicators
for about two seconds.
To lock the vehicle, To deadlock the vehicle.
The automatic folding and unfolding
of the electric door mirrors can be
deactivated by a CITROËN dealer or a
qualified workshop.
2
Access

54
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
The unlocking, locking or deadlocking
does not take place:
-
i
f the ignition is on,
-

i
f one of the doors or the boot is still
open,
-

i
f the key for the Keyless Entry and
Starting system has been left inside
the vehicle.
When the vehicle is locked (with the
remote control or Keyless Entry and
Starting), if it is unlocked inadvertently,
it will lock itself again automatically after
about thirty seconds unless a door has
been opened.
And if your vehicle has an alarm, this
will be reactivated (with volumetric
monitoring, even if this had been
deactivated).
"Keyless Entry and
Starting" on your person
This allows the unlocking, locking and starting
the vehicle while keeping the remote control on
your person. As a safety measure (children on
board), never leave the vehicle without
taking your Keyless Entry and Starting
remote control, even for a short period.
Guard against theft when the Keyless
Entry and Starting remote control is in
the recognition zone with the vehicle
unlocked.
In order to preserve the charge of the
cell battery in the remote control, the
"hands-free" functions go into extended
stand-by after 21 days of non-use.
To restore these functions, press one of
the remote control buttons or start the
engine with the remote control at the
reader. The folding and unfolding of the door
mirrors by the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.
In the ignition on (accessories) position,
with the "START/STOP" button, the
hands-free function is deactivated.
For more information on "
Keyless
Entry and Starting " and in particular
the "ignition on" position, refer to the
corresponding section.
Access

55
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Unlocking
F To unlock the vehicle, remote control on your person and in the recognition zone A,
pass your hand behind one of the door
handles (front doors, manual sliding side
doors and side-hinged doors).
F

P
ull the handle to open the corresponding
d o o r.
With electric sliding slide door(s)
F To unlock the vehicle, remote control on your person and in the recognition
zone
A, pull and release the door handle to
trigger the electric powered opening of the
corresponding door.
With a tailgate
F To unlock the vehicle, remote control on your person and in the recognition zone A ,
pull the tailgate handle.
F

Ra
ise the tailgate.
2
Access

56
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
With an opening rear screen in the tailgate
F To unlock the vehicle, remote control on your person and in the recognition zone A ,
press the unlocking button for the tailgate.
The screen partly opens.
Unlocking is signalled by the rapid
flashing of the direction indicators for
about two seconds.
Depending on version, the door mirrors
unfold, the alarm is deactivated.
With electric sliding side door(s)Locking
F To totally lock the vehicle, with the remote
control in the recognition zone A , press
with a finger or thumb at the markings on
one of the front or manual sliding side door
handles.
If a door is not properly closed
(except the right-hand door with side-
hinged rear doors):
-

v
ehicle stationary and the engine
running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,
-

v
ehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds. F
To totally lock the vehicle, with the remote
control in the recognition zone A , press
with a finger or thumb at the markings on
one of the front door handles.
Access

57
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Ensure that no one might prevent the
correct operation of the windows.
Be particularly aware of children when
operating the windows.
If fitted to your vehicle, pressing and
holding the locking controls allows
the windows to be opened. The
window stops when you release the
button.With side-hinged doors
F To lock the vehicle, with the remote control in the recognition zone A , press the left-
hand door locking control.
With a tailgate
F To lock the vehicle, with the remote control in the recognition zone A , press the
tailgate locking control.
Driving with the doors locked may
render access for the emergency
services difficult in an emergency. If your vehicle is not fitted with an
alarm, locking is confirmed by fixed
illumination of the direction indicators
for about two seconds.
Depending on version, the door mirrors
fold at the same time.
2
Access

58
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
locking button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
F

To totally lock the vehicle, with the remote
control in the recognition zone A , press
with a finger or thumb at the markings on
one of the front or manual sliding side door
handles.
F

T

o deadlock the vehicle, press the marking
again within five seconds .F
To
totally lock the vehicle, with the remote
control in the recognition zone A , press
with a finger or thumb at the markings on
one of the front door handles.
F

T
o deadlock the vehicle, press the marking
again within five seconds .
With electric sliding side door(s) With side-hinged doors
F To lock the vehicle, with the remote control
in the recognition zone A , press the left-
hand door locking control.
F

T
o deadlock the vehicle, press the control
again within five seconds .
Access
