Citroen SPACETOURER 2016 1.G Manual PDF

69
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
F Child lock deactivated, to unlock the vehicle and start the electrically powered
opening of a door, press the button for the
corresponding door.
F

P
ressing the button again reverses the
movement of the door.
The button is not operational and
pressing it results in an audible signal, if:
-
t

he vehicle is moving,
-
t

he vehicle has been locked or
deadlocked from outside (using
the key, remote control or Keyless
Entry and Starting, depending on
equipment),
-
t

he child lock is on (activated),
The button for the left-hand door is not
operational and pressing it results in
an audible signal if the fuel filler flap is
open. The button is not available and
accompanied by an audible signal, if:
-

t
he vehicle is moving,
-

t
he vehicle has been locked or
deadlocked from outside (using
the key, remote control or Keyless
Entry and Starting, depending on
equipment),
-

t
he child lock is on (activated),
The button for the left-hand door is
not available and is accompanied by
an audible signal if the fuel filler flap is
open.

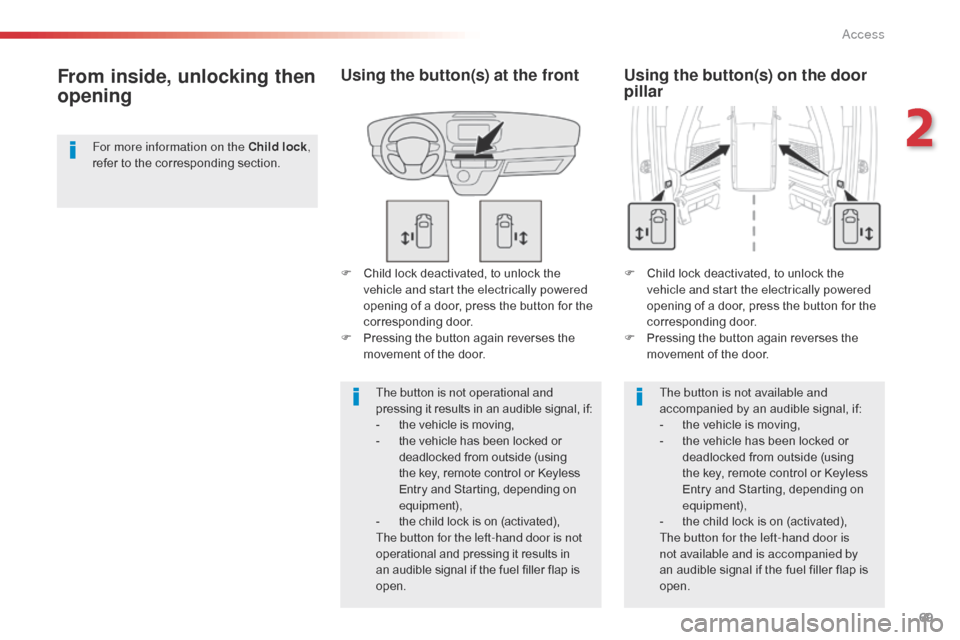

Using the button(s) at the frontFrom inside, unlocking then
openingUsing the button(s) on the door
pillar
F Child lock deactivated, to unlock the vehicle and start the electrically powered
opening of a door, press the button for the
corresponding door.
F

P
ressing the button again reverses the
movement of the door.
For more information on the Child lock
,
refer to the corresponding section.
2
Access

70
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
The remote controls buttons are not
active with the ignition switched on.
Closing
From outside
F To start the electrically powered opening of the door, press the button for the
corresponding door.
F

P
ressing the button again reverses the
movement of the door.
Using the button(s) at the front
The button is not operational and
pressing it results in an audible
signal, if the speed of the vehicle is
above 20 mph (30 km/h).
From inside
Using the remote control
F Press and hold this button until the sliding door has closed.
F

P
ress this button again to
reverse the movement of the
d o o r.
Using the handle
F Pull and release the handle to start the electrically powered opening of the door.
F

P
ull the handle again to reverse the
movement of the door.
Access

71
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
F To start the electrically powered opening of a door, press the button for the
corresponding door.
F

P
ressing the button again reverses the
movement of the door.
Using the button(s) on the door
pillar
The button is not operational and
pressing it results in an audible
signal, if the speed of the vehicle is
above 20 mph (30 km/h). If a sliding door is not fully closed:
-

v
ehicle stationary and engine
running, this warning lamp comes
on, accompanied by an alert
message for a few seconds,
-
v
ehicle moving (speed above 6 mph
(10 km/h)), this warning lamp comes
on, accompanied by an audible
signal and an alert message for a
few seconds.
2
Access

72
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
General recommendationsBefore any opening or closing and
during any movement of the doors,
ensure that no person, animal or object
is protruding through the window
frame or might prevent the intended
manoeuvre, either inside or outside the
vehicle.
If this advice is not followed, injuries or
damage may occur if a person or an
object is trapped or caught.
Electric closing and opening of the
doors is not possible above 2 mph
(3 km/h):
-

I
f you set off with the door(s) open,
you must slow down to below
2
mph (3 km/h) in order to close the
d o o r (s).
-

A
ny attempt to open a door
electrically using the interior handle
while driving, results in only being
possible to open the door manually.
-

T
his situation is accompanied by
the audible warning, illumination of
the "door open" warning lamp and
the message in the multifunction
screen. To release the door and
be able to operate it again, it is
necessary to stop the vehicle.
Manual or electric sliding side door(s)
The electric controls are inhibited in the
event of an impact. Manual opening and
closing remain possible.
While starting the engine, the
movement of a door is interrupted and
restored once the engine is running.
Depending on the engine, in Stop
mode of Stop & Start, if the door
is closed and you initiate opening
of the door, the door opens
partially and stops. When the
engine changes automatically to
Start mode, the door continues its
movement.
The doors must only be operated when
the vehicle is stationary.
For your safety and for that of your
passengers, as well as for correct
operation of the doors, you are strongly
advised not to drive with a door open.
Always check that it is safe to operate
the door and in particular, be sure not to
leave children or animals near the door
controls without supervision.
The audible warning, illumination of
the "door open" warning lamp and the
message in the multifunction screen
are there to remind you. Contact
a CITROËN dealer or a qualified
workshop to deactivate these warnings.
Lock your vehicle when using an
automatic car wash.
Access

73
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
When open, a door never projects
beyond the rear bumper.
The doors and the overall
dimensions of the vehicle
When open, a door projects beyond the body.
Be sure to take this into account when you park
alongside a wall, a post or a high kerb...
Safety / Obstacle detection with
electric door(s)Fuel filler flap
The obstacle detection system is triggered
when the moving door encounters an obstacle
with a certain level of physical resistance.
-

I
f an obstacle is detected while the door is
closing, the door stops then opens fully.
-

I
f an obstacle is detected while the door is
opening, the door stops and then closes.
-

I
f an obstacle is detected twice in
succession during a movement of the door,
it will no longer close electrically. Close the
door manually to reinitialise it. If fitted to your vehicle, never open the
left-hand sliding side door when the
fuel filler flap is open. Other wise you
risk damaging the fuel filler flap and the
sliding door and causing injury to the
person filling the vehicle.
If the fuel filler flap is open and your
vehicle has an electric left-hand sliding
side door, the door cannot be opened
using the opening control button. If
required the door can be opened half
way manually. The fuel filler flap must
be closed to allow the door to open
c o r r e c t l y.
2
Access

74
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
In the case of a steep slope, the door
may be driven by its own weight and
as a consequence may open or close
j e r k i l y.
There would not be time for action at
the electric controls to take effect.
There would not be time for the
obstacle detection system to react.
Take care not to leave the vehicle on
a steep slope with the door(s) open
without supervision. If this advice is not
followed, injuries or damage may occur
if a person or an object is trapped or
caught.
On a steep slope
It is possible to open and close the doors
electrically on slopes of up to 20%.
However, if your vehicle is on a slope, with the
front of the vehicle facing up, open the door
with care. The door may open more quickly due
to the incline.
On a steep slope, guide the side door manually
to help it to close. However, if your vehicle is on a slope, with the
front of the vehicle facing down, the door may
not stay open and may close again jerkily with
the risk of injury.
Reinitialising electric doors
Following disconnection of the battery with the
doors open, it may be necessary to close the
doors manually to reinitialise them.
If the doors no longer work electrically,
reinitialise the door(s) as follows:
F

F
ully close the door(s) manually.
F

F
ully open the door(s) manually.
F

C
lose the door(s) manually.
F

F
ully open the door(s) manually.
F

C
lose the door(s) manually.
On completion of this procedure, electric
operation of the doors is restored.
However, if a problem persists following this
procedure, contact a CITROËN dealer or a
qualified workshop.
Access

75
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
The automatic locking after closing the
door is programmable in the vehicle
configuration menu.
Hands-free sliding side door(s)
By keeping the remote control on your person
and with a movement of your foot, the system
unlocks and opens the sliding side door or
closes and locks it.
The remote control must be located at the rear
of the vehicle, more than about 30 cm and less
than about 2 m from the vehicle.Before making the movement with your
foot, ensure that you are steady and
well positioned, so that you do not lose
your balance (rain, snow, ice, mud,
...).
Take care not to touch the exhaust
tailpipe when making the movement
with your foot - risk of burns.
Make the movement without interruption
and do not repeat it immediately
after wards or several times.
If the door does not open, wait about
2 seconds before trying again.
Do not leave your foot in the air.
F

P
ass your foot below the rear bumper then
remove it, as though kicking (upwards).
The sensor detects your foot approaching and
leaving and triggers opening or closing of the
side door.
2
Access

76
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
Confirmation that the door is going
to open is signalled by the direction
indicators flashing for a few seconds,
accompanied by an audible signal.
The movement of the door is reversed
if you pass your foot under the bumper
during operation of the door.
If fitted to your vehicle, the electric door
mirrors unfold on unlocking the vehicle.
Opening
With "Hands-free access " activated in the
vehicle configuration menu.
F

W
ith the remote control on your person and
in the recognition zone A , pass your foot
under the outer rear bumper, on the side
you want to open the door.
Confirmation that the door is going
to close is signalled by the direction
indicators flashing for a few seconds,
accompanied by an audible signal.
The movement of the door is reversed
if you pass your foot under the bumper
during operation of the door.
If fitted to your vehicle, the electric door
mirrors fold on locking the vehicle.
Closing
With "Hands-free access " activated in the
vehicle configuration menu.
F

W
ith the remote control on your person and
in the recognition zone A , pass your foot
under the outer rear bumper, on the side
you want to close the door.
Once the door has closed, the vehicle locks
itself automatically, if " Hands-free access
self-locking " has been selected in the vehicle
configuration menu.
If the vehicle is locked, it is unlocked
before opening the door.
Access

77
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016
With the audio system
In the vehicle settings menu, activate/
deactivate "Hands-free access ".
With the touch screen
In the "Personalisation-Configuration " menu,
activate/deactivate " Hands-free access".
Then, if you want automatic locking after
closing the door, activate/deactivate " Hands-
free access self-locking ".
Deactivation
By default, hands-free access is activated.
The function can be deactivated in the vehicle
configuration menu.
Automatic locking
The vehicle locks itself following the hands-free
closing of a sliding door.
The automatic locking can be deactivated in
the vehicle configuration menu.
If your vehicle is not fitted with an
alarm, locking is confirmed by fixed
illumination of the direction indicators
for about two seconds.
Depending on version, the door mirrors
fold at the same time.
Operating fault
An audible signal repeated three times
indicates a fault with the system.
Contact a CITROËN dealer or a qualified
workshop to have the system checked.
2
Access

78
Spacetourer-VP_en_Chap02_ouvertures_ed01-2016

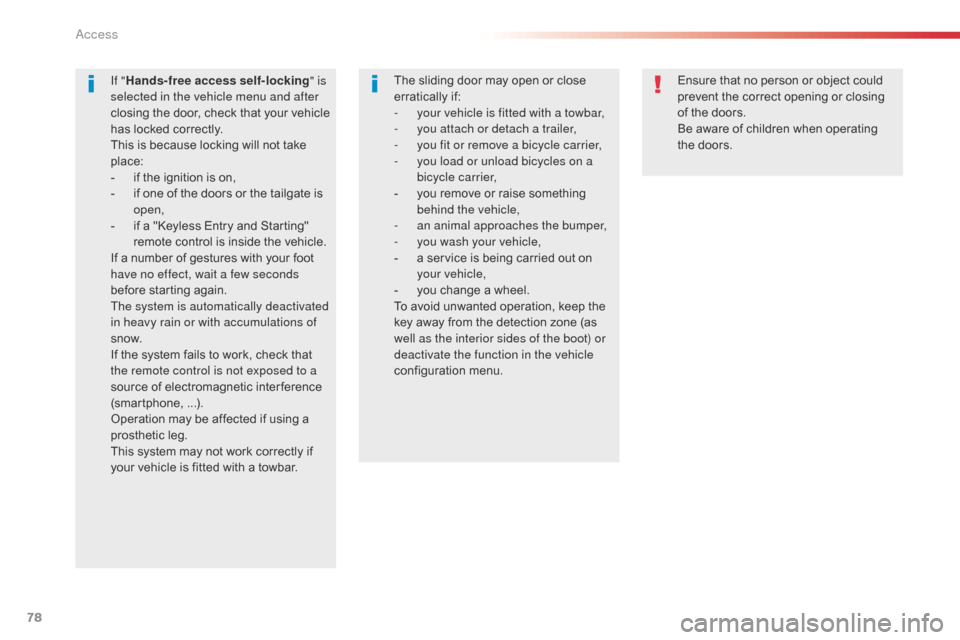

Ensure that no person or object could
prevent the correct opening or closing
of the doors.
Be aware of children when operating
the doors.
If "
Hands-free access self-locking " is
selected in the vehicle menu and after
closing the door, check that your vehicle
has locked correctly.
This is because locking will not take
place:
-

i

f the ignition is on,
-

i

f one of the doors or the tailgate is
open,
-

i

f a "Keyless Entry and Starting"
remote control is inside the vehicle.
If a number of gestures with your foot
have no effect, wait a few seconds
before starting again.
The system is automatically deactivated
in heavy rain or with accumulations of
snow.
If the system fails to work, check that
the remote control is not exposed to a
source of electromagnetic inter ference
(smar tphone, ...).
Operation may be affected if using a
prosthetic leg.
This system may not work correctly if
your vehicle is fitted with a towbar. The sliding door may open or close
erratically if:
-

y

our vehicle is fitted with a towbar,
-

y

ou attach or detach a trailer,
-

y

ou fit or remove a bicycle carrier,
-

y

ou load or unload bicycles on a
bicycle carrier,
-

y

ou remove or raise something
behind the vehicle,
-
an

animal approaches the bumper,
-

y

ou wash your vehicle,
-

a s

ervice is being carried out on
your vehicle,
-

y

ou change a wheel.
To avoid unwanted operation, keep the
key away from the detection zone (as
well as the interior sides of the boot) or
deactivate the function in the vehicle
configuration menu.
Access
