DACIA DUSTER 2010 1.G Mudflap Fitting Guide Workshop Manual

DACIA DUSTER 2010 1.G Mudflap Fitting Guide Workshop Manual https://www.carmanualsonline.info/img/8/1762/w960_1762-0.png DACIA DUSTER 2010 1.G Mudflap Fitting Guide Workshop Manual

Page 1 of 10

DACIA DUSTER 2010 1.G Mudflap Fitting Guide Workshop Manual
      638537420R                                     10/12/2009                                              1/6

Page 2 of 10

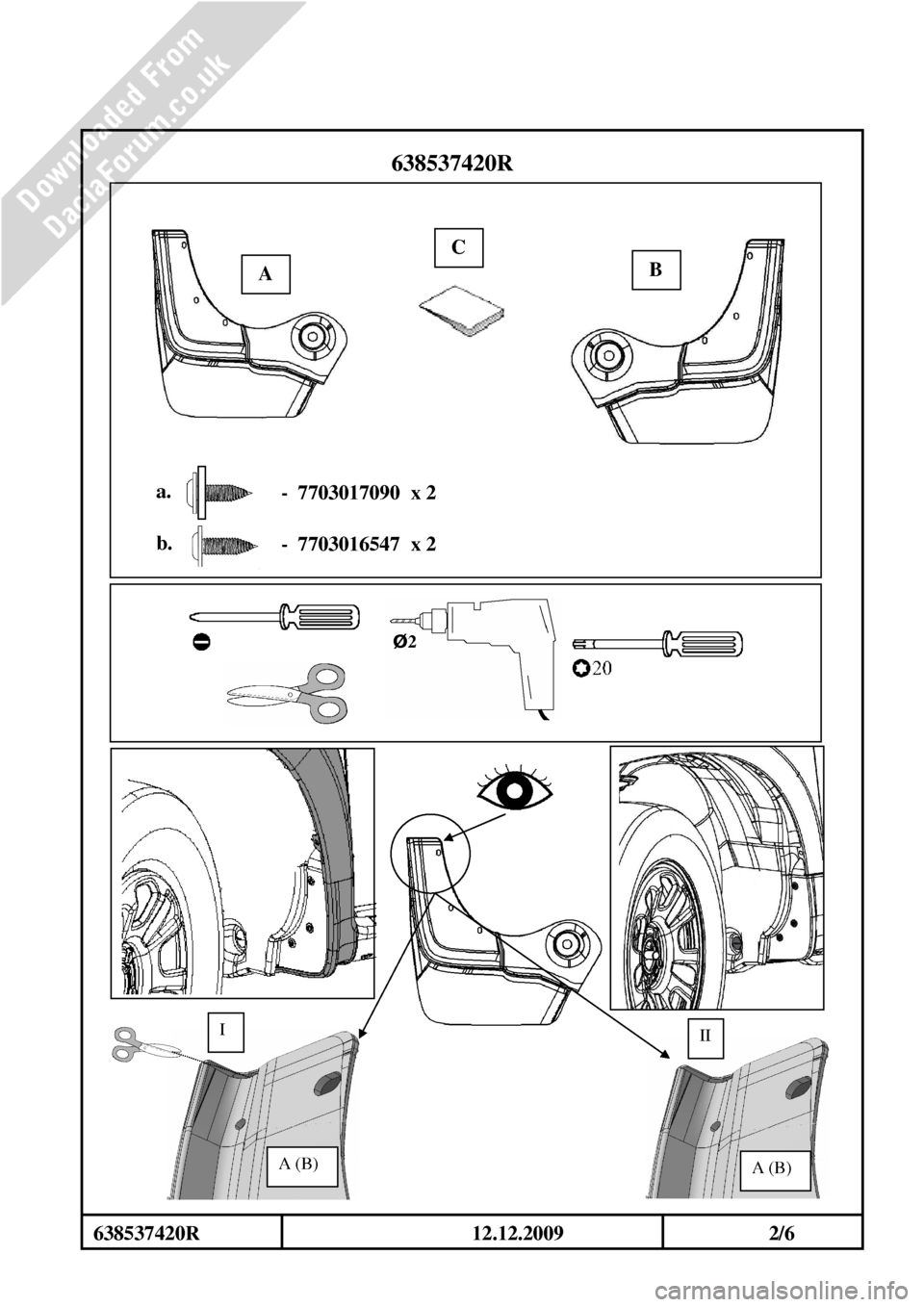

DACIA DUSTER 2010 1.G Mudflap Fitting Guide Workshop Manual


638537420R                                                      12.12.2009                                        2/6

Page 3 of 10

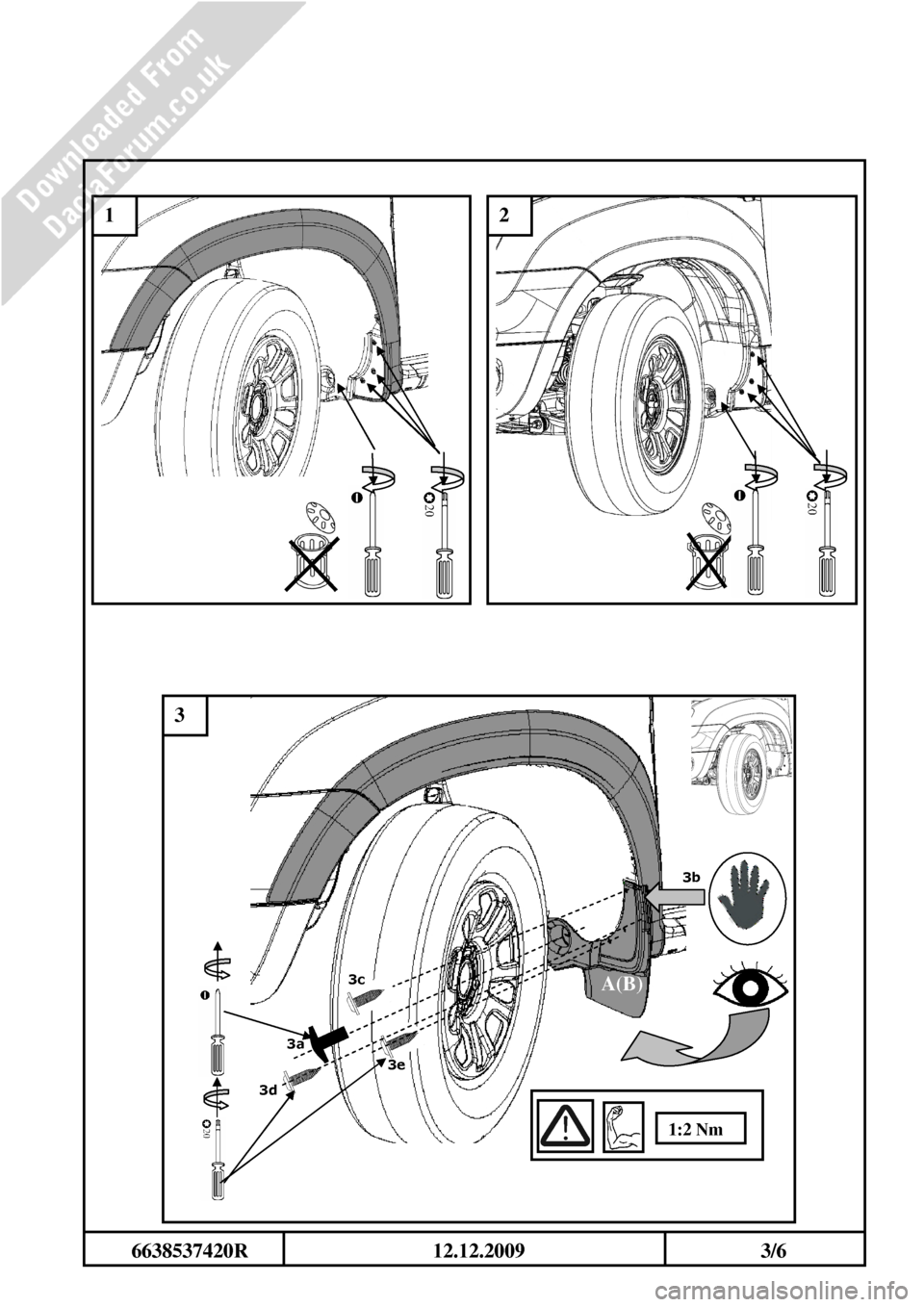

DACIA DUSTER 2010 1.G Mudflap Fitting Guide Workshop Manual
       6638537420R                                    12.12.2009                                              3/6

Page 4 of 10

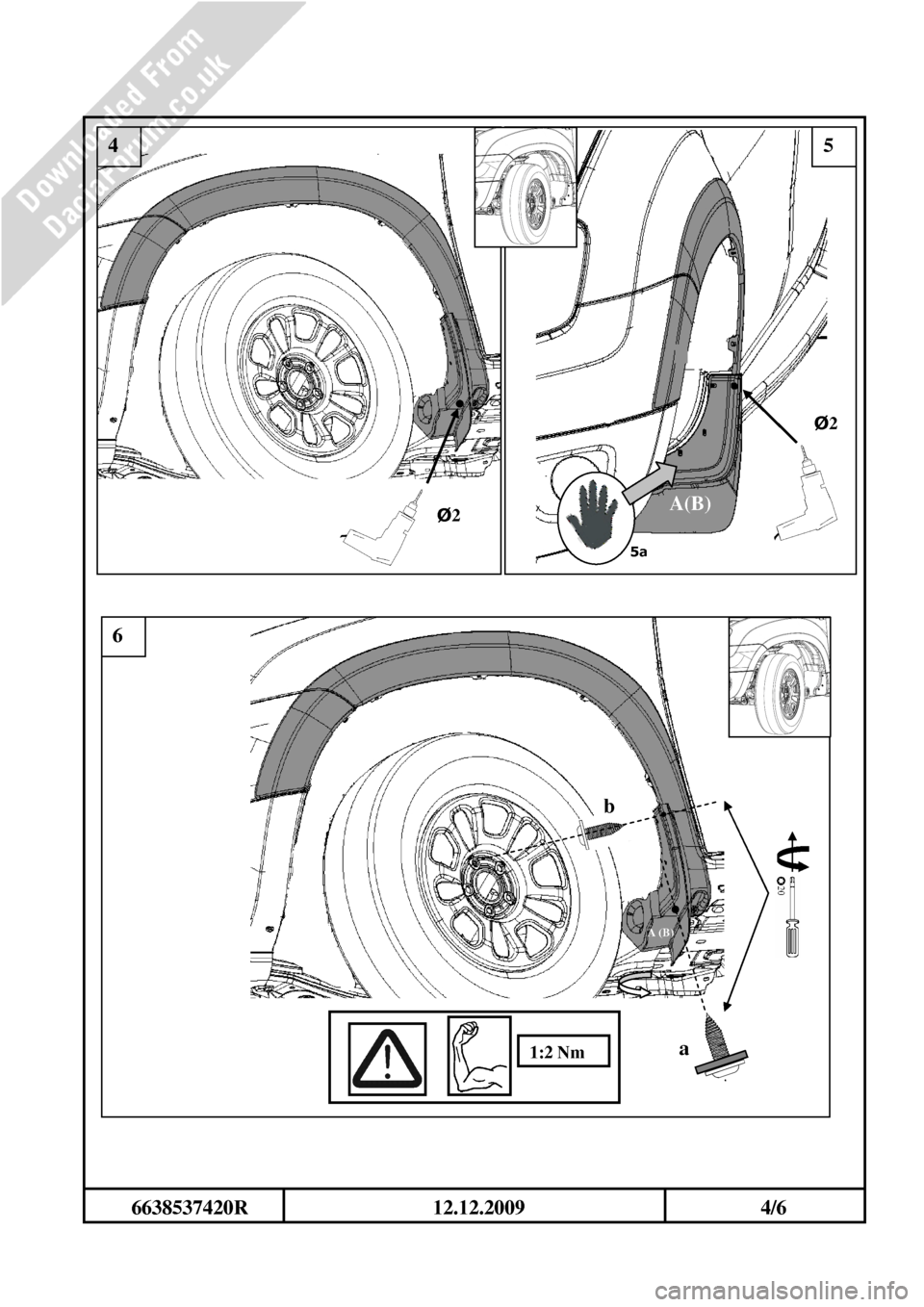

DACIA DUSTER 2010 1.G Mudflap Fitting Guide Workshop Manual
       6638537420R                                    12.12.2009                                              4/6

Page 5 of 10

DACIA DUSTER 2010 1.G Mudflap Fitting Guide Workshop Manual
      788121885R                                     12/12/2009                                              1/8

Page 6 of 10

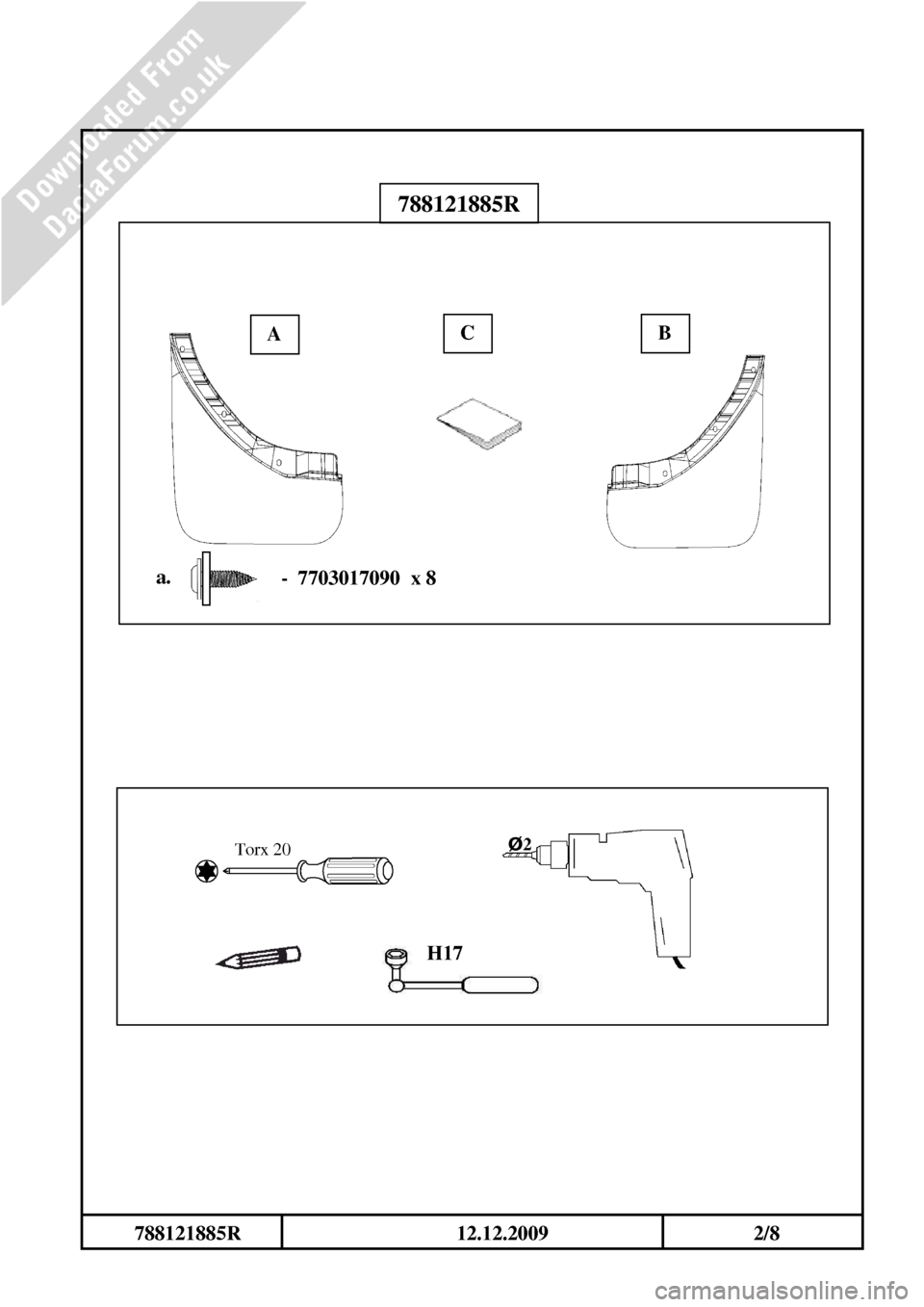

DACIA DUSTER 2010 1.G Mudflap Fitting Guide Workshop Manual
        788121885R                                          12.12.2009                                        2/8

Page 7 of 10

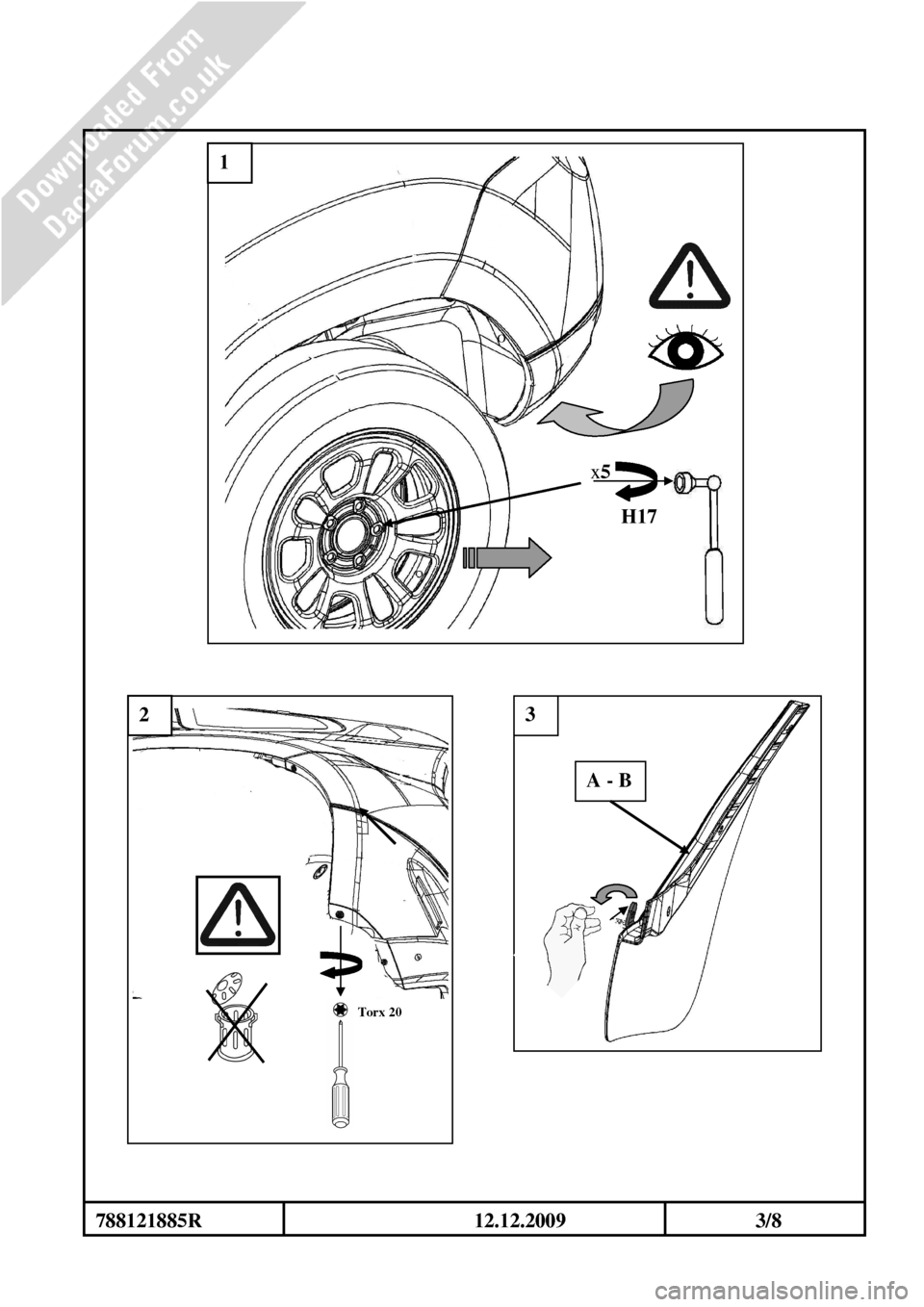

DACIA DUSTER 2010 1.G Mudflap Fitting Guide Workshop Manual
788121885R                                                     12.12.2009                                     3/8

Page 8 of 10

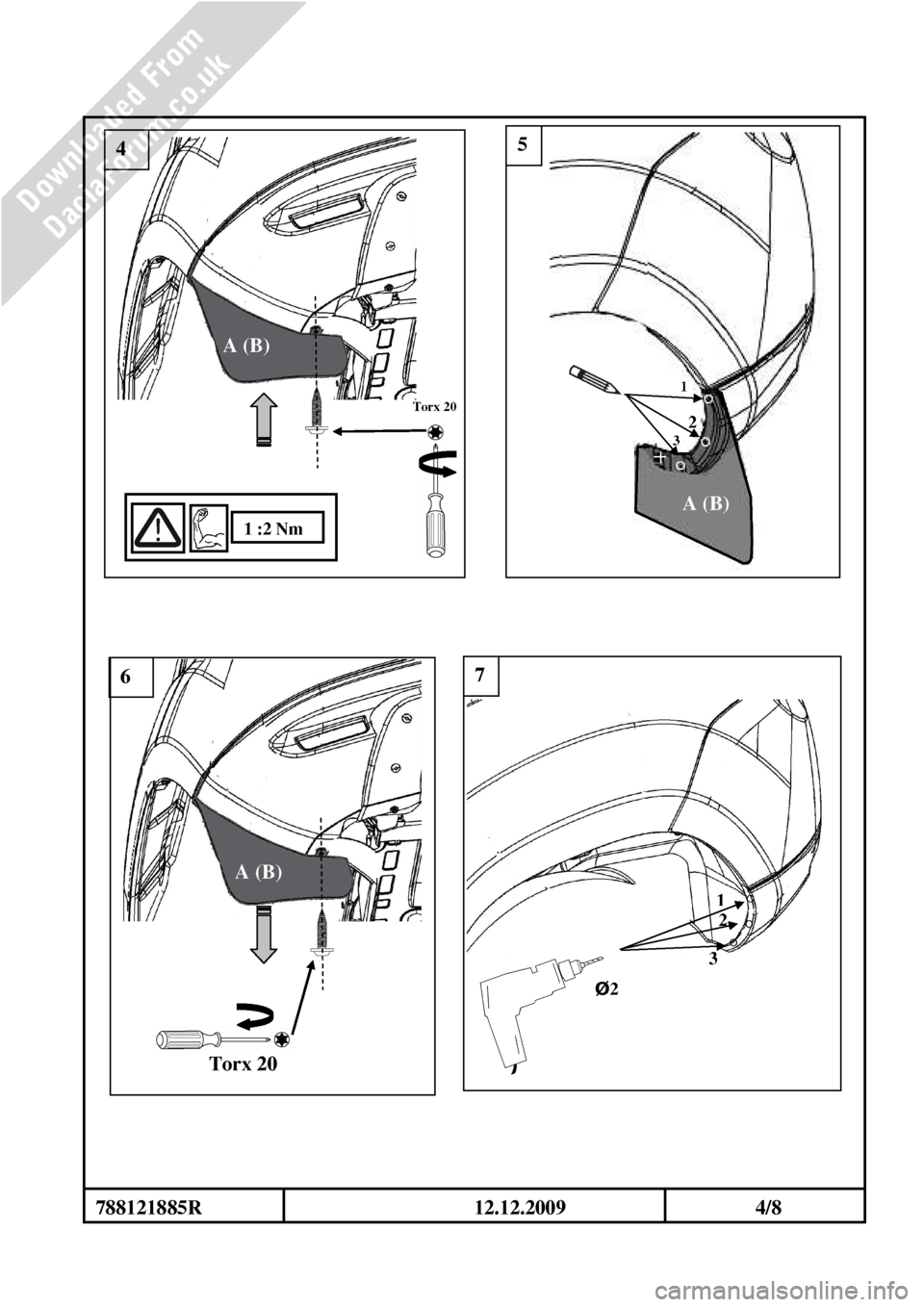

DACIA DUSTER 2010 1.G Mudflap Fitting Guide Workshop Manual
Torx 20
6
A (B)
5
1
2
3
A (B)
7
1
2
3
Ø2
°
°
°
Torx 20
4
1 :2 Nm
A (B)
788121885R

Page 9 of 10

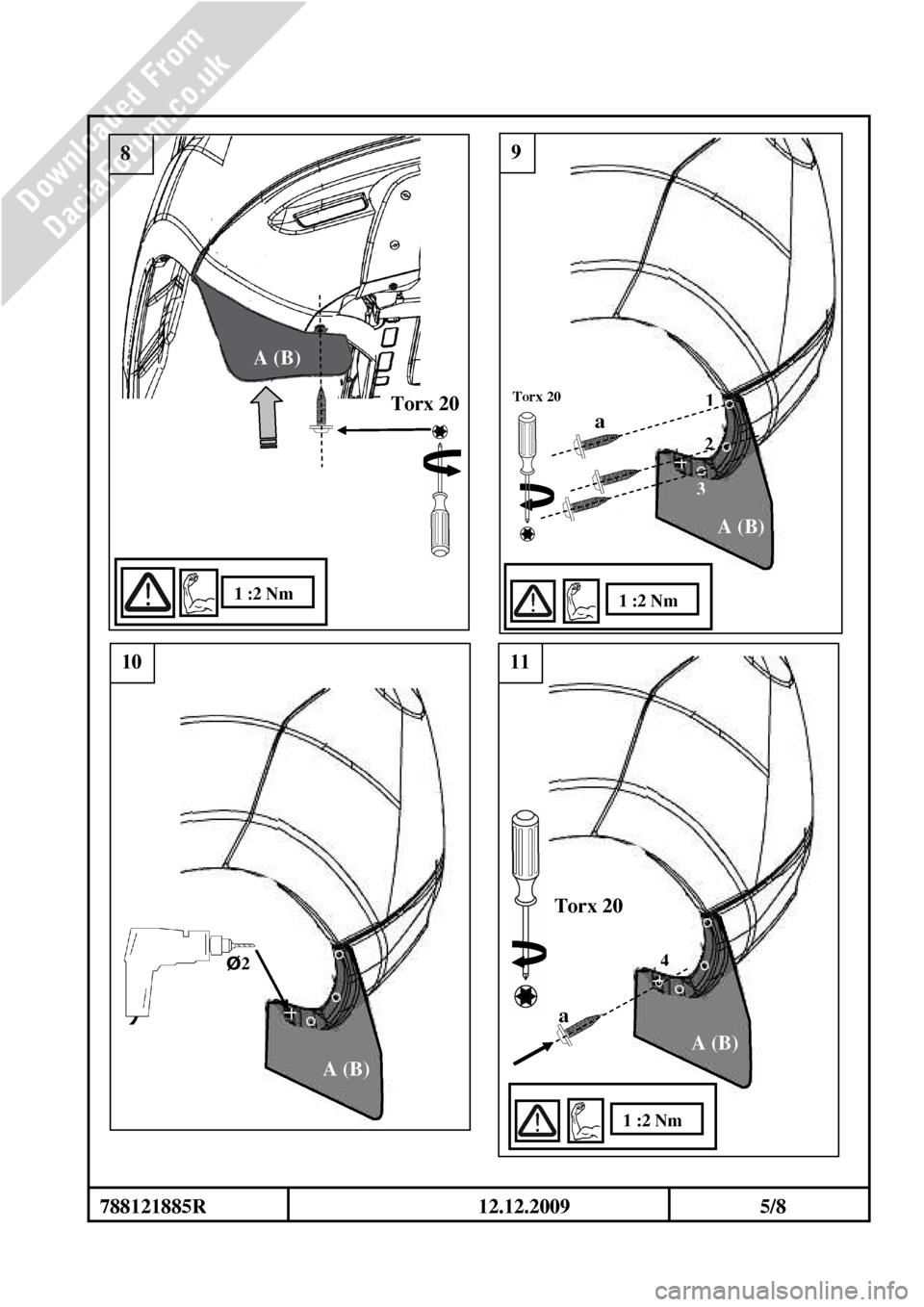

DACIA DUSTER 2010 1.G Mudflap Fitting Guide Workshop Manual
Torx 20
8
1 :2 Nm
788121885R                                                     12.12.2009

Page 10 of 10

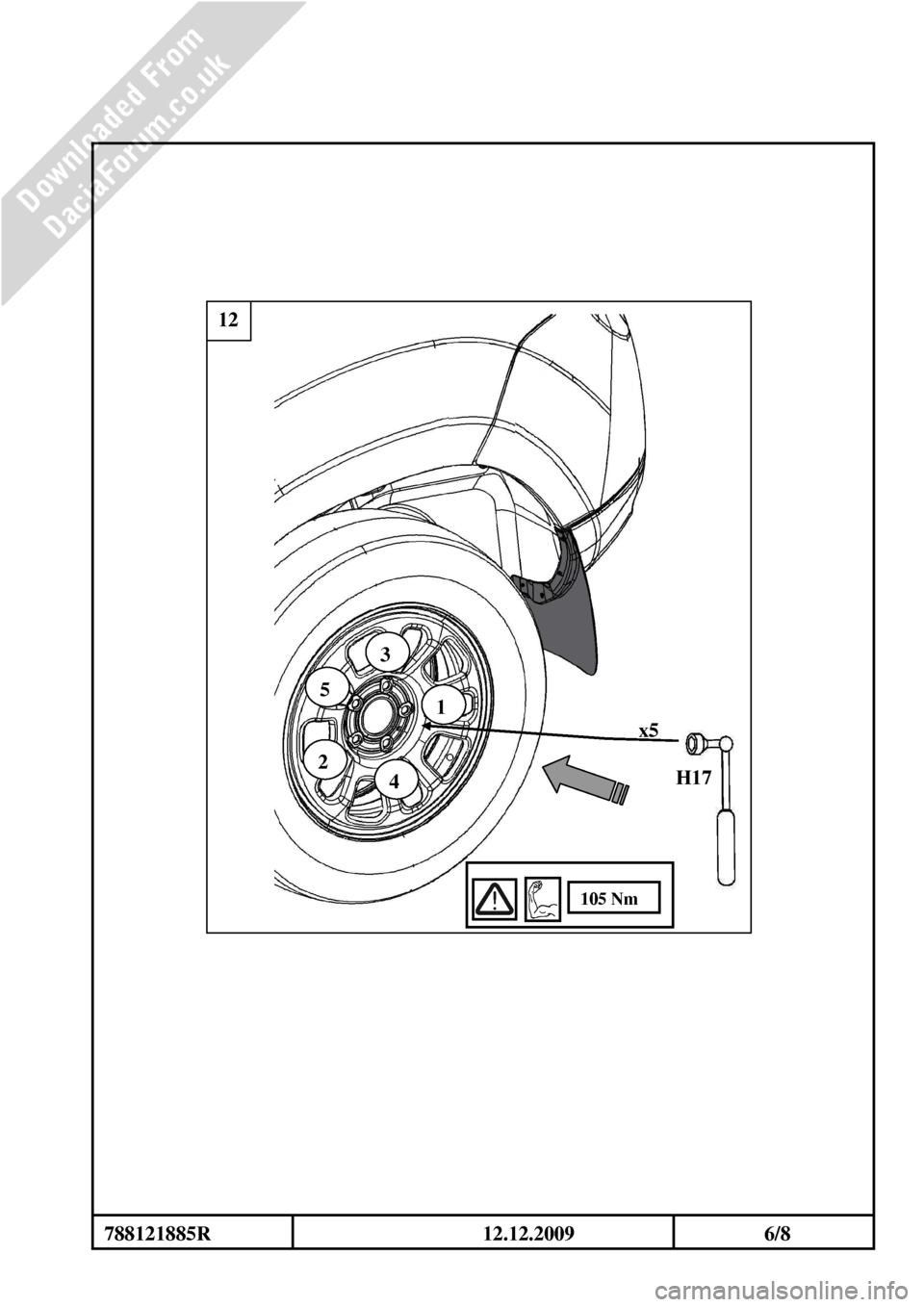

DACIA DUSTER 2010 1.G Mudflap Fitting Guide Workshop Manual
788121885R                                                     12.12.2009                                     6/8
